Step B

Step B:

Add rubber stabilizer to outer door glass seal lip.

Strip of Rubber Dimensions: 1.5x4x740 mm (0.06x0.16x29.13 in.)

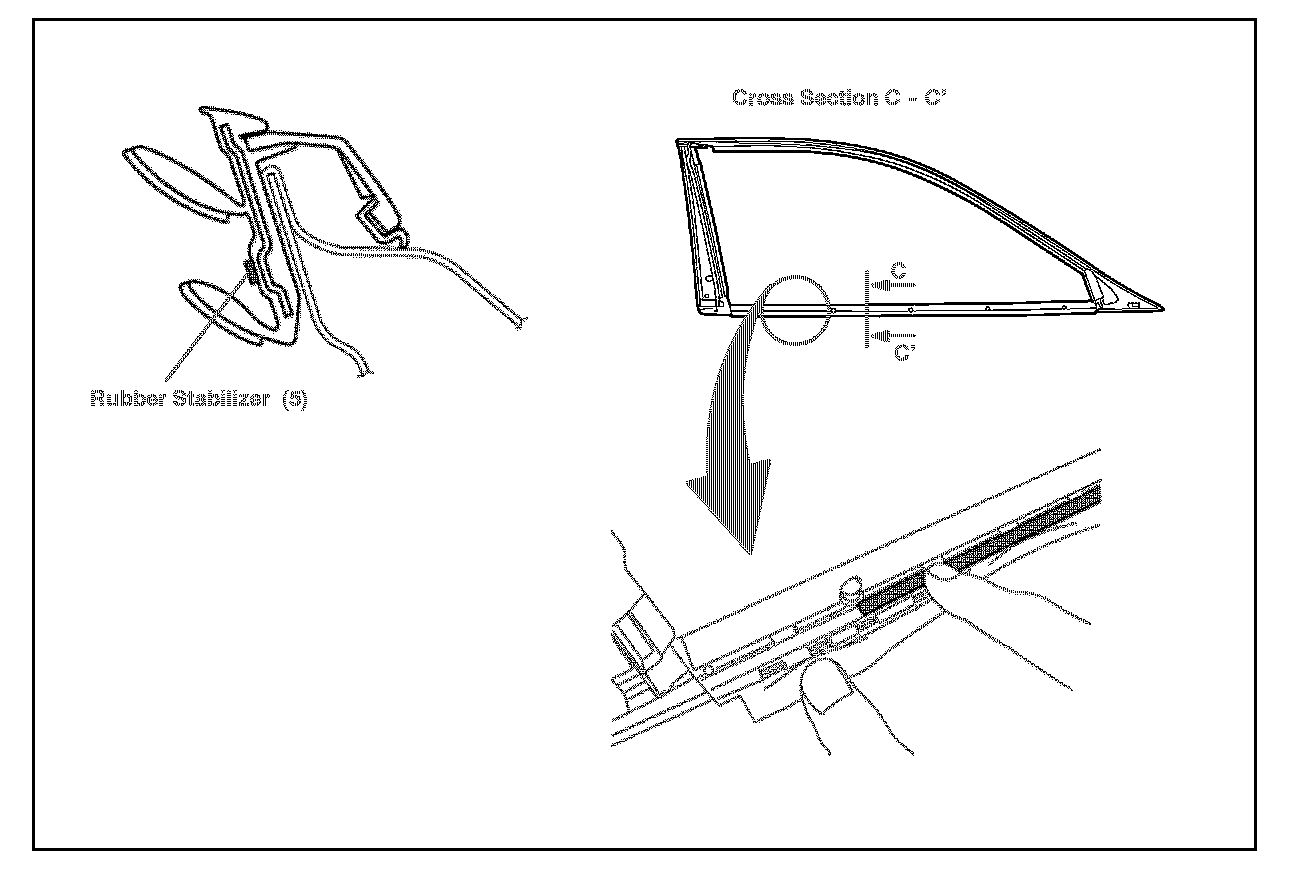

Attach the rubber stabilizer (refer to 5 in the illustration) in the front door glass outer weatherstrip.

1. Clean the area of the molding where the rubber stabilizer will be installed. Make sure that the area is dry before installing the rubber stabilizer.

2. Attach the rubber stabilizer (refer to 5 in the illustration above) using instant super" glue.

3. Start from the rear (near the B-pillar end of the belt molding).

4. Align the end of the rubber stabilizer to the last screw hole in the front door glass outer weatherstrip.
