Remote Up / Down Function Does Not Operate

Remote Up / Down Function does not Operate

DESCRIPTION
When the engine switch is on (IG) and window lock switch is OFF, the master switch sends remote UP / DOWN signal to each power window regulator motor via the LIN communication line.

WIRING DIAGRAM

Wiring Diagram:

INSPECTION PROCEDURE

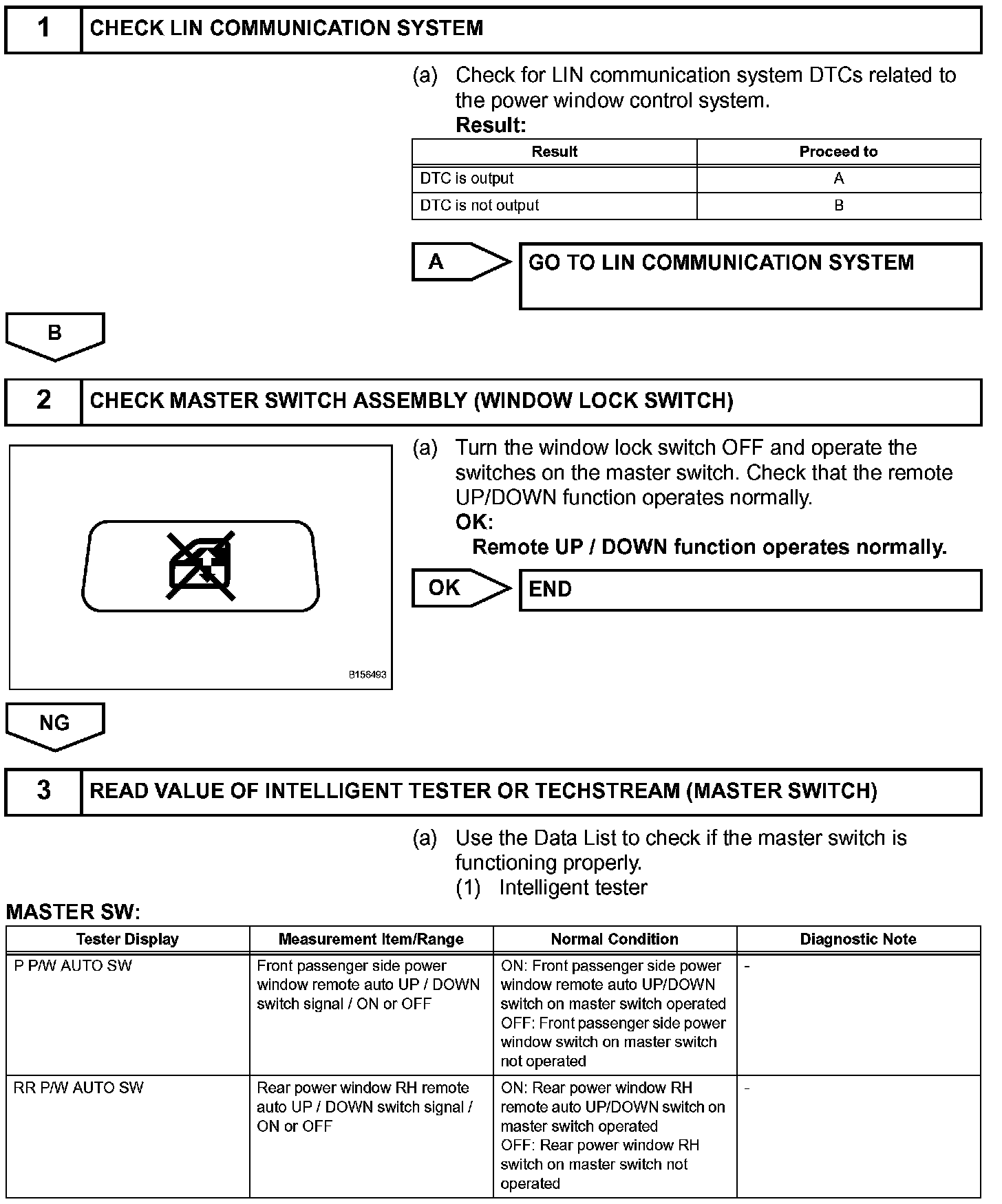

Step 1 - 3:

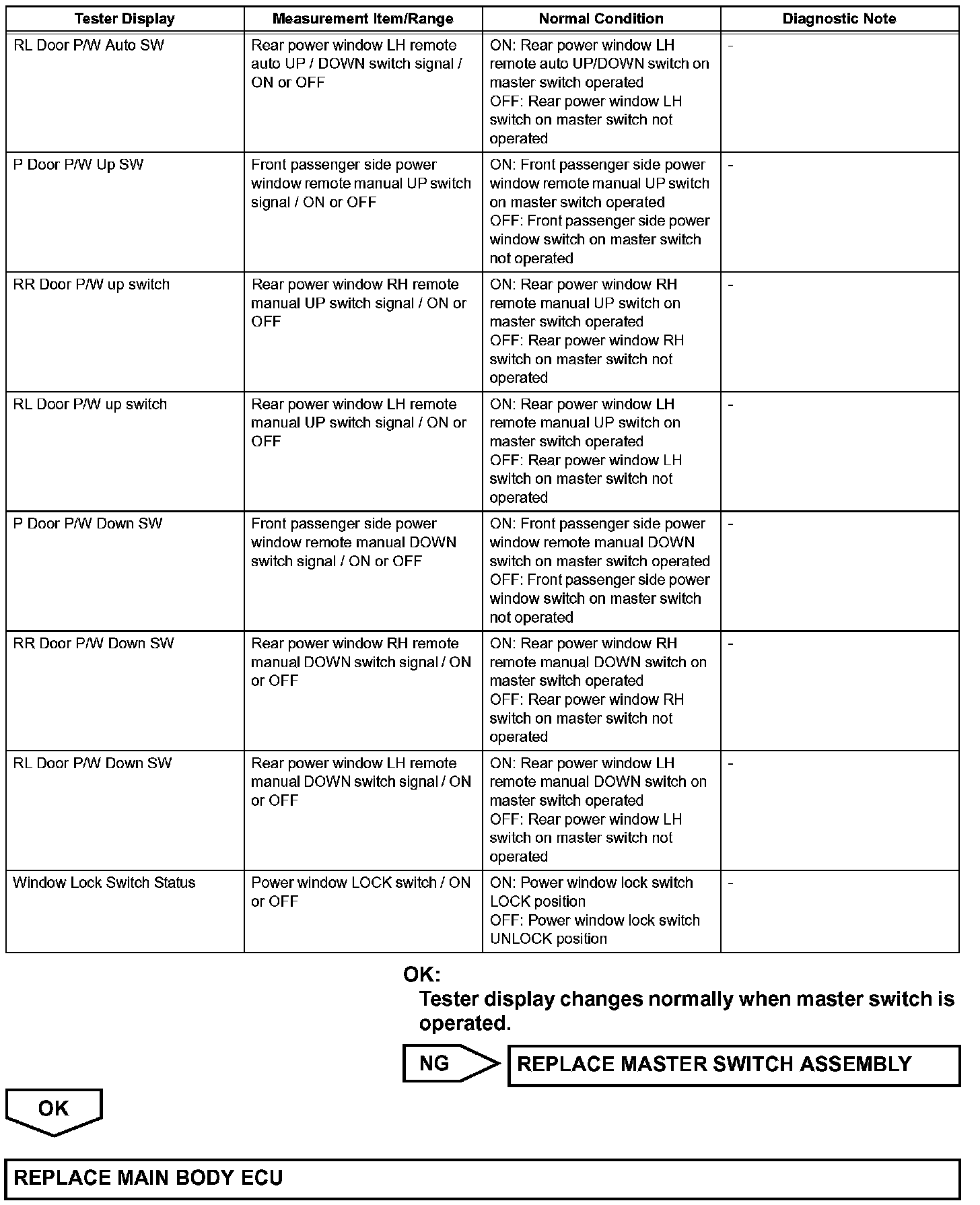

Step 3(Continued):

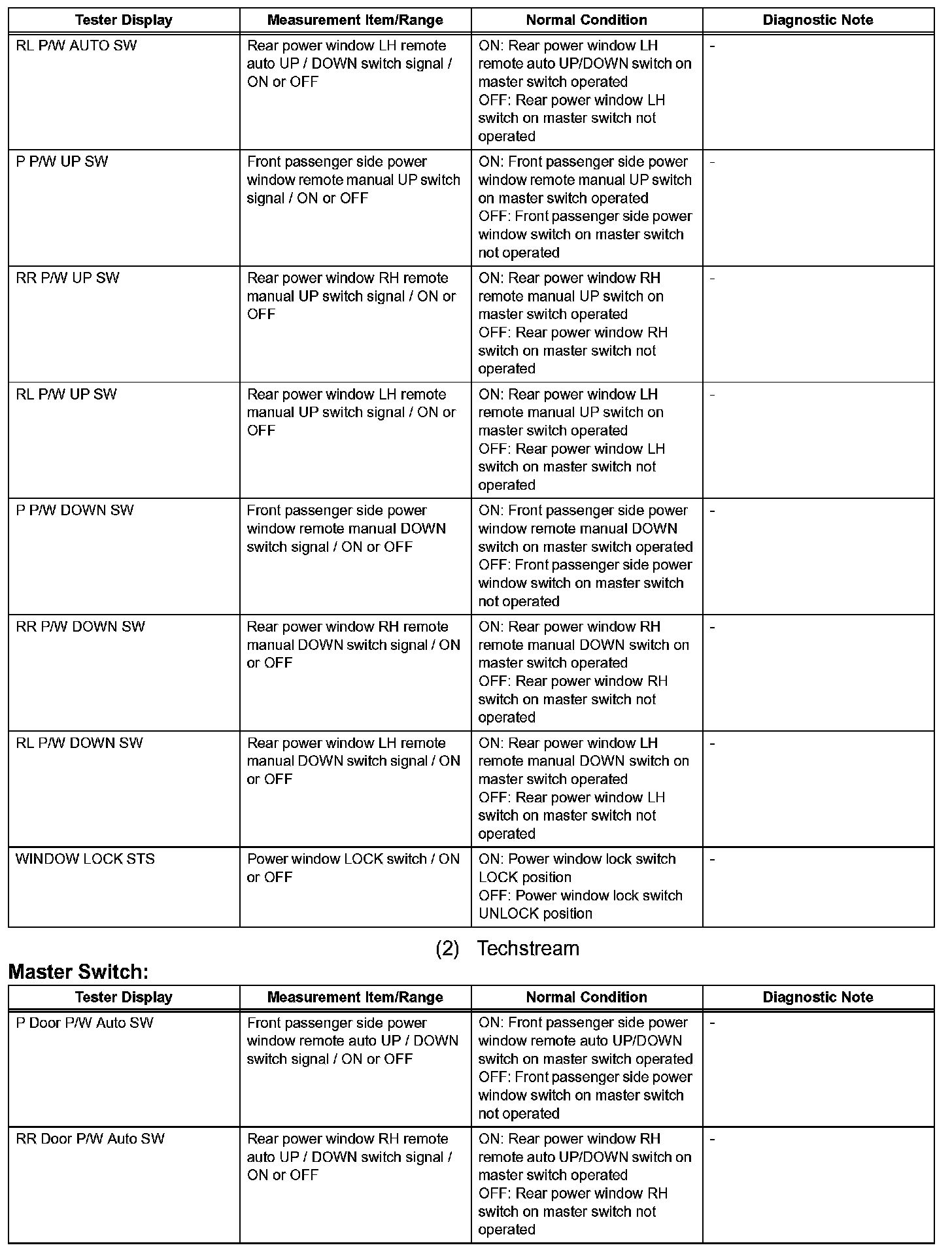

Step 3(Continued):
