Rear Power Window RH Auto Up / Down Function Does Not Operate With Rear Power Window Switch RH

Rear Power Window RH Auto Up / Down Function does not Operate with Rear Power Window Switch RH

DESCRIPTION
If the AUTO UP / DOWN function does not operate, the cause may be one or more of the following:
- ECU in the power window regulator motor determines that the power window regulator motor has not been initialized.
- The power window regulator switch has a malfunction.
- The Hall-IC in the power window regulator motor have a malfunction.
- The wiring between the power window regulator switch and the power window regulator motor is open or short.

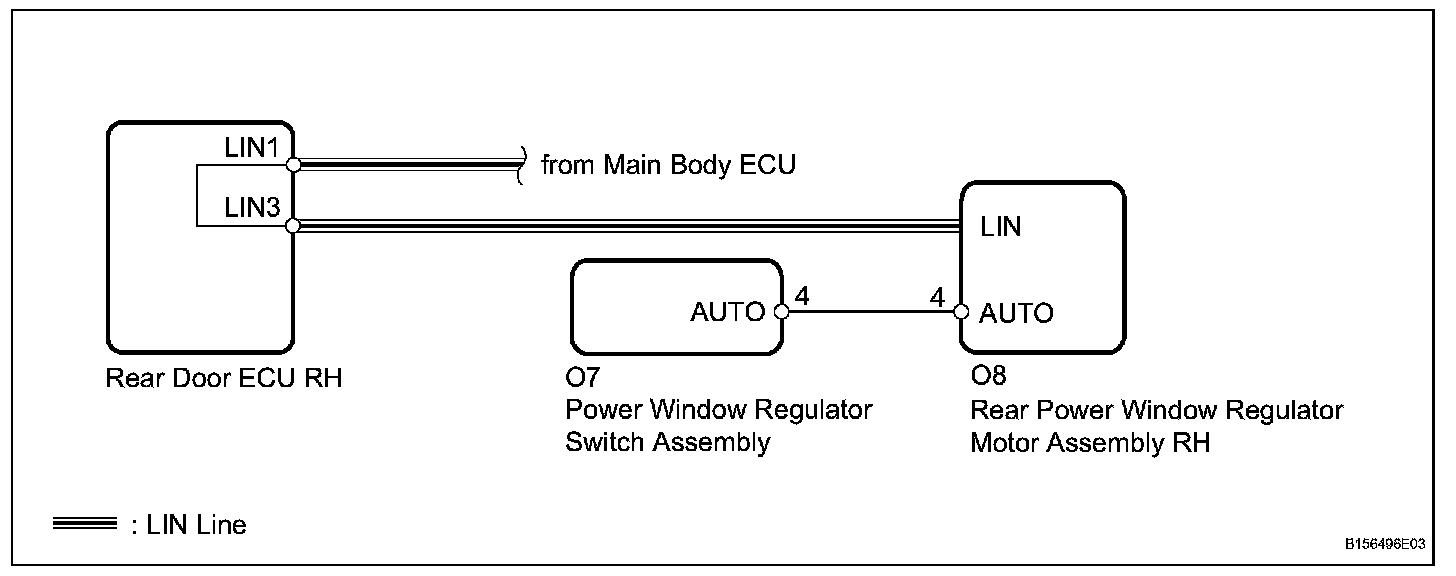

WIRING DIAGRAM

Wiring Diagram:

INSPECTION PROCEDURE

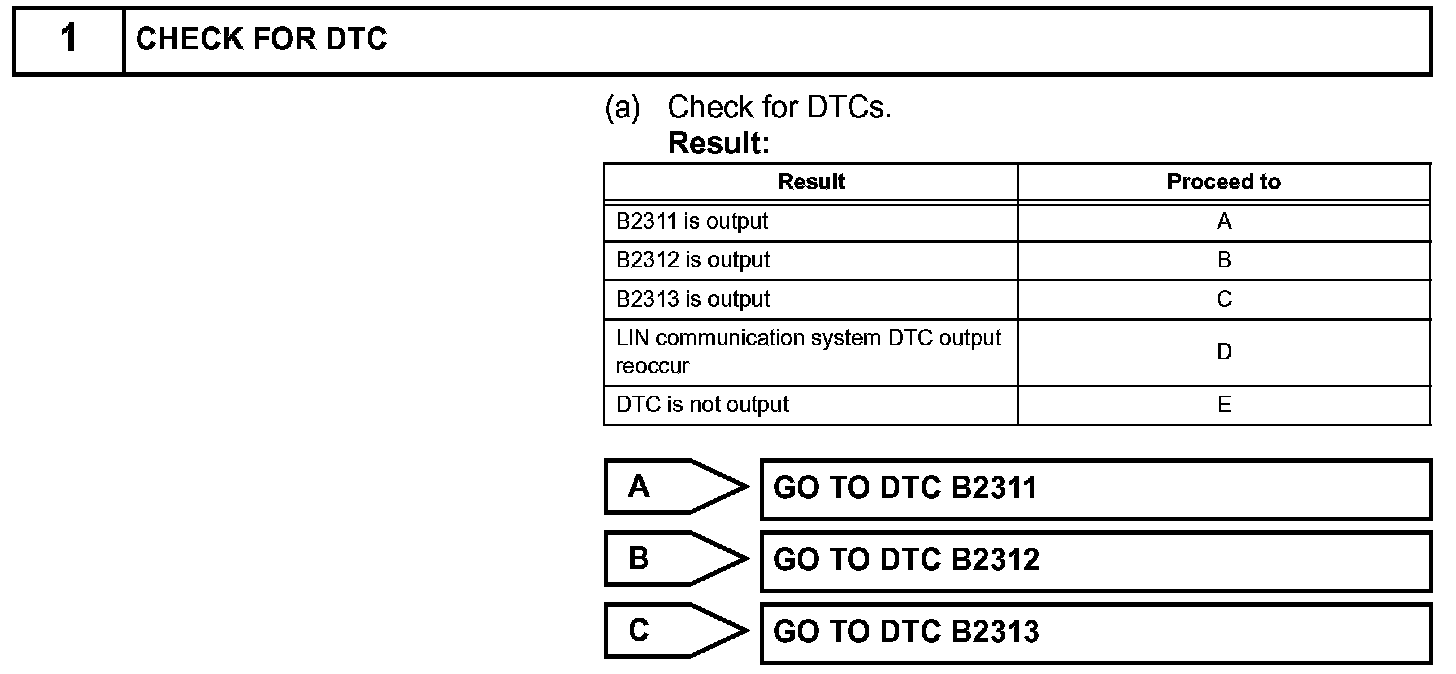

Step 1:

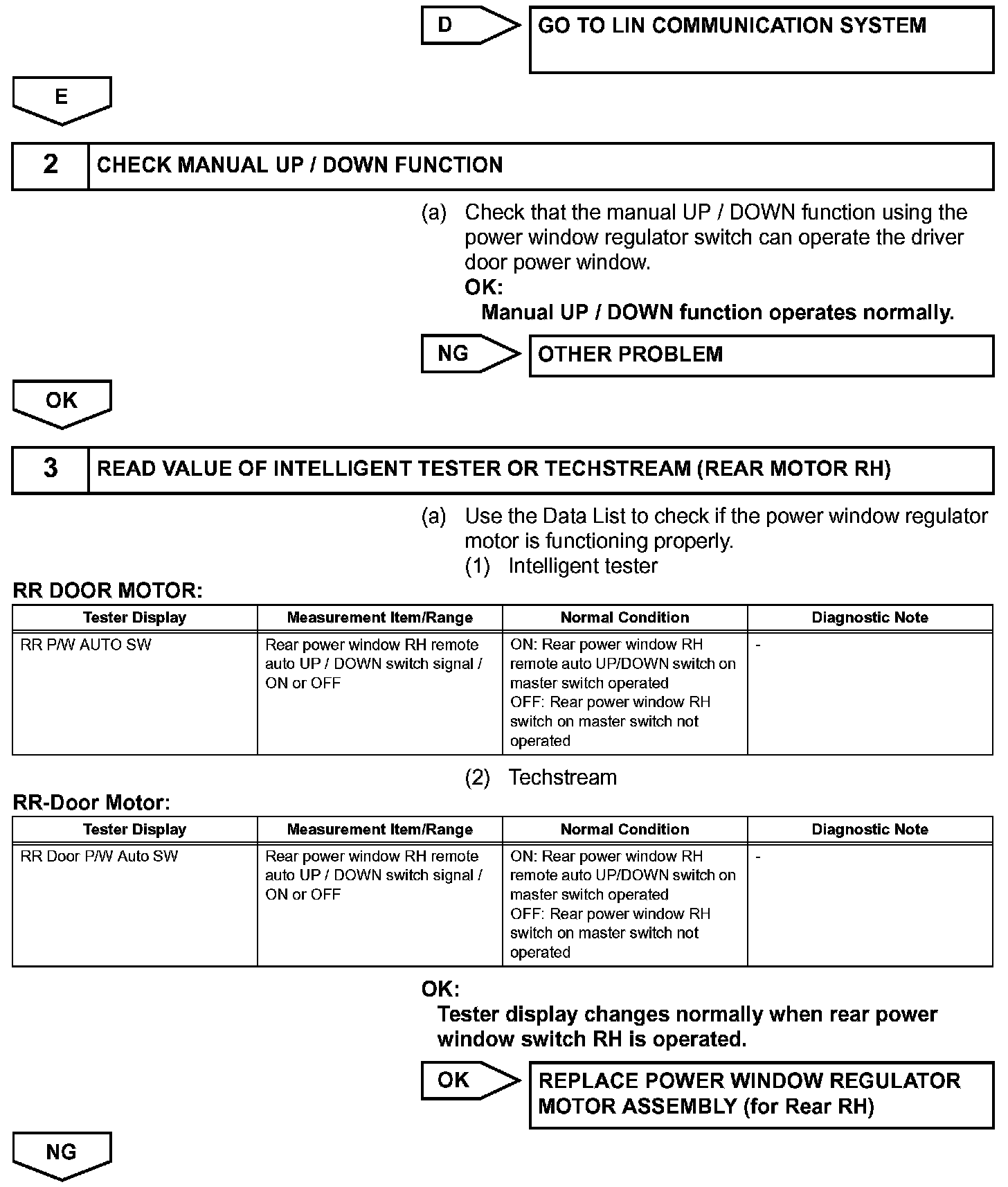

Step 1(Continued) - 3:

Step 4:

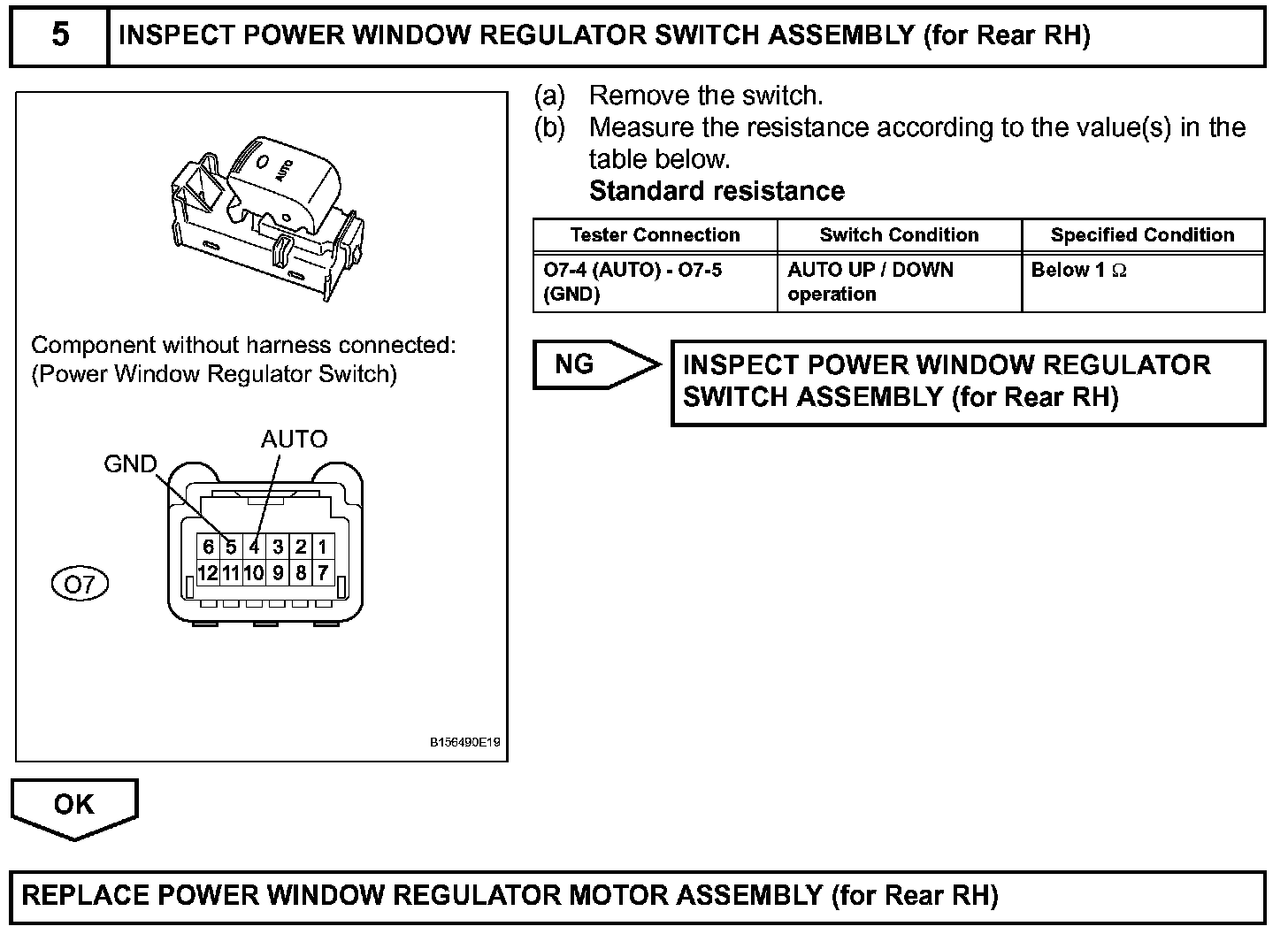

Step 5:
