Key-Off Operation Function Operates Even If Operating Conditions Are Not Satisfied
Key-off Operation Function Operates even if Operating Conditions are not SatisfiedDESCRIPTION
- When the front doors are closed, each power window regulator motor can control its power window operation for approximately 45 seconds after the engine switch on (IG) to off by receiving operation permission signals from the main body ECU.
- However, when approximately 45 seconds have elapsed, or the driver side door or front passenger side door is opened within approximately 45 seconds of the engine switch off, the power window regulator motor stops operating.
- During the AUTO function operation, when 45 seconds have passed and key-off operation is prohibited, the window operation stops immediately.
- The front passenger side power window and the rear power windows cannot be operated when the window lock switch is pressed.
WIRING DIAGRAM

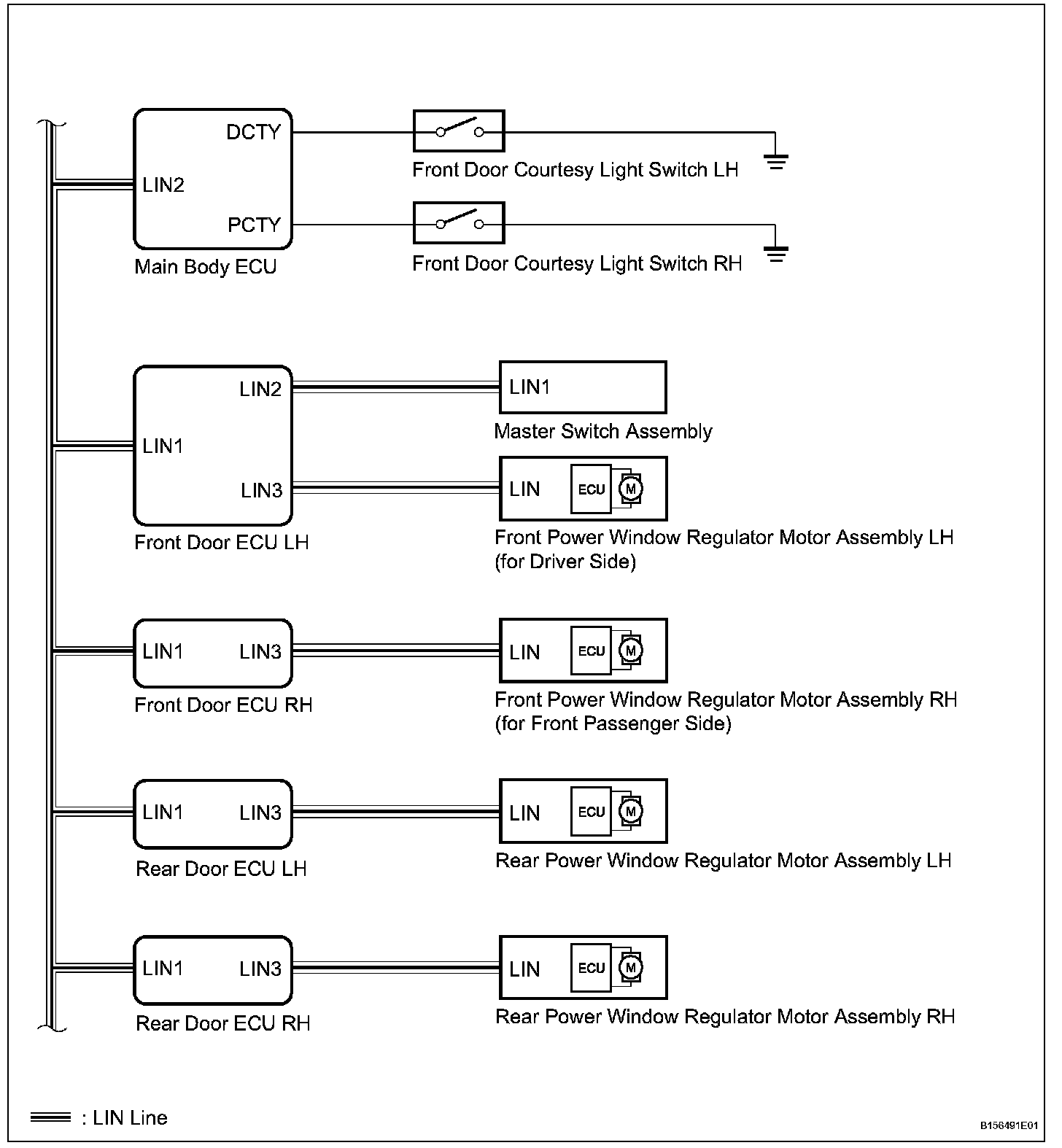

Wiring Diagram:
INSPECTION PROCEDURE

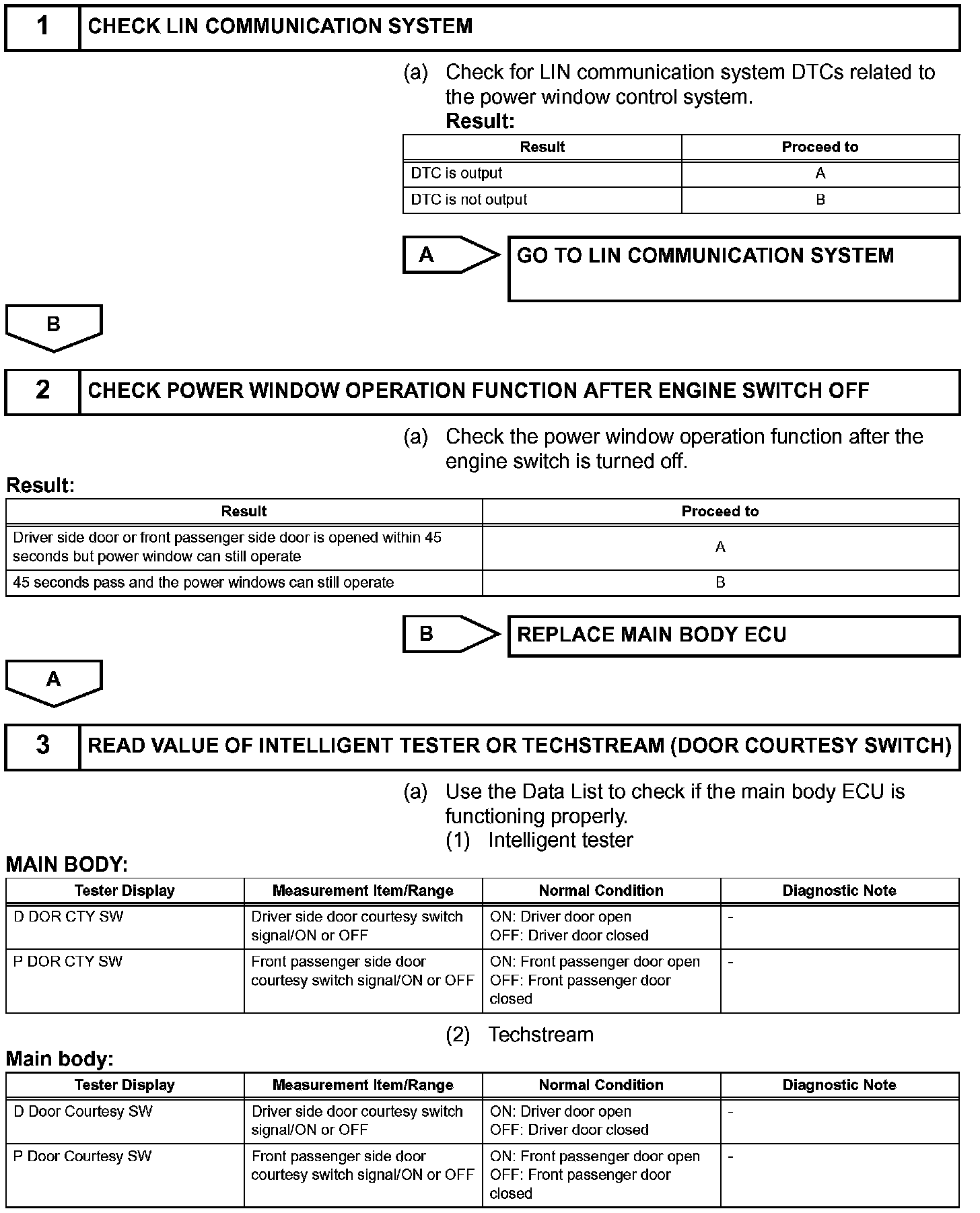

Step 1 - 3:

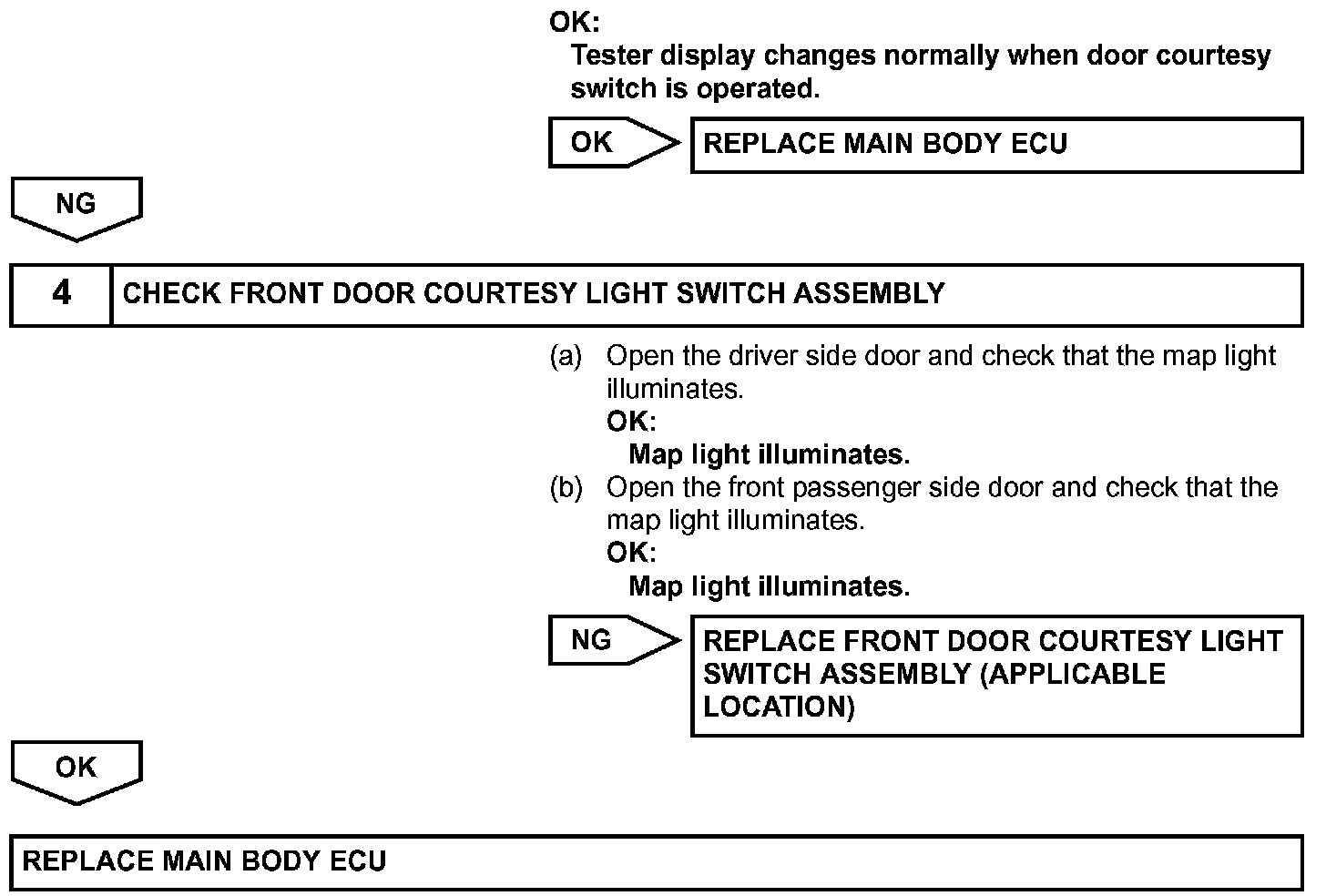

Step 3(Continued) - 4:
