Jam Protection Function Does Not Operate

Jam Protection Function does not Operate

DESCRIPTION
This symptom may occur to all door windows.
The jam protection function operate within a specified range during the manual UP or AUTO UP operation.

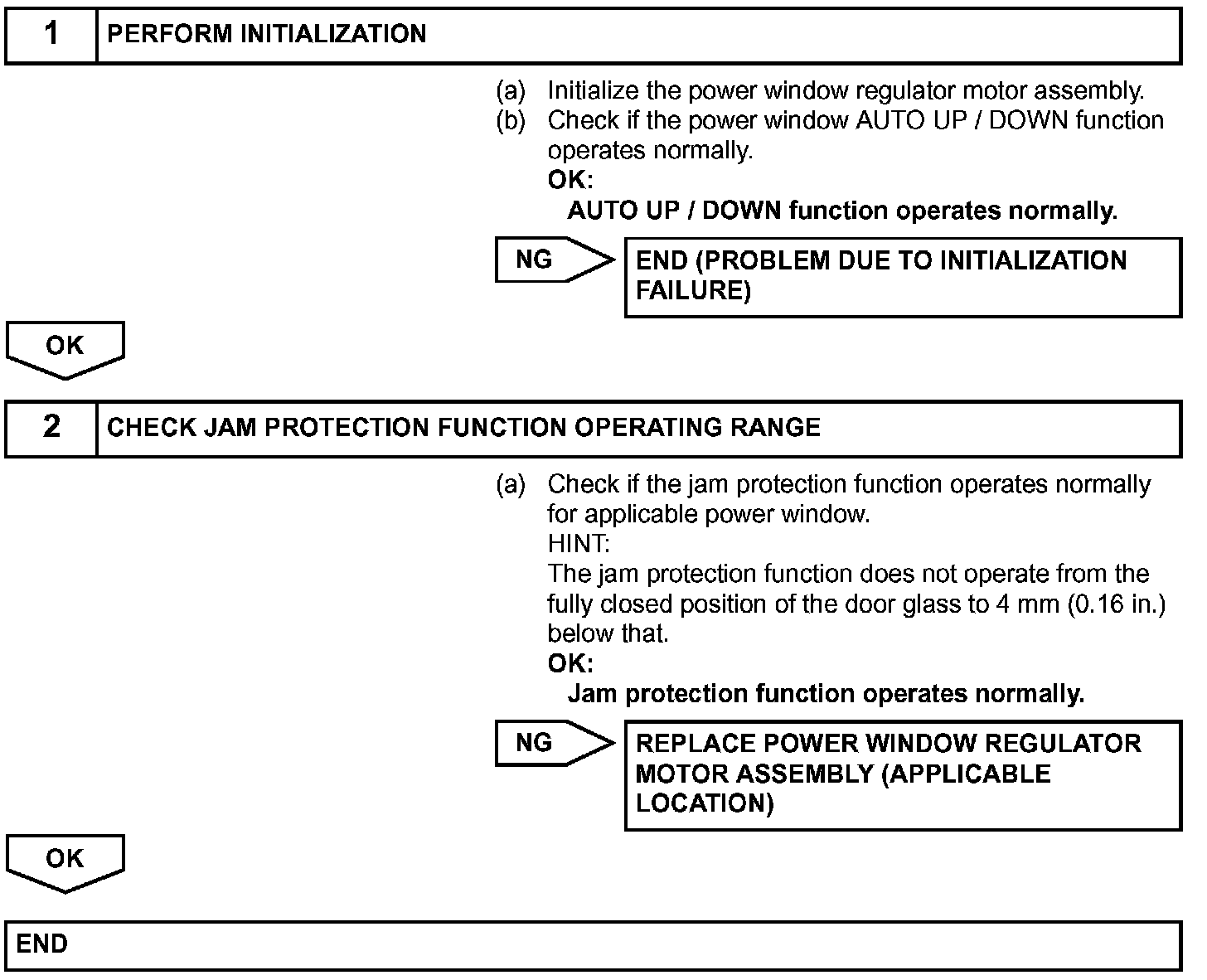

INSPECTION PROCEDURE

Step 1 - 2:
