Front Passenger Side Power Window Does Not Operate With Front Passenger Side Power Window Switch

Front Passenger Side Power Window does not Operate with Front Passenger Side Power Window Switch

DESCRIPTION
If the manual UP / DOWN function does not operate, there may be a malfunction in the power window regulator switch, front power window regulator motor RH or wire harness.

WIRING DIAGRAM

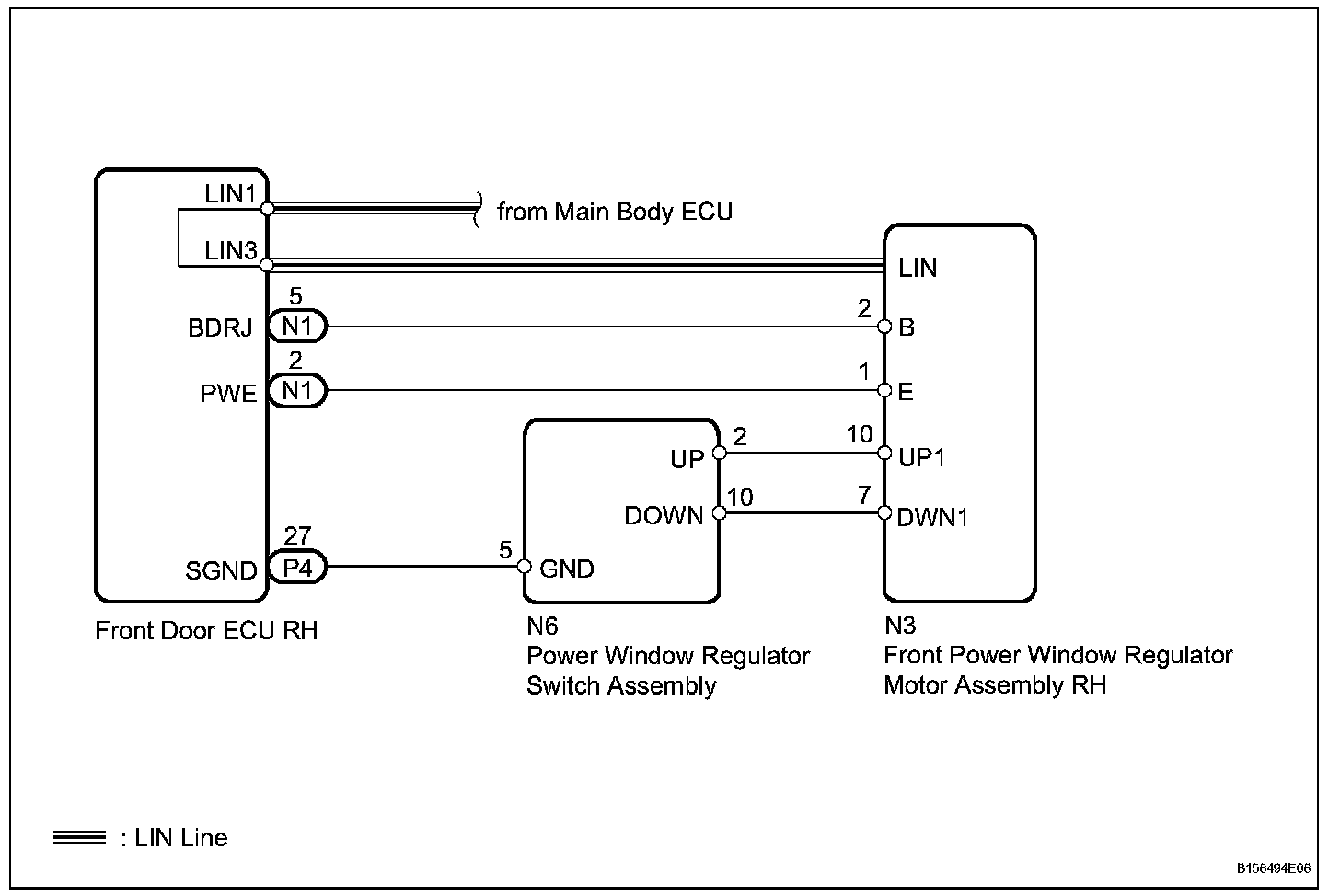

Wiring Diagram:

INSPECTION PROCEDURE

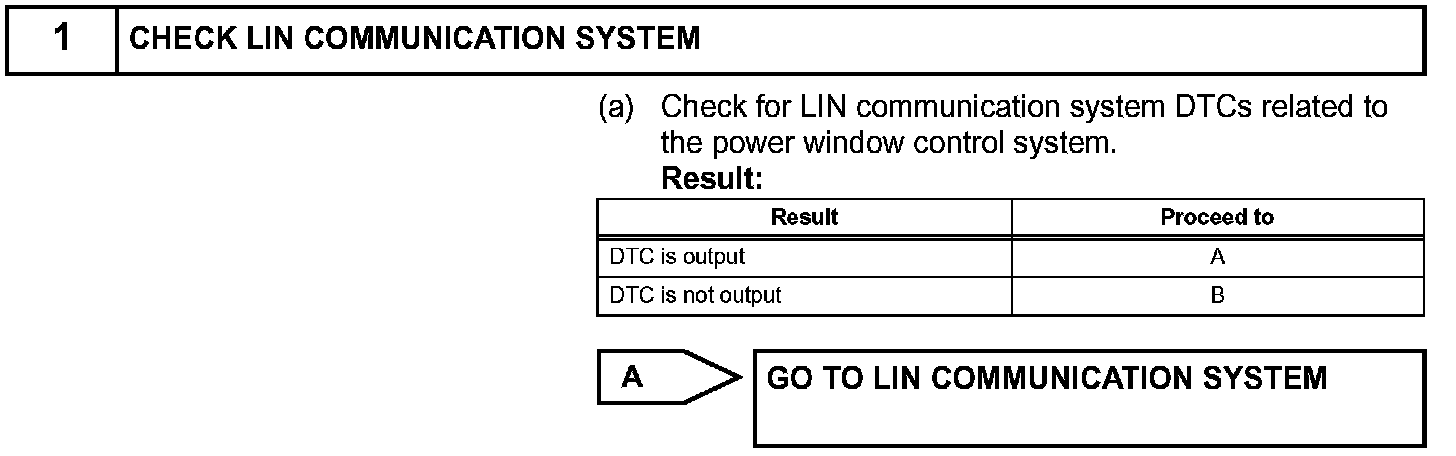

Step 1:

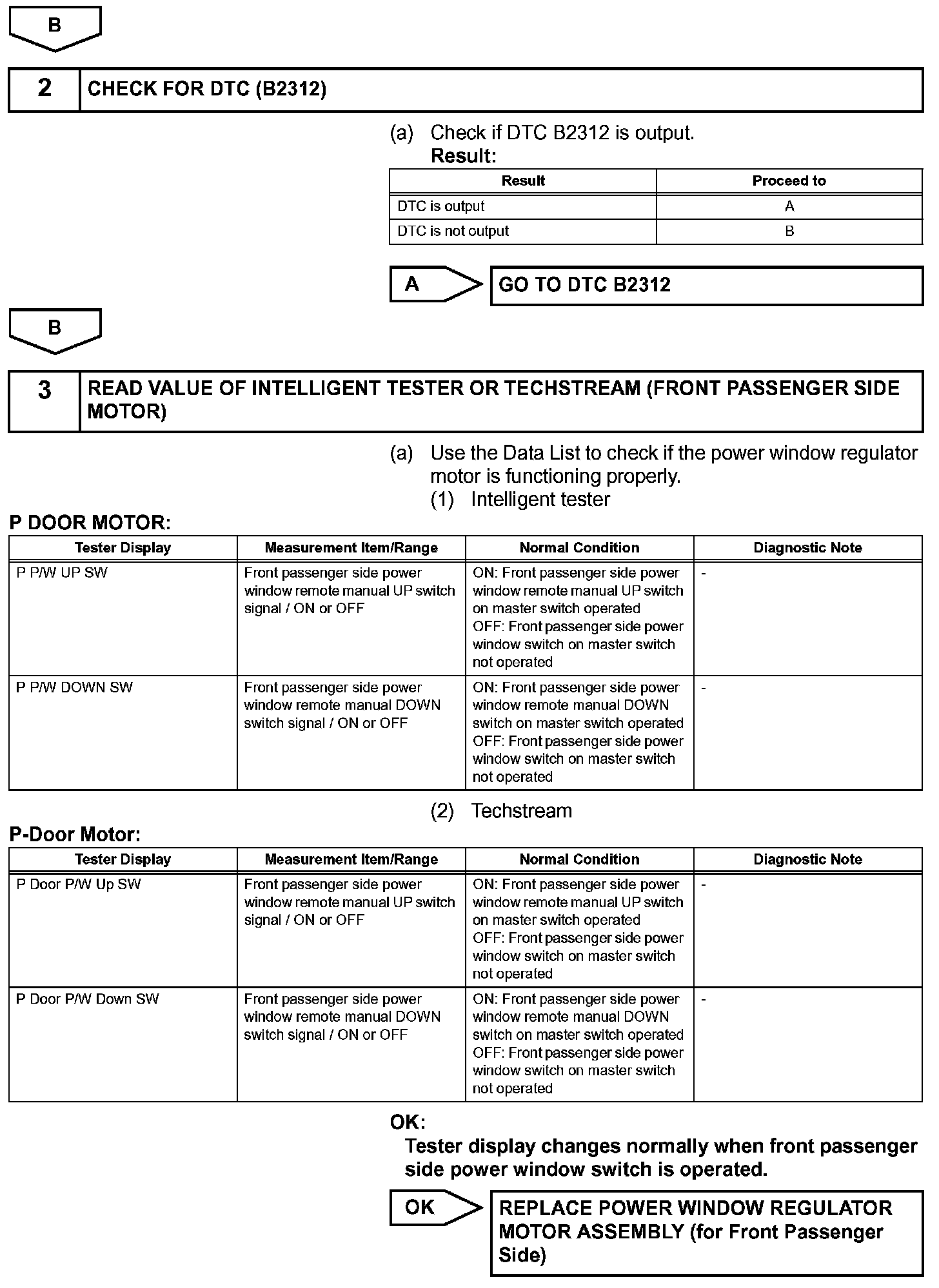

Step 1(Continued) - 3:

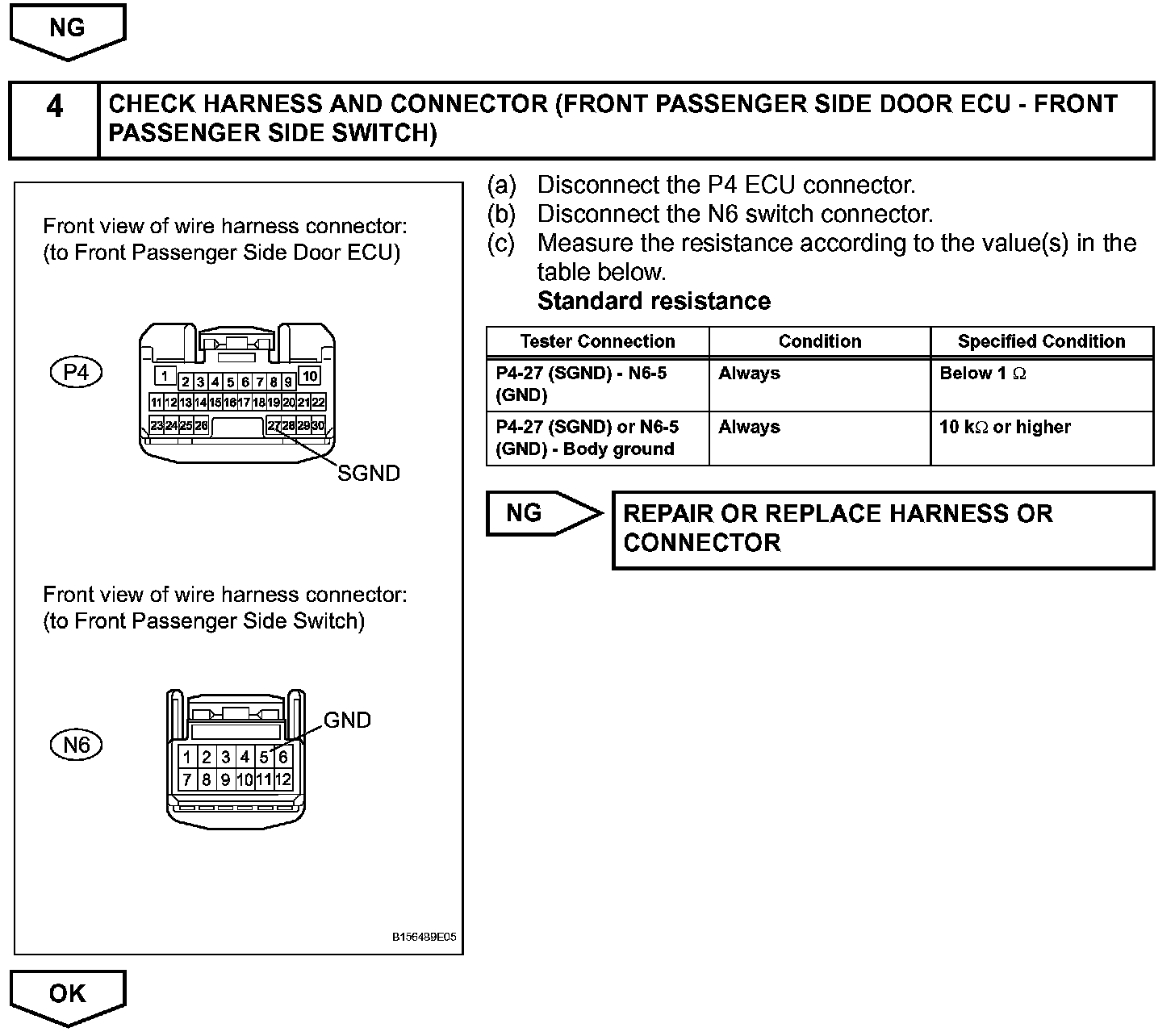

Step 3(Continued) - 4:

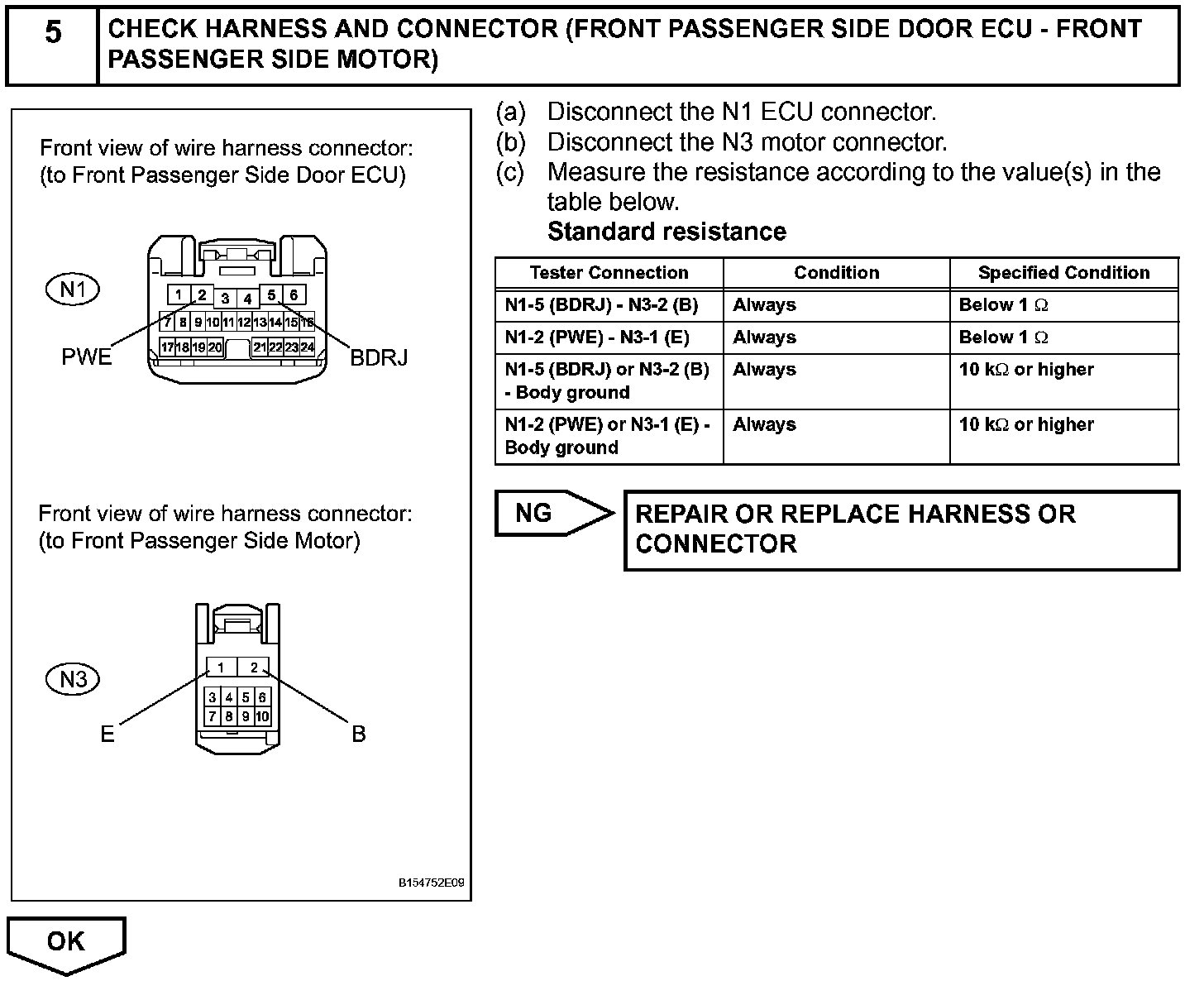

Step 5:

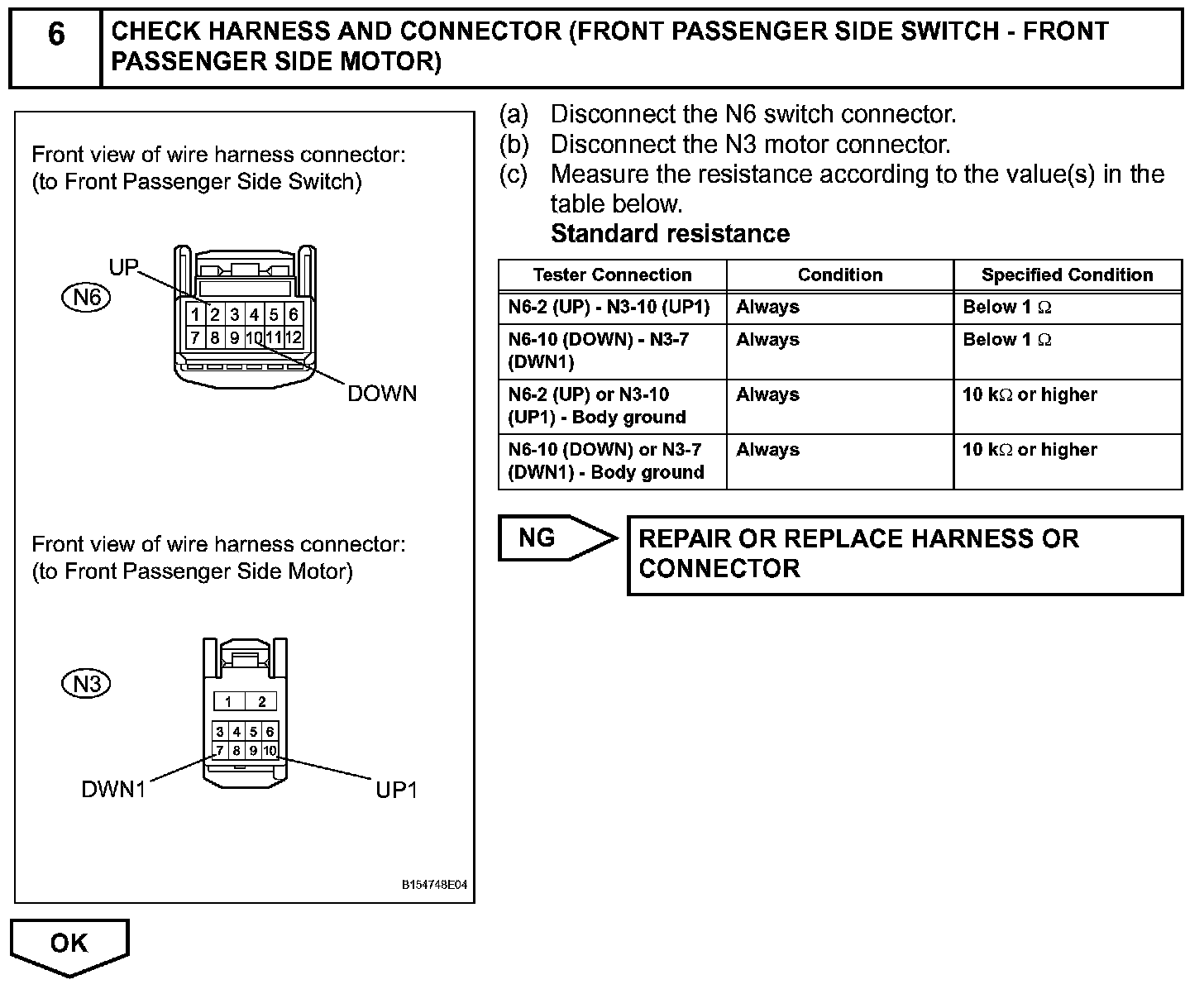

Step 6:

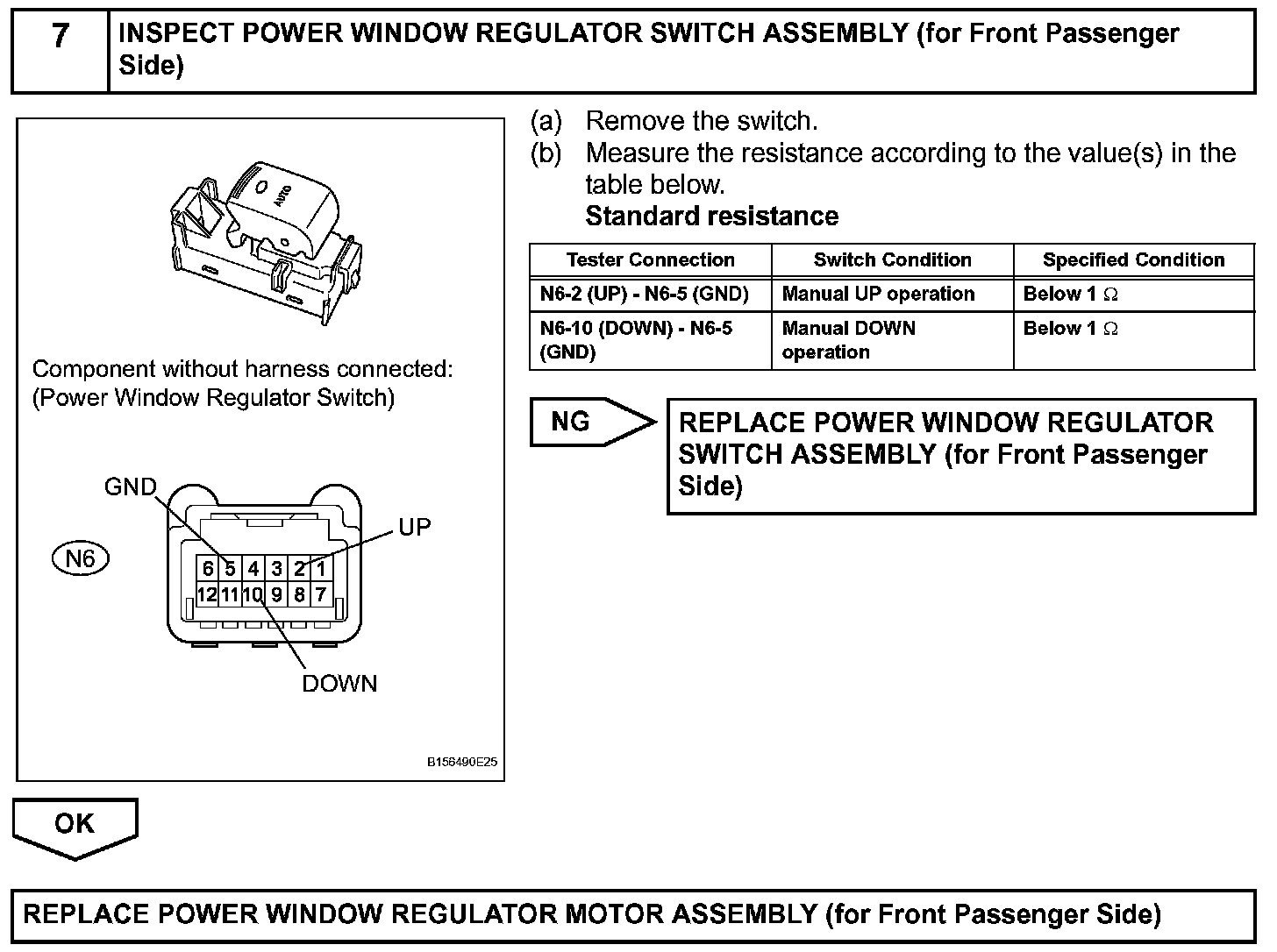

Step 7:
