Driver Side Power Window Does Not Operate With Power Window Master Switch

Driver Side Power Window does not Operate with Power Window Master Switch

DESCRIPTION
If the manual UP / DOWN function does not operate, there may be a malfunction in the master switch, power window regulator motor or wire harness.

WIRING DIAGRAM

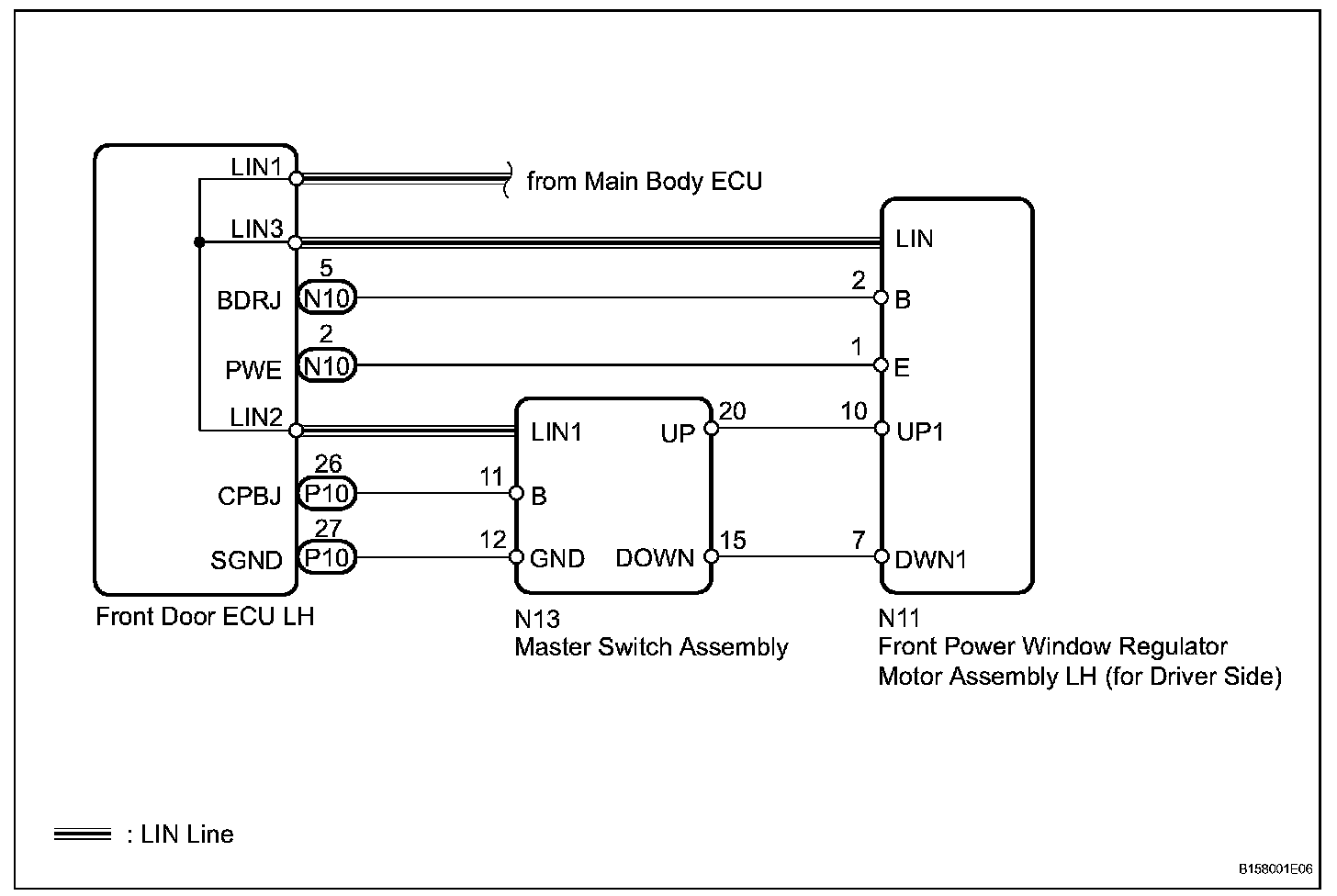

Wiring Diagram:

INSPECTION PROCEDURE

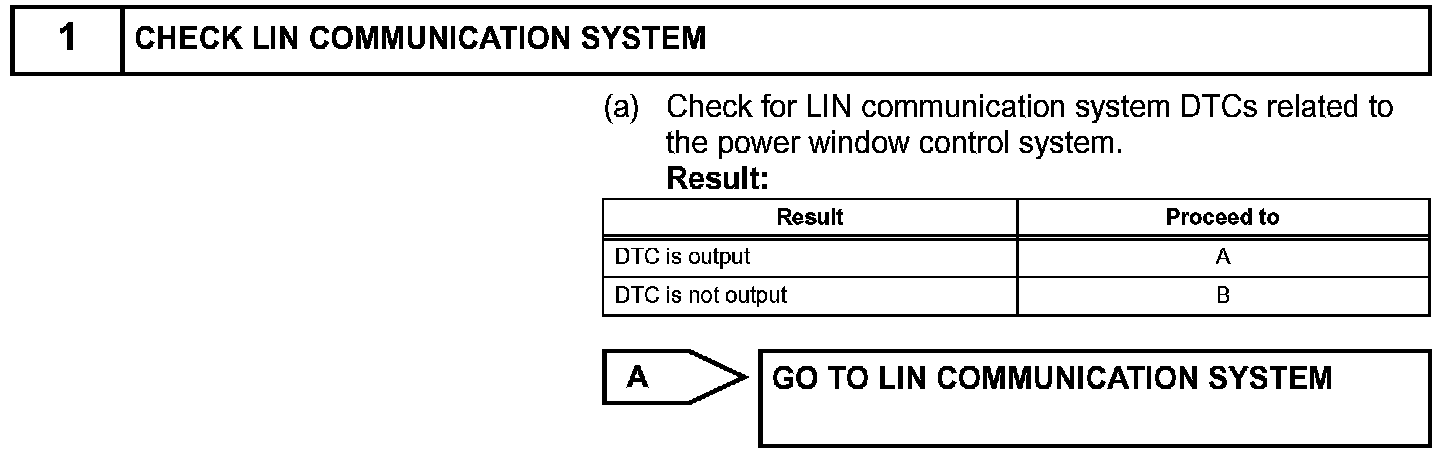

Step 1:

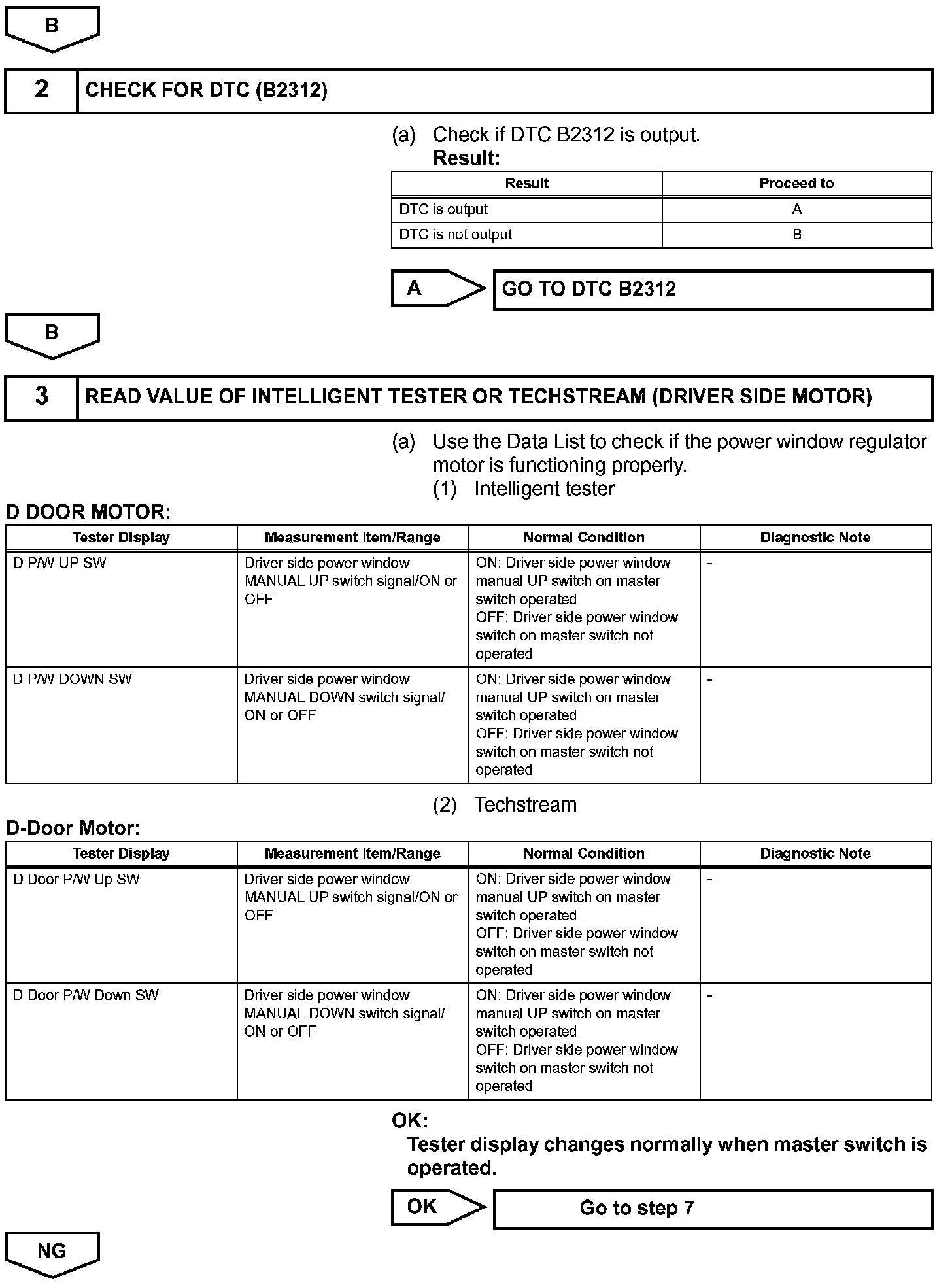

Step 1(Continued) - 3:

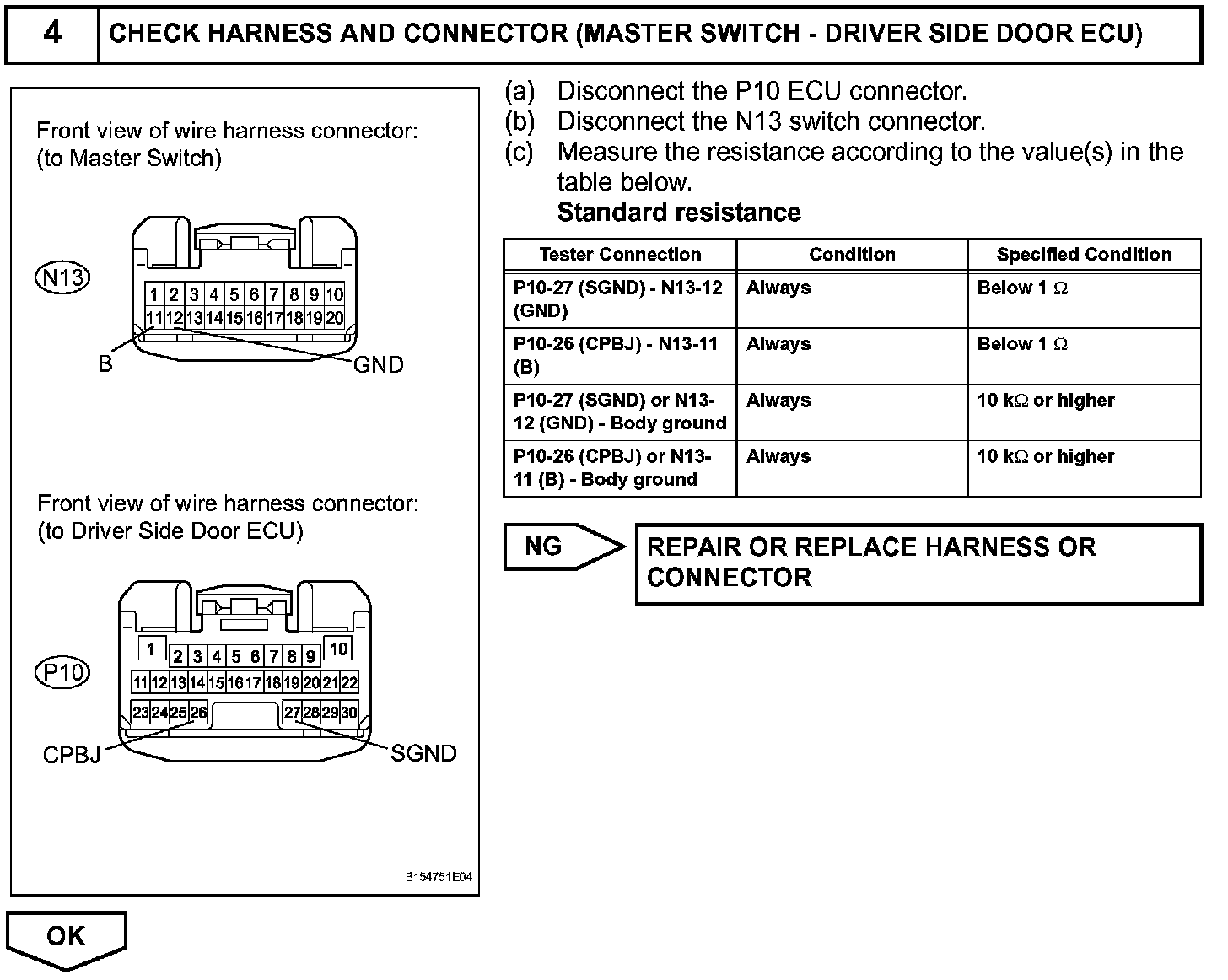

Step 4:

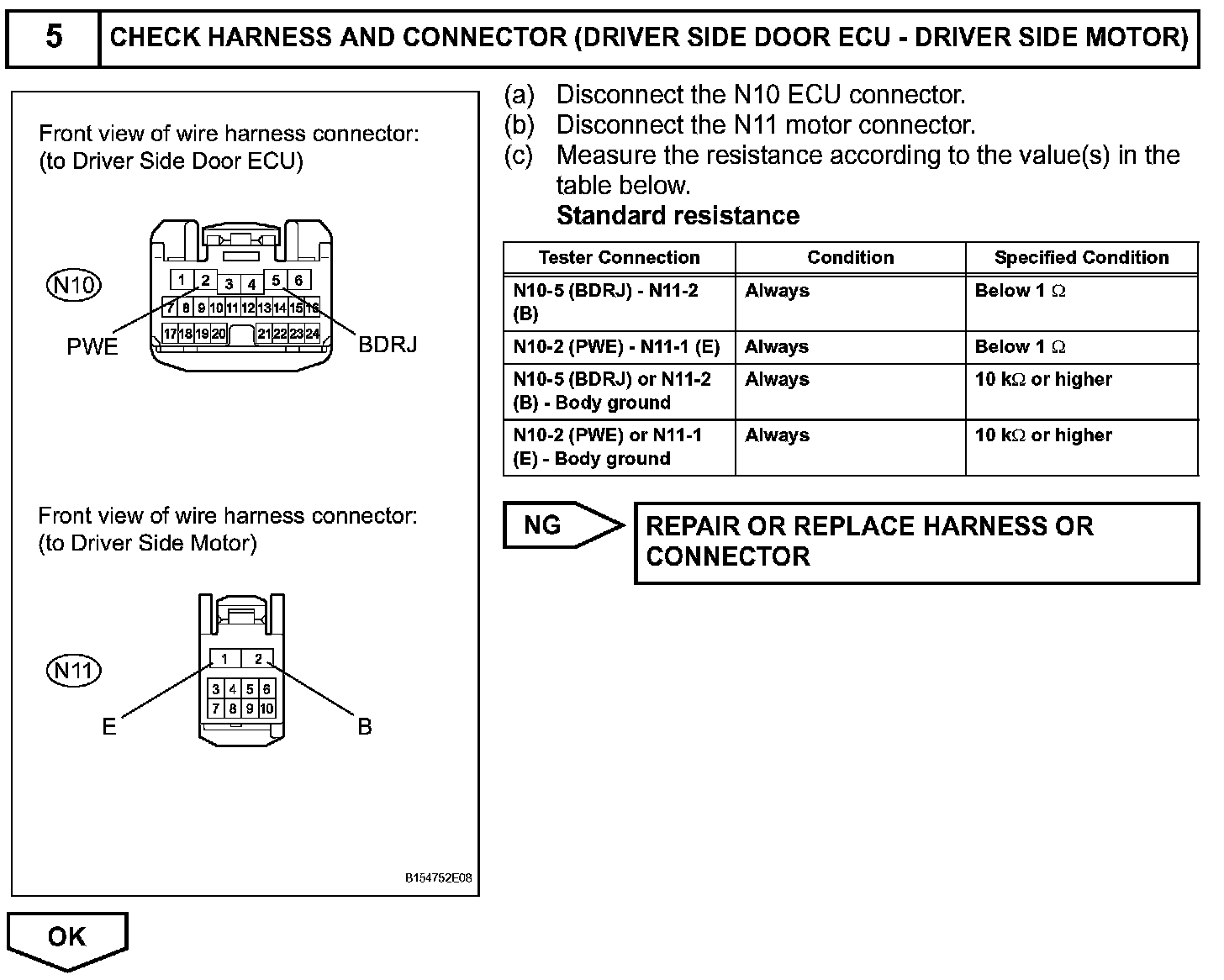

Step 5:

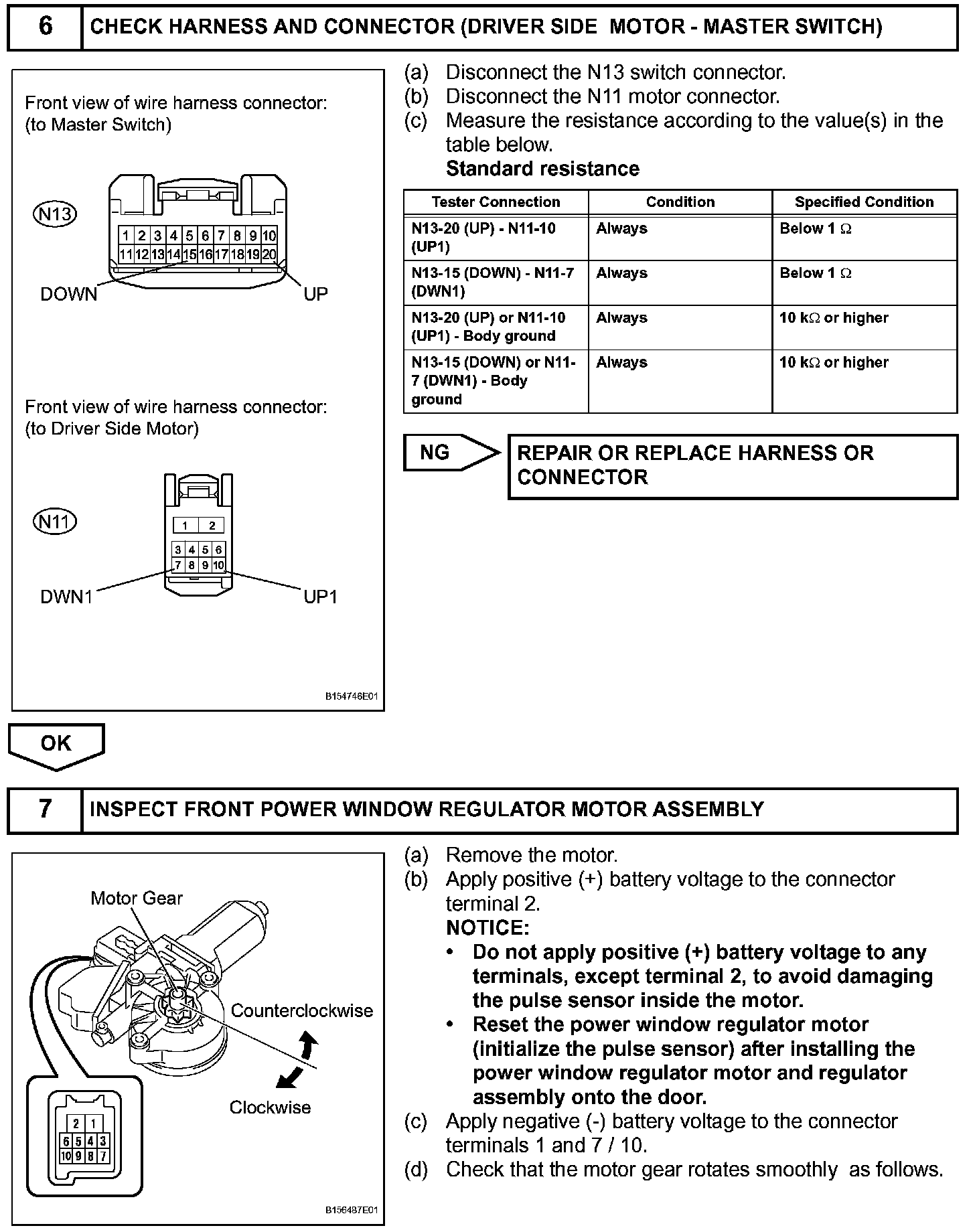

Step 6 - 7:

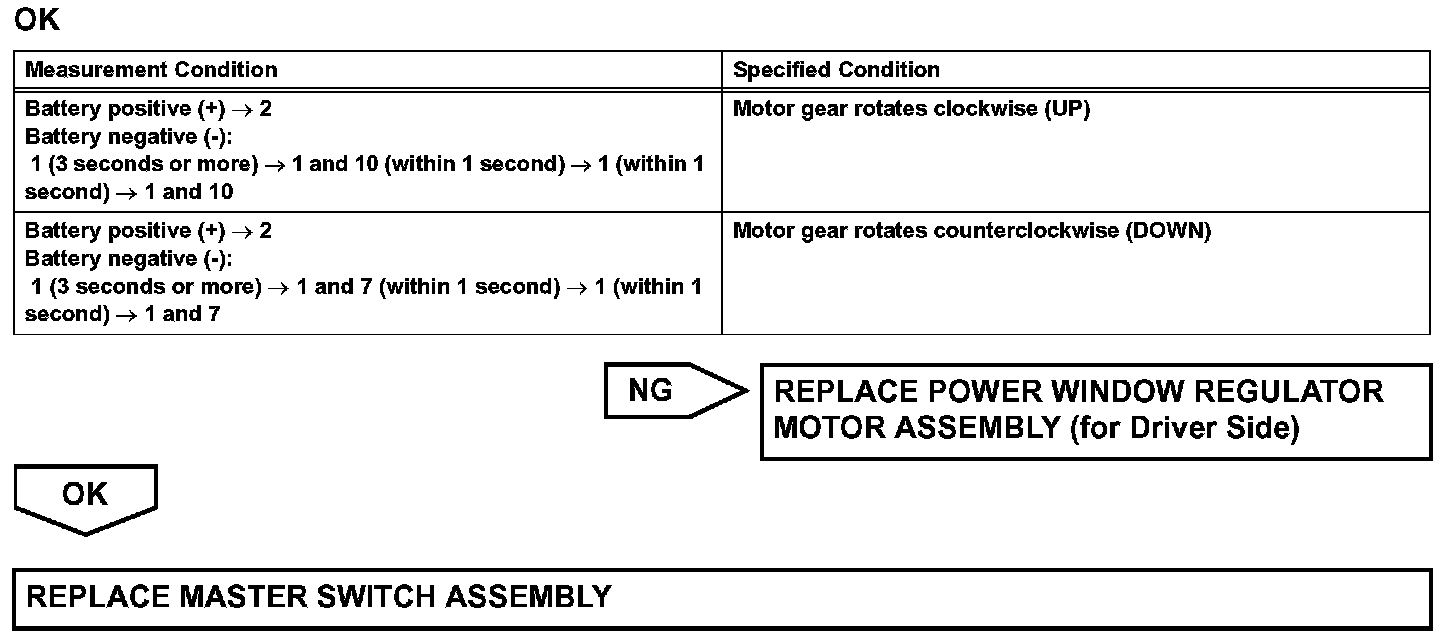

Step 7(Continued):
