Driver Side Power Window Auto Up / Down Function Does Not Operate With Power Window Master Switch
Driver Side Power Window Auto Up / Down Function does not Operate with Power Window Master SwitchDESCRIPTION
If the AUTO UP / DOWN function does not operate, the cause may be one or more of the following:
- ECU in the power window regulator motor determines that the power window regulator motor has not been initialized.
- The master switch has a malfunction.
- The Hall-IC in the driver side power window regulator motor have a malfunction.
- The wiring between the master switch and the driver side power window regulator motor is open or short.
WIRING DIAGRAM
Wiring Diagram:
INSPECTION PROCEDURE

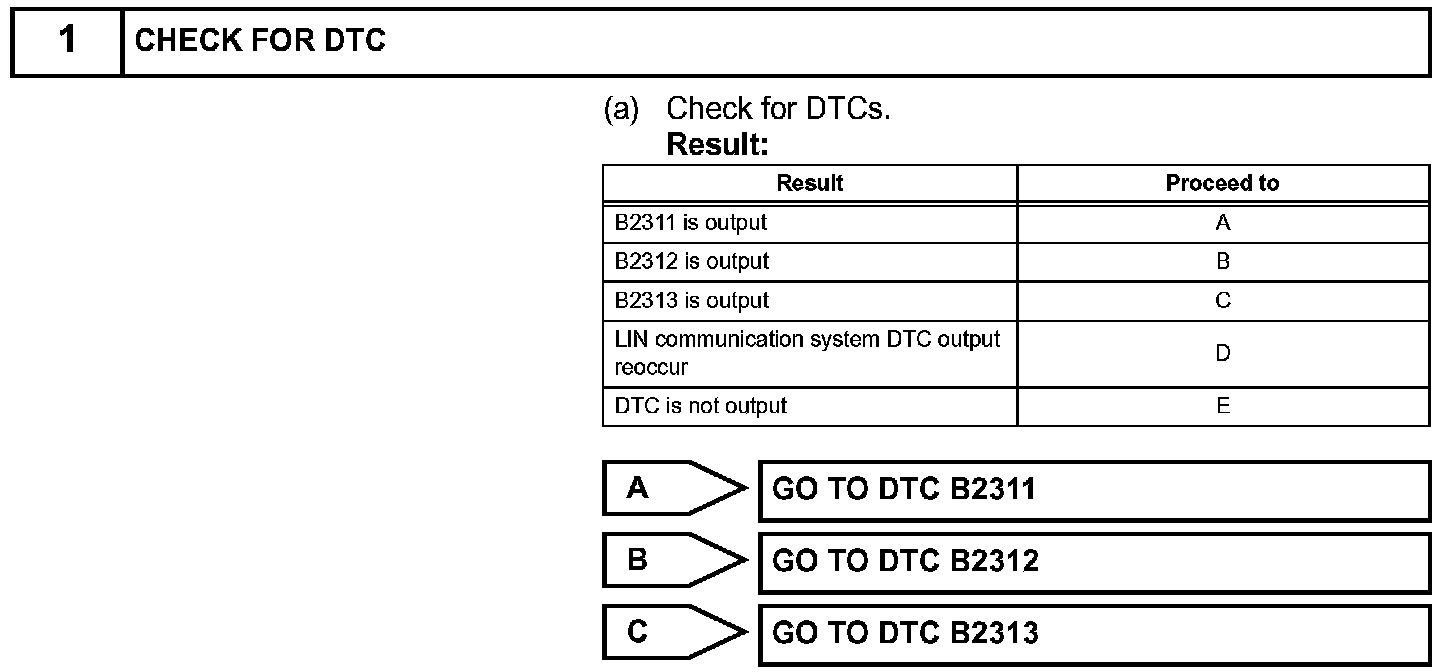

Step 1:

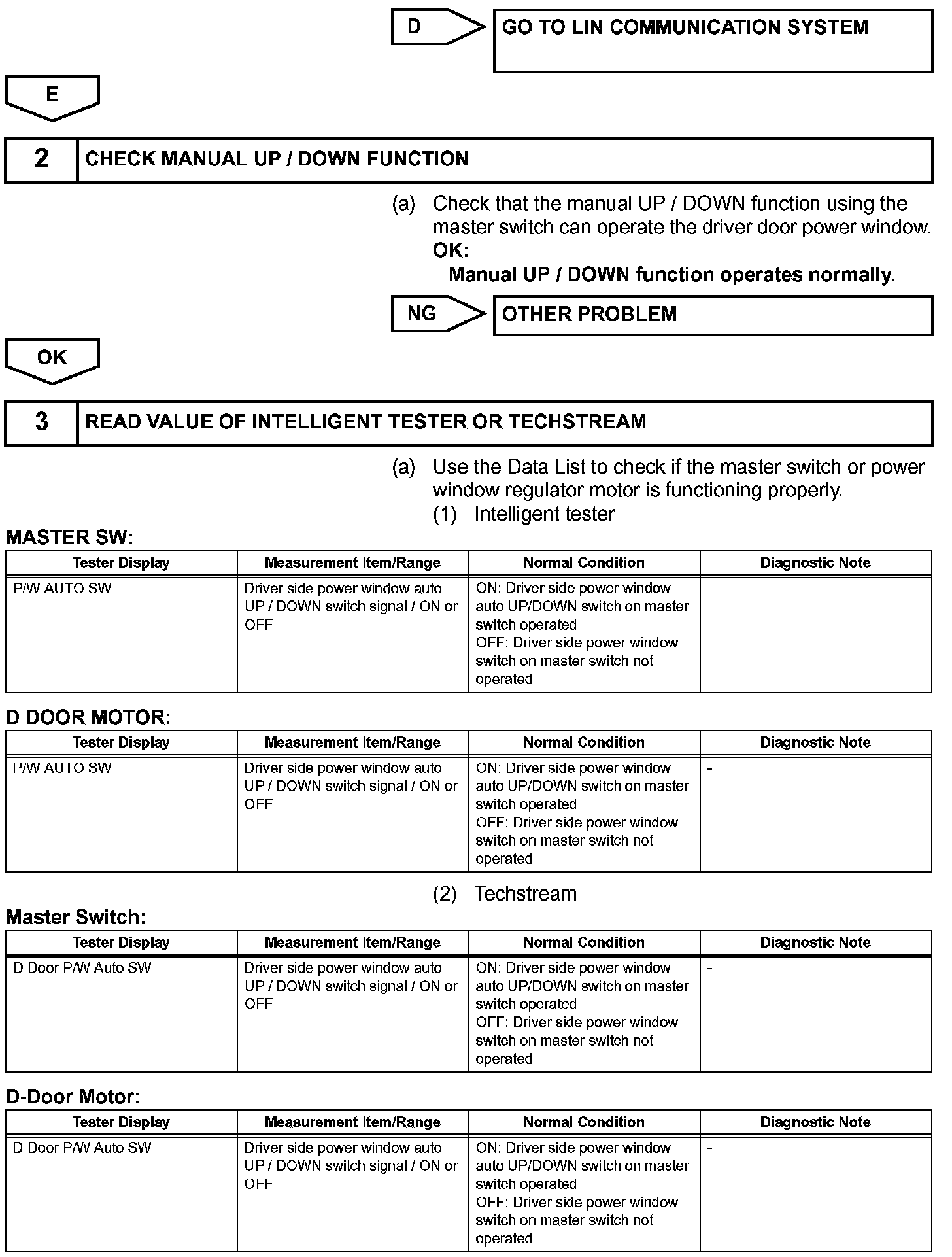

Step 1(Continued) - 3:

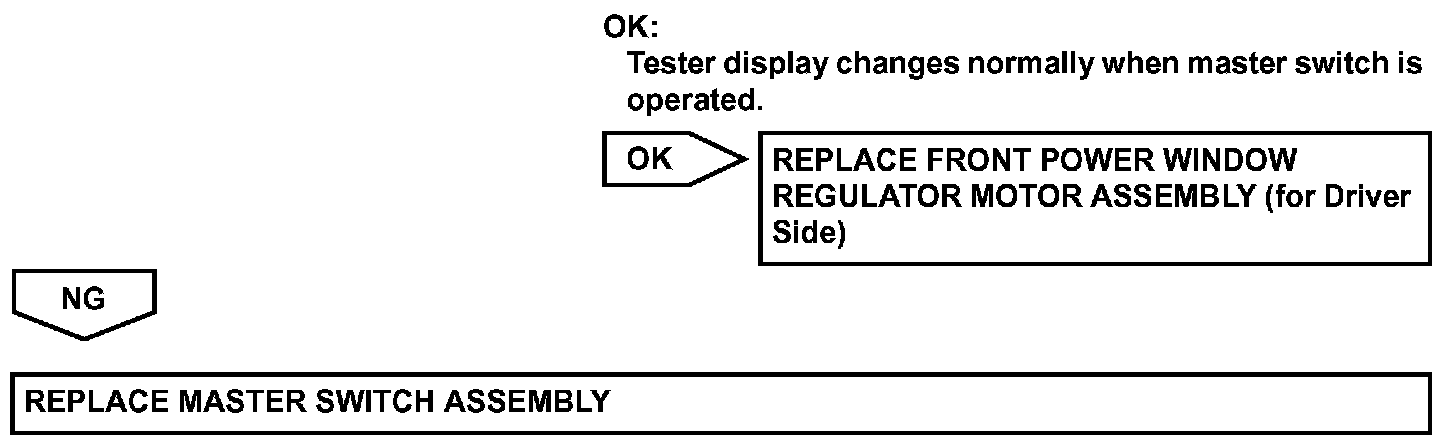

Step 3(Continued):
