All Power Windows Do Not Operate With Driver Side Door Key Cylinder or Wireless Transmitter
All Power Windows do not Operate with Driver Side Door Key Cylinder or Wireless TransmitterDESCRIPTION
- When a transmitter switch is pushed, the following occurs: 1) the door control receiver receives the transmitter's signal; 2) the door control receiver sends a signal to the main body ECU; 3) the main body ECU sends the operation permission signal to the power window regulator motor via each door ECU; and 4) the power window motors are activated.
- When the driver door key cylinder is turned, the following occurs: 1) the door lock motor receives the signal; 2) the main body ECU sends the signal to the power window regulator motor via each door ECU; and 3) the power window motors are activated.
INSPECTION PROCEDURE

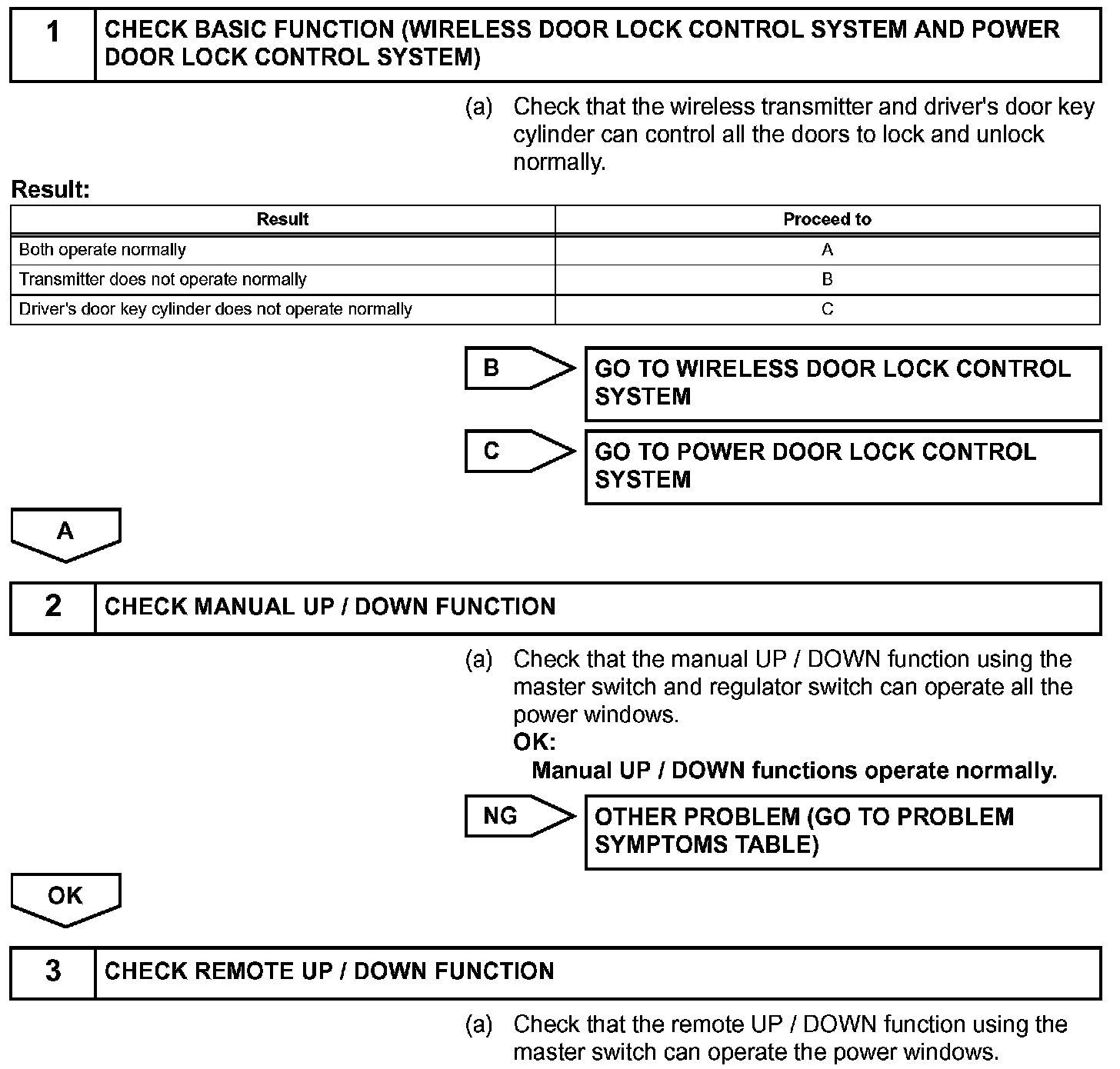

Step 1 - 3:

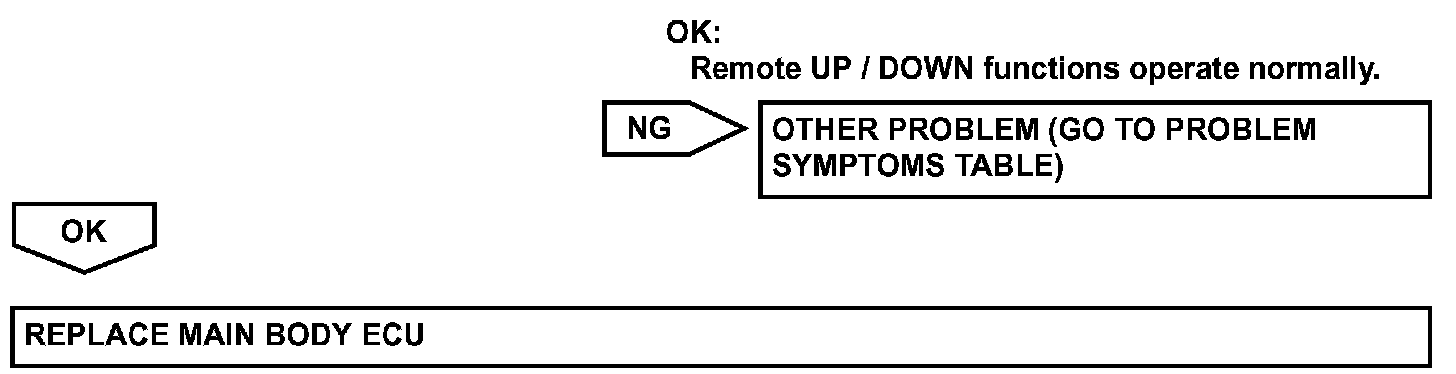

Step 3(Continued):
