All Power Window Up Functions Do Not Operate With Entry Lock Switch
All Power Window Up Functions do not Operate with Entry Lock SwitchDESCRIPTION
When an entry lock switch is pressed and held for approximately 3 seconds: 1) the main body ECU receives a signal via the driver side door ECU, 2) the main body ECU transmits a signal to all the power window regulator motor, and 3) all the power window motors are activated to close the windows.

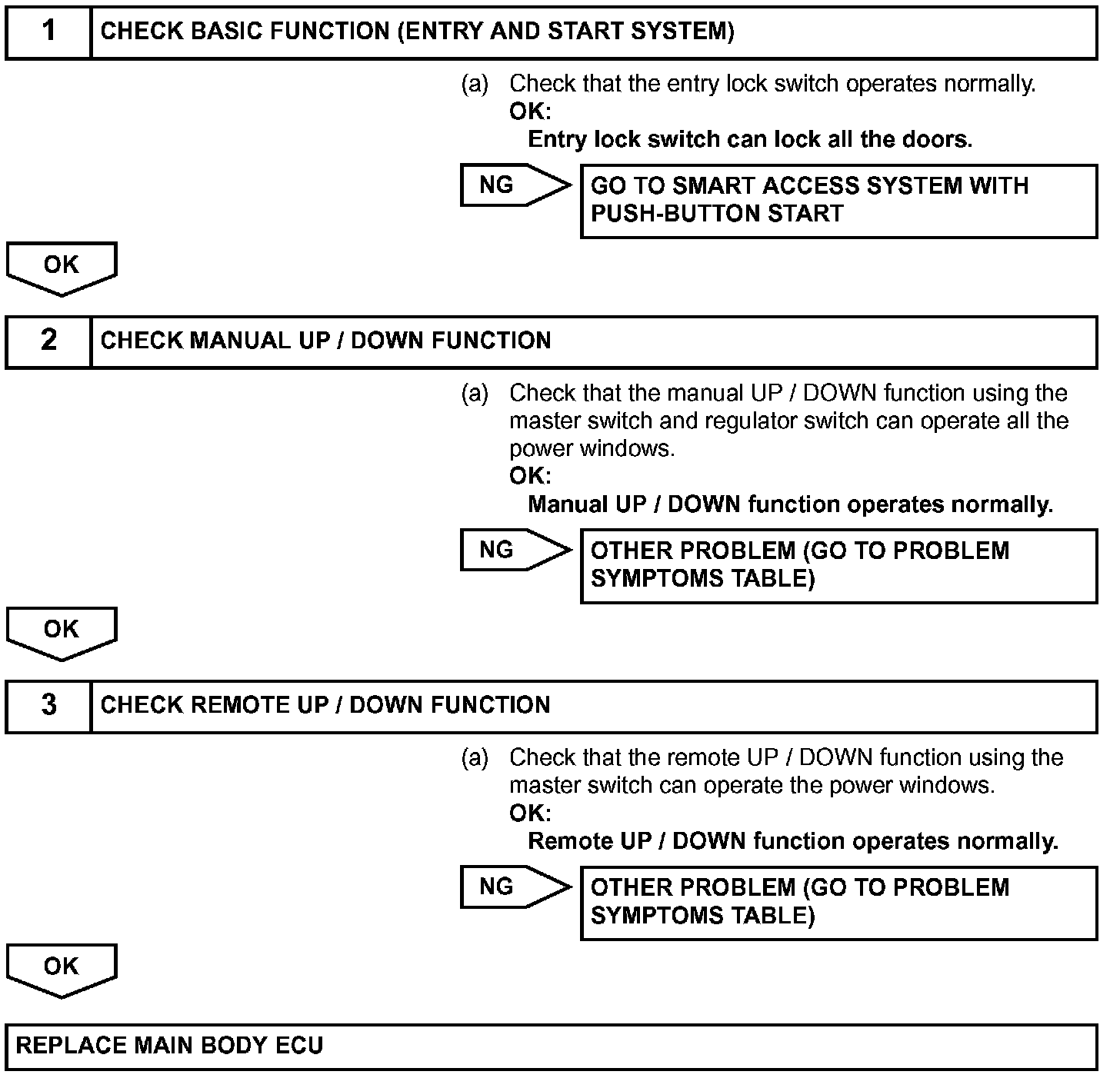

INSPECTION PROCEDURE
Step 1 - 3:
