Power Window Master Switch

POWER WINDOW MASTER SWITCH

INSPECTION

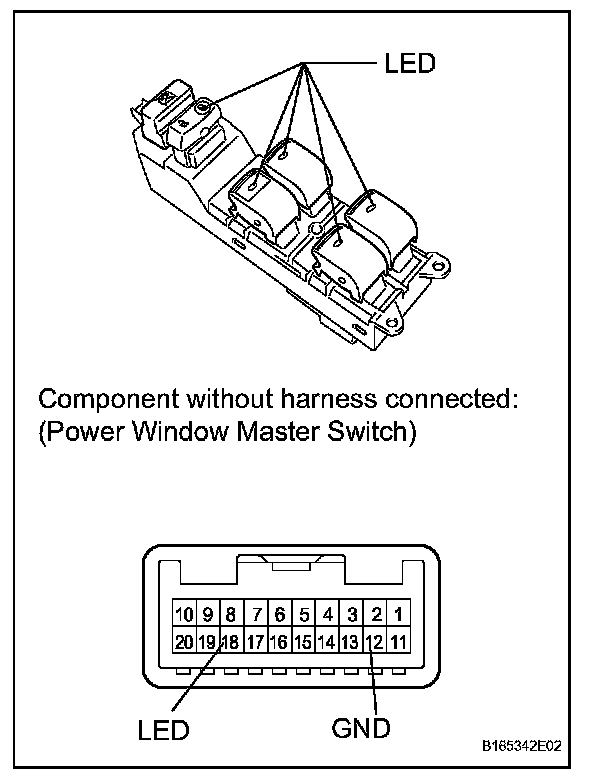

1. INSPECT MASTER SWITCH ASSEMBLY





a. Check that the LED illuminates.

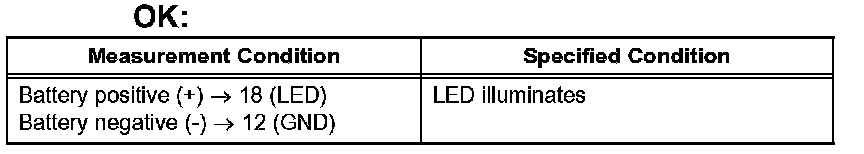

b. Apply battery voltage to the master switch and check that the LED illuminates.





If the result is not as specified, replace the switch assembly.
