Window Defogger System
Window Defogger System

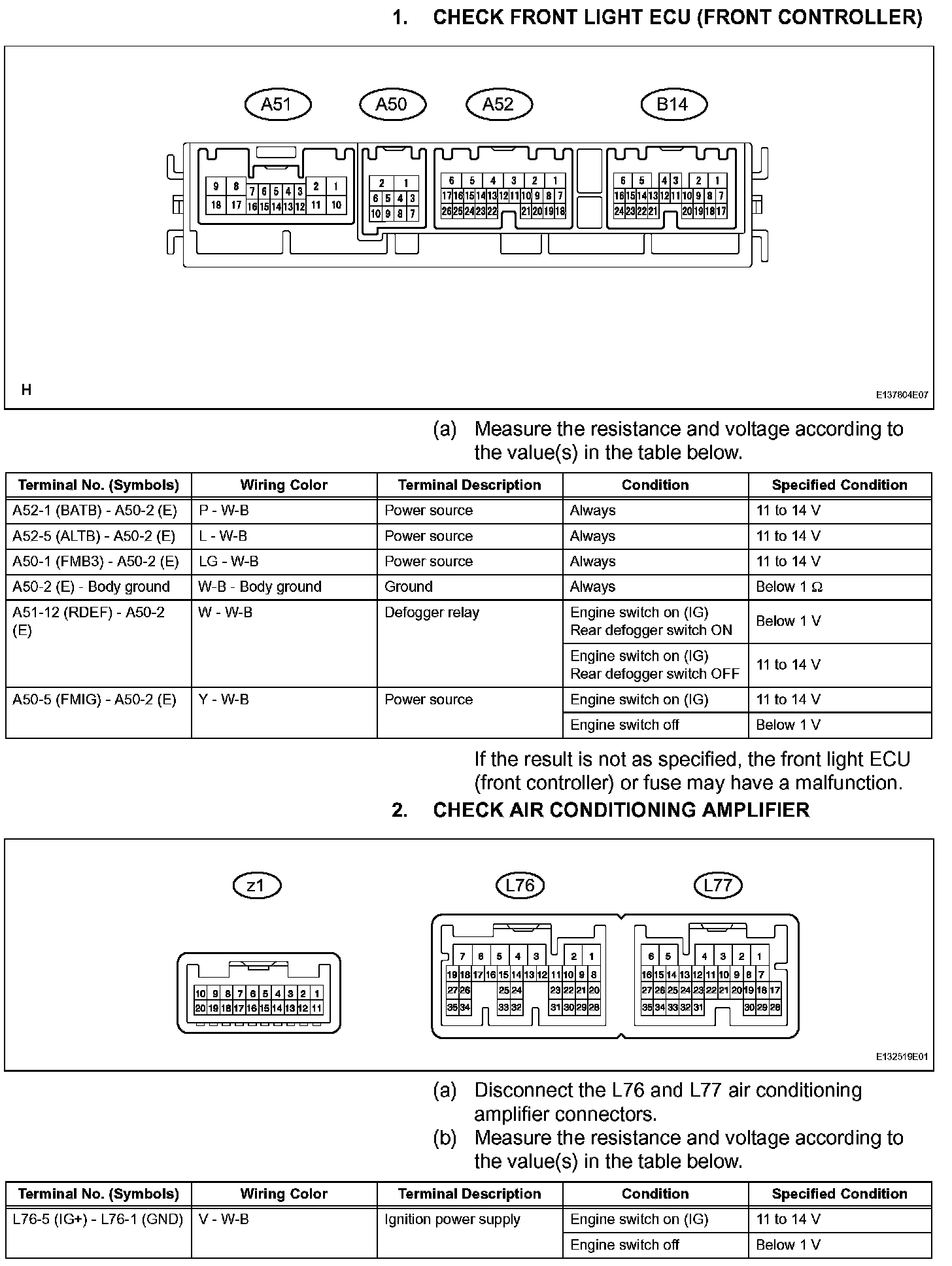

Terminals Of Control Module/Pinouts (Part 1):

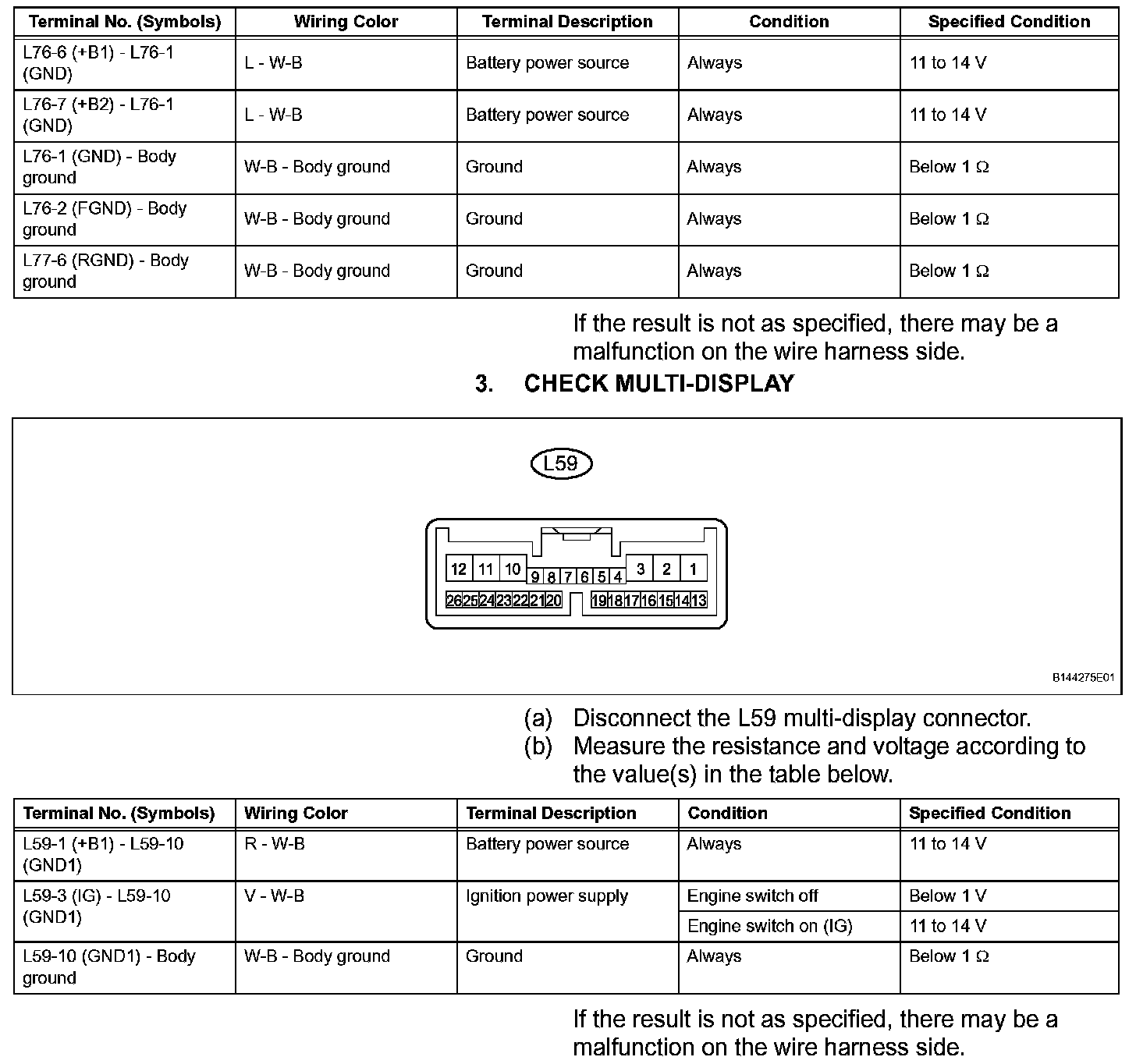

Terminals Of Control Module/Pinouts (Part 2):

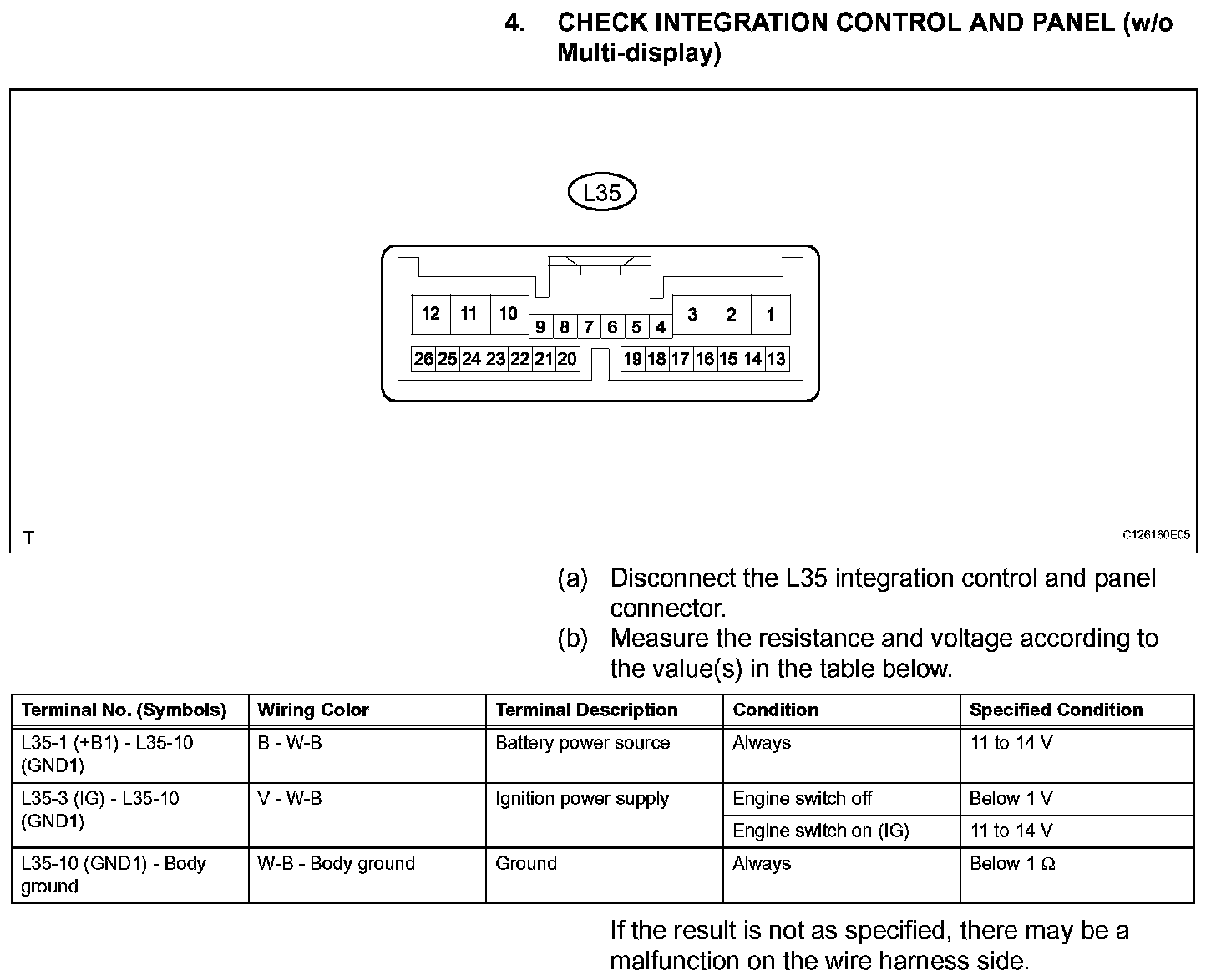

Terminals Of Control Module/Pinouts (Part 3):
