Rear Window Defogger and Mirror Heater

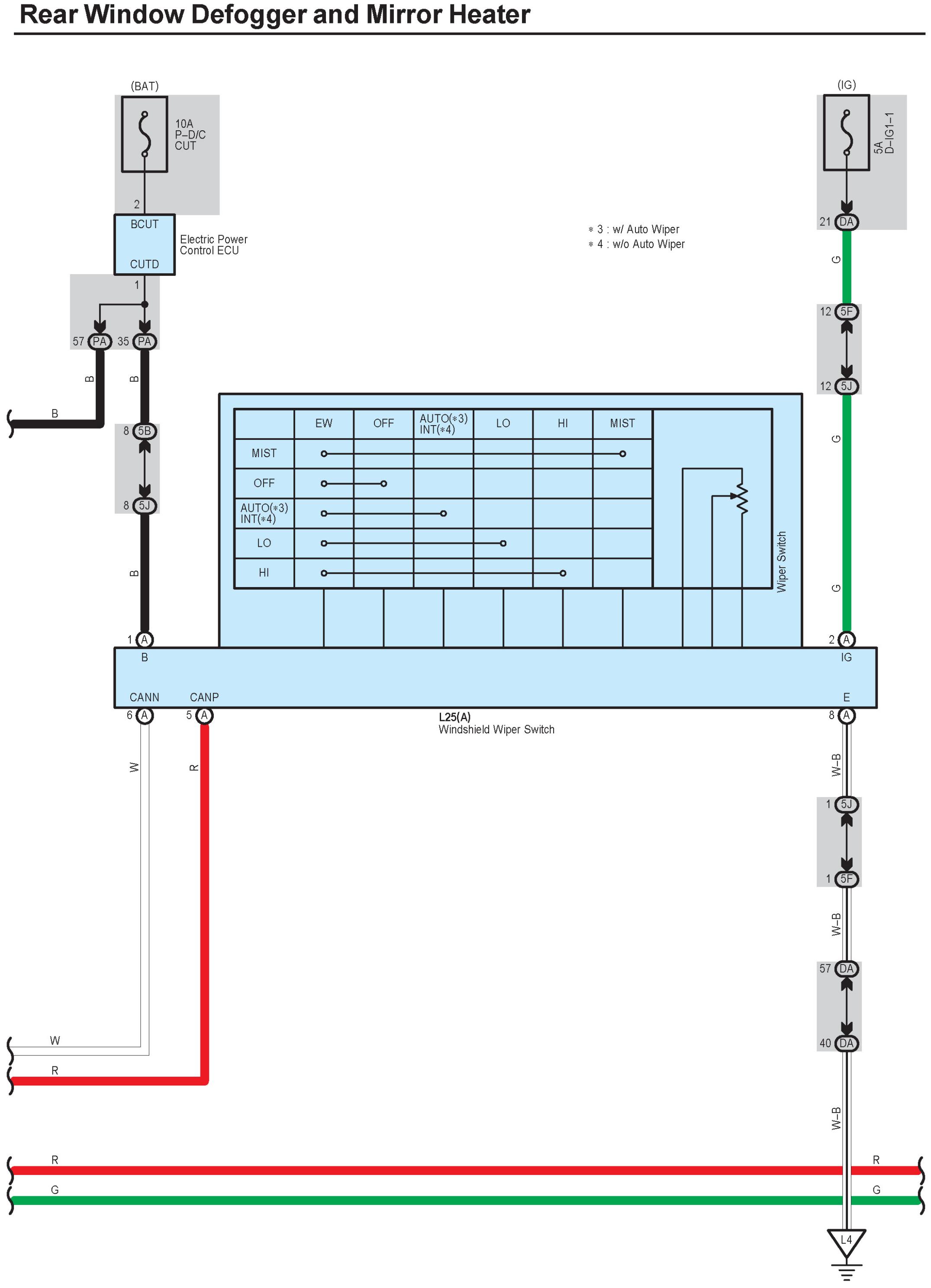

Rear Window Defogger And Mirror Heater Part 1:

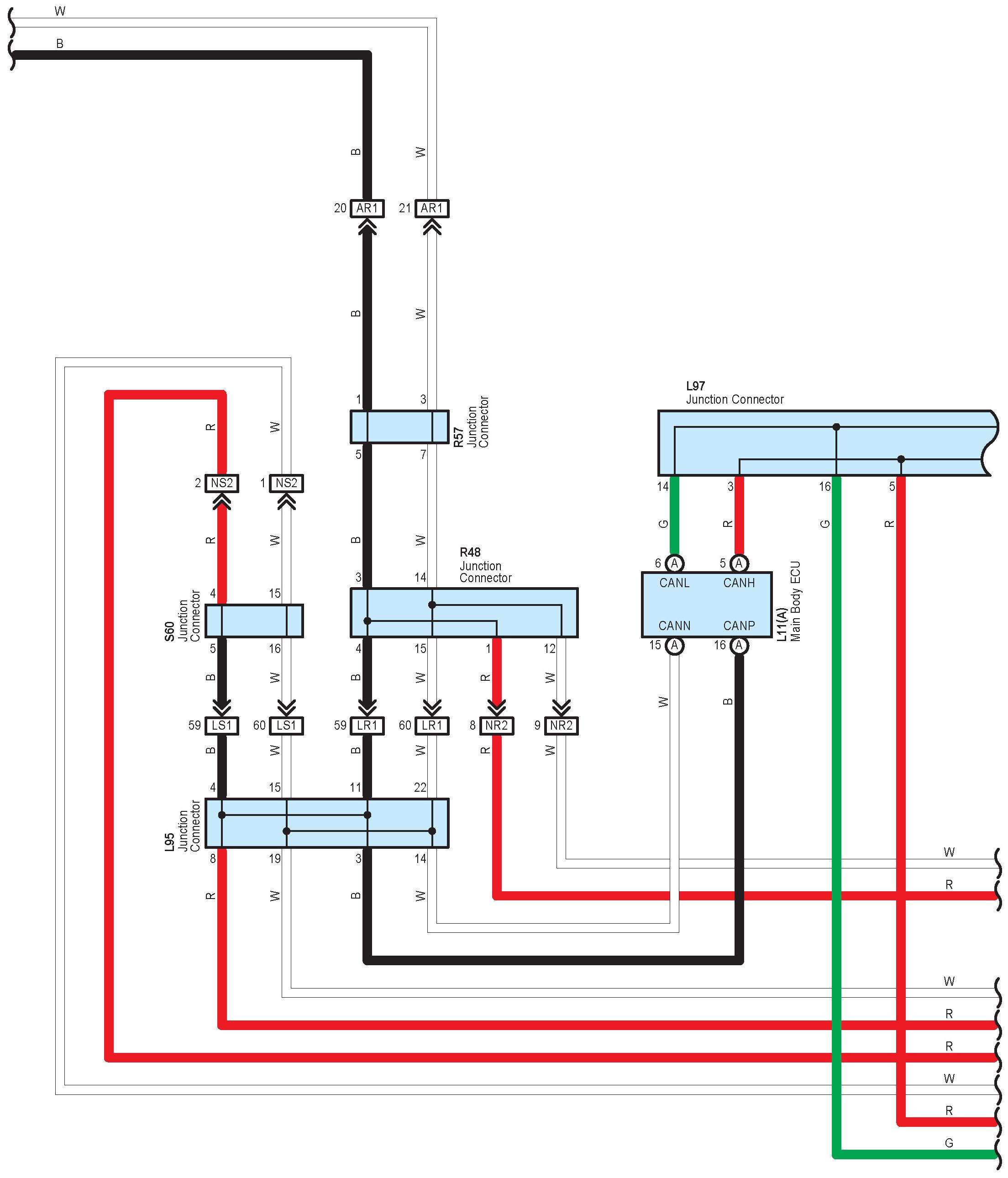

Rear Window Defogger And Mirror Heater Part 2:

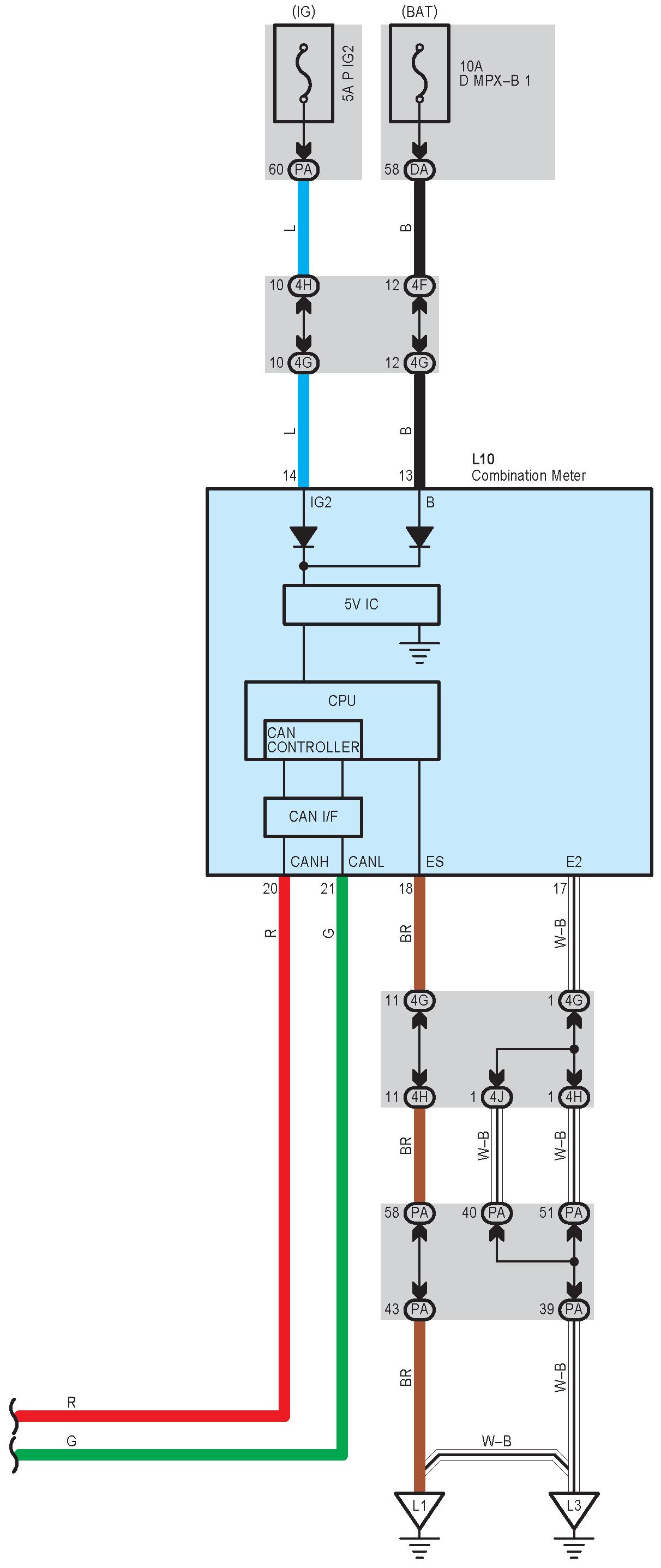

Rear Window Defogger And Mirror Heater Part 3:

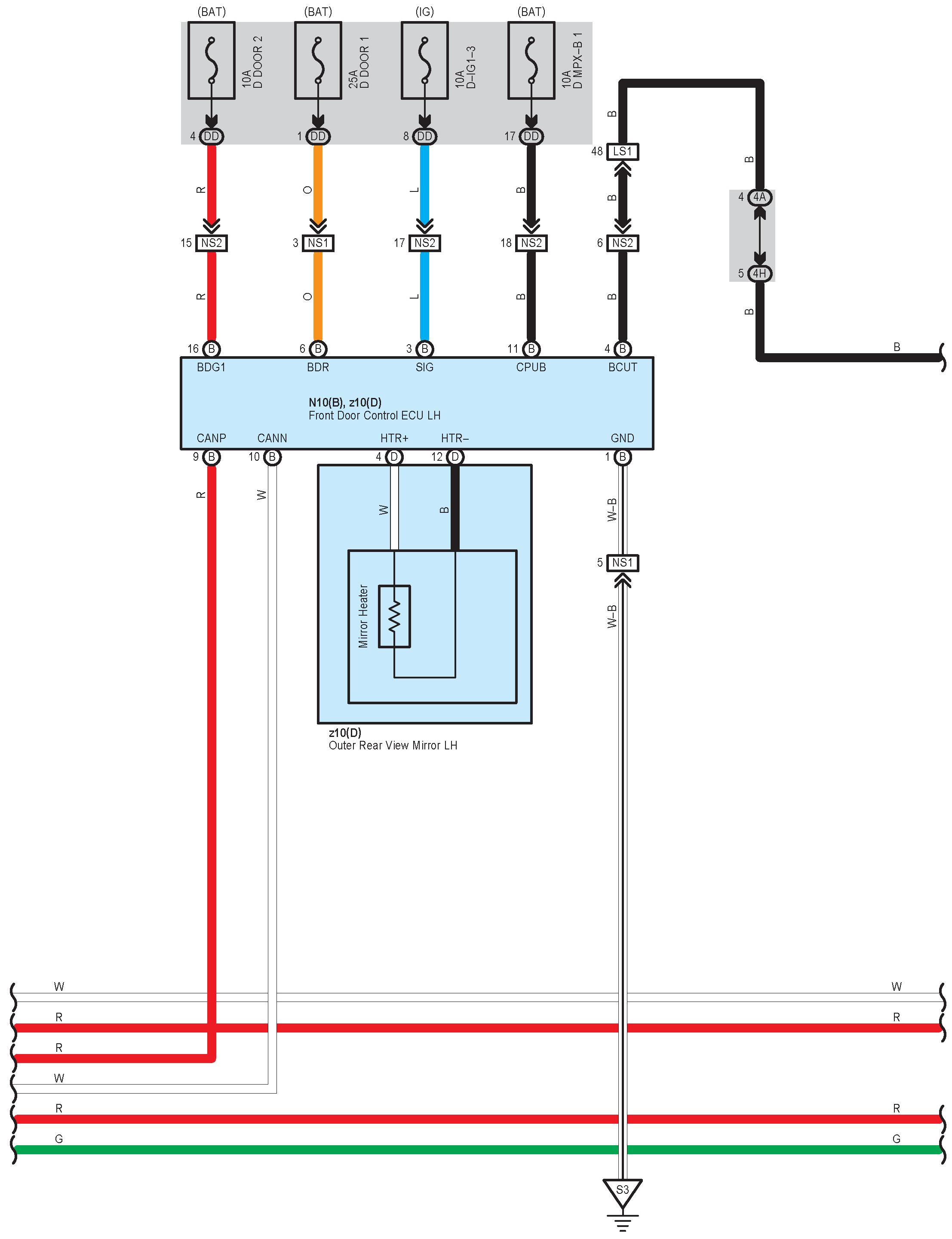

Rear Window Defogger And Mirror Heater Part 4:

Rear Window Defogger And Mirror Heater Part 5:

Rear Window Defogger And Mirror Heater Part 6:

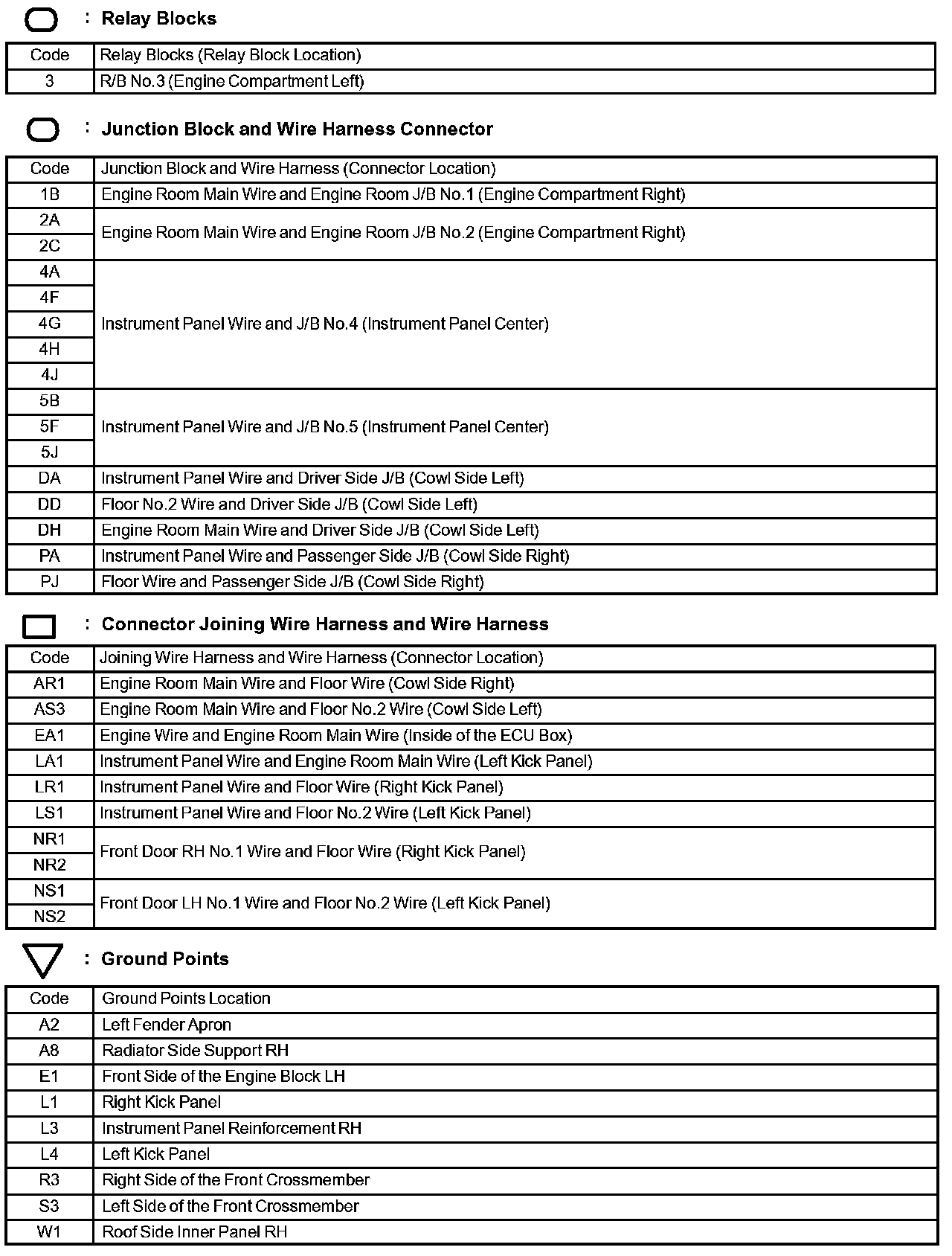

Diagram Legend:

Locations: The locations of components, connectors, ground points, and splices referred to within these diagrams can be found at Vehicle Locations. Locations

Connector Views: The connector views for connectors referred to within these diagrams can be found at Vehicle level Connector Views. Connector Views
