Home >> Lexus >> 2007 >> LS 460 V8-4.6L (1UR-FSE) >> Repair and Diagnosis >> Transmission and Drivetrain >> Drive/Propeller Shafts, Bearings and Joints >> Tools and Equipment >> Propeller Shaft

Propeller Shaft

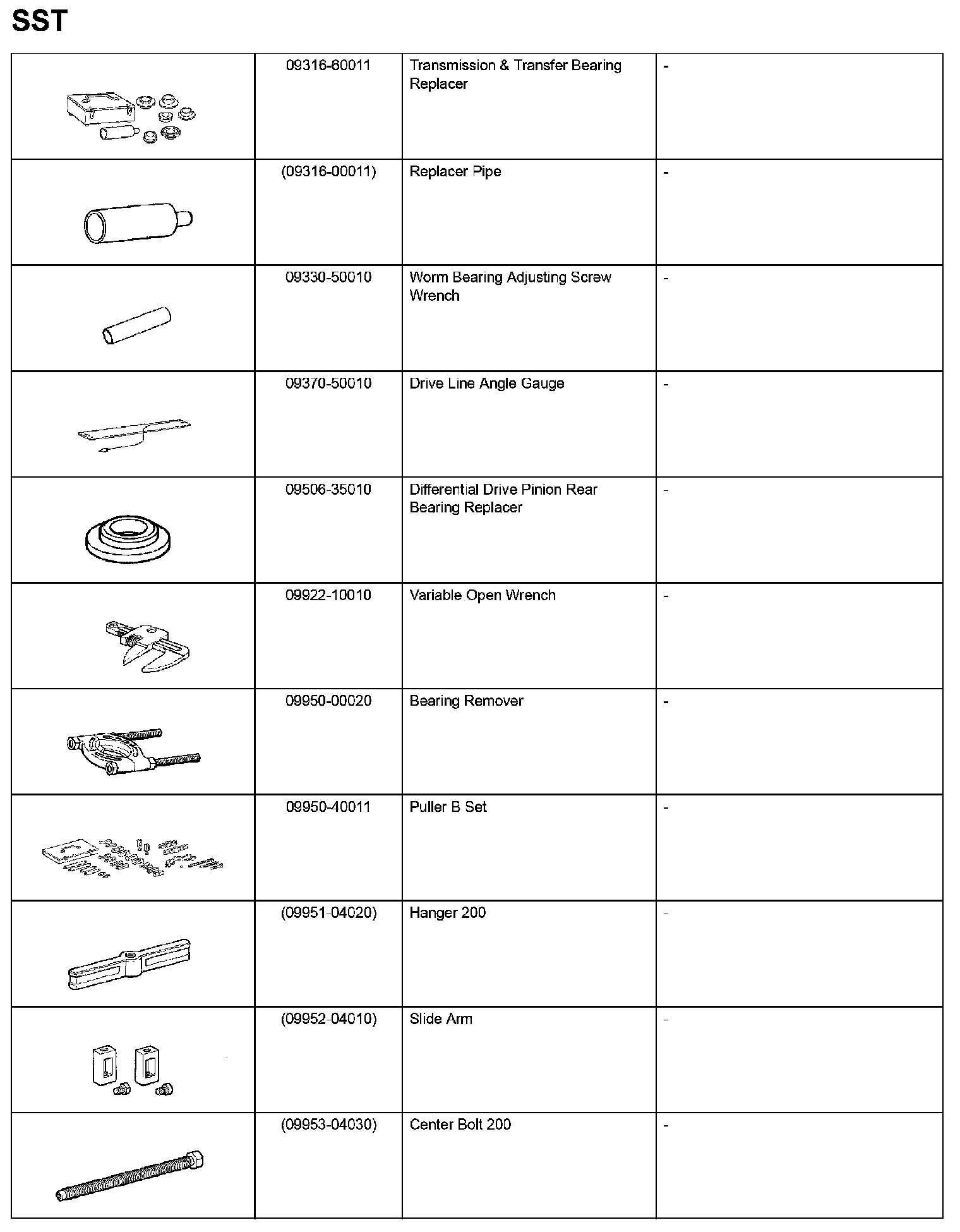

Propeller Shaft - SST (Part 1):

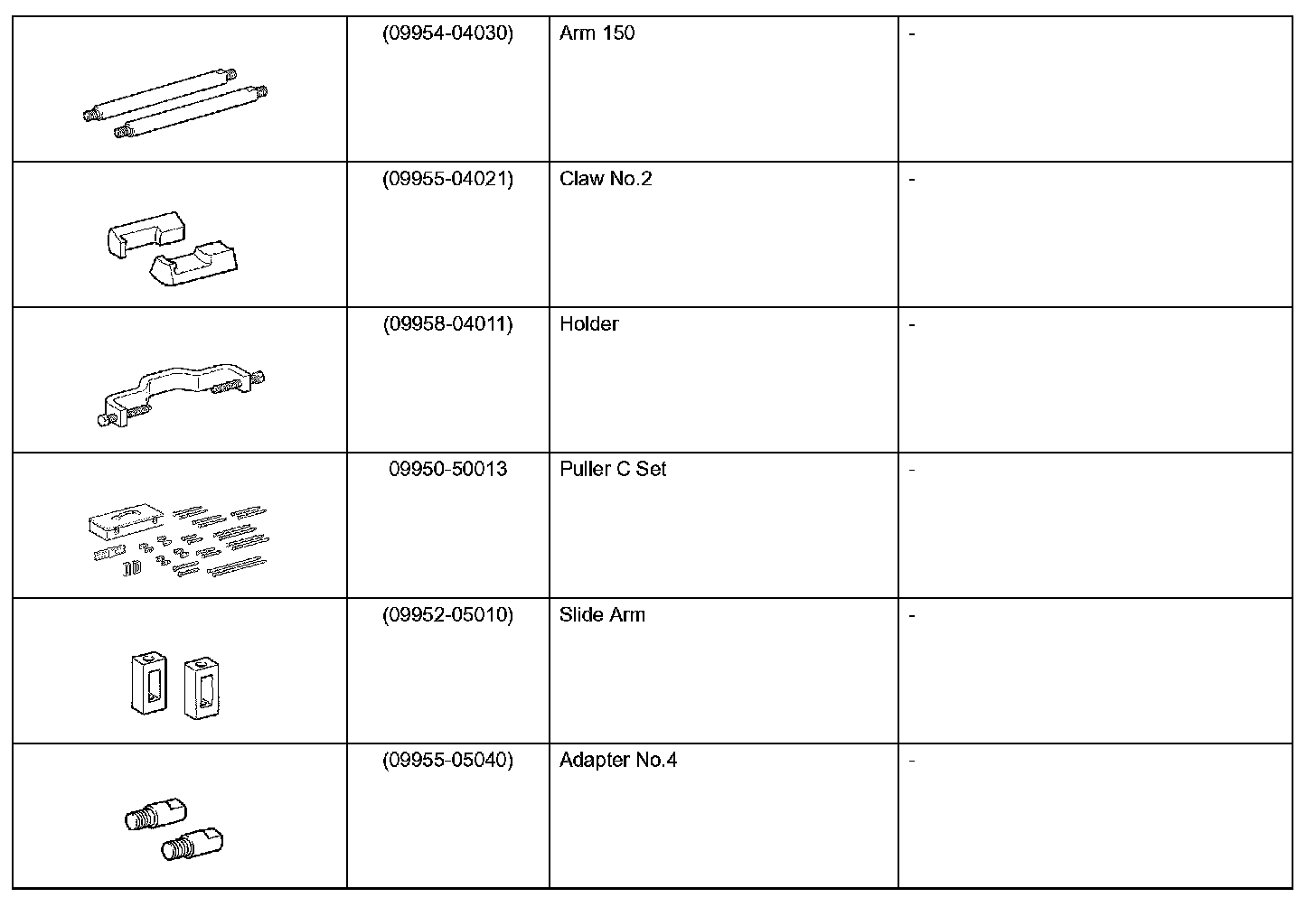

Propeller Shaft - SST (Part 2):

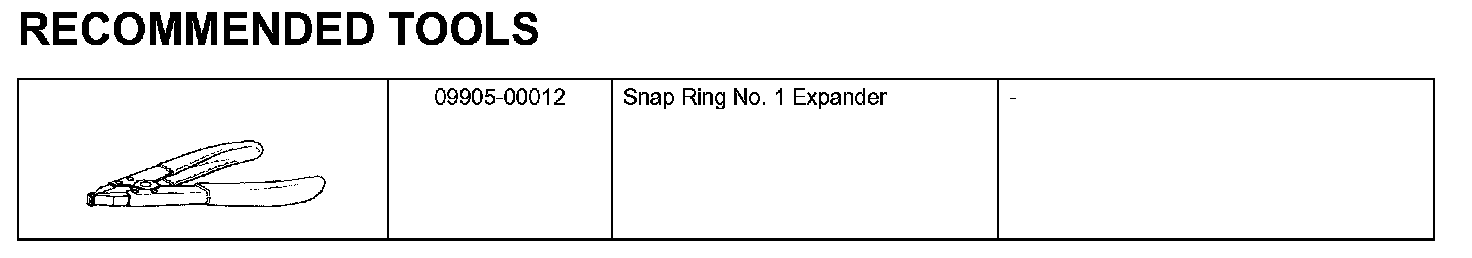

Propeller Shaft - Recommended Tools:

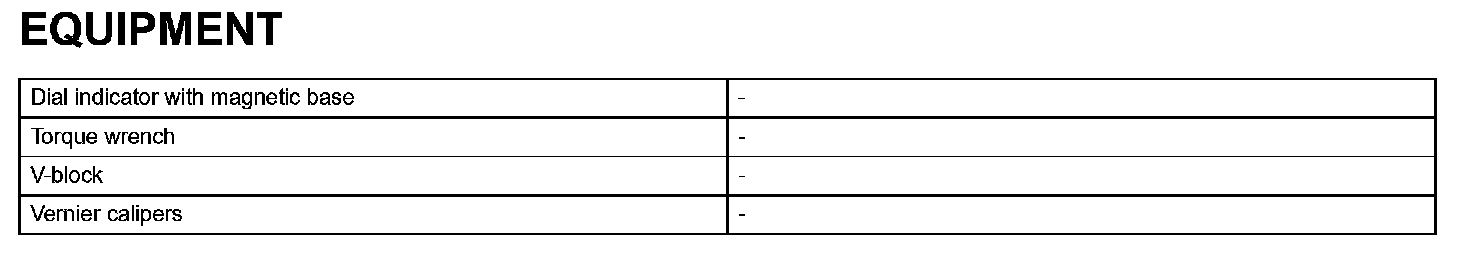

Propeller Shaft - Equipment:
