How To Proceed With Troubleshooting
HOW TO PROCEED WITH TROUBLESHOOTINGHINT:
^ The TCM of this system is connected to the CAN communication system. Therefore, before starting troubleshooting, make sure to check that there is no trouble in the CAN communication system.
^ *: Use the intelligent tester or Techstream.

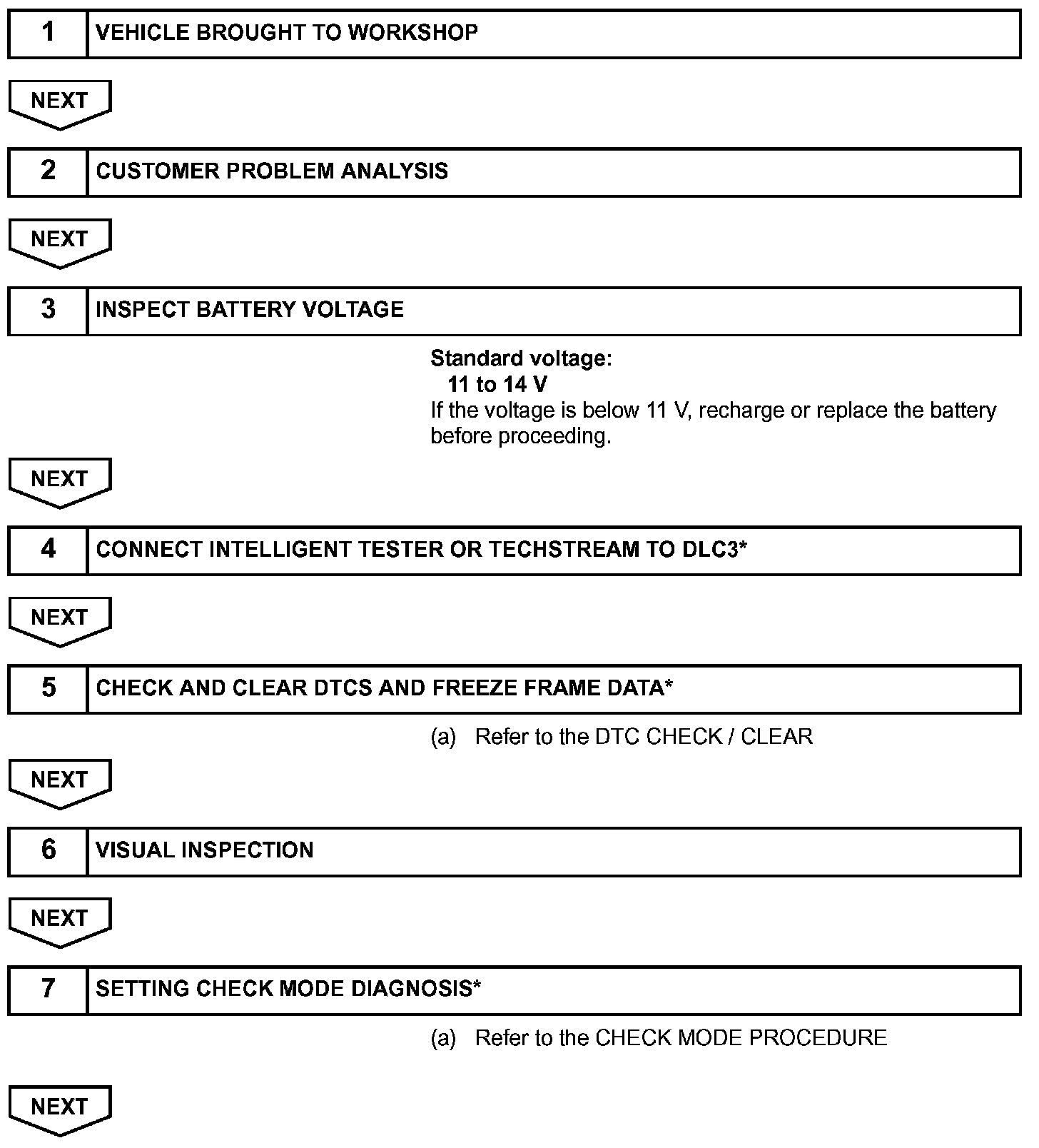

Steps 1-7:

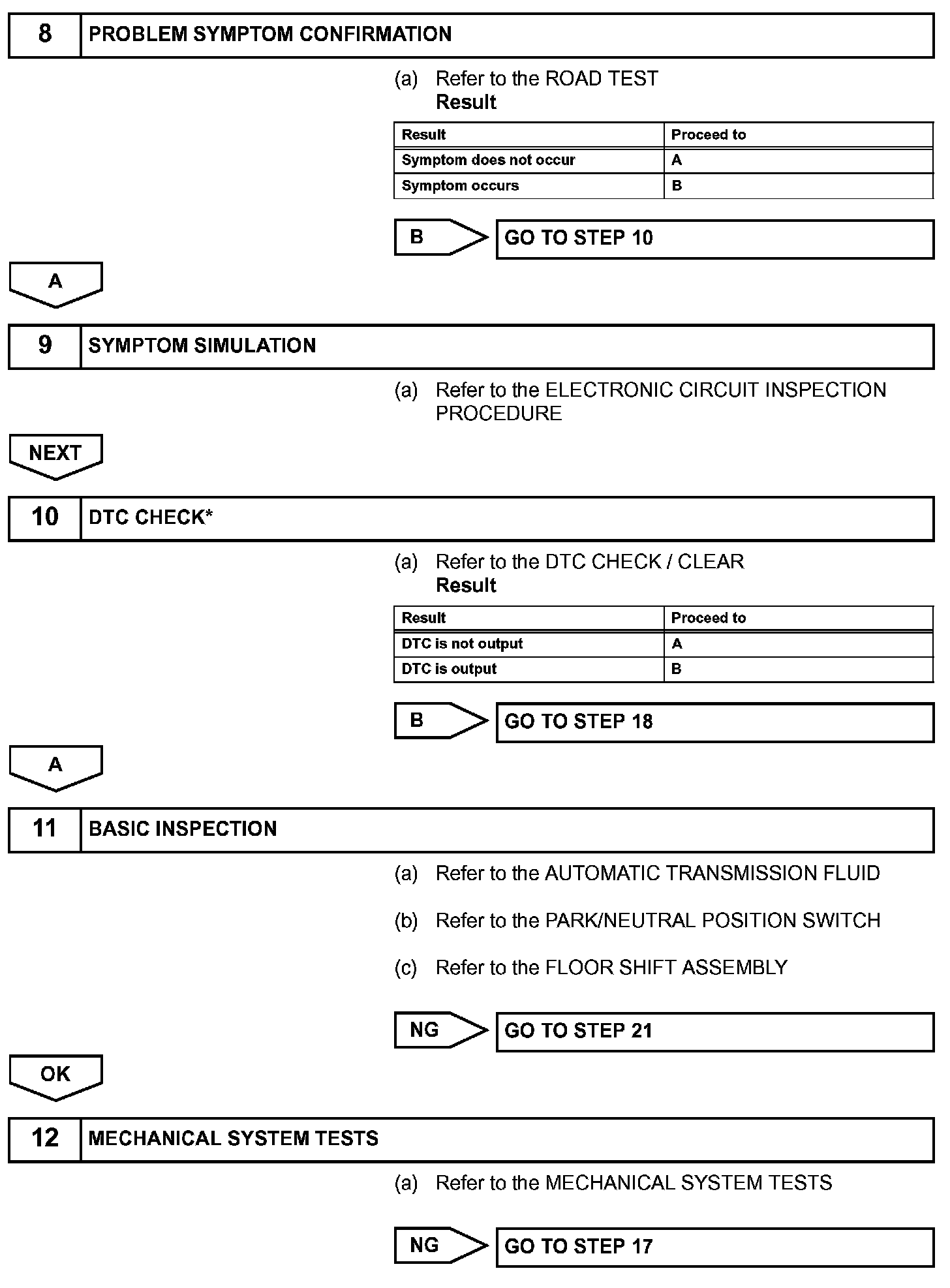

Steps 8-12(Part 1):

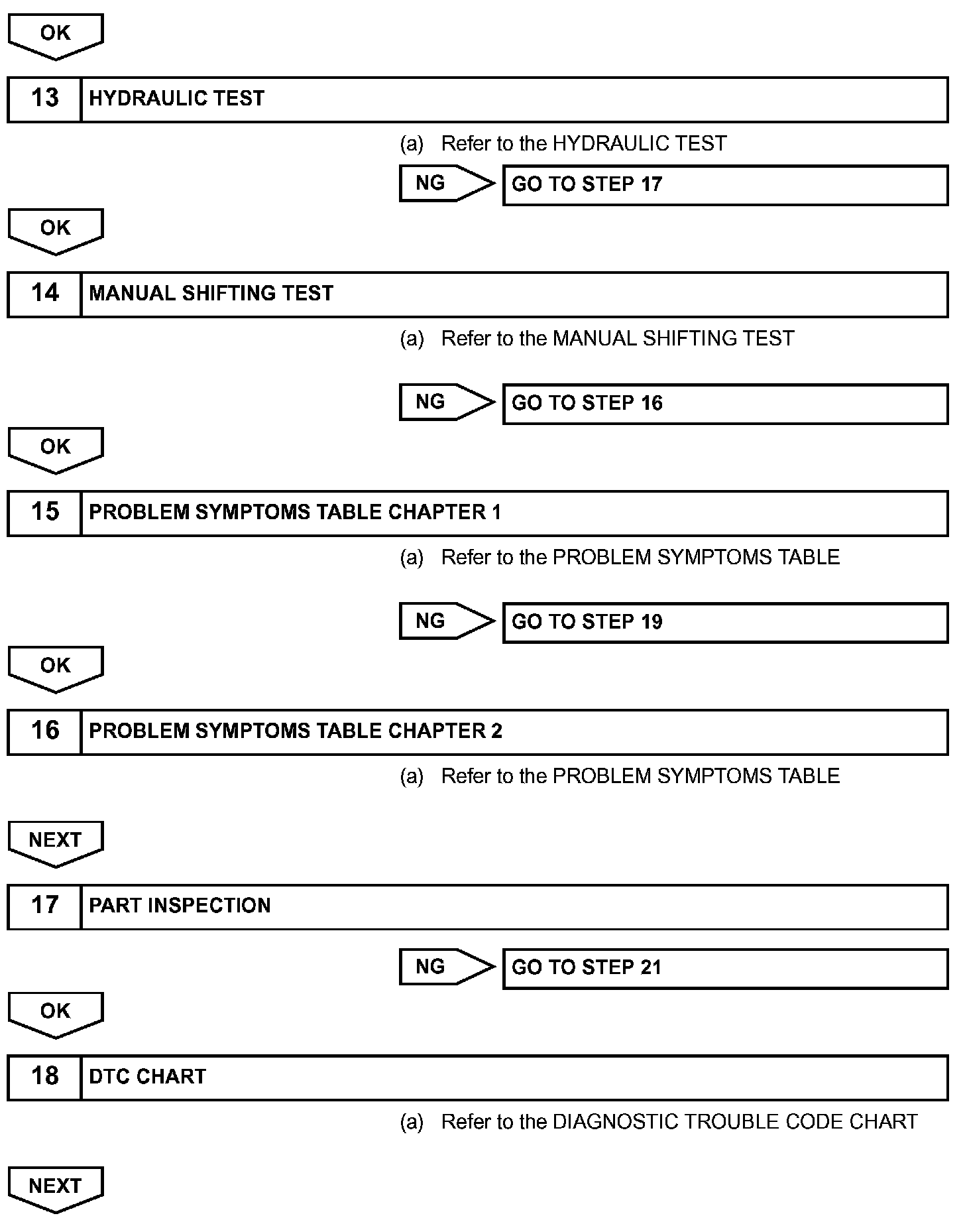

Steps 12(Part 2)-18:

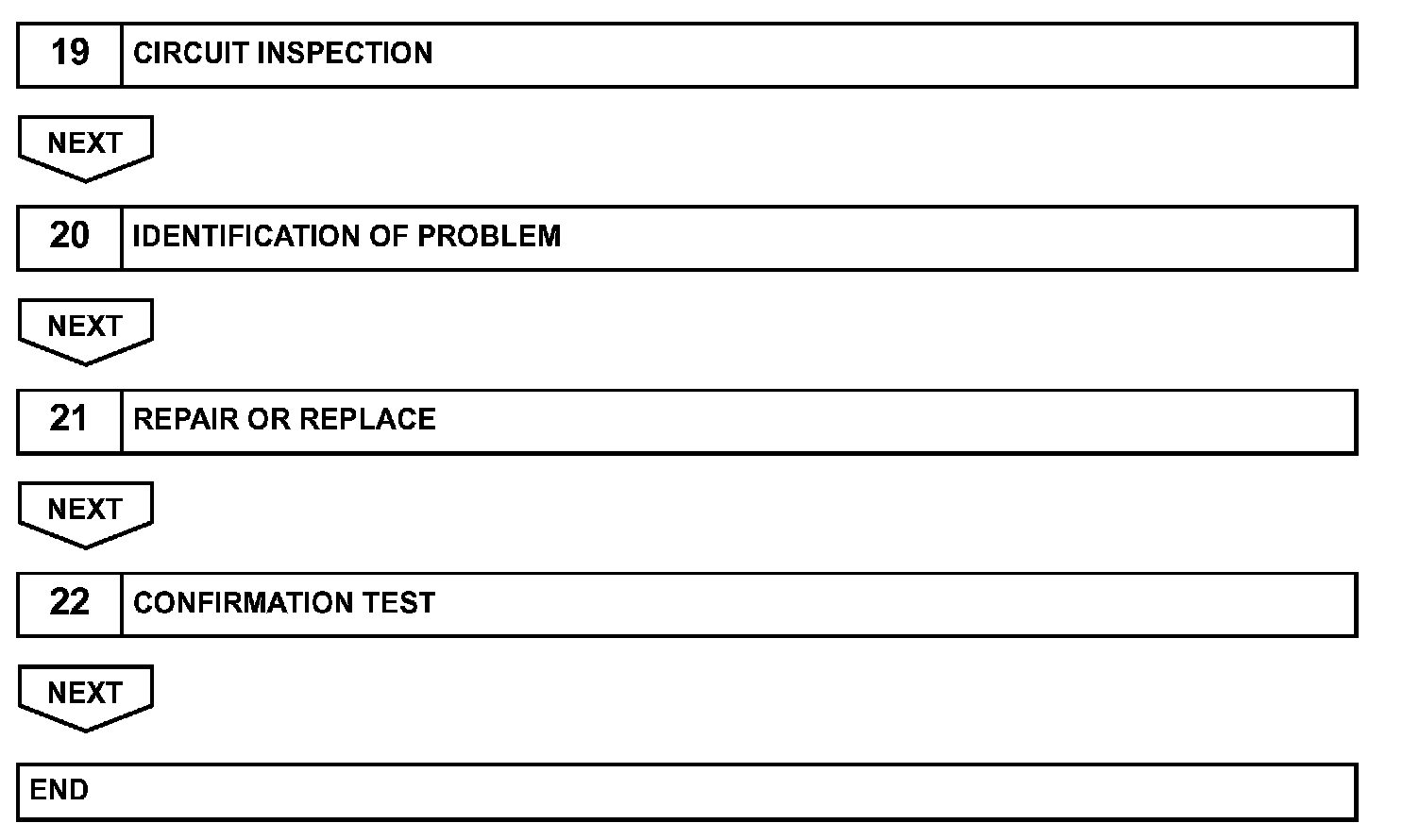

Steps 19-22:
