TCM Power Source Circuit

TCM Power Source Circuit

DESCRIPTION
When the engine switch is turned on (IG), voltage from the ECM's MREL terminal is applied to the EFI MAIN 2 relay. This causes the contacts of the EFI MAIN 2 relay to close, which supplies power to terminal +B of the TCM.

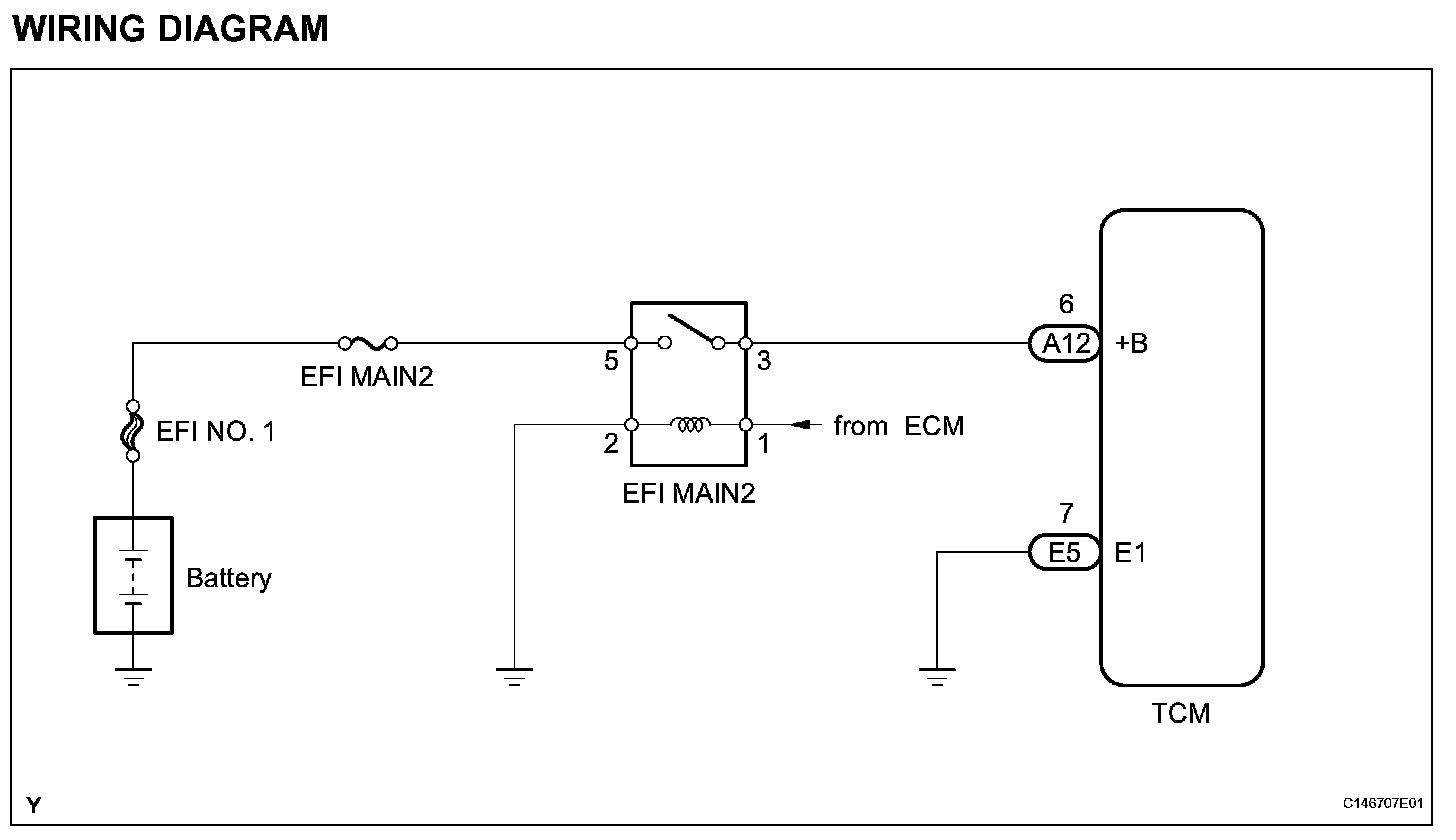

WIRING DIAGRAM:





INSPECTION PROCEDURE

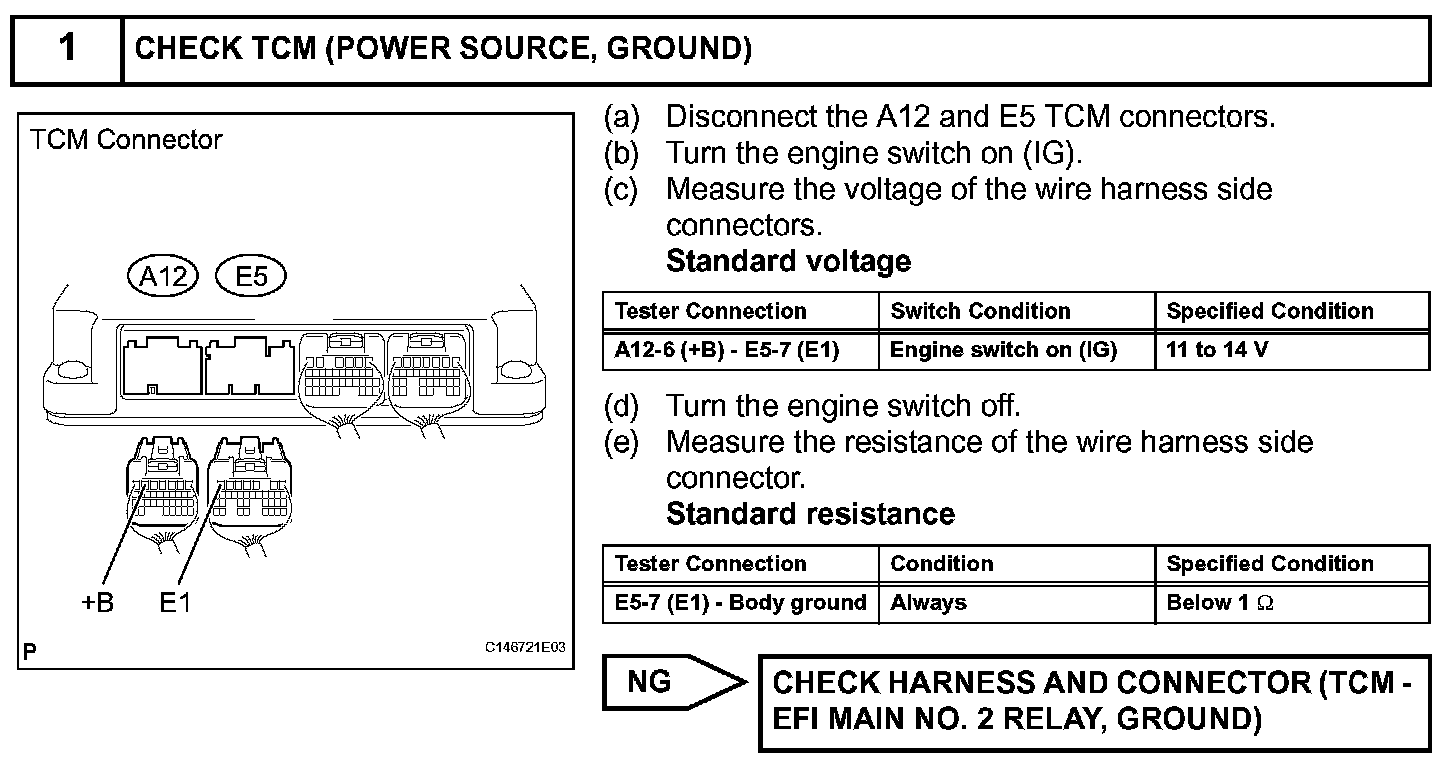

Step 1(Part 1):

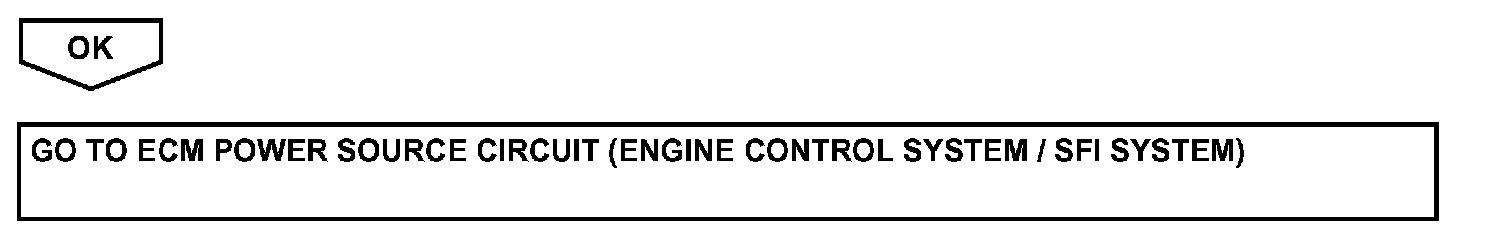

Step 1(Part 2):
