Pattern Select Switch Circuit
Pattern Select Switch CircuitDESCRIPTION
The pattern select switch sends signals to the mirror switch through LIN communication, and the TCM sends signals to the mirror switch through CAN communication. If a pattern select switch signal is input into the TCM, the TCM sends a signal to the combination meter, which then illuminates the indicator light.
INSPECTION PROCEDURE

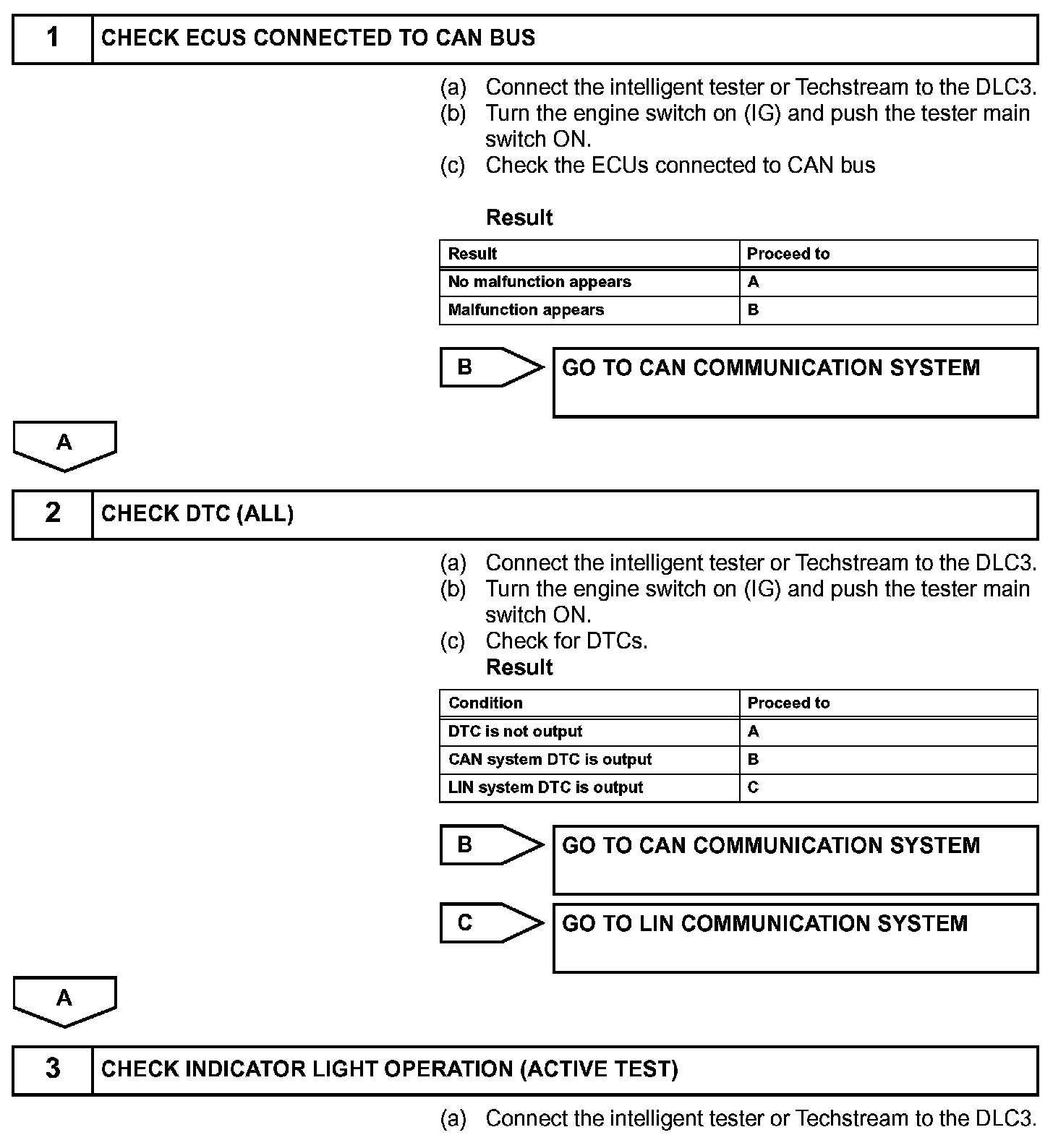

Steps 1-3(Part 1):

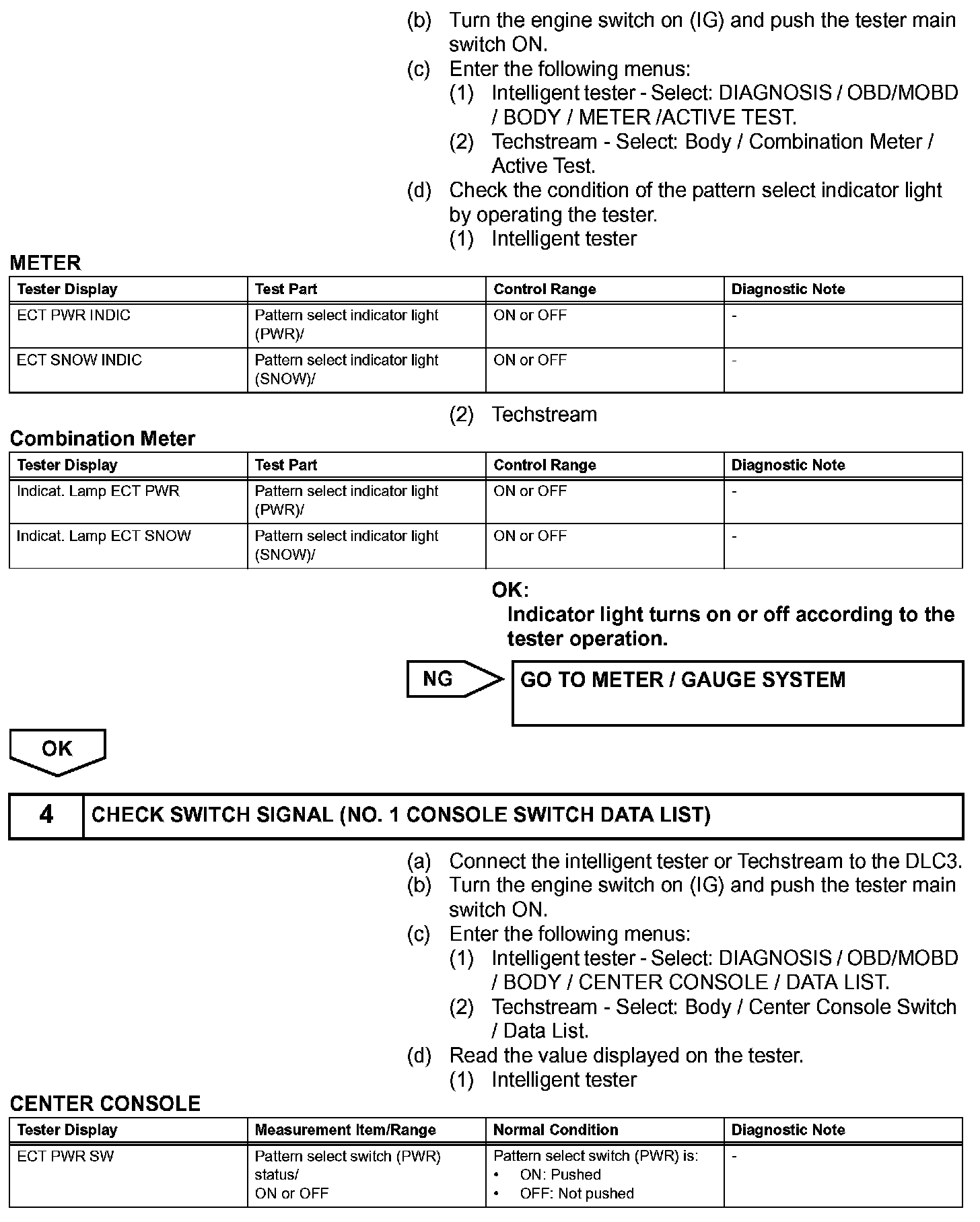

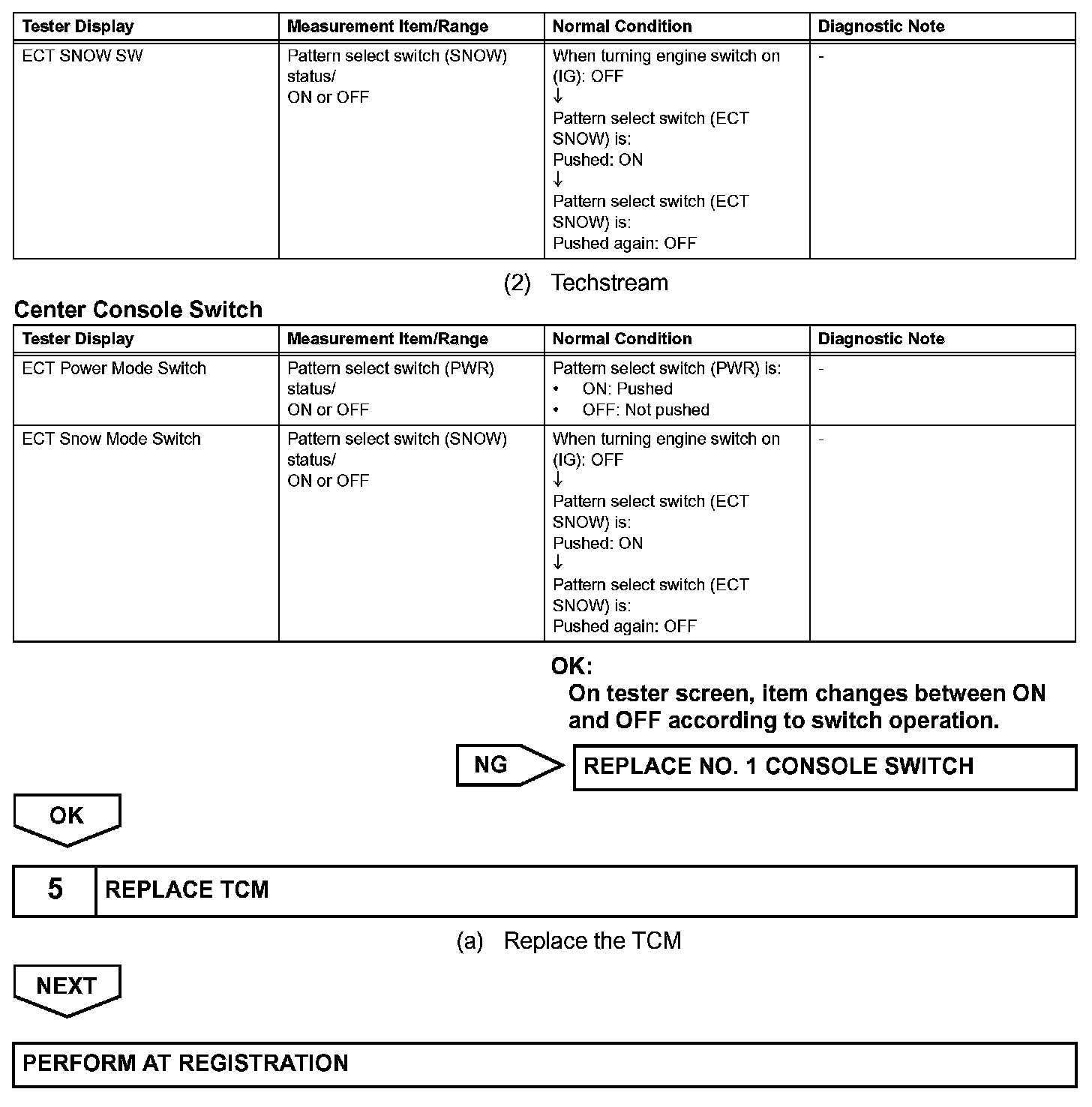

Steps 3(Part 2)-4(Part 1):
