Seals and Gaskets: Service and Repair
AUTOMATIC TRANSMISSION REAR OIL SEALCOMPONENTS (Part 1):
COMPONENTS (Part 2):
COMPONENTS (Part 3):
REPLACEMENT
1. REMOVE PROPELLER WITH CENTER BEARING SHAFT ASSEMBLY
(a) Remove the propeller with center bearing shaft.
2. REMOVE AUTOMATIC TRANSMISSION FLANGE YOKE ASSEMBLY
(a) Using SST and a hammer, loosen the staked part of the nut.
SST 09930-00010
HINT: Move the shift lever to P.
(b) Set SST.
SST 09330-00021, 09950-30012 (09955-03040)
(c) Using SST and a 30 mm socket wrench, remove the nut.
(d) Remove SST.
(e) Tap out the flange yoke with a plastic-faced hammer to remove it.
(f) Using a screwdriver, pry out the oil seal from the automatic transmission flange yoke.
3. REMOVE AUTOMATIC TRANSMISSION REAR OIL SEAL
(a) Using SST, tap out the oil seal.
SST 09308-00010
4. INSTALL AUTOMATIC TRANSMISSION REAR OIL SEAL
(a) Coat the lip of a new oil seal with MP grease.

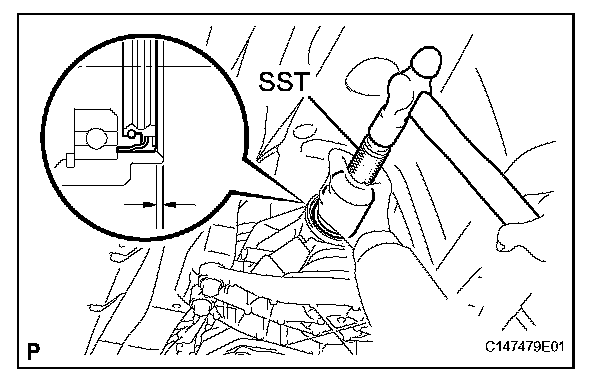

(b) Using SST and a hammer, tap in the oil seal.
SST 09214-76011
Standard depth: 3.5 ± 0.2 mm (0.138 ± 0.008 in.)
5. INSTALL AUTOMATIC TRANSMISSION FLANGE YOKE ASSEMBLY
(a) Using SST and a hammer, tap in a new oil seal.
SST 09950-60010 (09951-00410), 09950-70010 (09951-07100)
(b) Install the automatic transmission flange yoke.
(c) Set SST.
SST 09330-00021, 09950-30012 (09955-03040)
(d) Using SST and a 30 mm socket wrench, install and tighten a new nut.
Torque: 126 N*m (1285 kgf*cm, 93 ft.*lbf)
(e) Using a chisel and hammer, securely stake the nut.
6. INSTALL PROPELLER WITH CENTER BEARING SHAFT ASSEMBLY
(a) Install the propeller with center bearing shaft.
7. ADJUST AUTOMATIC TRANSMISSION FLUID
(a) Add automatic transmission fluid.
