Repair Instruction - Customize Parameters

CUSTOMIZE PARAMETERS

HINT: The following items can be customized.

NOTE:
- When the customer requests a change in a function, first make sure that the function can be customized.
- Be sure to make a note of the current settings before customizing.
- When troubleshooting a function, first make sure that the function is set to the default setting.

1. Connect the intelligent tester or Techstream to the DLC3.
2. Turn the engine switch on (IG).
3. Turn the tester on.
4. Enter the following menus:

a. Intelligent tester - Select: CUSTOMIZE /
b. Techstream - Select: Customize Setting /

5. Select the setting by referring to the table.

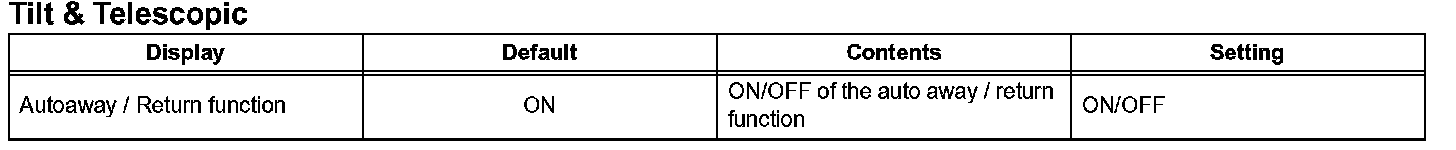

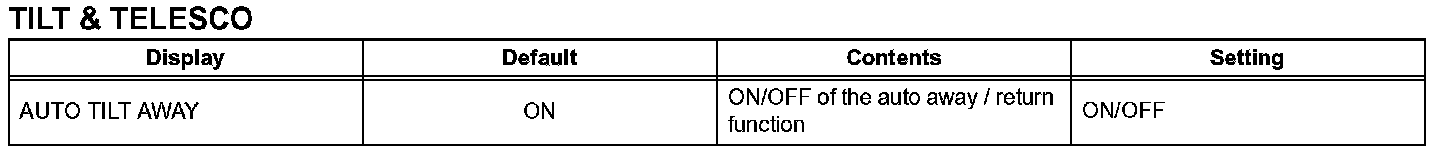

1. POWER TILT AND POWER TELESCOPIC STEERING COLUMN SYSTEM

a. Intelligent tester

b. Techstream

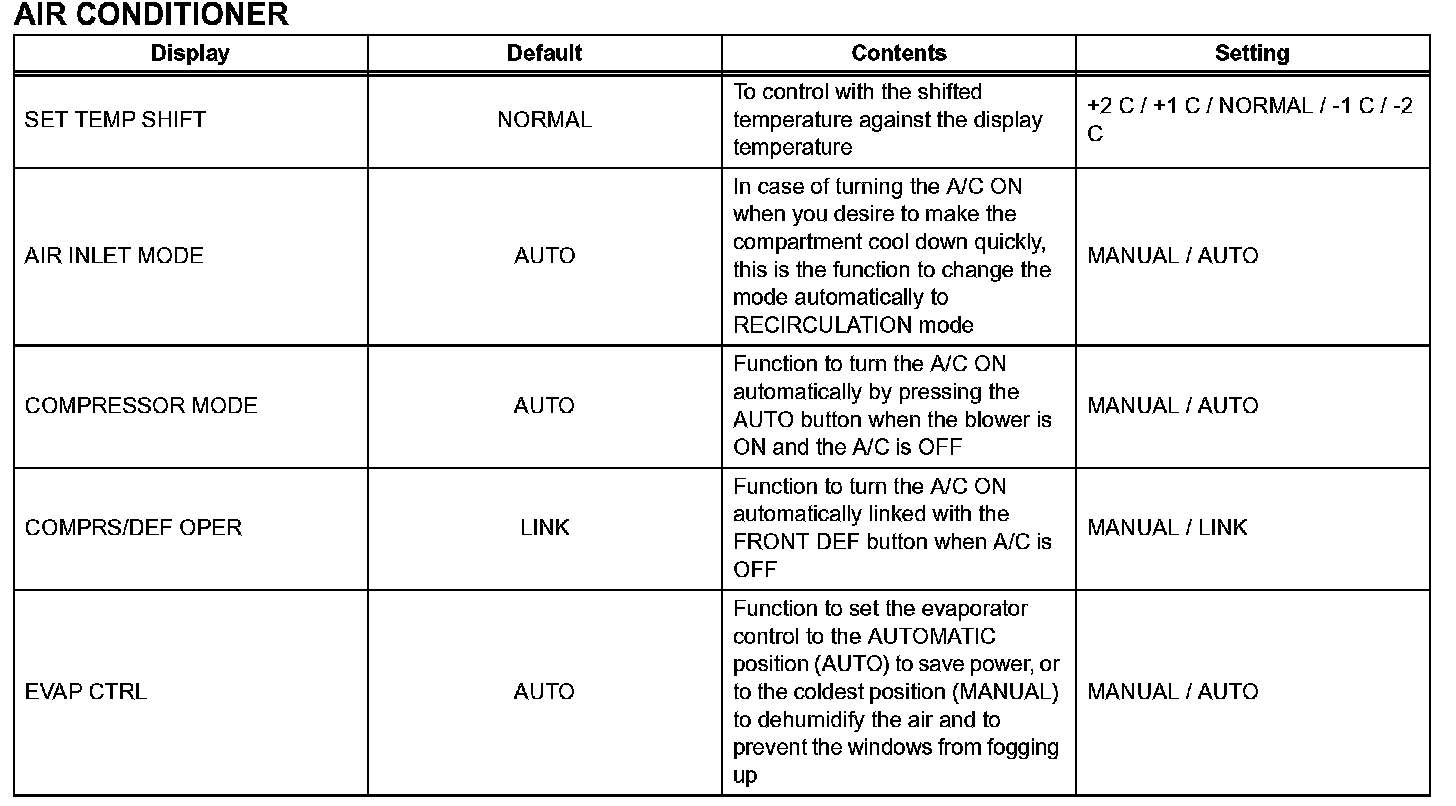

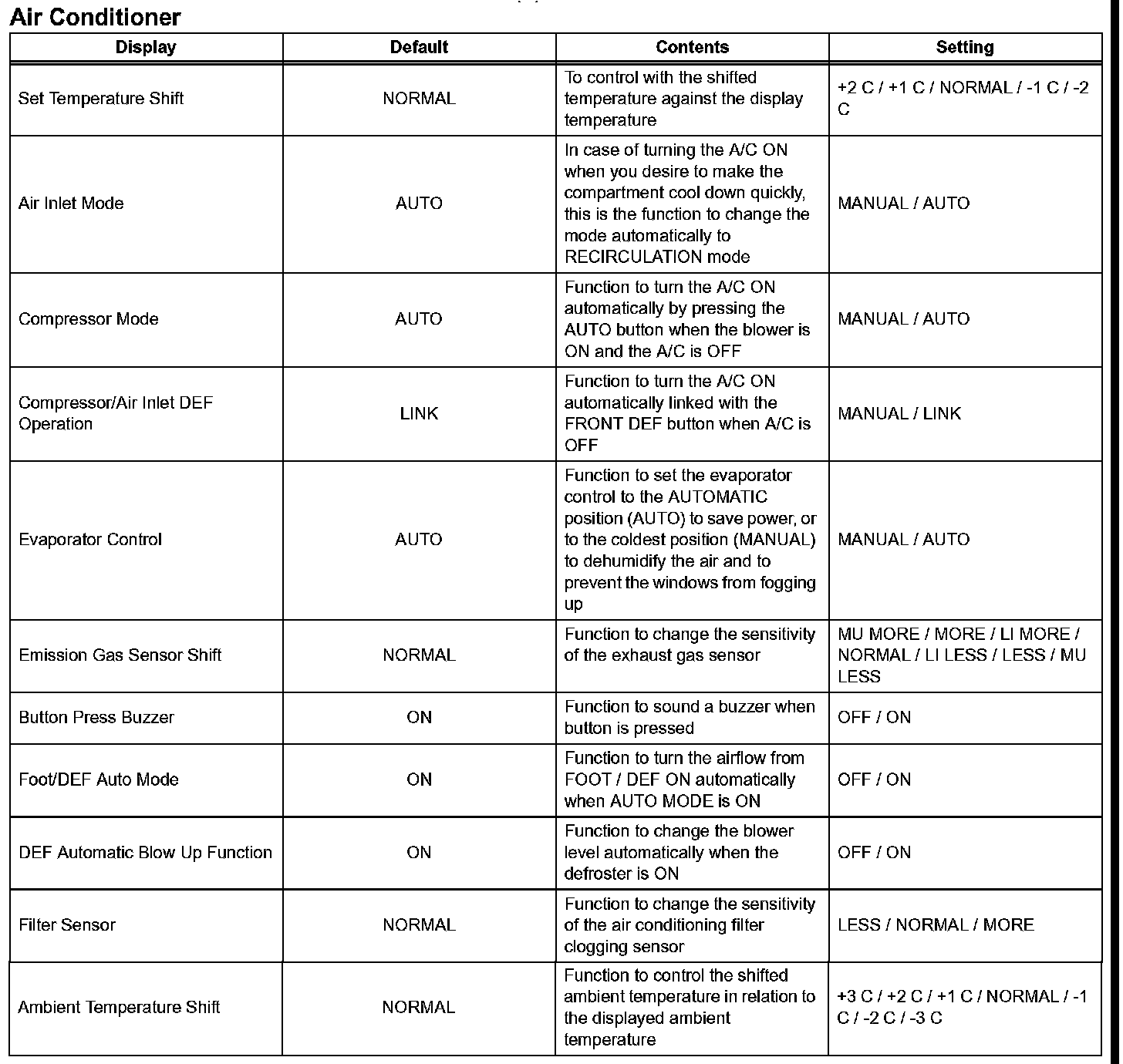

2. AIR CONDITIONING SYSTEM

Part 1:

Part 2:

a. Intelligent tester

b. Techstream

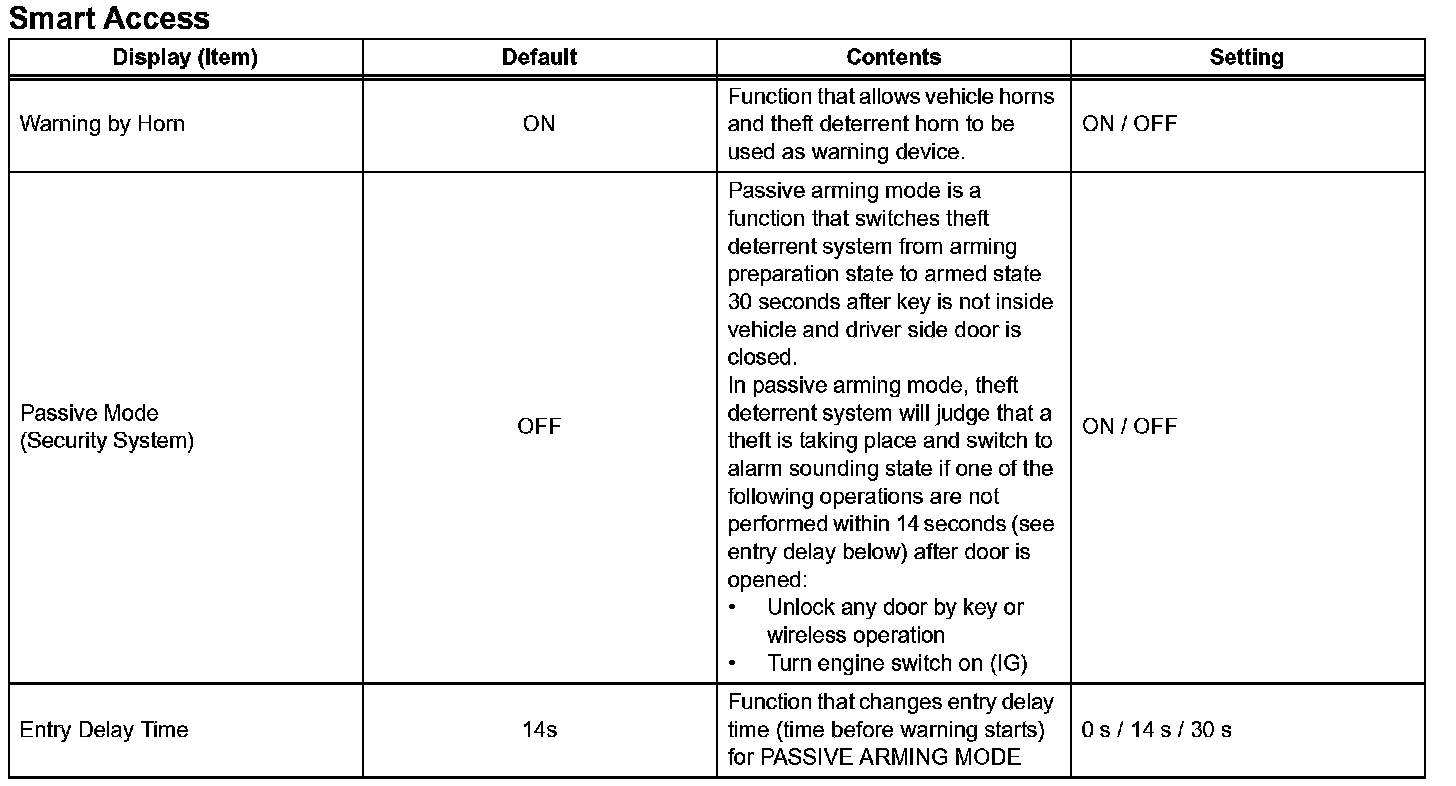

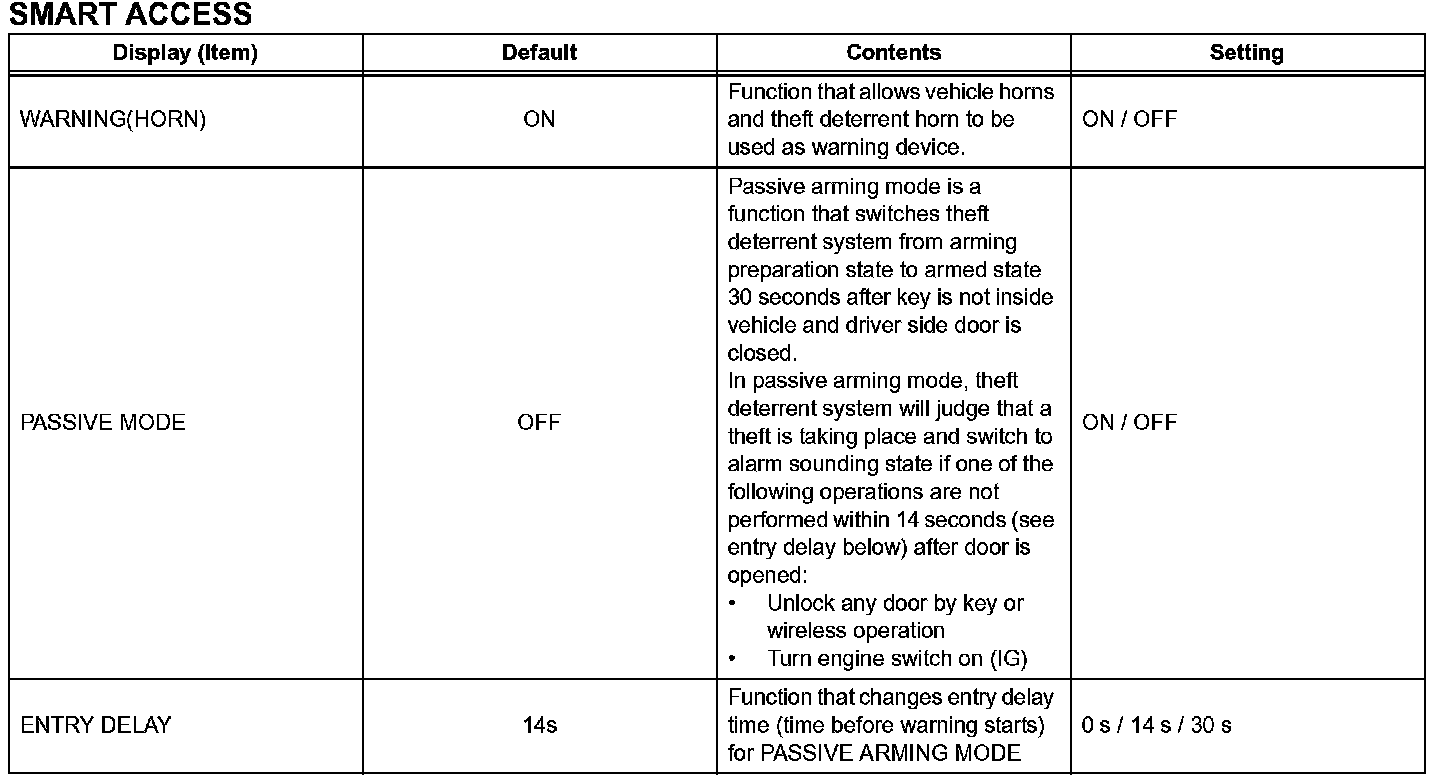

3. THEFT DETERRENT SYSTEM

a. Intelligent tester

b. Techstream

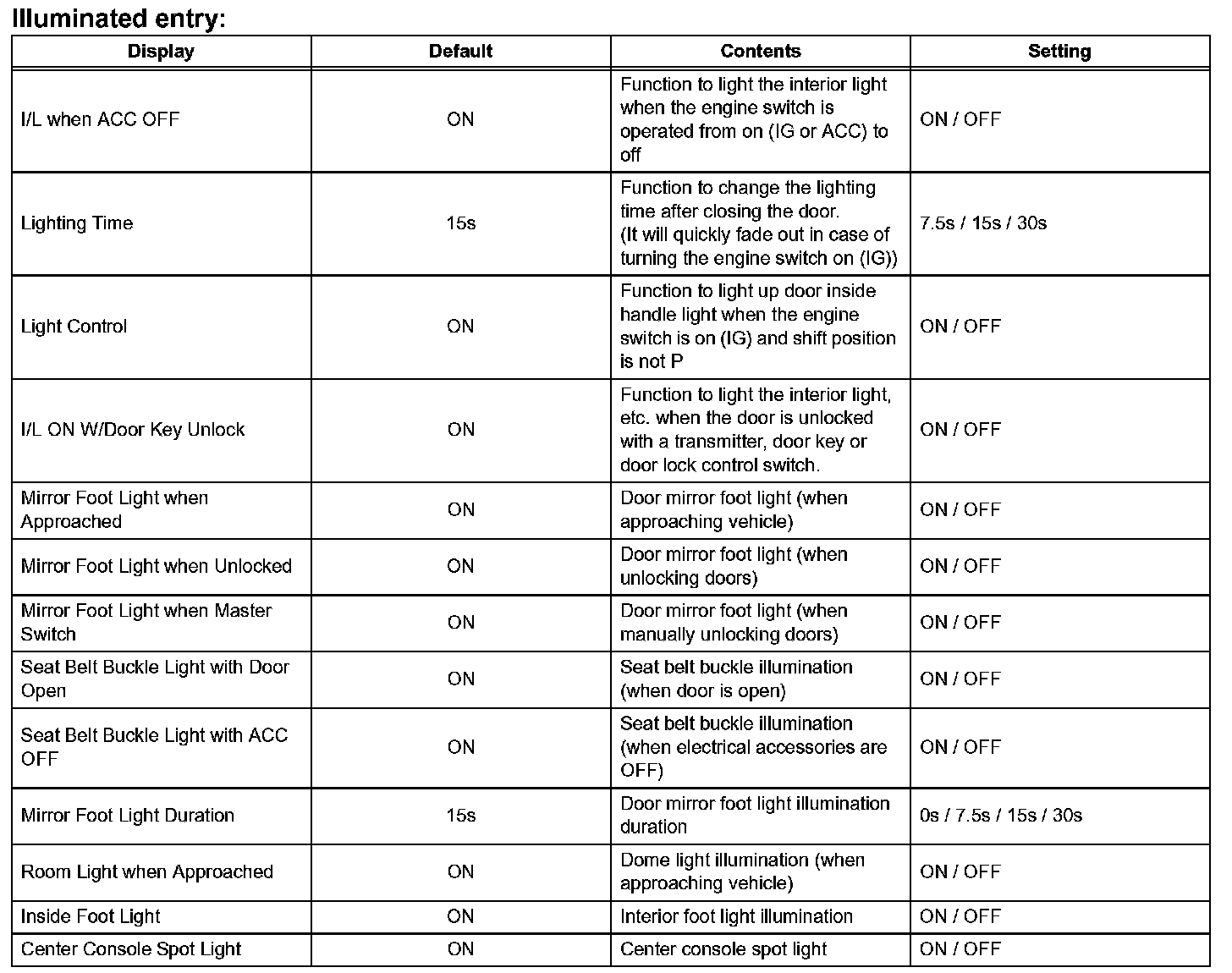

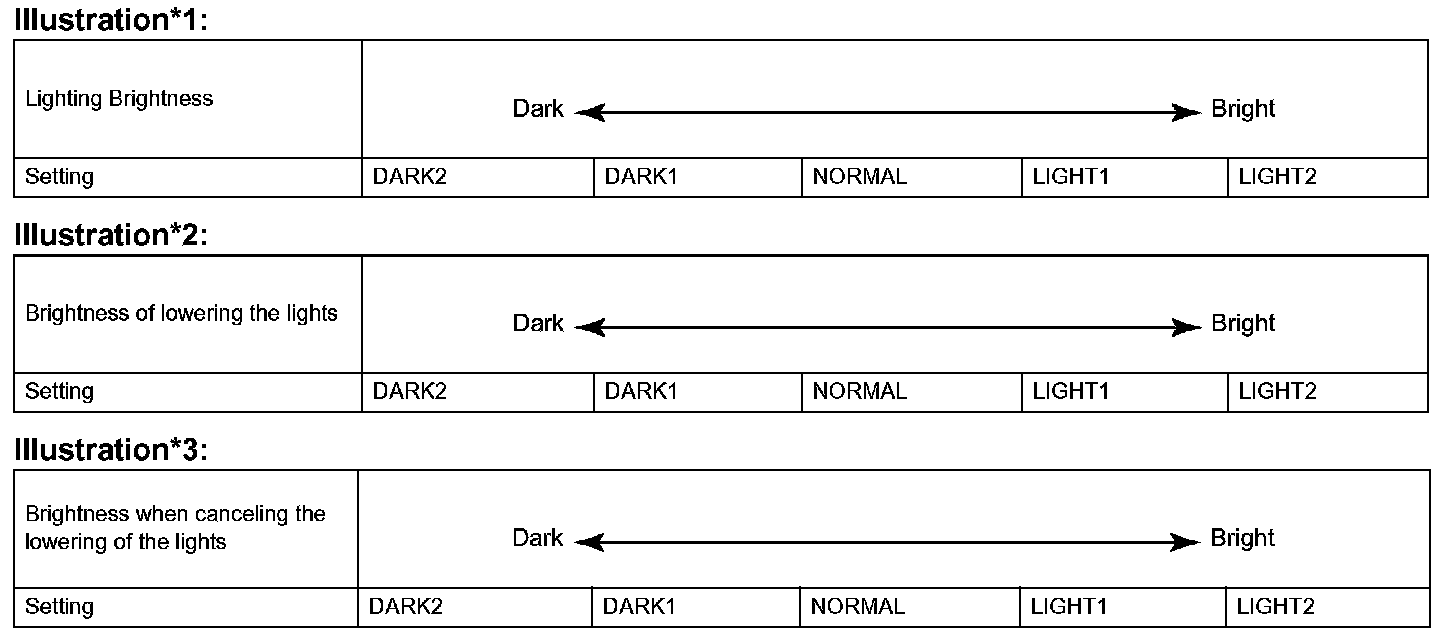

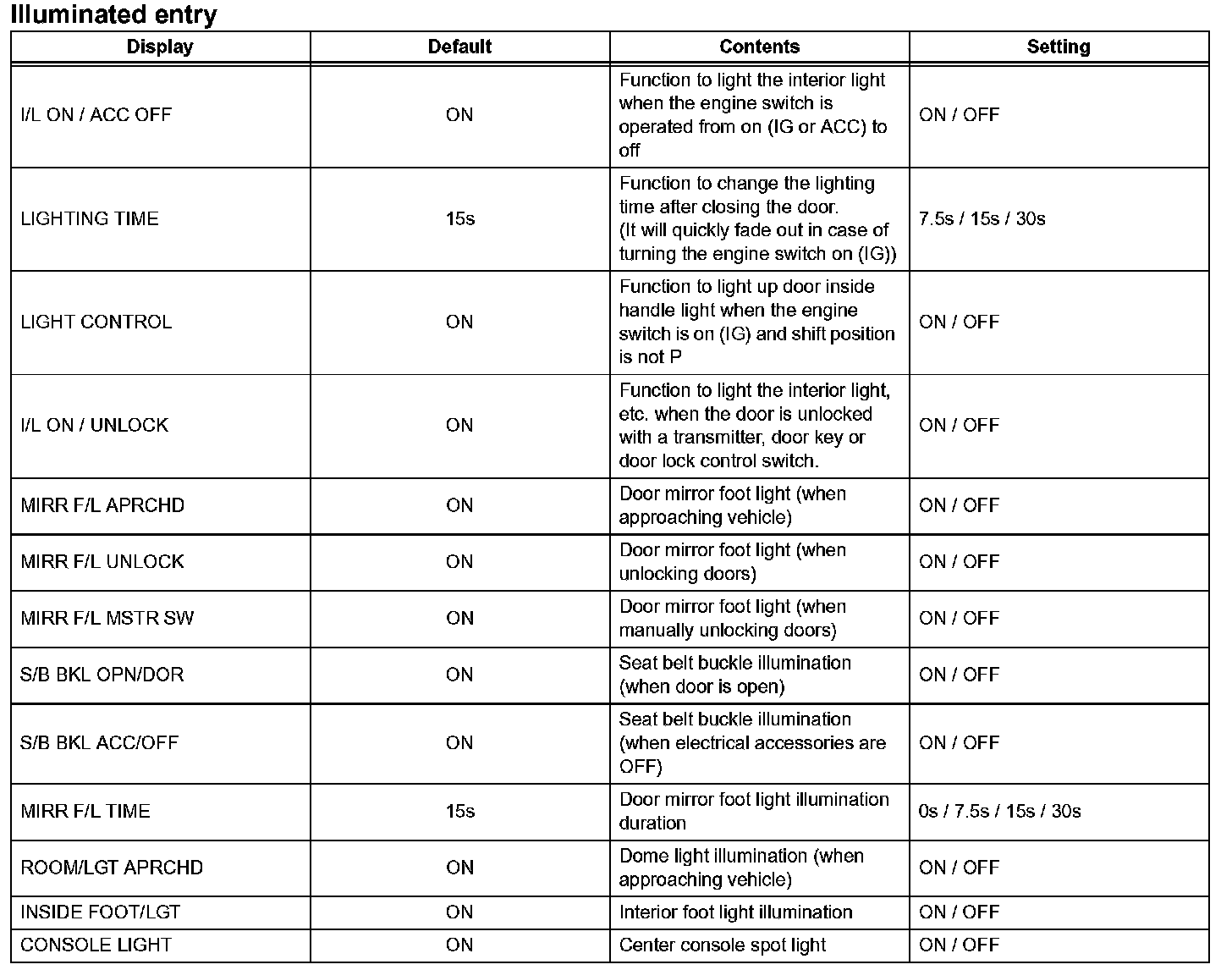

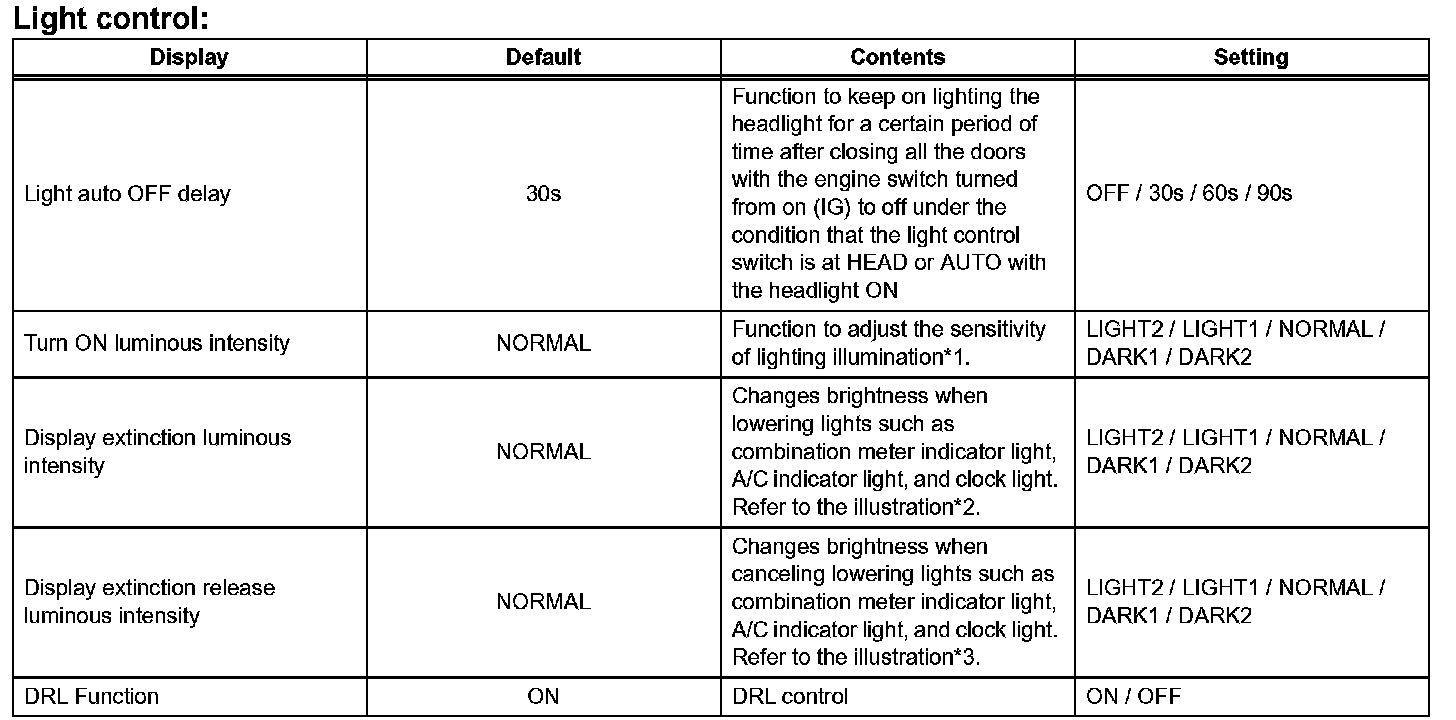

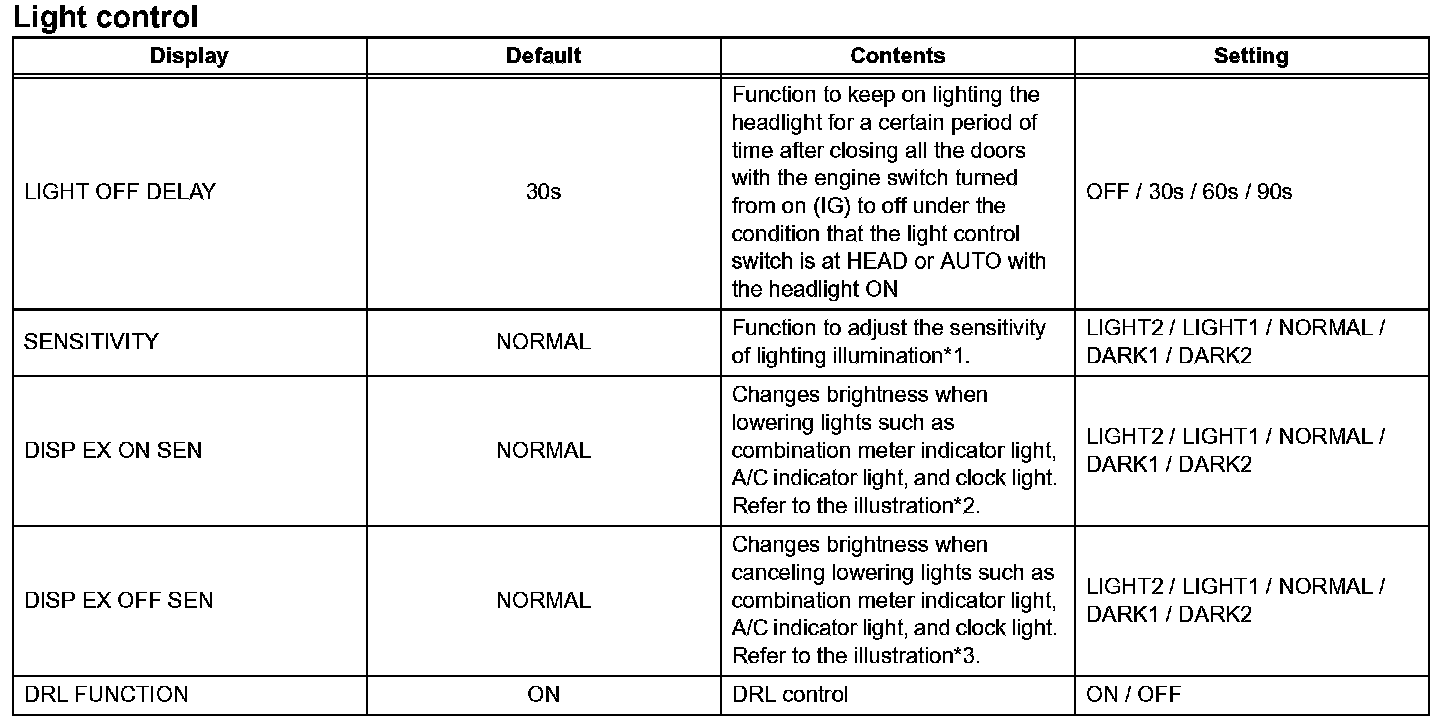

4. LIGHTING SYSTEM

a. Intelligent tester

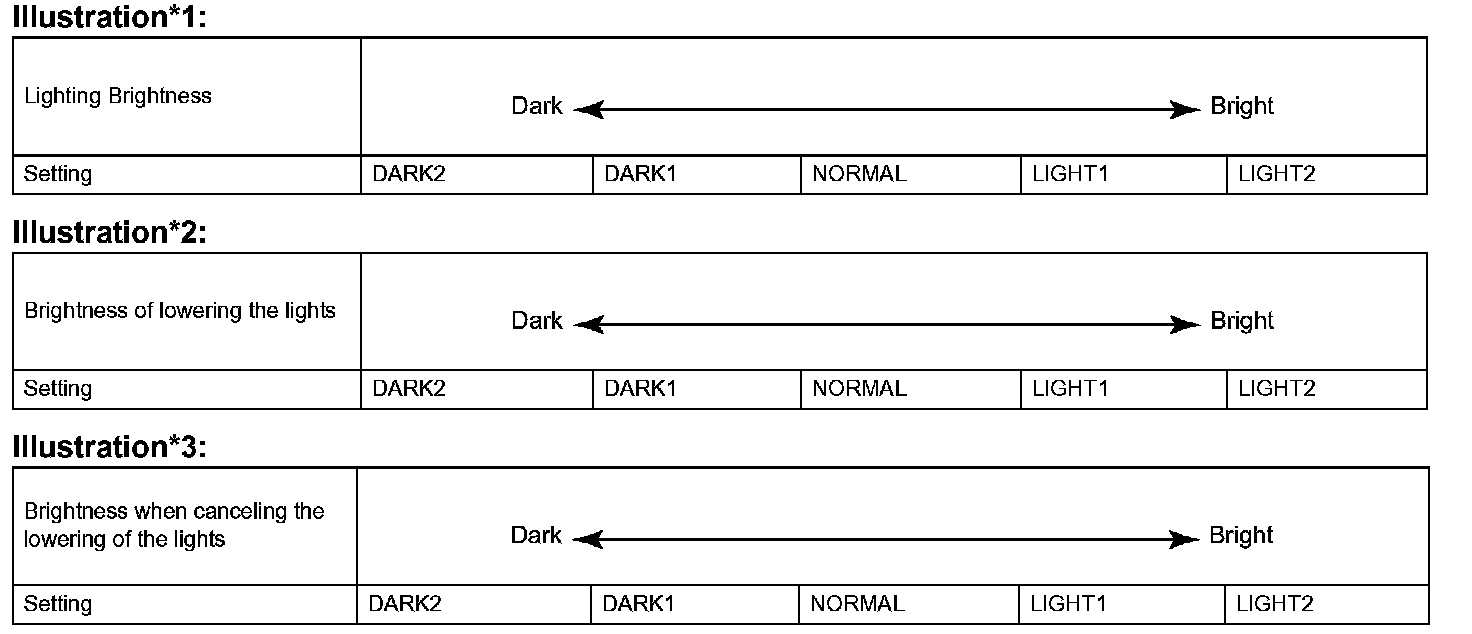

HINT: The sensitivity adjustment may be difficult to confirm. Check by driving the customer's vehicle.

b. Techstream

HINT: The sensitivity adjustment may be difficult to confirm. Check by driving the customer's vehicle.

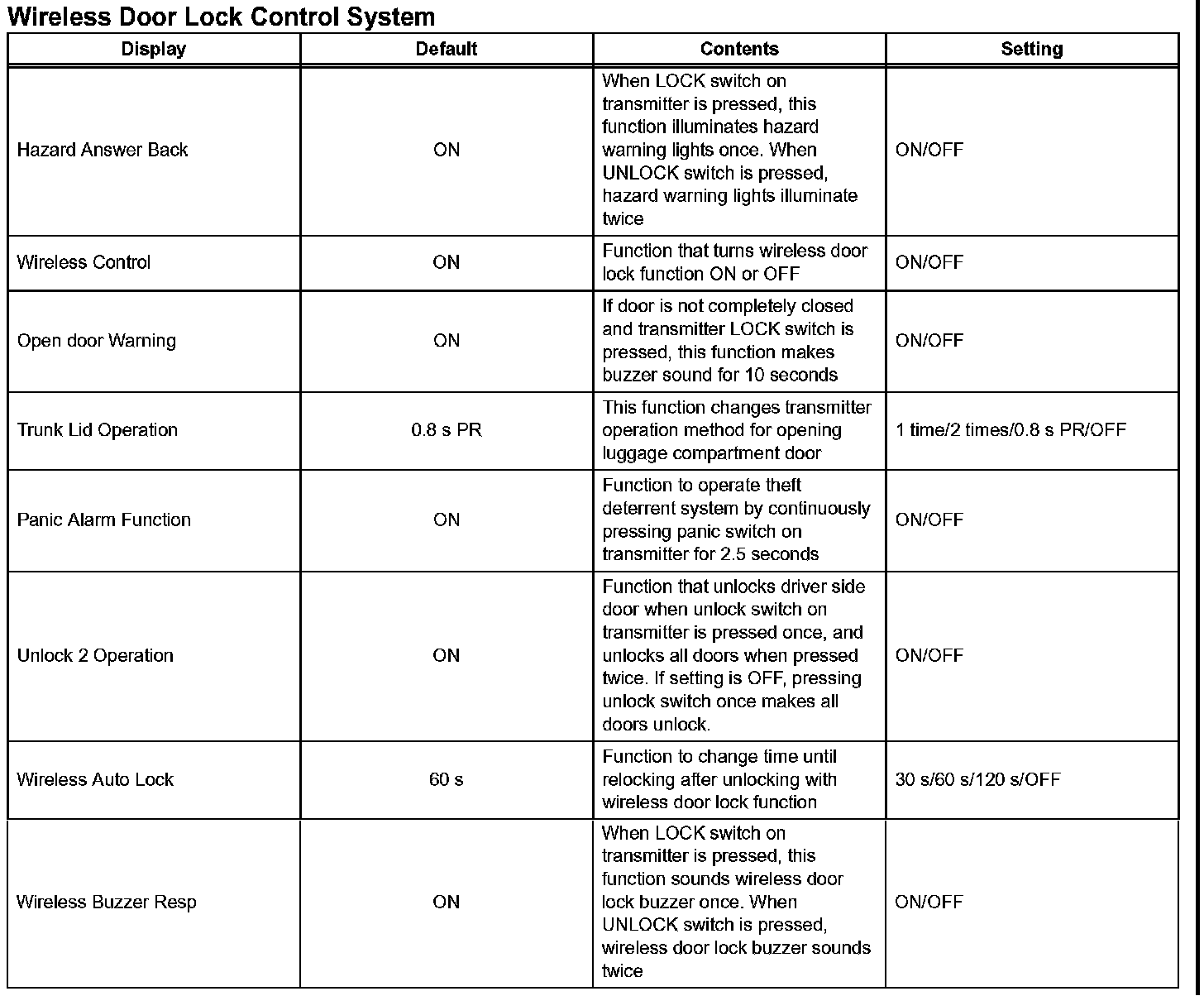

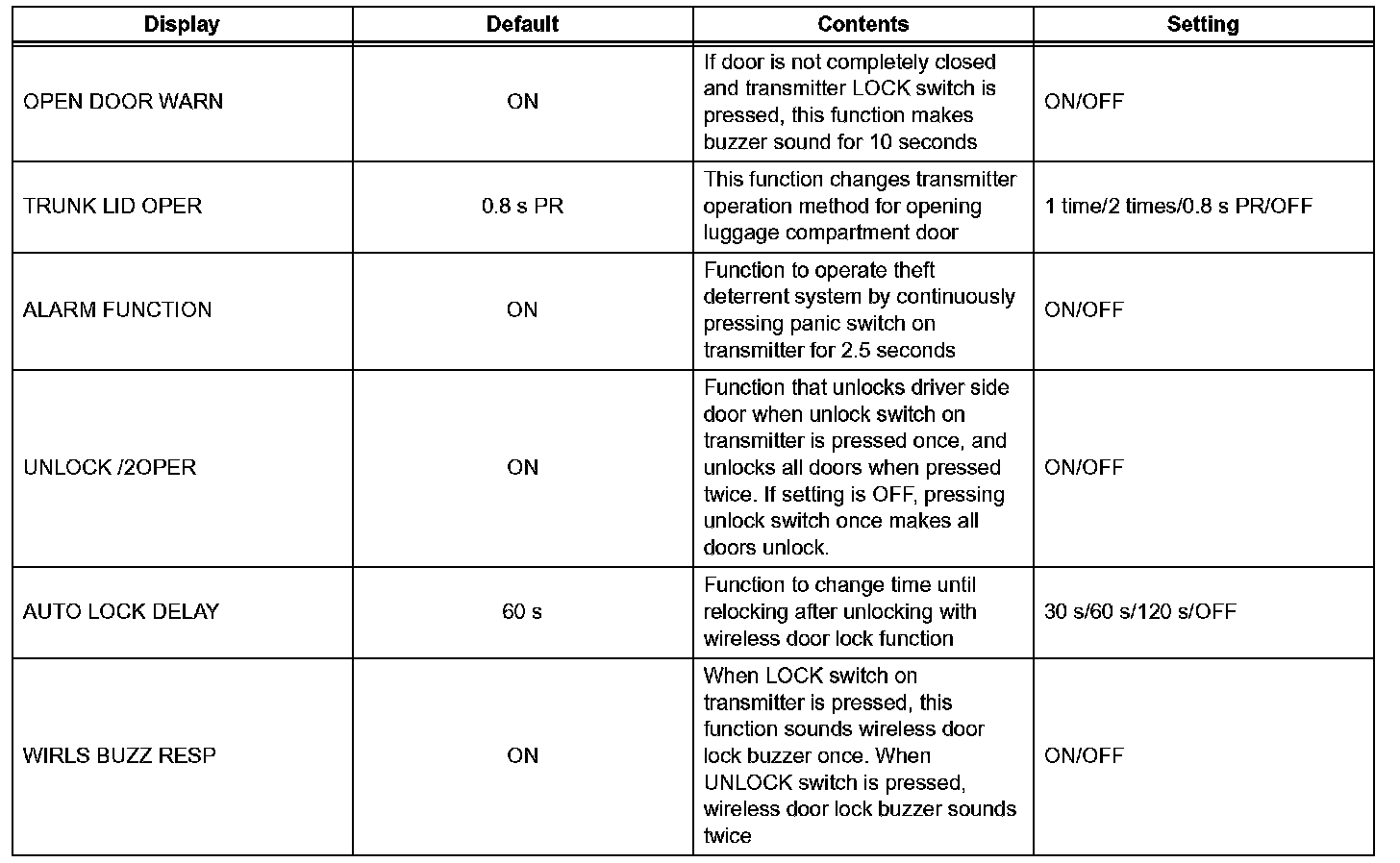

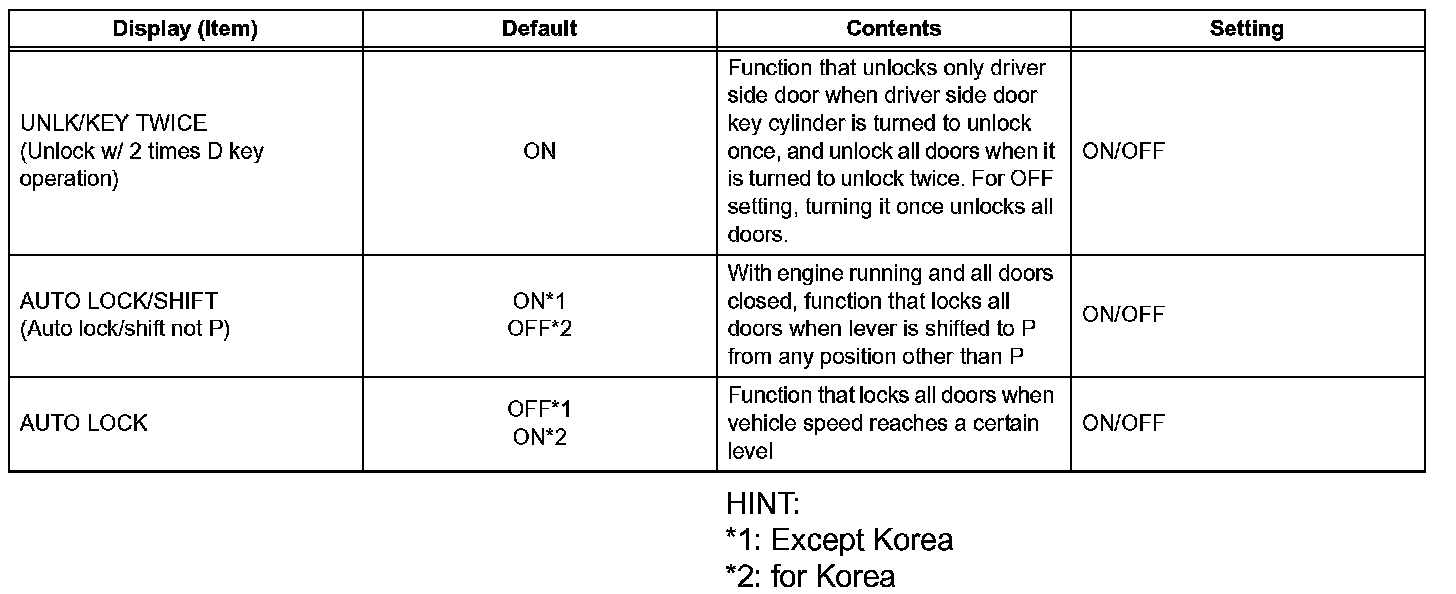

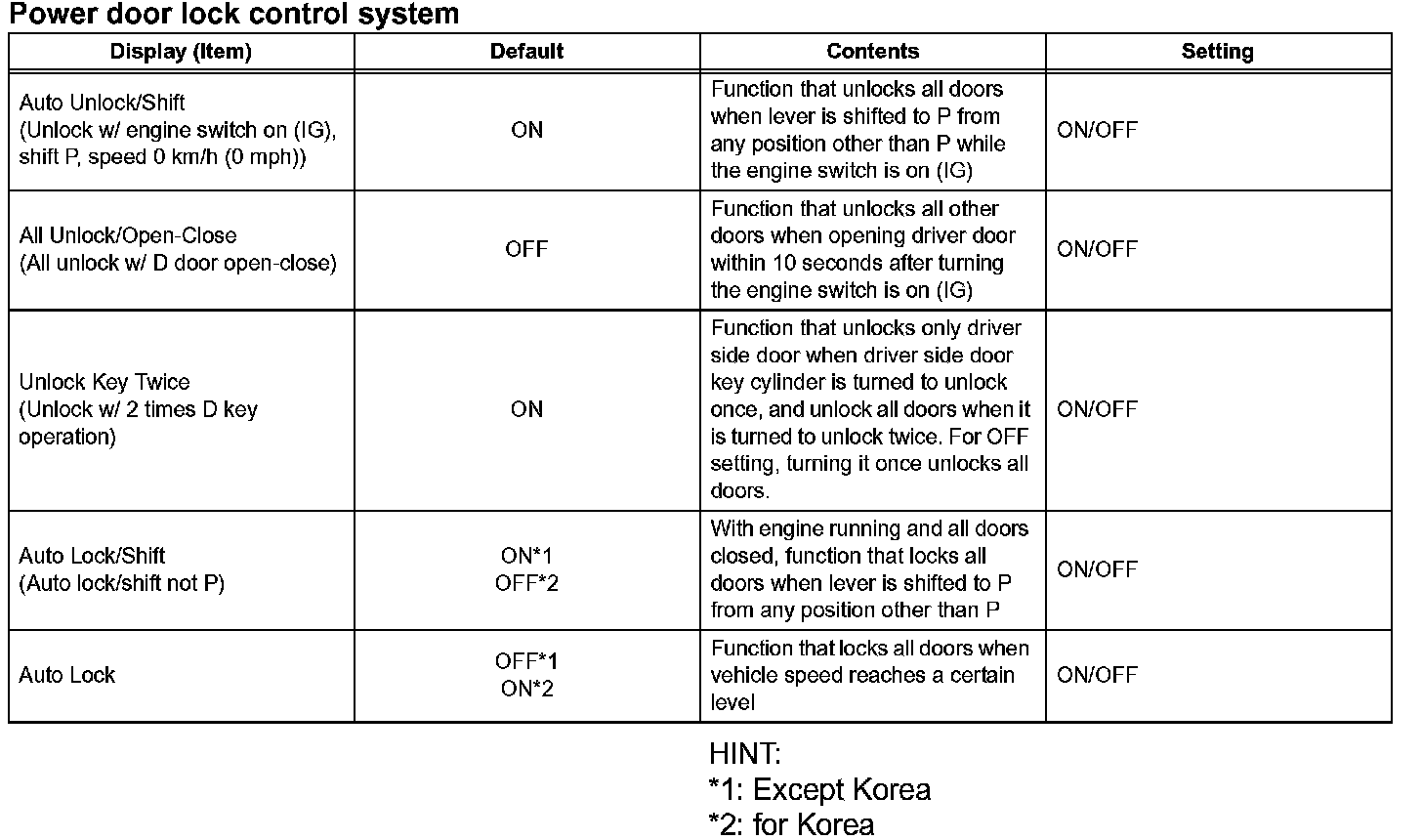

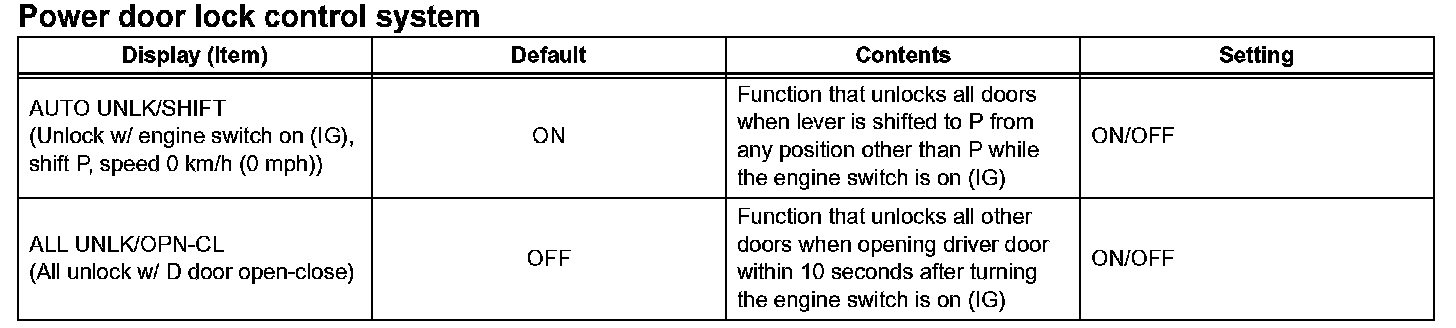

5. POWER DOOR LOCK CONTROL SYSTEM
