Data List
READ DATA LISTHINT: Using the intelligent tester or Techstream to read the Data List allows the values or states of switches, sensors, actuators and other items to be read without removing any parts. This non-intrusive inspection can be very useful because intermittent conditions or signals may be discovered before parts or wiring is disturbed. Reading the Data List information early in troubleshooting is one way to save diagnostic time.
NOTE: In the table. the values listed under "Normal Condition" are reference values. Do not depend solely on these reference values when deciding whether a part is faulty or not.
a. Connect the intelligent tester or Techstream to the DLC3.
b. Turn the engine switch on (IG) and press the tester main switch ON.
c. Enter the following menus:

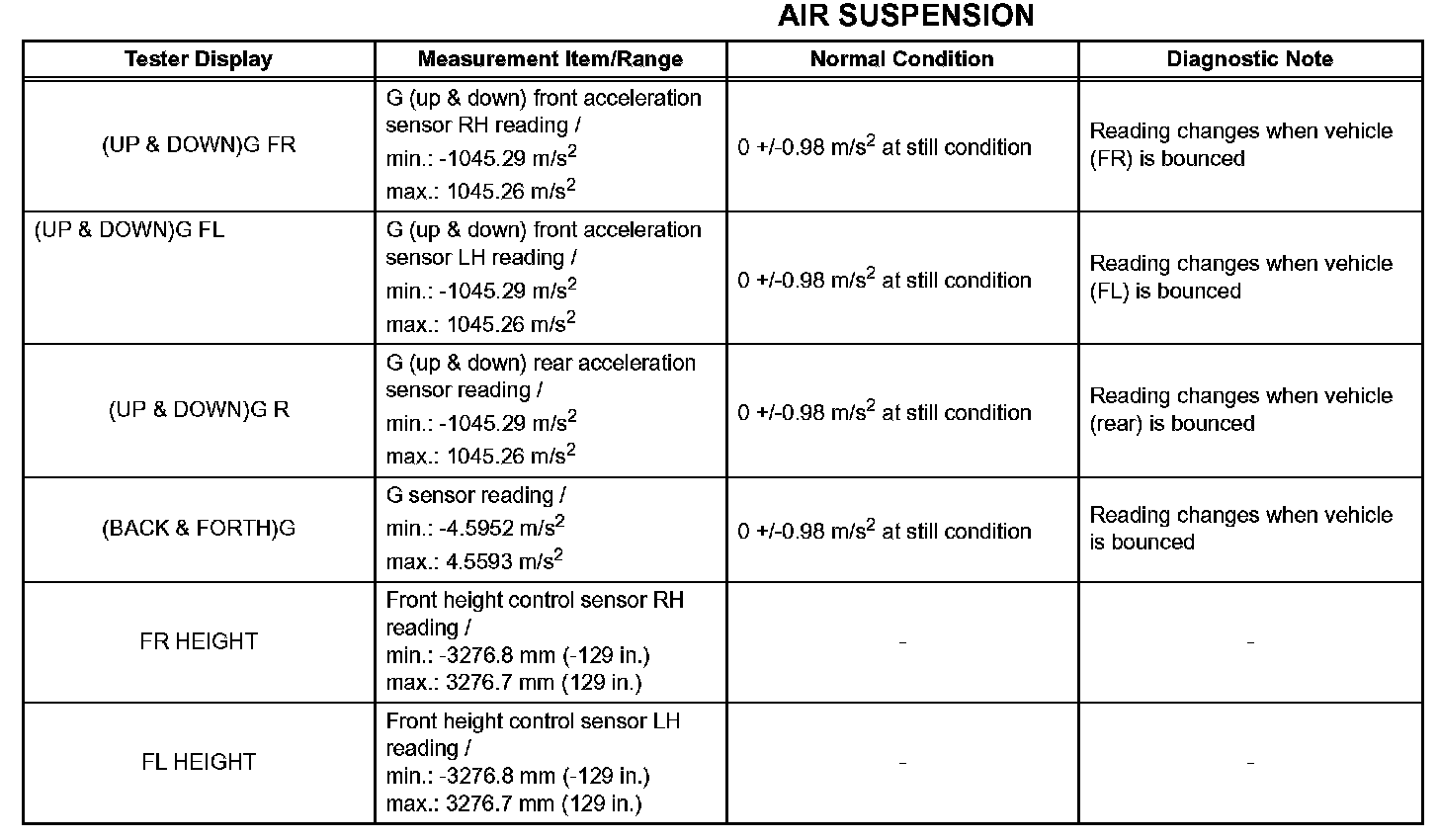

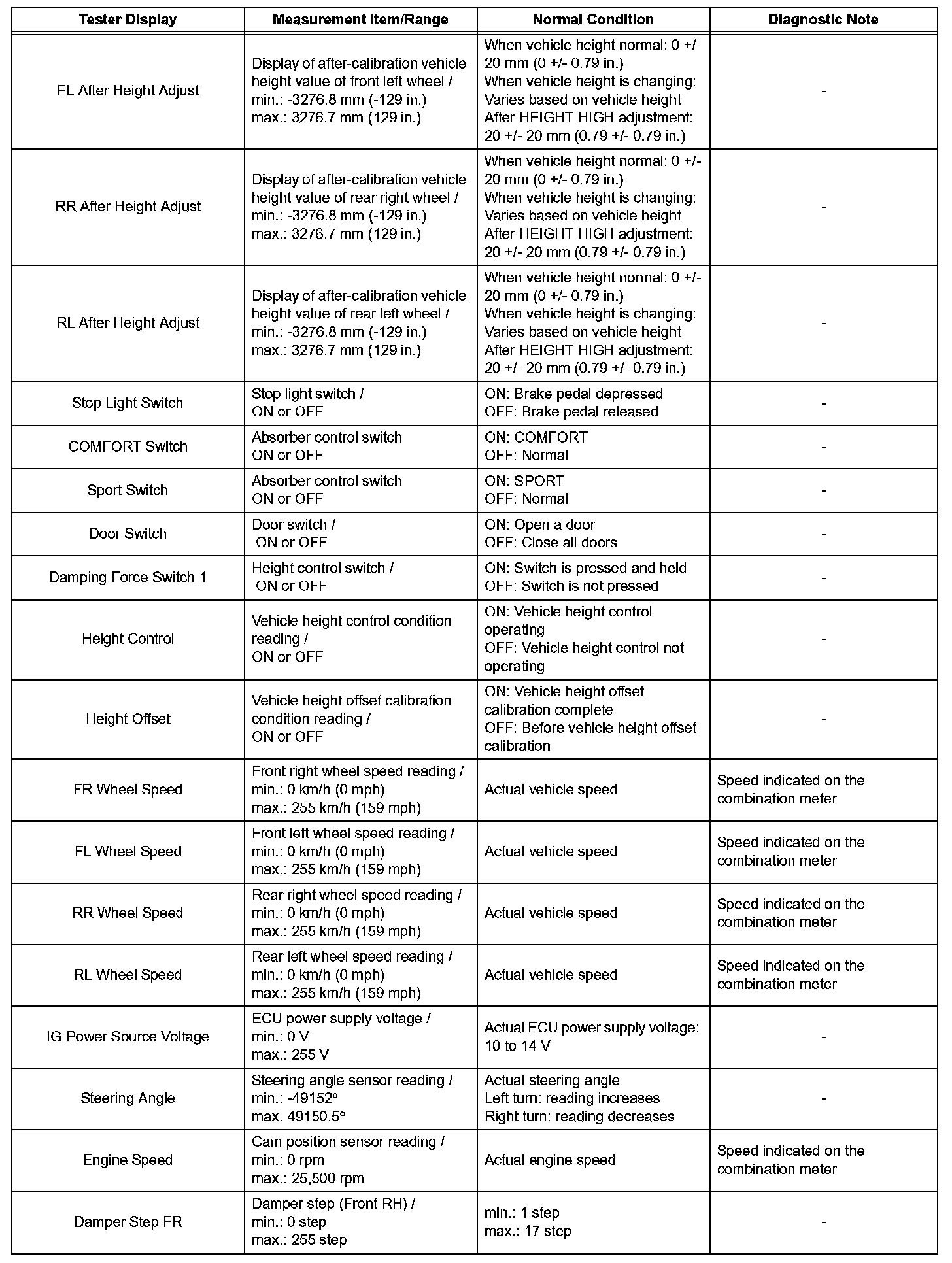

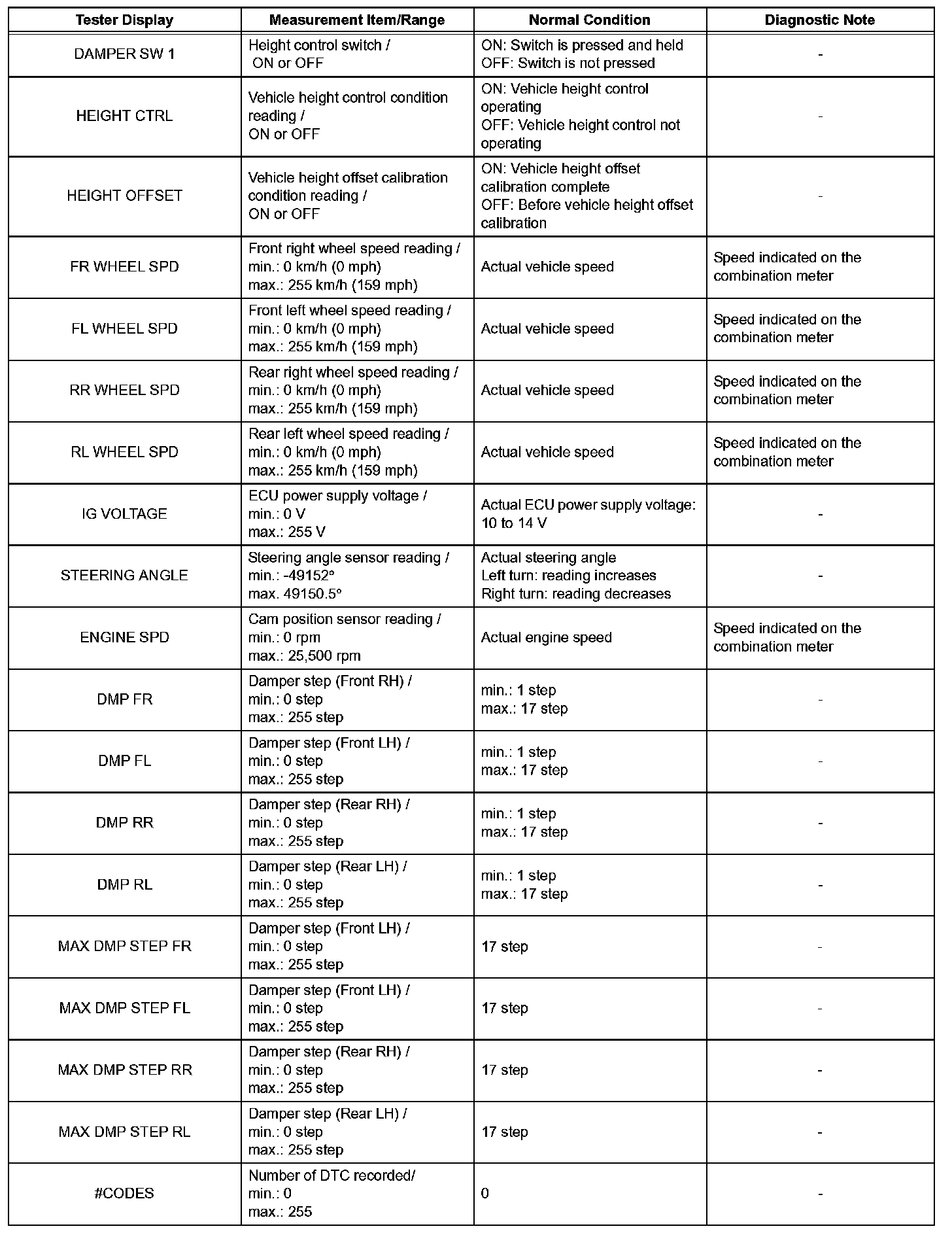

1. Intelligent tester - Select: DIAGNOSIS / OBD/ MOBD / CHASSIS / AIR SUSPENSION / DATA LIST /

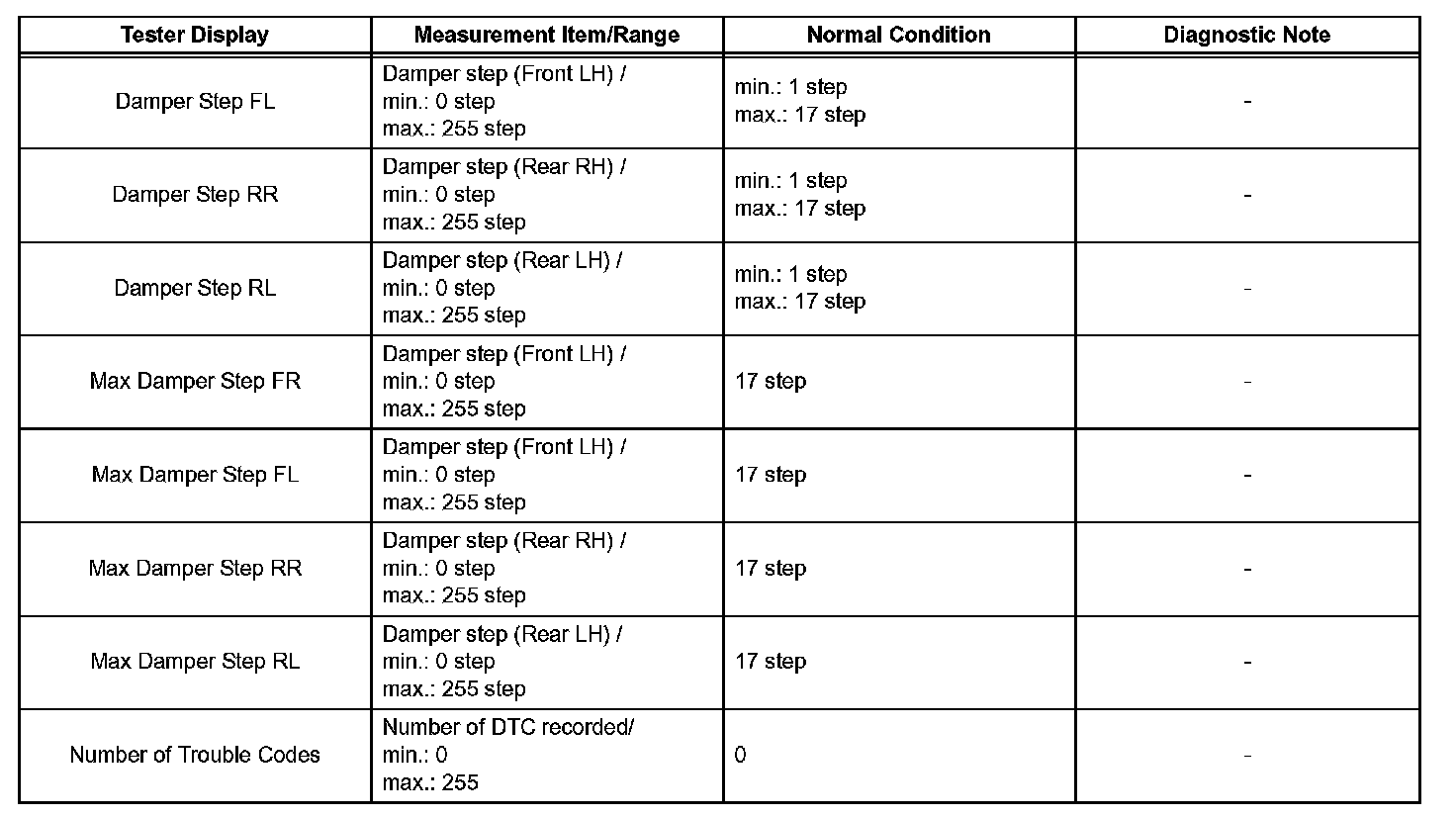

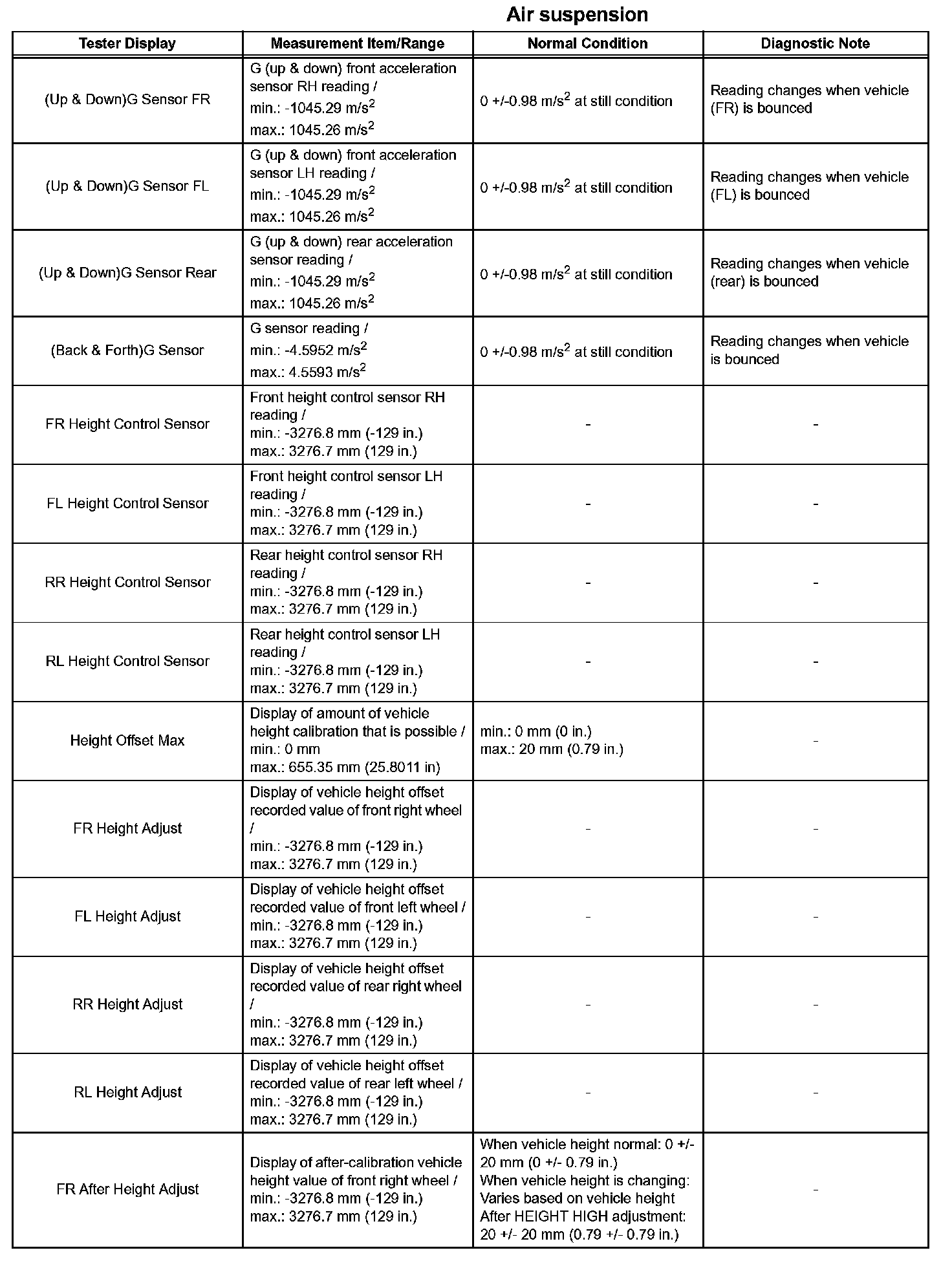

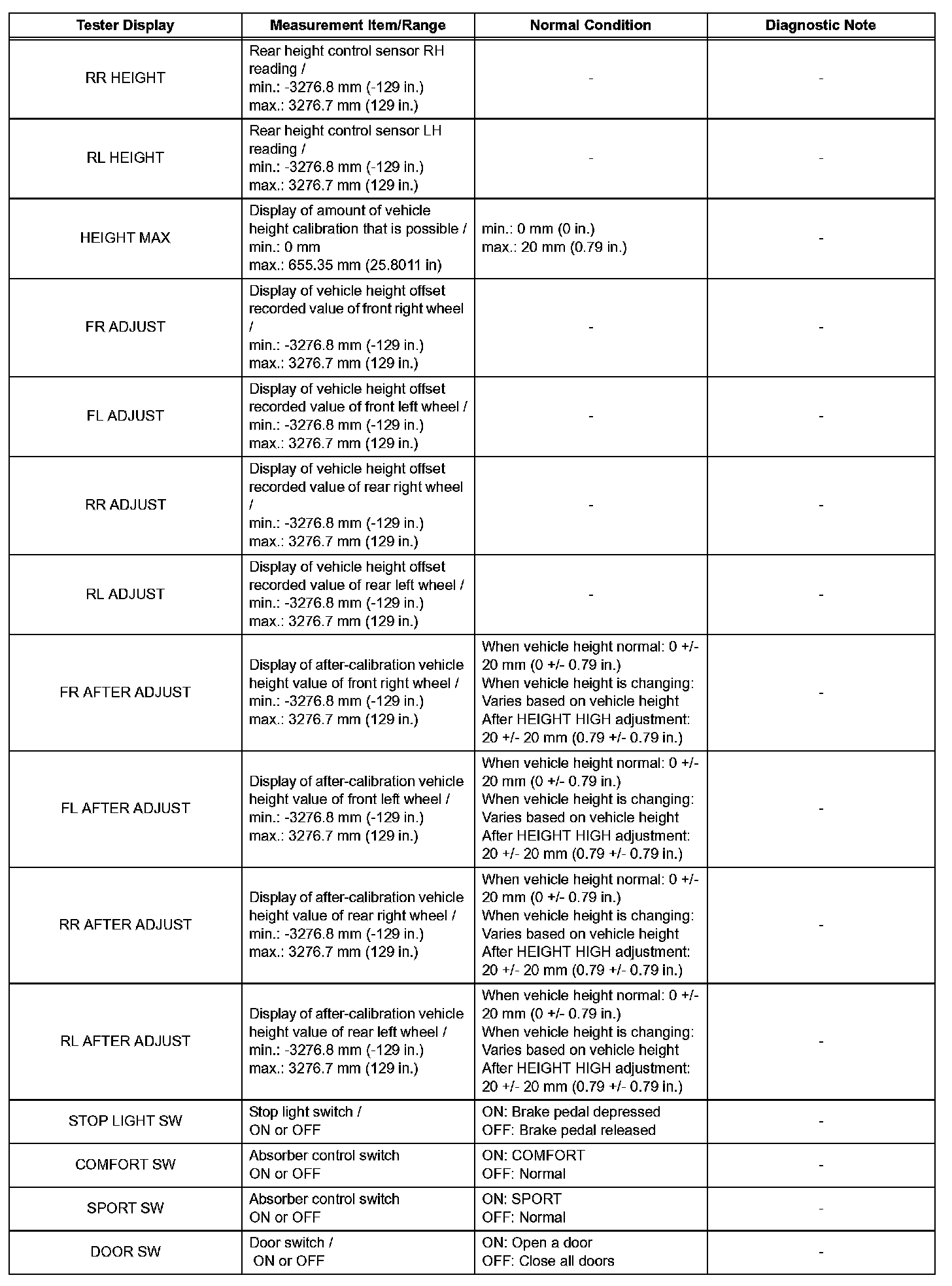

2. Techstream - Select: Chassis / Air suspension / Data List /
d. Read the DATA LIST by following the directions on the tester screen.
Part 1:
Part 2:
Part 3:
1. Intelligent tester
Part 1:
Part 2:
Part 3:
2. Techstream
e. Enter the following menus:

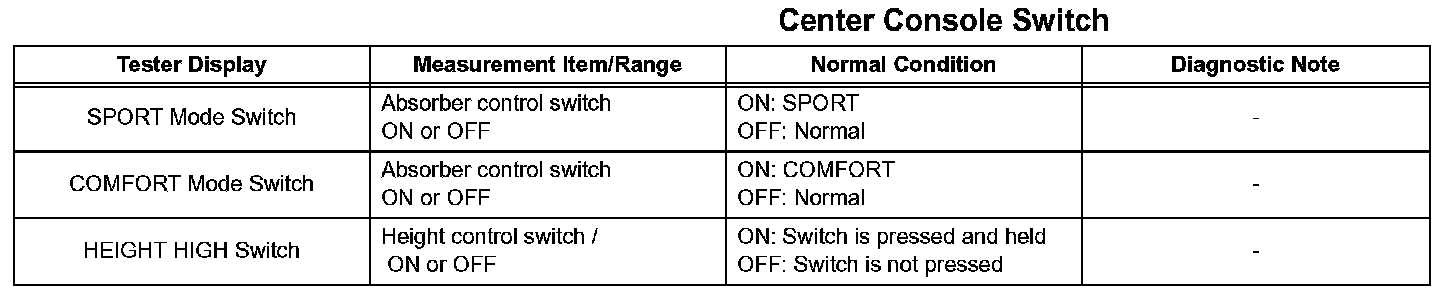

1. Intelligent tester - Select: DIAGNOSIS / OBD/ MOBD / BODY / CENTER CONSOLE / DATA LIST /

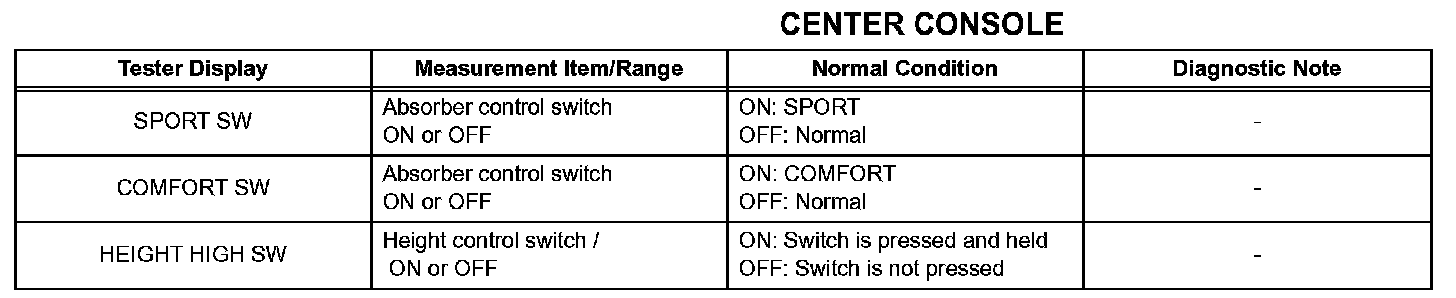

2. Techstream - Select: Body / Center Console Switch / Data List /
f. Read the DATA LIST by following the directions on the tester screen.
