Without Scan Tool

CHECK DTC (USING SST CHECK WIRE)




a. Adjust the vehicle height to normal.
b. Turn the engine switch off.
c. Using SST, connect terminals 13 (TC) and 4 (CG) of the DLC3.

SST 09843-18040

d. Turn the engine switch on (IG).
e. Read and record any DTCs from the height control indicator light (HEIGHT HIGH) on the combination meter.

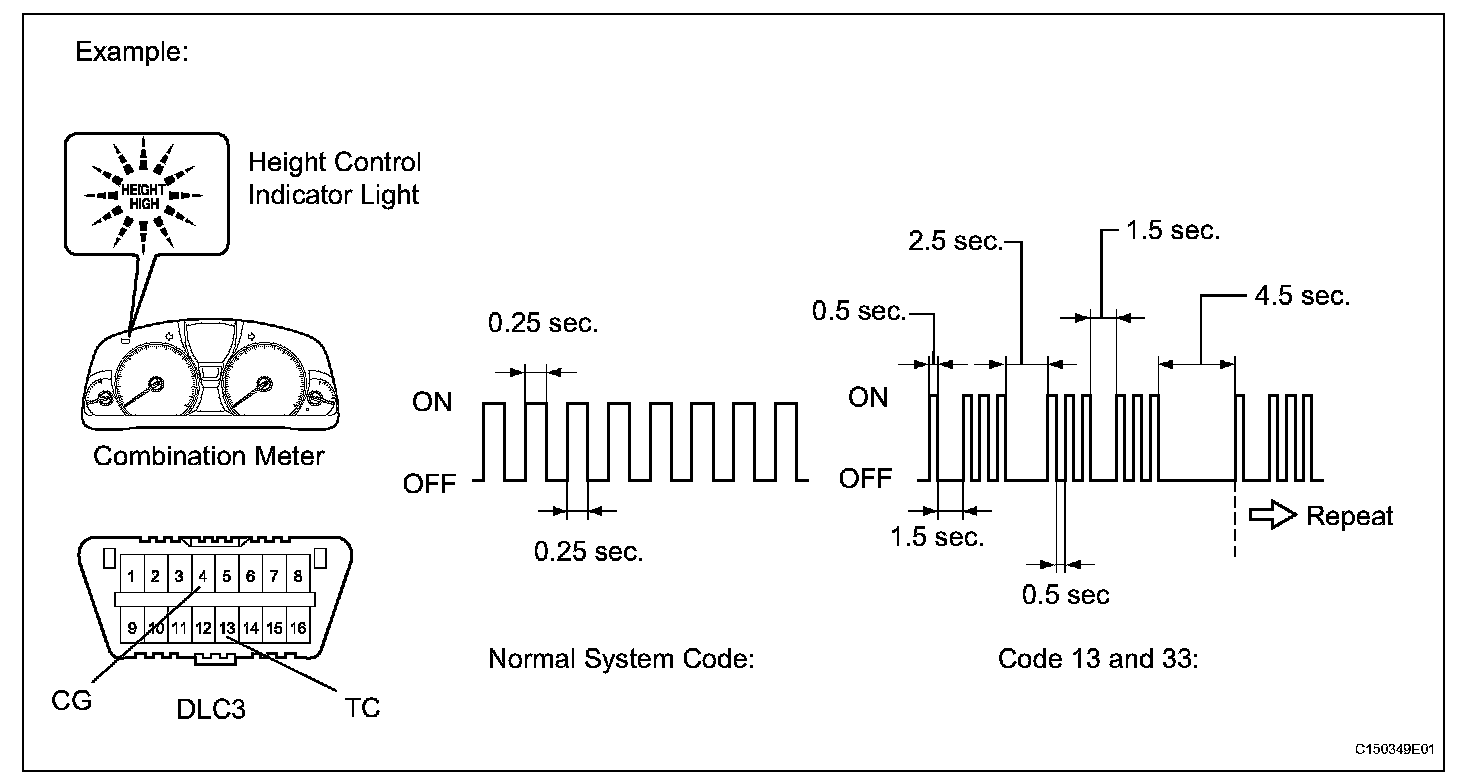

f. Refer to the illustration for examples of a normal system code and codes 13 and 33.

HINT:
- If the height control indicator light does not indicated any DTCs or the normal system code, inspect the indicator circuit or TC and CG terminal circuit.

Trouble Area
Indicator circuit
TC and CG terminal circuit

- If 2 or more malfunctions are indicated at the same time, the lowest numbered DTC is displayed first.

g. Refer to the "DIAGNOSTIC TROUBLE CODE CHART" for DTC information.
h. After completing the check, turn the engine switch off and remove SST from the DLC3.

SST 09843-18040
