Air Suspension System
PRECAUTION1. NOTICE FOR INITIALIZATION
NOTE: When disconnecting the cable from the negative (-) battery terminal, initialize the following system after the cable is reconnected.
System Name
Navigation System (for DVD)
Advanced Parking Guidance System
Power Trunk Lid System
Rear Door Sunshade System
2. AIR SUSPENSION SYSTEM PRECAUTION
NOTE:

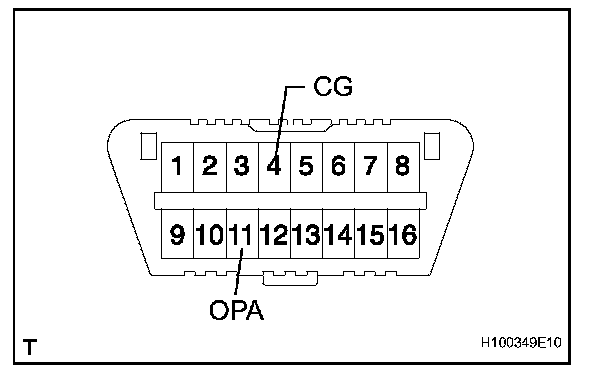

- If the vehicle is raised with the engine running, connect terminals 11 (OPA) and 4 (CG) of the DLC3 to stop the vehicle height control operation of the suspension control ECU.
- Do not operate the steering wheel if there is no air in the pneumatic cylinder.
- The pneumatic cylinder could be damaged if twisted without air in the cylinder.
- When lowering the vehicle without air in the cylinder, make sure all the pipes are securely connected.
- The pneumatic cylinder could be damaged if any pipe is disconnected while lowering the vehicle.
- Do not apply battery voltage to the compressor motor for more than 60 seconds to prevent damage to the motor.
- When it is necessary to perform the operation by charging the battery for more than 60 seconds (for example, height recovery without air in the cylinder), proceed to the operation as follows: after 60 secondshave passed, turn the engine switch off once, and then turn the engine switch on (IG) again to commence with the operation.
- Do not operate the height control compressor continuously for 3 minutes or more. If operated continuously for 3 minutes, do not operate it for 10 minutes or more. If operated continuously for 3 minutes or more, operation automatically stops and DTC C1761/61 is output.
