TS and CG Terminal Circuit

TS and CG Terminal Circuit

DESCRIPTION

Connect terminals 12 (TS) and 4 (CG) of the DLC3 with the engine switch off. When the engine switch is turned to the on (IG) position, test mode will start and then the DTCs will be output.

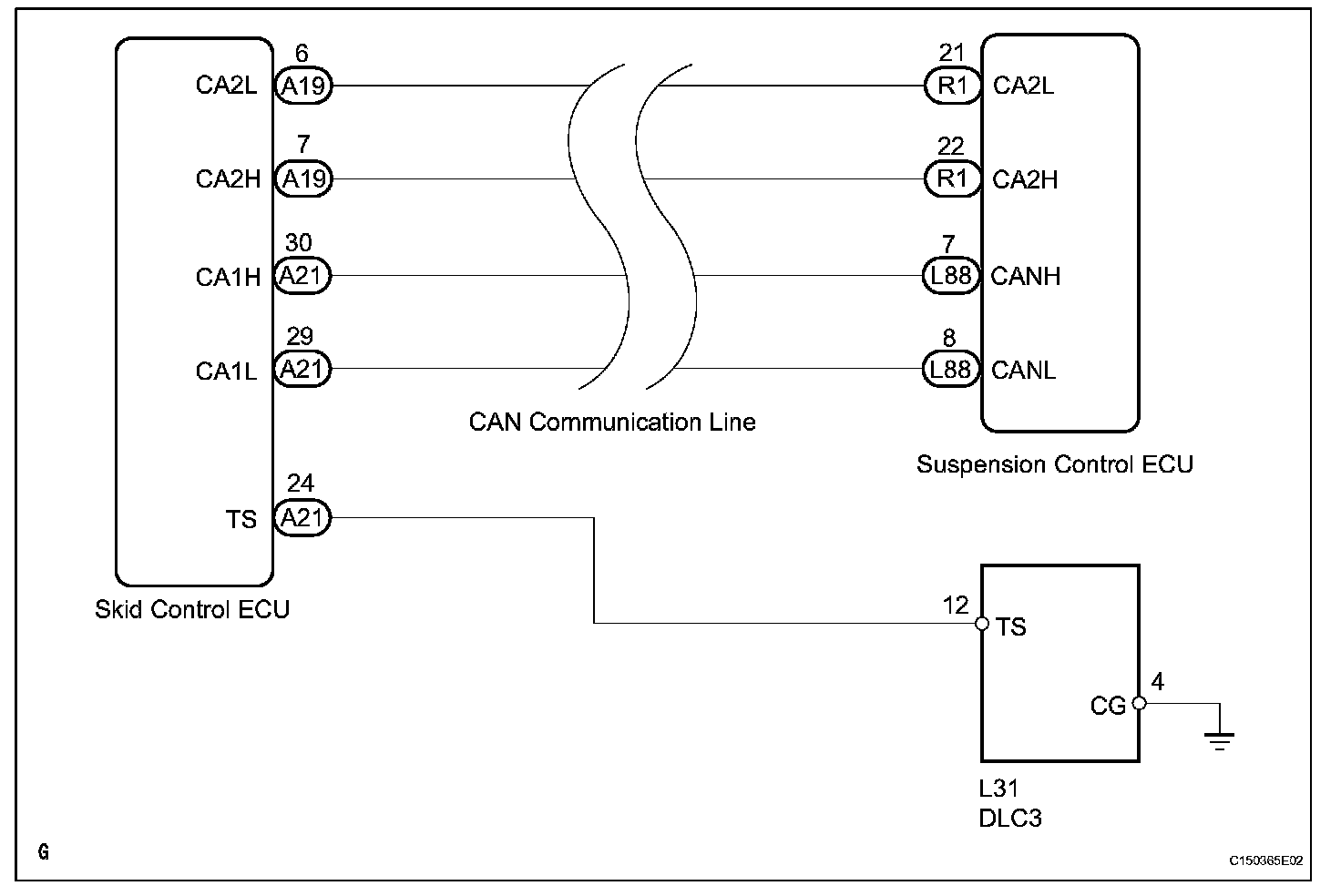

Wiring Diagram:

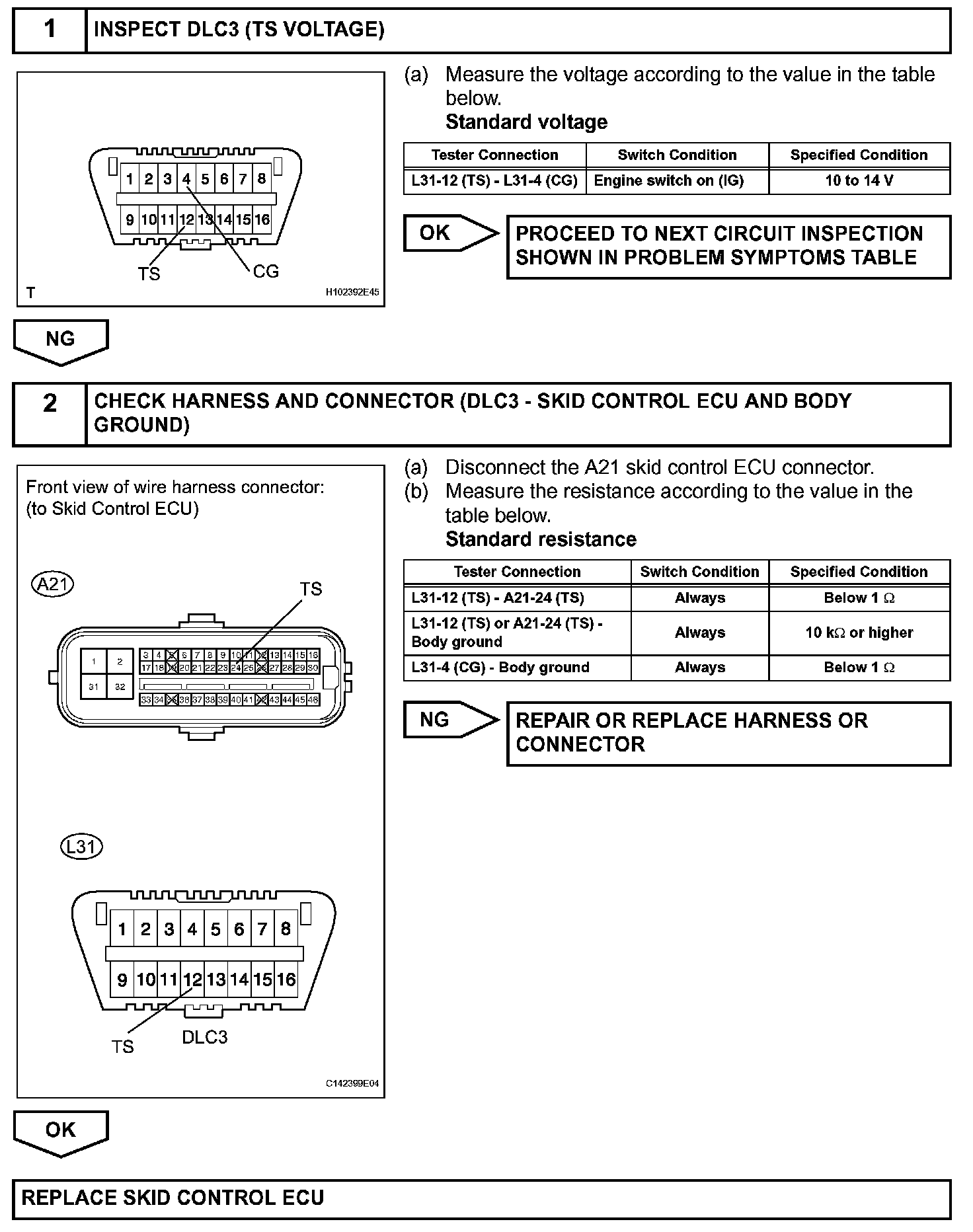

Step 1-2:

INSPECTION PROCEDURE

NOTE: When replacing the skid control ECU, perform initialization of linear solenoid valve calibration. Initialization
