Height Control Sensor (For Front LH)

INSPECTION

1. INSPECT HEIGHT CONTROL SENSOR SUB-ASSEMBLY FRONT LH




a. Connect 3 dry batteries of 1.5 V in series.

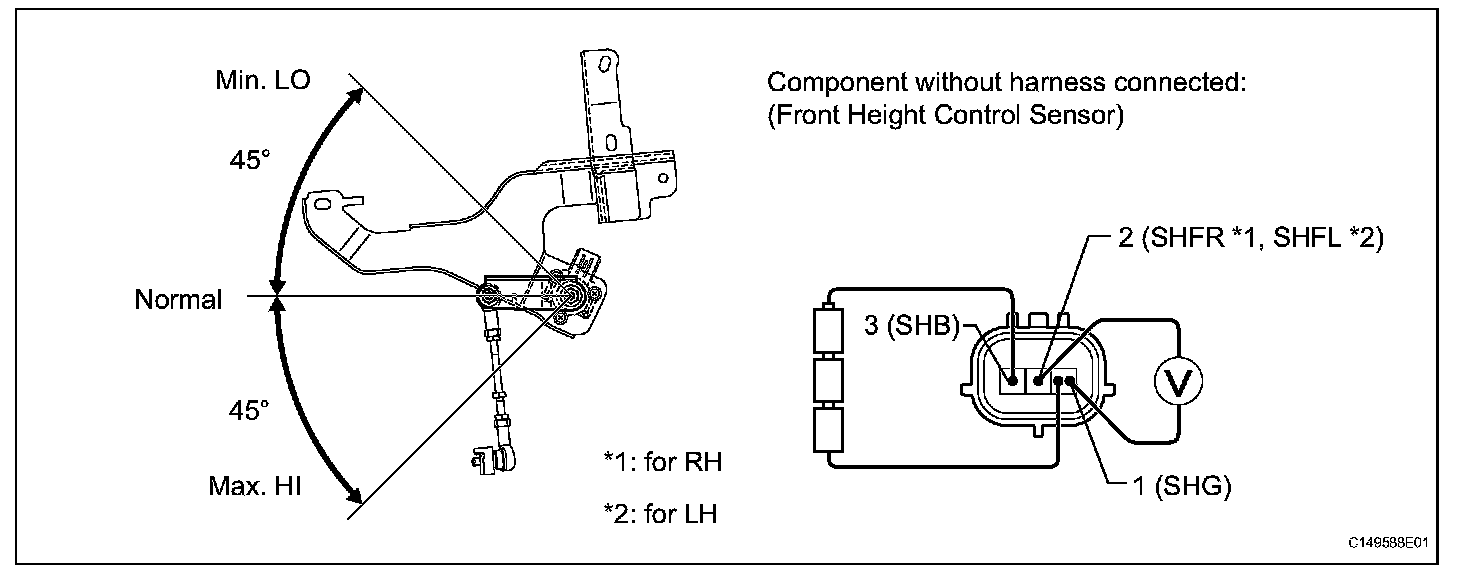

b. Connect terminal 3 to the batteries' positive (+) terminal, and terminal 1 to the batteries' negative (-) terminal, then apply voltage about 4.5 V between terminals 1 and 3.

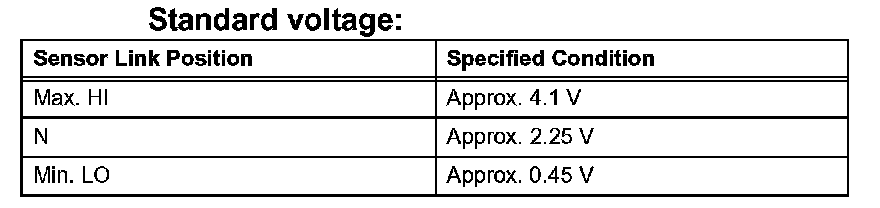

c. Measure the voltage between terminals 1 and 2, when the height control sensor link is slowly moved up and down.

NOTE:
- Do not apply a voltage of more than 6 V.
- Do not drop the height control sensor.If it is dropped, replace it with a new one.
