Absorber Control Actuator (For Front Side)
REMOVALHINT:
- Use the same procedures for the RH side and LH side.
- The procedures listed are for the LH side.
1. REMOVE COWL TOP VENTILATOR LOUVER RH
2. DISCONNECT CABLE FROM NEGATIVE BATTERY TERMINAL
CAUTION: Wait at least 90 seconds after disconnecting the cable from the negative (-) battery terminal to prevent airbag and seat belt pretensioner activation.
NOTE: After the engine switch is turned off, the HDD navigation system requires approximately 6 minutes to record various types of memory and settings. As a result, after turning the engine switch off, wait 6 minutes or more before disconnecting the cable from the negative (-) battery terminal.
3. REMOVE ENGINE ROOM SIDE COVER LH
4. REMOVE FRONT SHOCK ABSORBER CAP LH

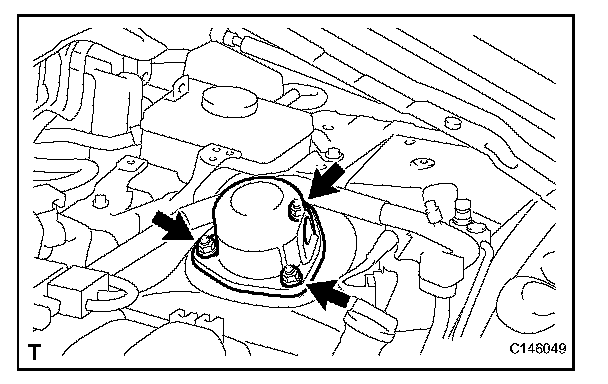

a. Remove the 3 nuts and shock absorber cap.
b. Disconnect the connector from absorber control actuator.
c. Disconnect the absorber cap from wire harness.
5. REMOVE ABSORBER CONTROL ACTUATOR

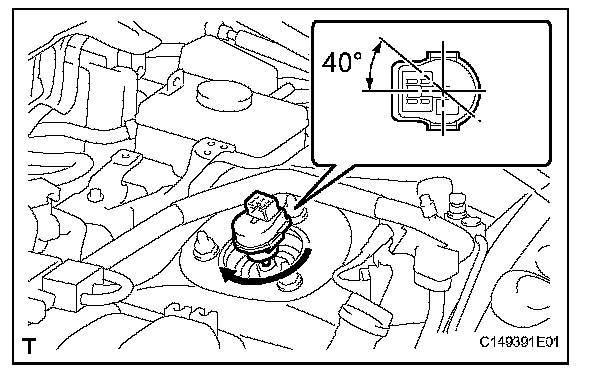

a. Turn the absorber control actuator counterclockwise 40° to remove it from the front pneumatic cylinder.
NOTE:
- Do not turn the actuator more than 40°.
- Do not drop the absorber control actuator. If it is dropped, replace it with a new one.
INSTALLATION
HINT:
- Use the same procedures for the RH side and LH side.
- The procedures listed are for the LH side.
1. INSTALL ABSORBER CONTROL ACTUATOR
a. Check that the control rod of the front shock absorber is in the position shown in the illustration.
If the control rod is not in the position shown in the illustration, turn the control rod to adjust the position and install the absorber control actuator.
b. Install the absorber control actuator to the actuator support bracket.

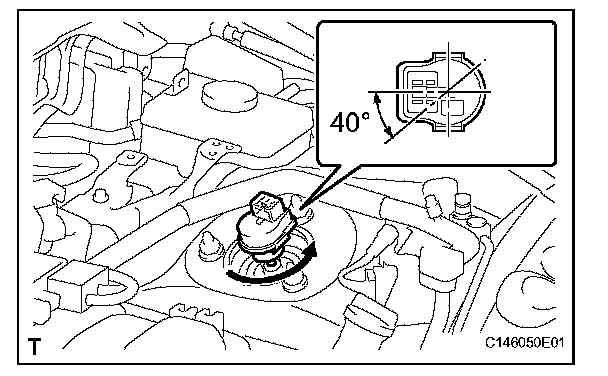

c. Turn the actuator clockwise 40°until a click is felt.
NOTE:
- Before turning the actuator, make sure to check that the actuator output shaft and control rod are securely connected.
- Do not turn the actuator more than 40°.
- Do not drop the absorber control actuator. If it is dropped, replace it with a new one.
2. INSTALL FRONT SHOCK ABSORBER CAP LH
a. Connect the connector to the absorber control actuator.
b. Install the absorber cap with the 3 nuts.
Torque: 20 N.m (202 kgf.cm, 15 ft.lbf)
c. Connect the wire harness to the absorber cap.
3. INSTALL ENGINE ROOM SIDE COVER LH
4. CONNECT CABLE TO NEGATIVE BATTERY TERMINAL
5. INSTALL COWL TOP VENTILATOR LOUVER RH
6. PERFORM INITIALIZATION
a. Perform initialization.
NOTE: Certain systems need to be initialized after disconnecting and reconnecting the cable from the negative (-) battery terminal.
7. CHECK SRS WARNING LIGHT
a. Check the SRS warning light.
