Rear Acceleration Sensor
REMOVAL1. REMOVE COWL TOP VENTILATOR LOUVER RH
2. DISCONNECT CABLE FROM NEGATIVE BATTERY TERMINAL
CAUTION: Wait at least 90 seconds after disconnecting the cable from the negative (-) battery terminal to prevent airbag and seat belt pretensioner activation.
NOTE: After the engine switch is turned off, the HDD navigation system requires approximately 6 minutes to record various types of memory and settings. As a result, after turning the engine switch off, wait 6 minutes or more before disconnecting the cable from the negative (-) battery terminal.
3. REMOVE LUGGAGE COMPARTMENT MAT SUB-ASSEMBLY
4. REMOVE ROPE HOOK ASSEMBLY
5. REMOVE ROPE HOOK
6. REMOVE DECK TRIM SIDE BOARD RH
7. REMOVE LUGGAGE COMPARTMENT NO.1 LIGHT ASSEMBLY
8. REMOVE LUGGAGE COMPARTMENT NO.2 TRIM HOOK (w/o Rear Cooler)
9. REMOVE LUGGAGE COMPARTMENT TRIM COVER FRONT
10. REMOVE REAR FLOOR FINISH PLATE
11. REMOVE LUGGAGE COMPARTMENT TRIM COVER ASSEMBLY RH
12. REMOVE ACCELERATION SENSOR ASSEMBLY

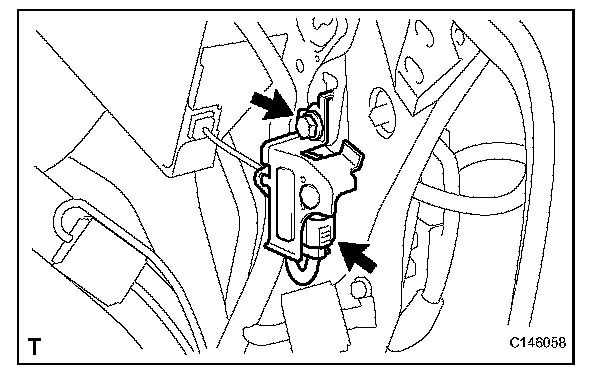

a. Disconnect the connector.
b. Remove the bolt and sensor with bracket.
NOTE:
- Avoid any impact to the suspension control acceleration sensor.
- Do not drop the acceleration sensor. If it is dropped, replace it with a new one.
- The acceleration sensor removed from the vehicle must not be placed upside down.
INSTALLATION
1. INSTALL ACCELERATION SENSOR ASSEMBLY

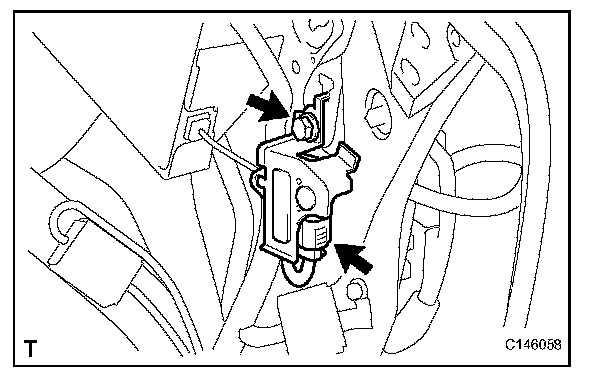

a. Install the acceleration sensor with bracket with the bolt.
Torque: 8.5 N.m (87 kgf.cm, 75 in.lbf)
NOTE:
- Avoid any impact to the acceleration sensor.
- Do not drop the acceleration sensor. If it is dropped, replace it with a new one.
b. Connect the sensor connector.
2. INSTALL LUGGAGE COMPARTMENT TRIM COVER ASSEMBLY RH
3. INSTALL REAR FLOOR FINISH PLATE
4. INSTALL LUGGAGE COMPARTMENT TRIM COVER FRONT
5. INSTALL LUGGAGE COMPARTMENT NO.2 TRIM HOOK (w/o Rear Cooler)
6. INSTALL LUGGAGE COMPARTMENT NO.1 LIGHT ASSEMBLY
7. INSTALL DECK TRIM SIDE BOARD RH
8. INSTALL ROPE HOOK ASSEMBLY
9. INSTALL ROPE HOOK
10. INSTALL LUGGAGE COMPARTMENT MAT SUBASSEMBLY
11. CONNECT CABLE TO NEGATIVE BATTERY TERMINAL
12. INSTALL COWL TOP VENTILATOR LOUVER RH
13. PERFORM INITIALIZATION
a. Perform initialization.
NOTE: Certain systems need to be initialized after disconnecting and reconnecting the cable from the negative (-) battery terminal.
14. CHECK SRS WARNING LIGHT
a. Check the SRS warning light.
