Power Steering System

FREEZE FRAME DATA
1. FREEZE FRAME DATA

NOTICE:
^ It is difficult to show the specified values (judgment values) clearly because freeze frame data values change significantly due to differences in measurement conditions, surroundings, or vehicle conditions. For this reason, there may be a problem even when the values are within specifications.
^ Turn the engine switch on (IG) and park the vehicle on level ground. Check the freeze frame data by using the intelligent tester or Techstream.

(a) Connect the intelligent tester (with CAN VIM) or Techstream to the DLC3.
(b) Turn the engine switch on (IG) and check the freeze frame data by following the prompts on the intelligent tester's display screen.
(1) Intelligent tester

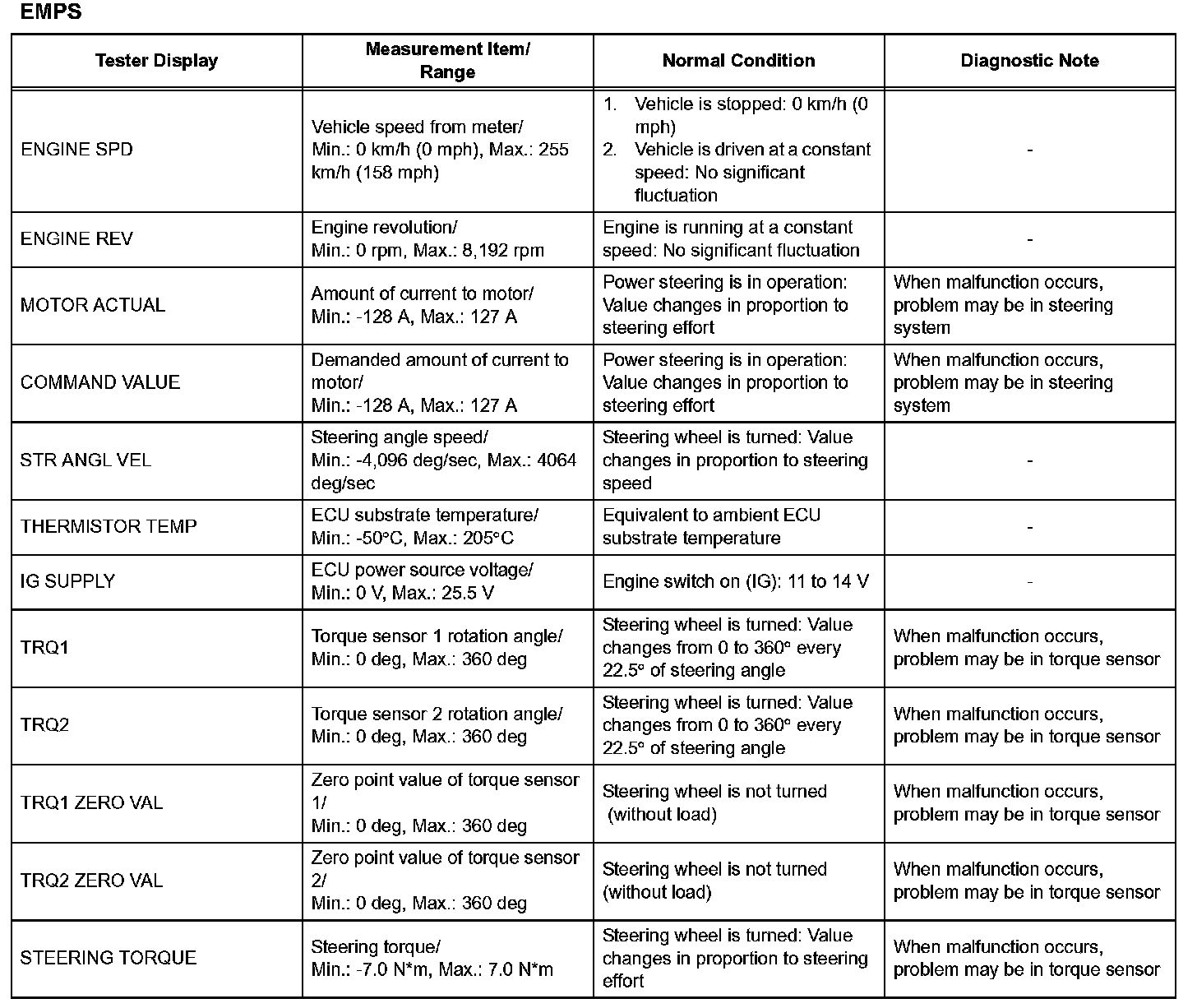

EMPS (Part 1):

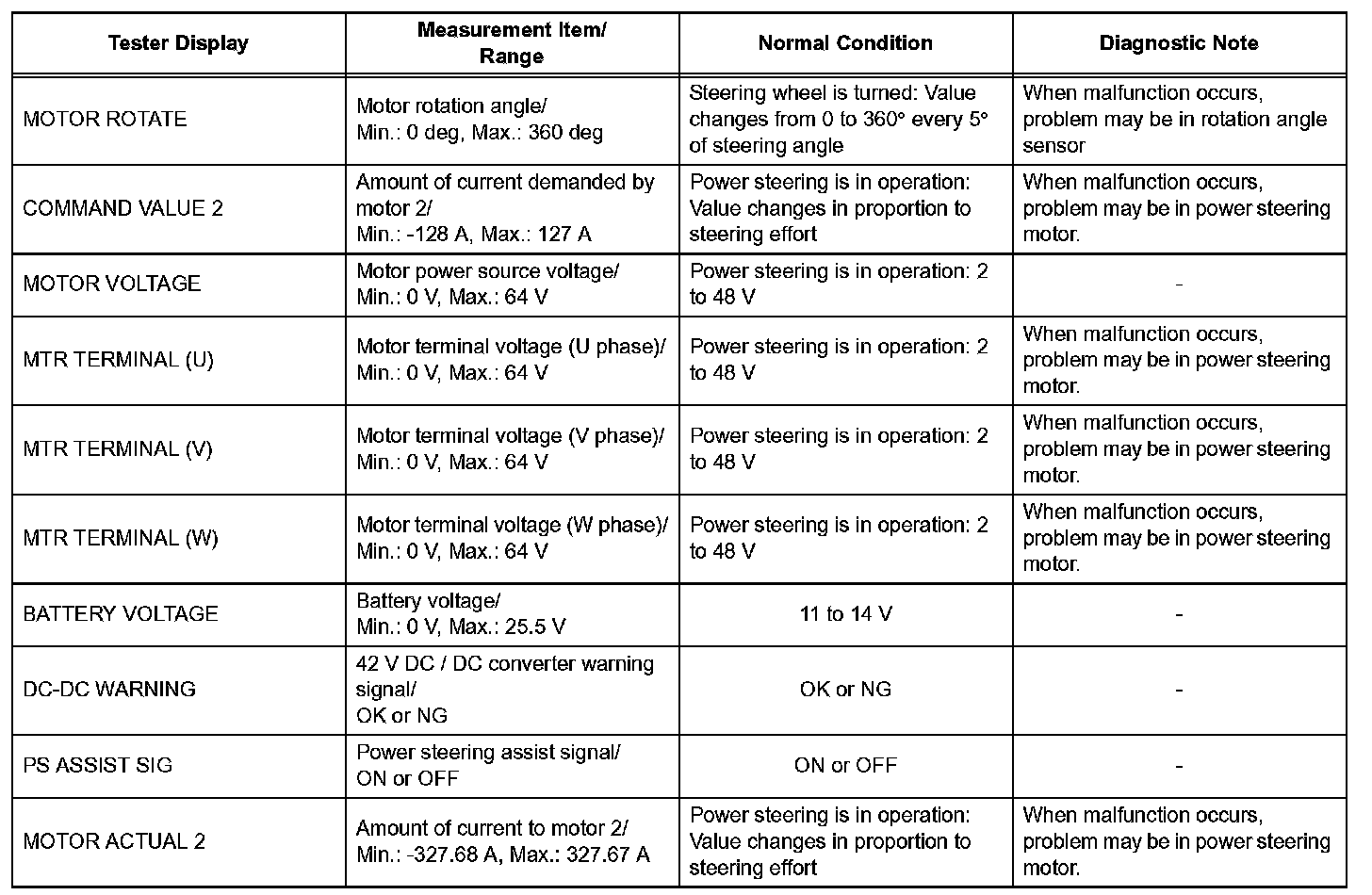

EMPS (Part 2):

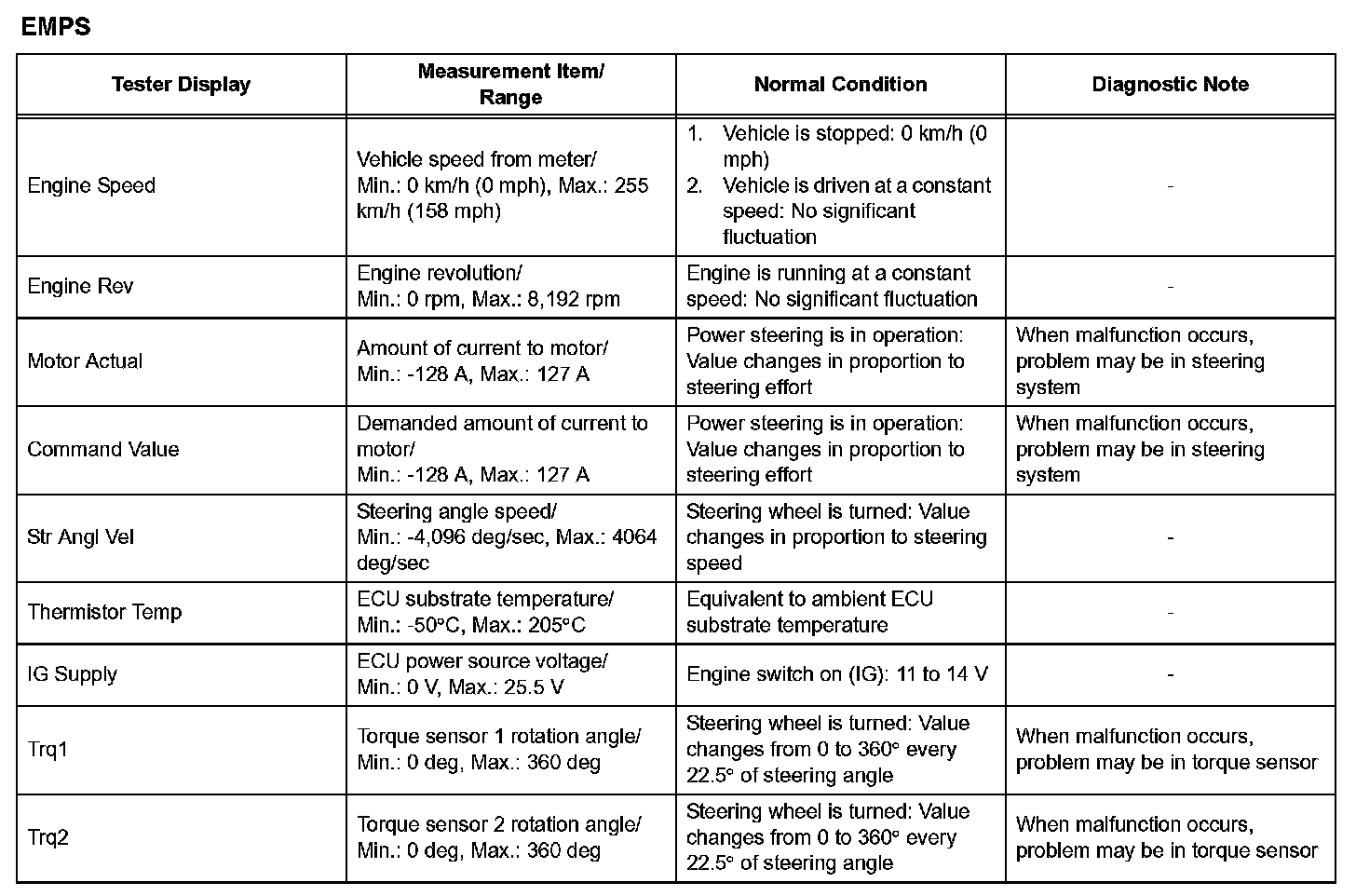

(2) Techstream
