Variable Gear Ratio Steering System

DATA LIST / ACTIVE TEST

HINT: Using the intelligent tester or Techstream to read the Data List allows the values or states of switches, sensor, actuators and other items to be read without removing any parts. This non-intrusive inspection can be very useful because intermittent conditions or signals may by discovered before parts or wiring is disturbed. Reading the Data List information early in troubleshooting is one way to save diagnostic time.

NOTICE: In the table, the values listed under "Normal Condition" are reference values. Do not depend solely on these reference values when deciding whether a part is faulty or not.

1. READ DATA LIST
(a) Connect the intelligent tester or Techstream to the DLC3.
(b) Turn the engine switch on (IG).
(c) Turn the tester on.
(d) Enter the following menus:
(1) Intelligent tester - Select: DIAGNOSIS / OBD/ MOBD / CHASSIS / VGRS / DATA LIST /
(2) Techstream - Select: Chassis / Steering control ECU / Data List /
(e) According to the display on tester, read the "Data List".
(1) Intelligent tester

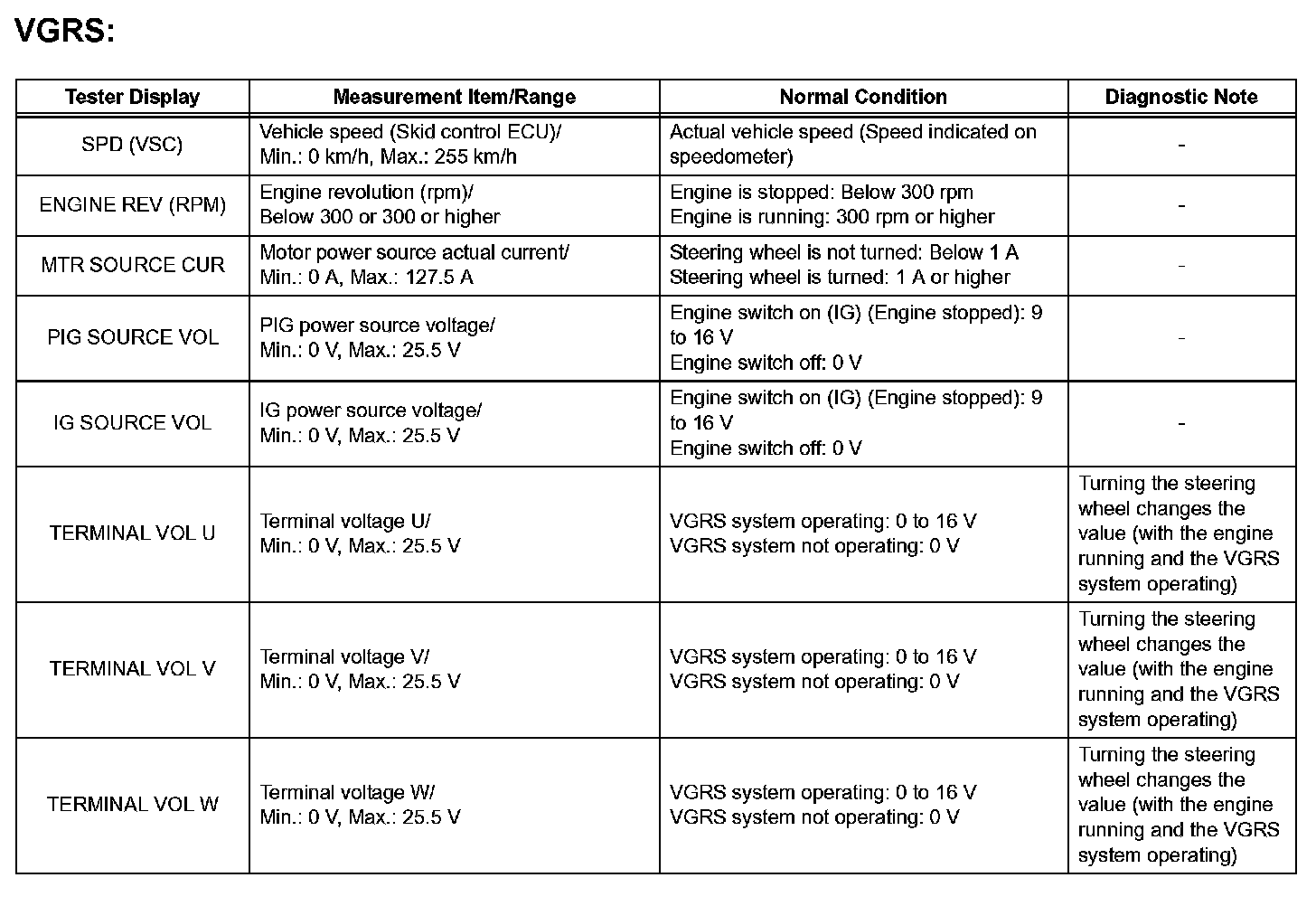

VGRS (Part 1):

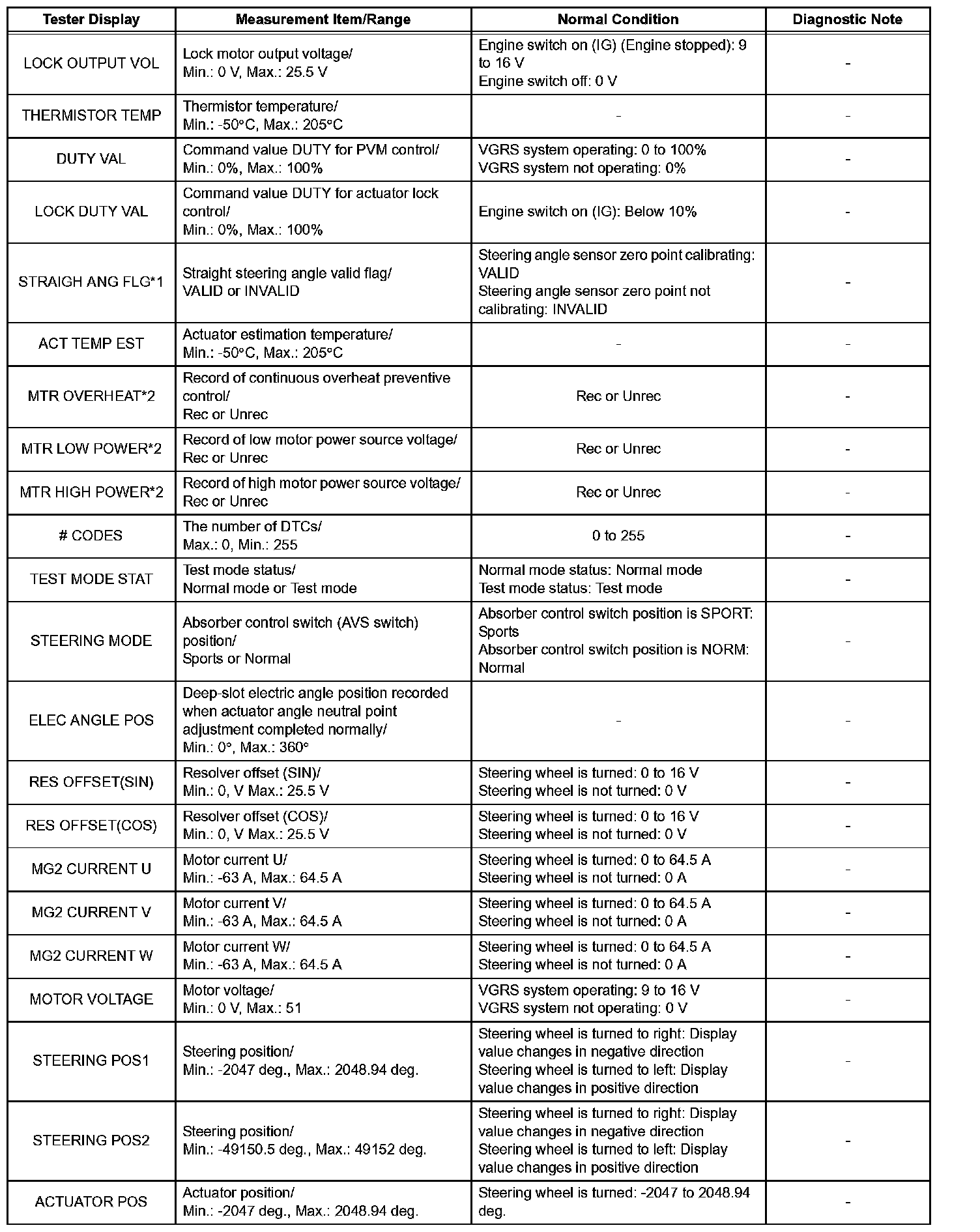

VGRS (Part 2):

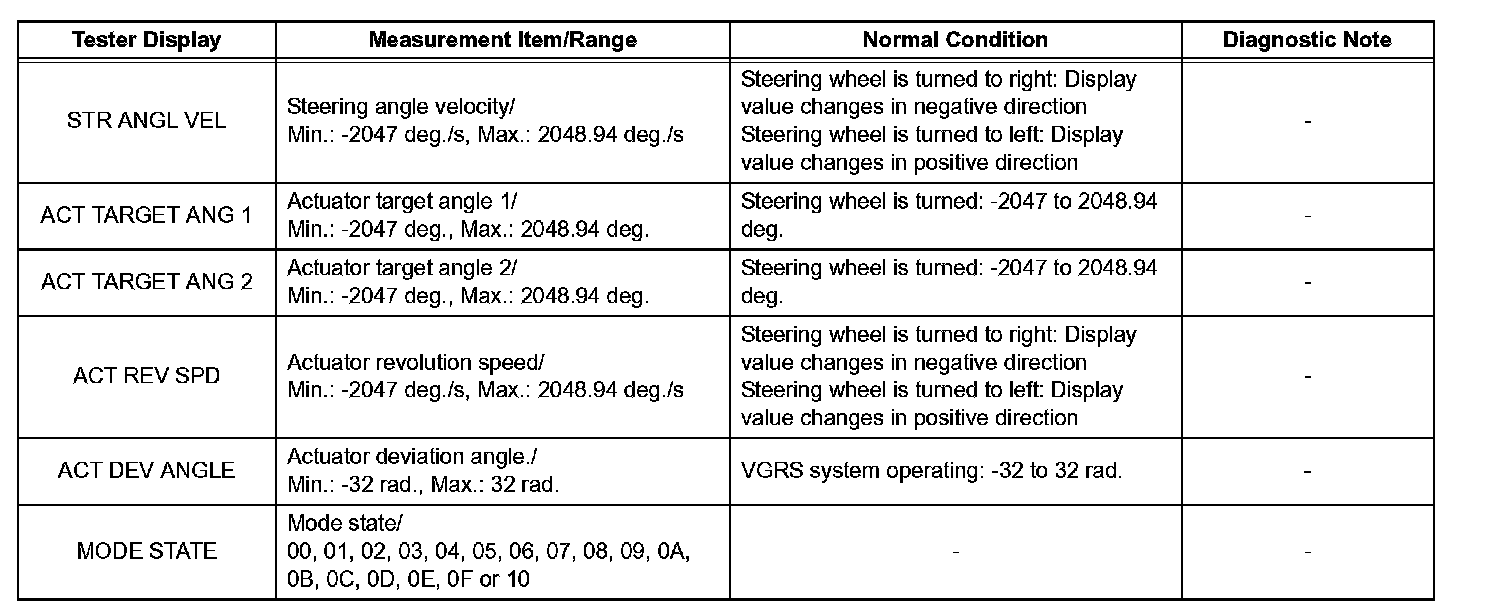

VGRS (Part 3):

(2) Techstream

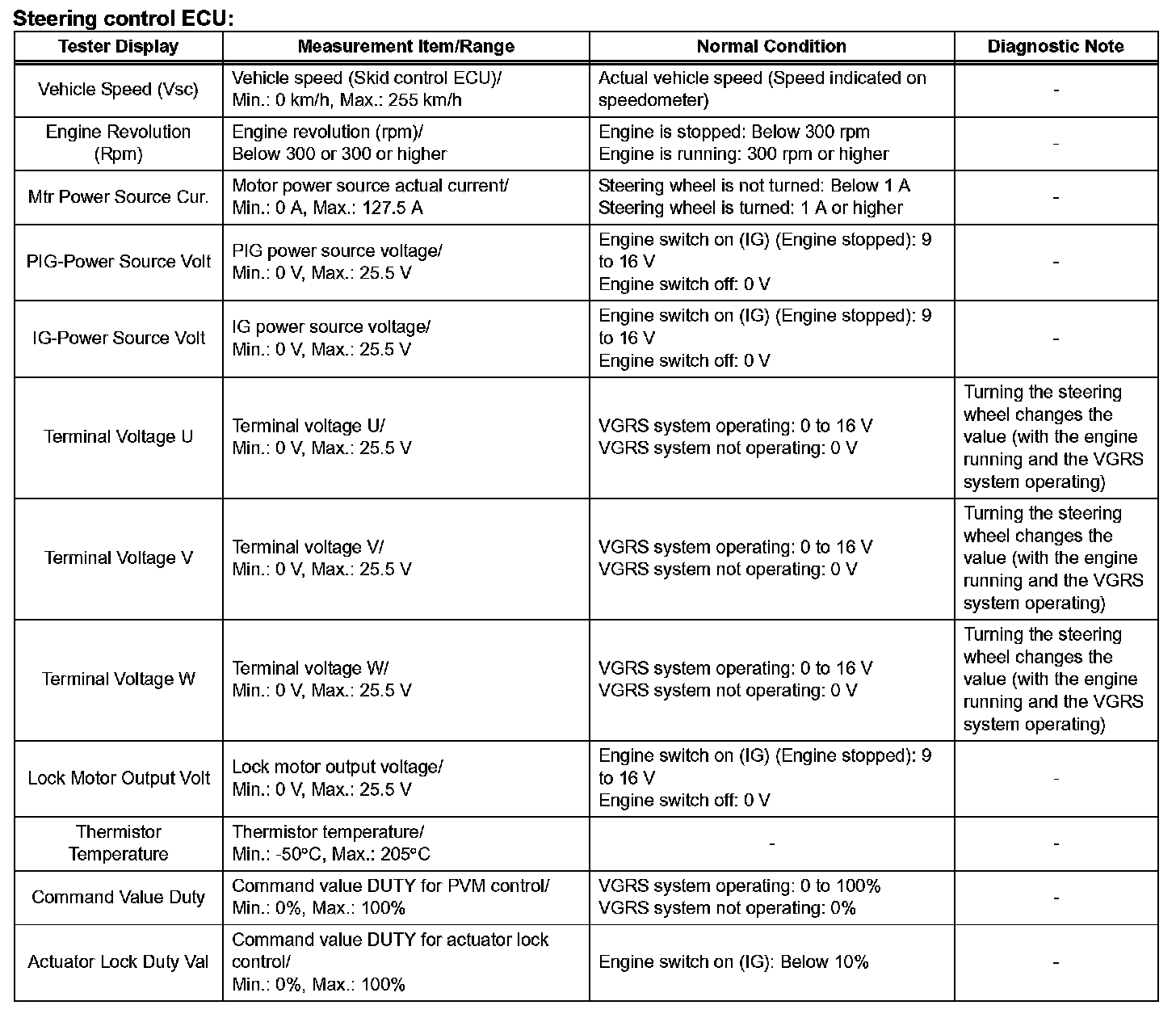

Steering control ECU (Part 1):

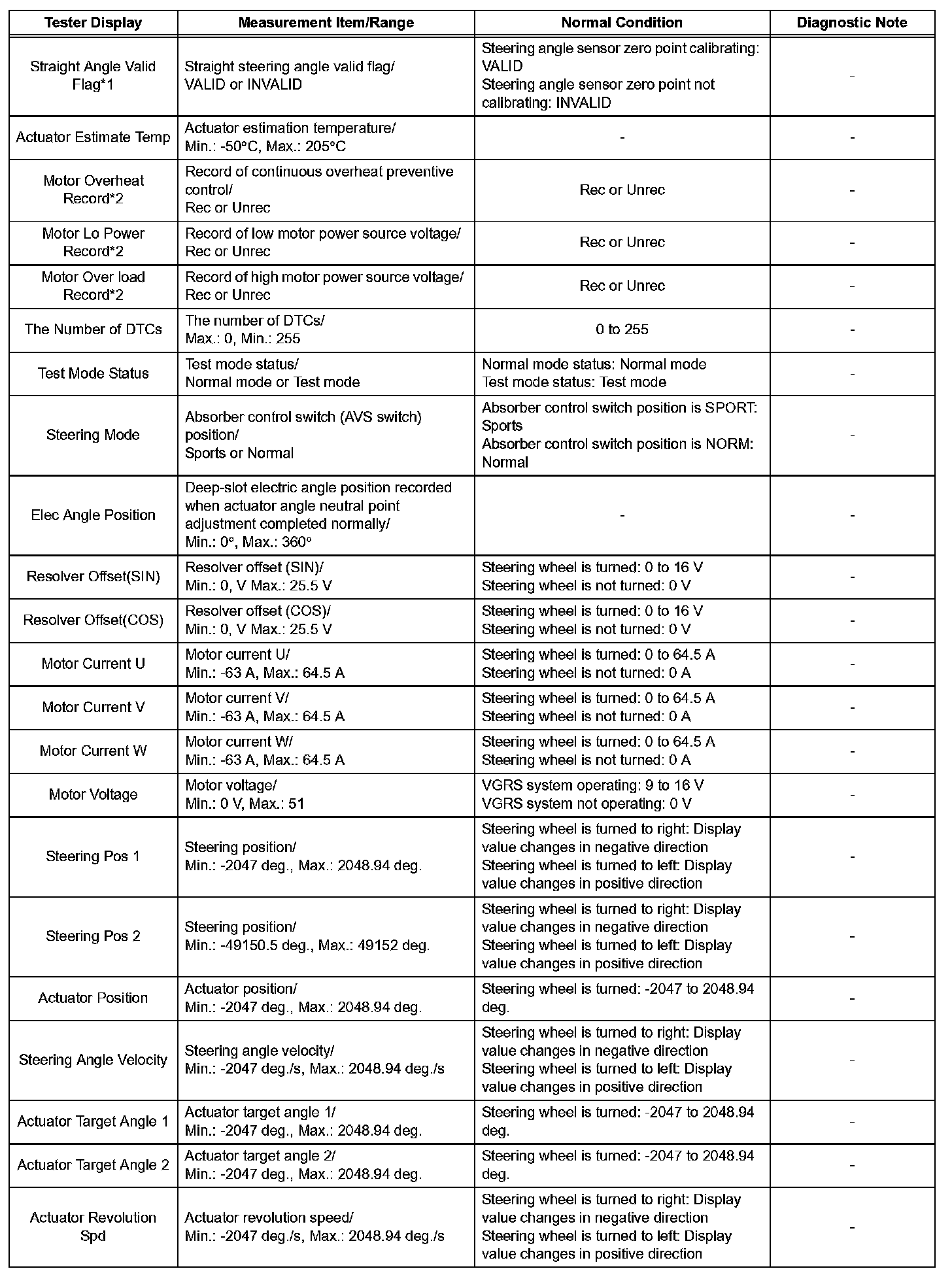

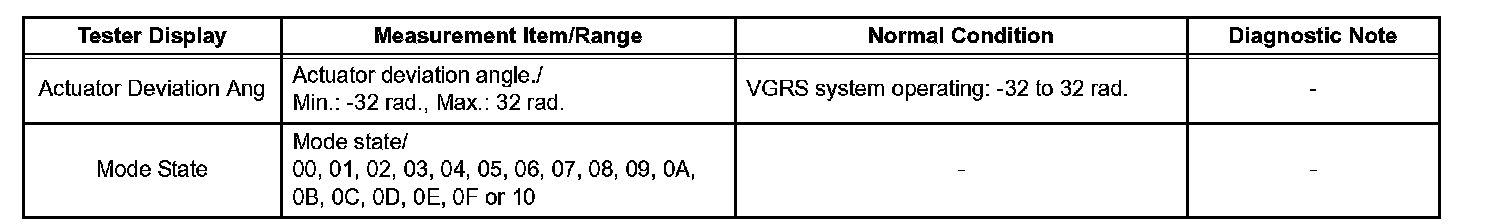

Steering control ECU (Part 2):

2. ACTIVE TEST

HINT: Using the intelligent tester or Techstream to perform the Active Tests allows relays, VSVs and actuators and other items to be operated without removing any parts. This non-intrusive functional inspection can be very useful because intermittent operation may be discovered before parts or wiring is disturbed. Performing Active test early in troubleshooting is one way to save diagnostic time. Data List information can be displayed while performing Active Tests.

(a) Connect the intelligent tester or Techstream to the DLC3.
(b) Turn the engine switch on (IG).
(c) Turn the tester on.
(d) Enter the following menus:
(1) Intelligent tester - Select: DIAGNOSIS / OBD/ MOBD / BODY / METER / ACTIVE TEST /

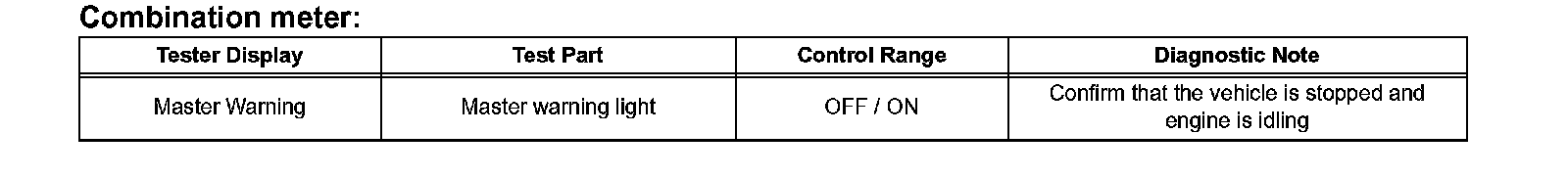

(2) Techstream - Select: Body / Combination meter / Active Test /
(e) According to the display on tester, perform the "Active Test".
(1) Intelligent tester

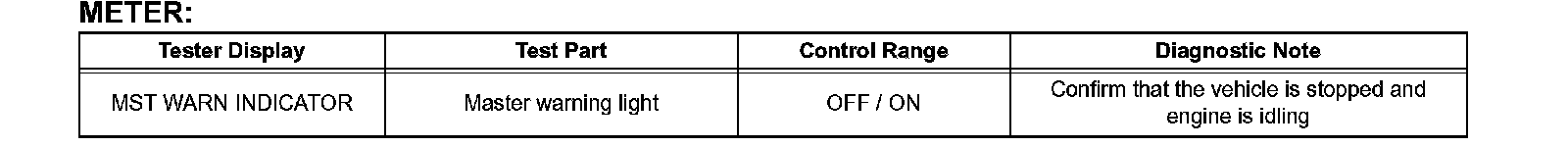

METER:
