Variable Gear Ratio Steering System

TERMINALS OF ECU
1. CHECK STEERING CONTROL ECU

HINT: Inspect the connectors from the back side while they are connected.

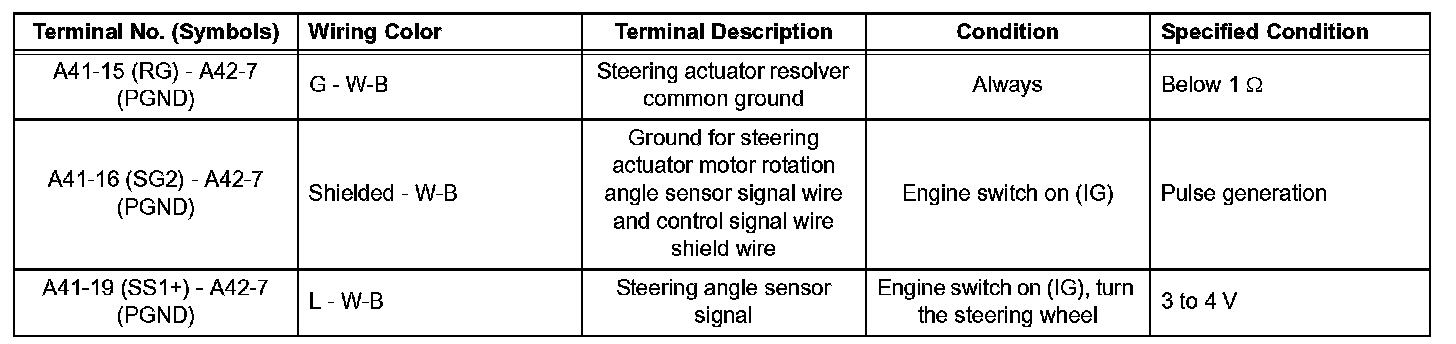

Part 1:




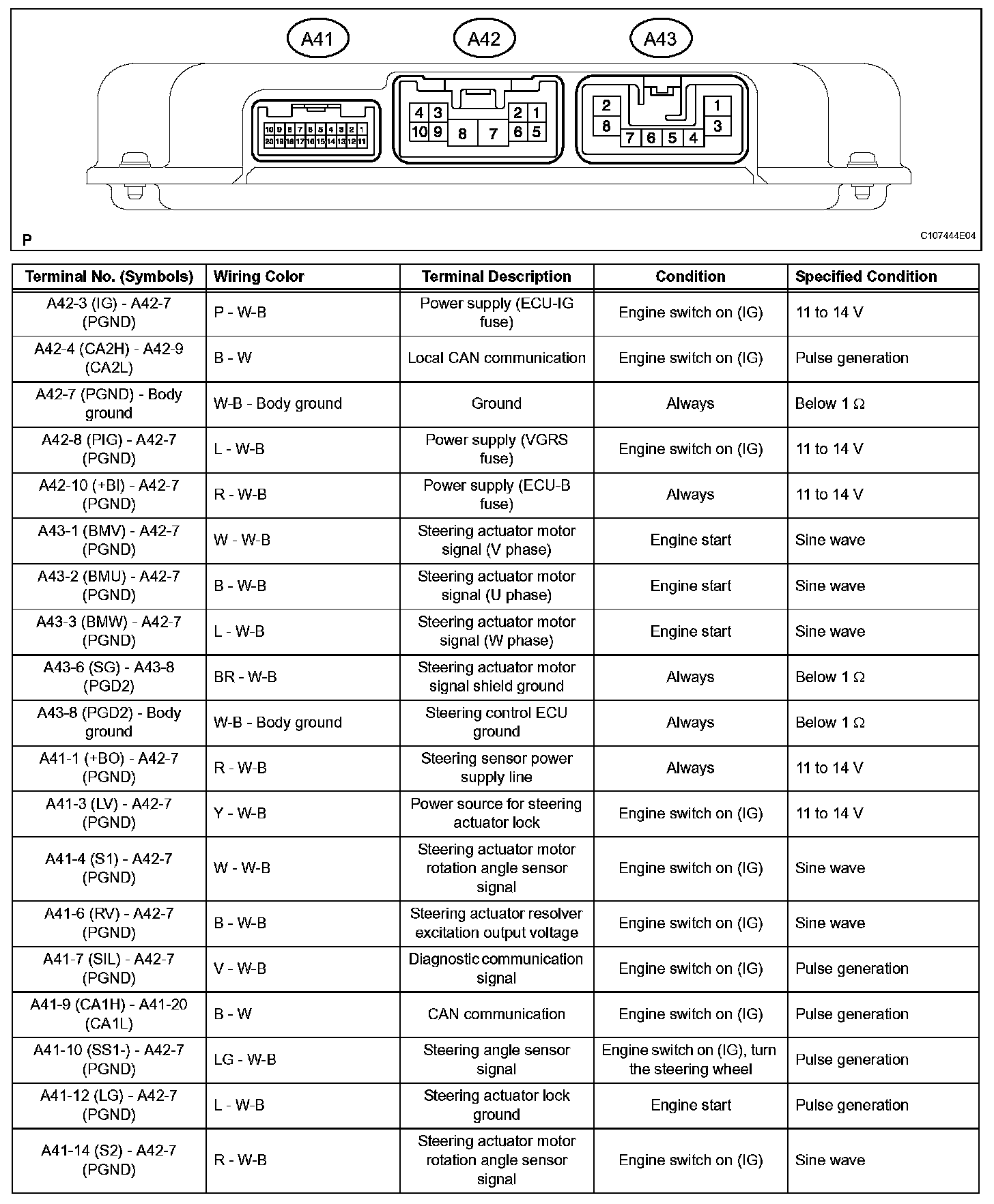

Part 2:
