HOW TO PROCEED WITH TROUBLESHOOTING
HINT:
^
Use the following procedures to troubleshoot the variable gear ratio
steering
system.
^
*: Use the intelligent tester or Techstream.

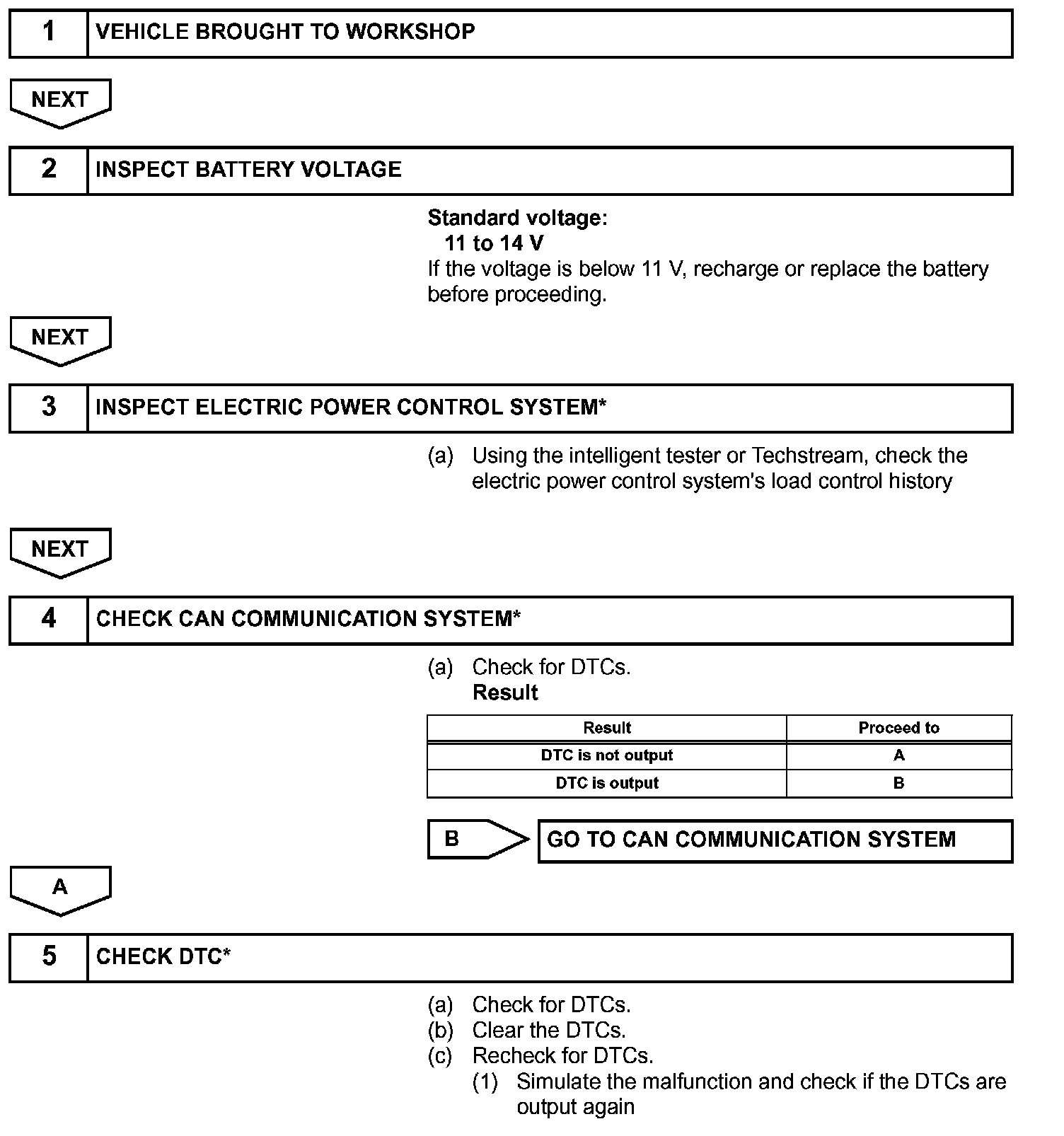

Steps 1-5(Part 1):

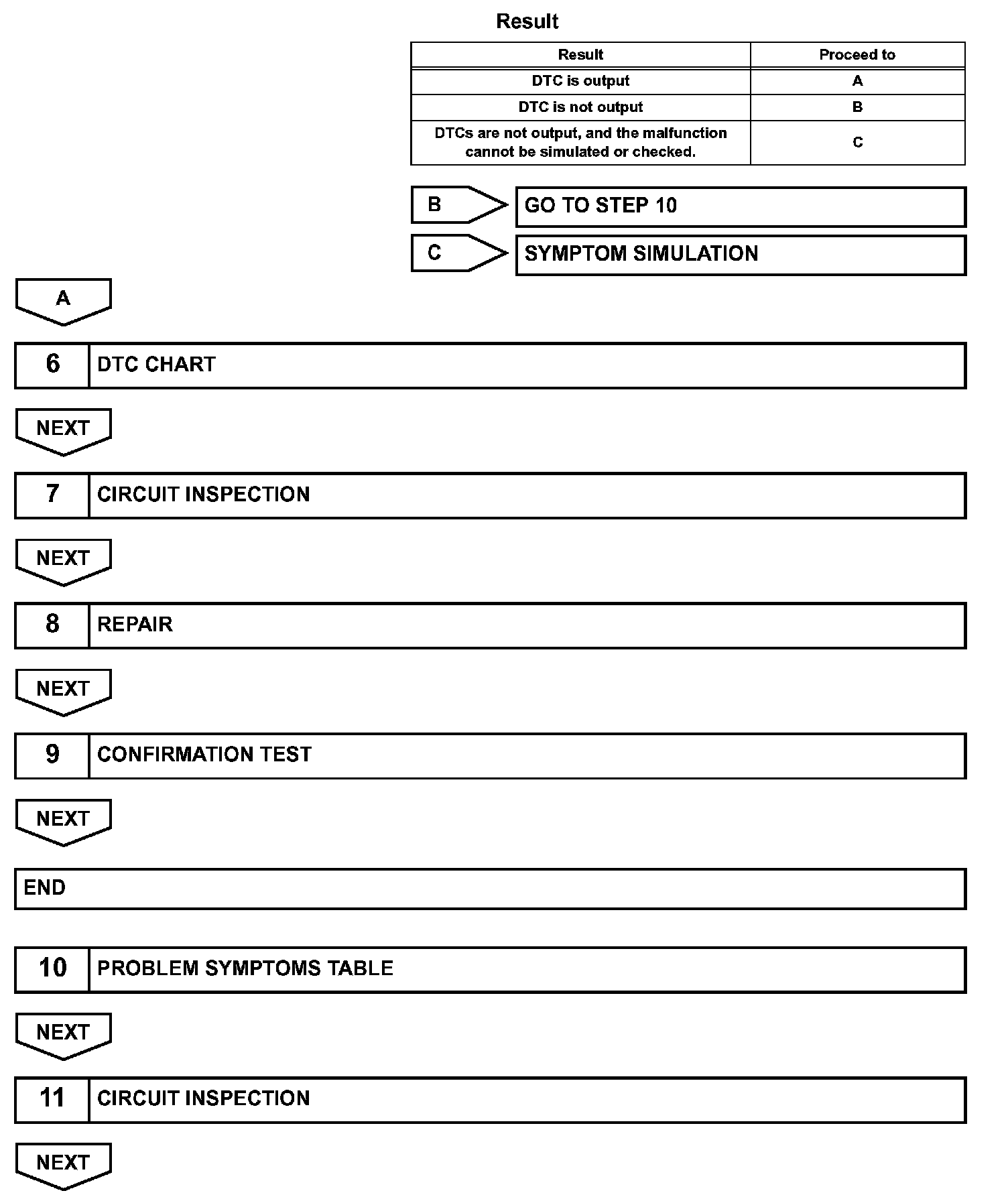

Steps 5(Part 2)-11:

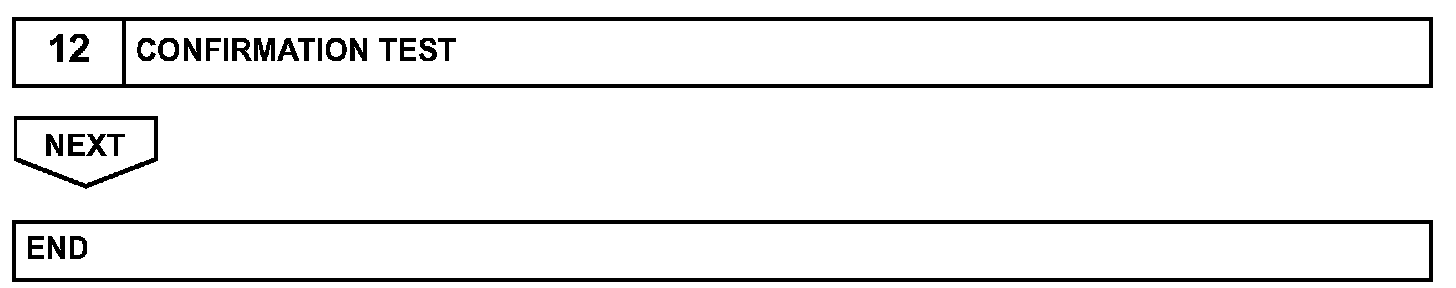

Step 12:
