Master Warning Light Malfunction

Master Warning Light Malfunction

DESCRIPTION
If the steering control ECU detects that VGRS system has a malfunction, warning information is transmitted to the combination meter via CAN.

The combination meter will turn the master warning light on based on this information.

Warning information is transmitted via the following route: Steering control ECU --> (CAN) --> Skid control ECU --> (CAN) --> Combination meter

Connecting terminals TC and CG of the DLC3 makes the master warning light blink and outputs DTCs.

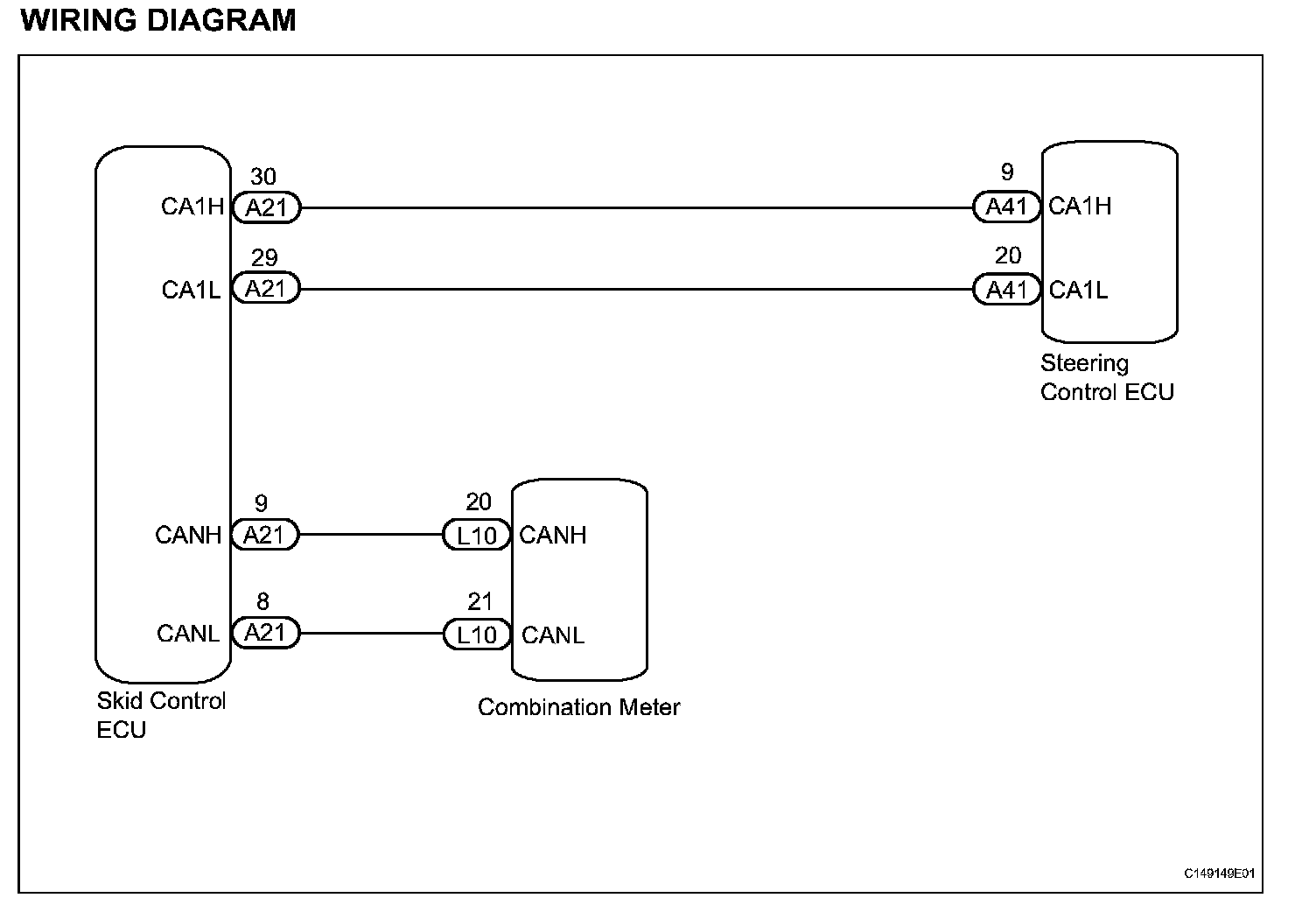

WIRING DIAGRAM:

INSPECTION PROCEDURE

HINT:
Check that there is no problem in CAN communication before performing the following procedure.
If there are any problems in these communications, first troubleshoot them and then proceed to the troubleshooting below.

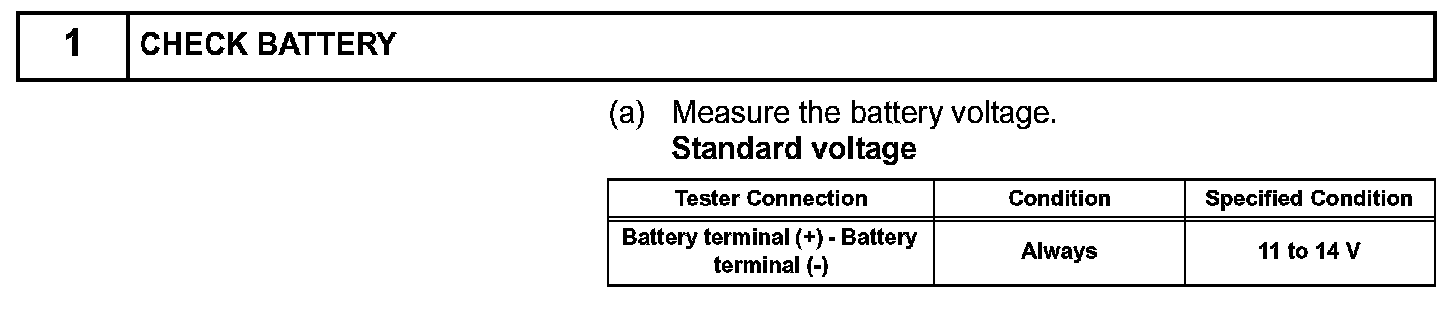

Step 1(Part 1):

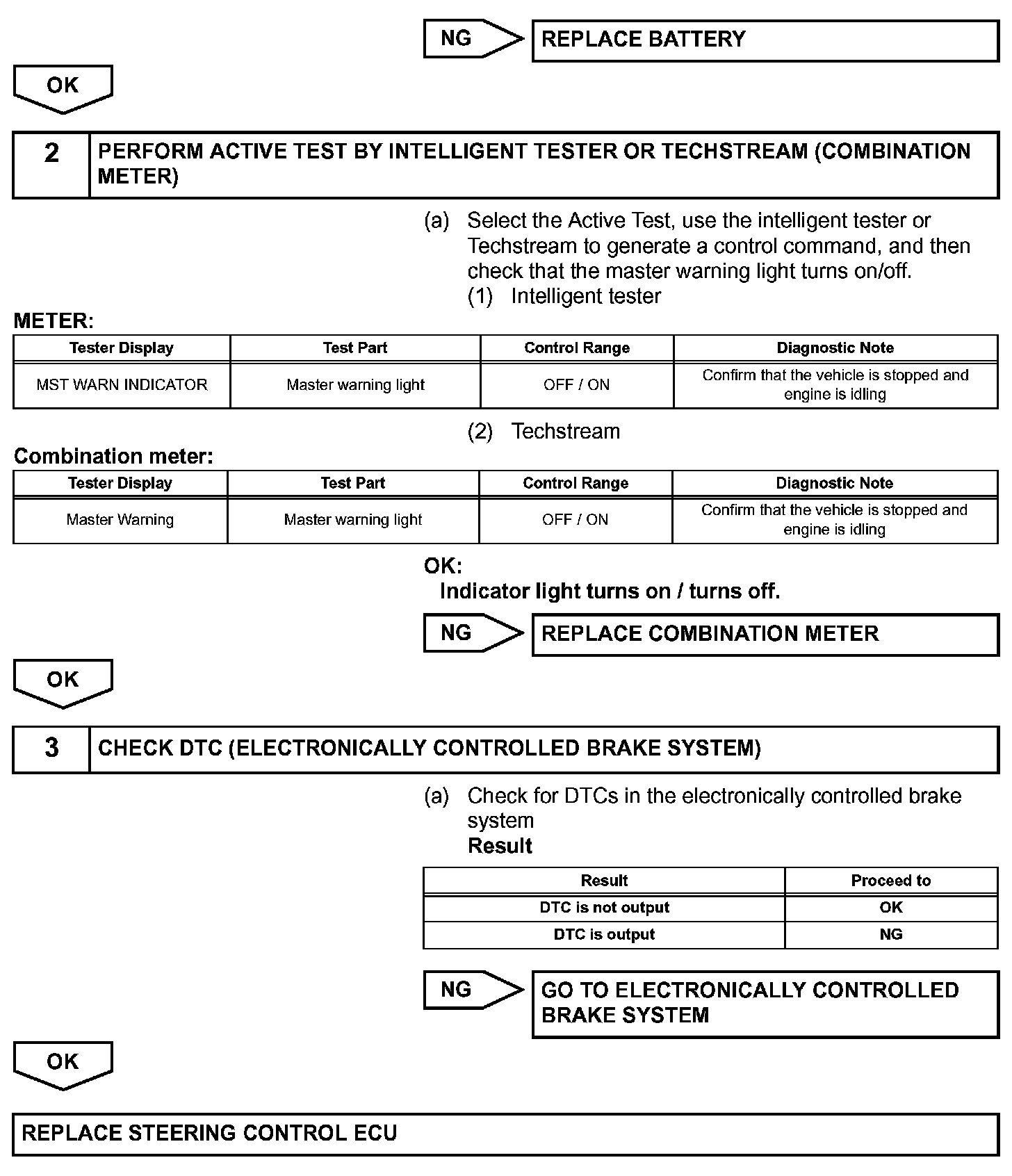

Steps 1(Part 2)-3:
