Freeze Frame Data

FREEZE FRAME DATA
1. FREEZE FRAME DATA
(a) Connect the intelligent tester or Techstream to the DLC3.
(b) Turn the engine switch on (IG) and check the freeze frame data by following the prompts on the tester screen.
(1) Intelligent tester

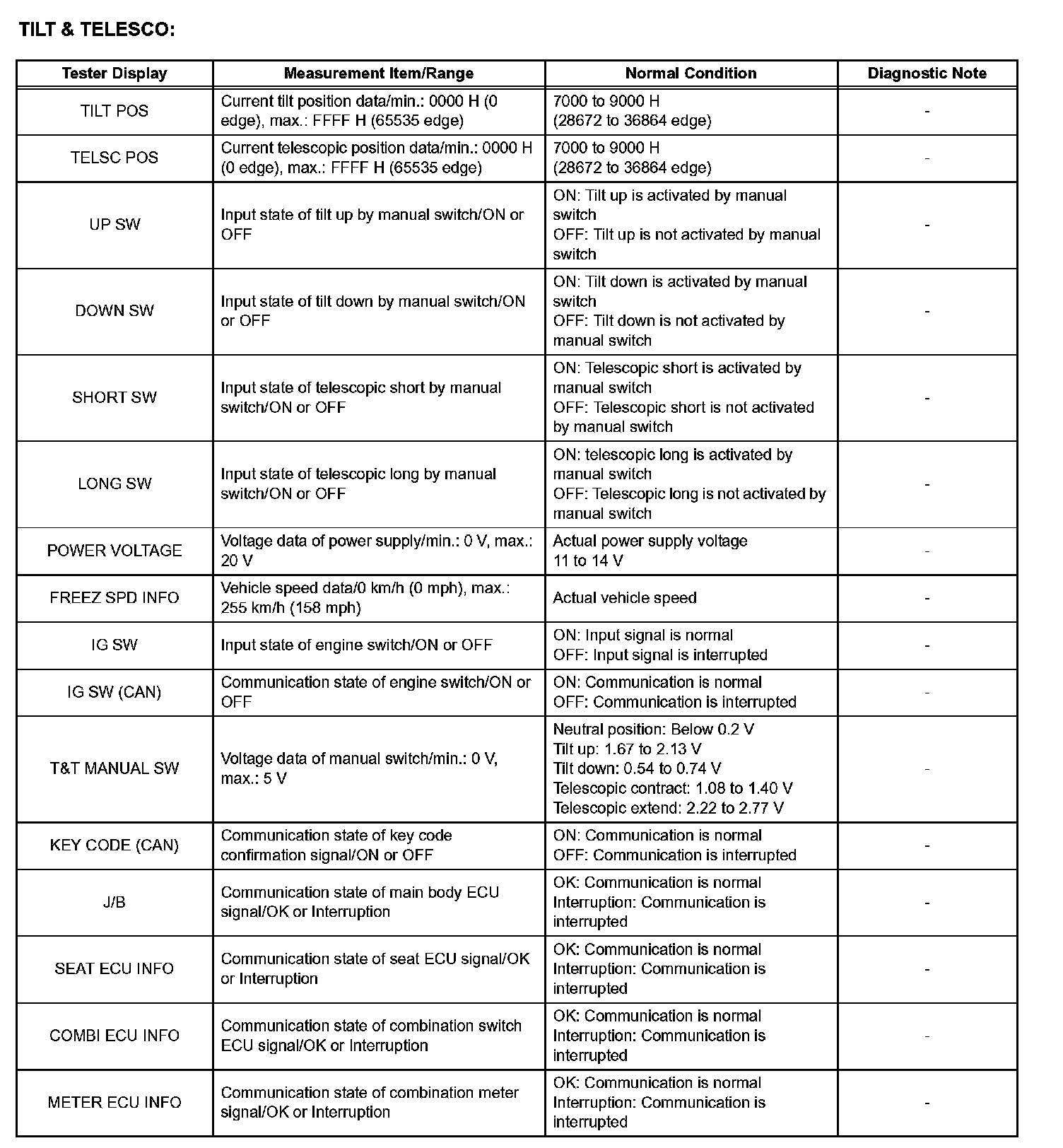

TILT & TELESCO:





(2) Techstream

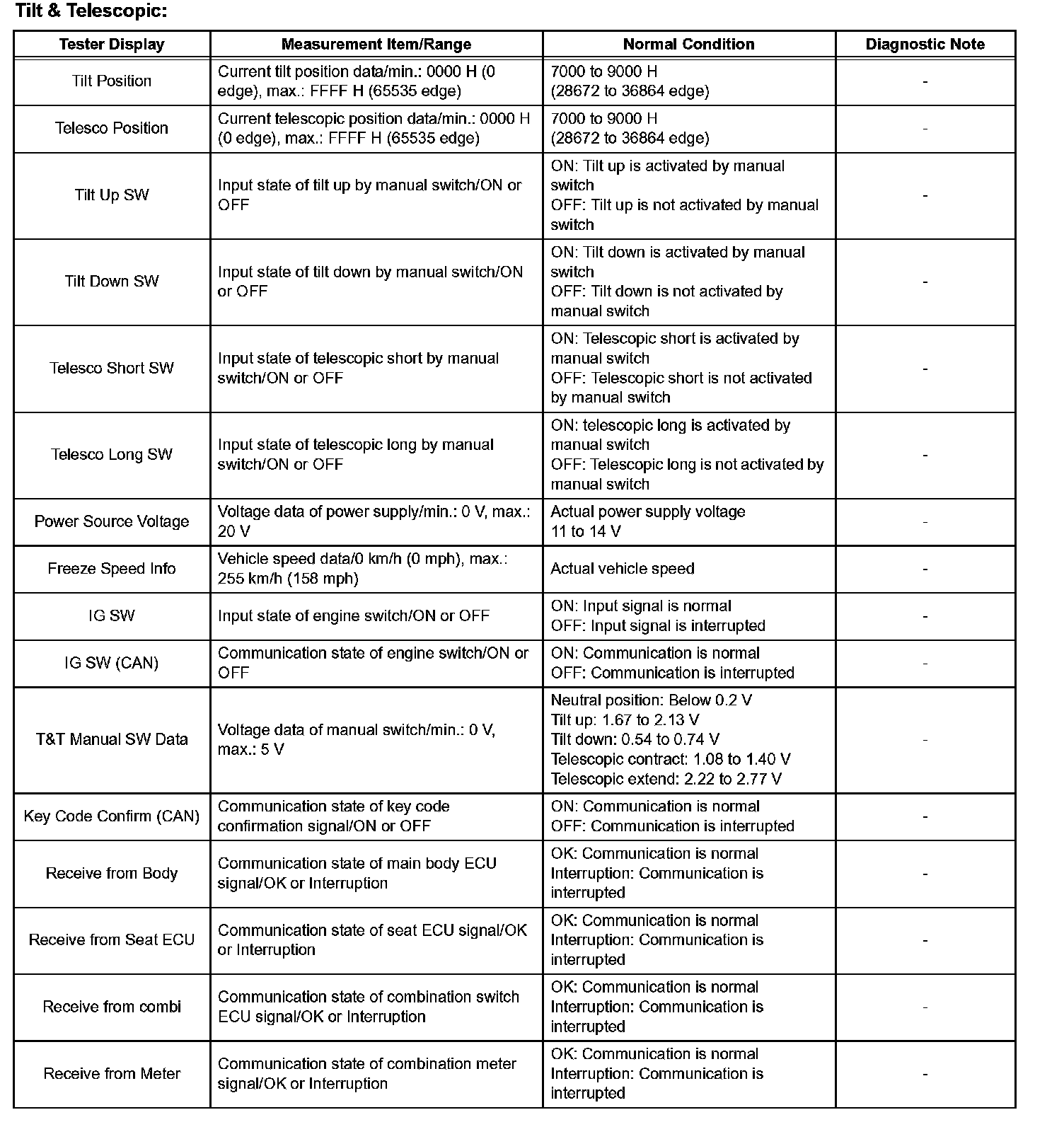

Tilt & Telescopic:
