Data List/Active Test

DATA LIST / ACTIVE TEST
1. READ DATA LIST

HINT: Using the intelligent tester or Techstream to read the Data List allows the values or states of switches, sensor, actuators and other items to be read without removing any parts. This non-intrusive inspection can be very useful because intermittent conditions or signals may by discovered before parts or wiring is disturbed. Reading the Data List information early in troubleshooting is one way to save diagnostic time.

NOTICE: In the table, the values listed under "Normal Condition" are reference values. Do not depend solely on these reference values when deciding whether a part is faulty or not.

(a) Connect the intelligent tester or Techstream to the DLC3.
(b) Turn the engine switch on (IG).
(c) Turn the tester on.
(d) Enter the following menus:
(1) Intelligent tester - Select: DIAGNOSIS / OBD/ MOBD / (desired system) / DATA LIST / ALL /
(2) Techstream - Select: Body / (desired system) / Data List /
(e) Check the values by referring to the table.
(1) Intelligent tester

TILT & TELESCO (Part 1):

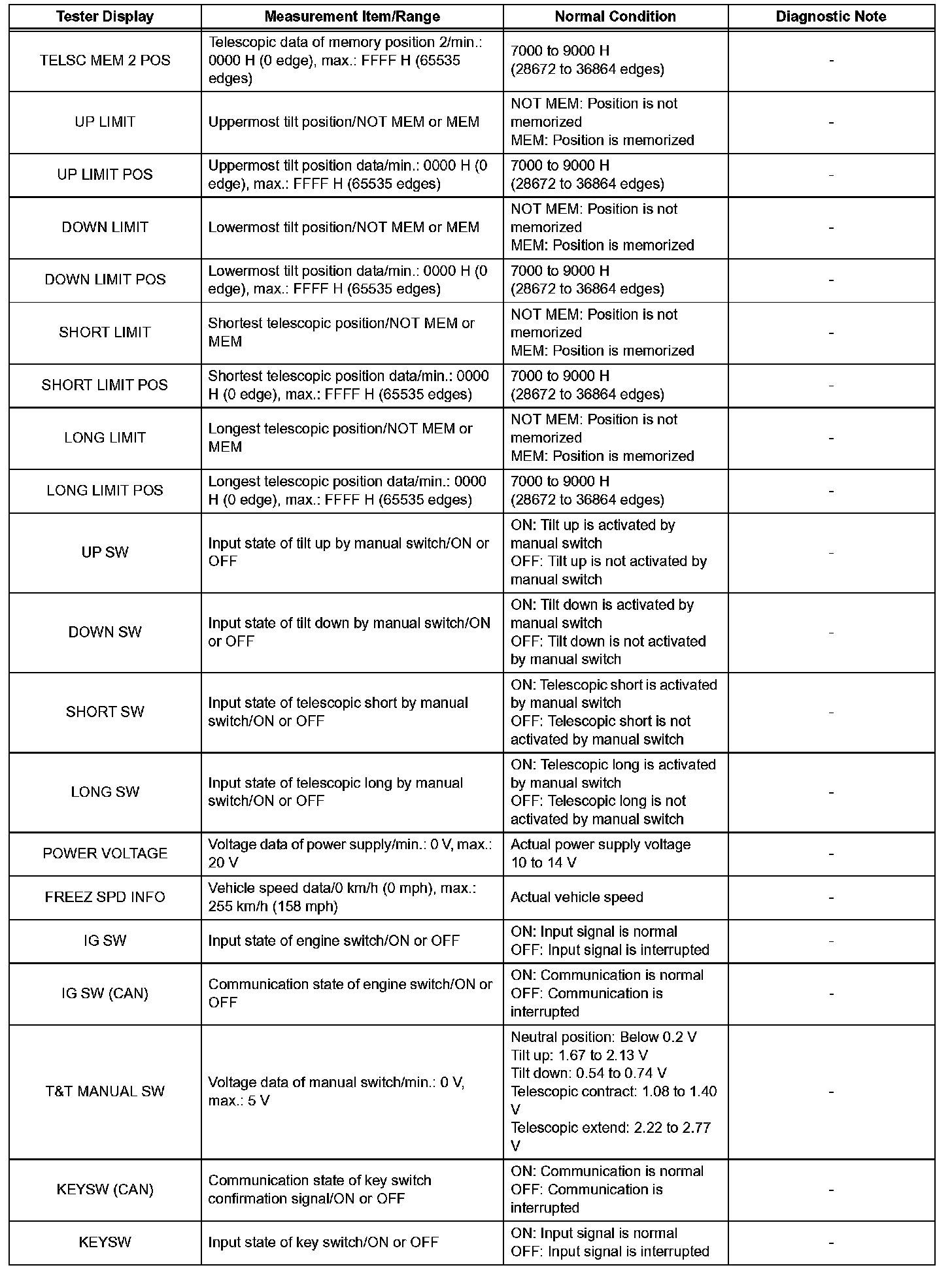

TILT & TELESCO (Part 2):

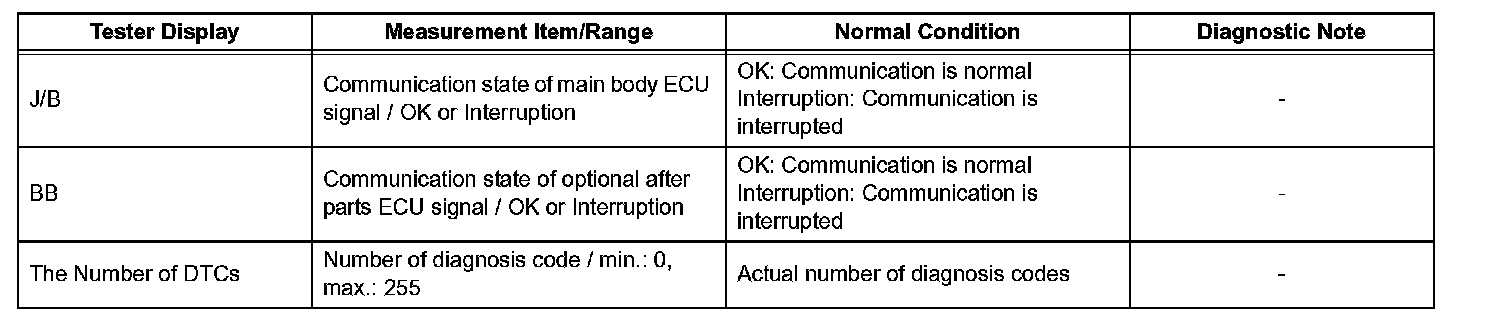

TILT & TELESCO (Part 3):

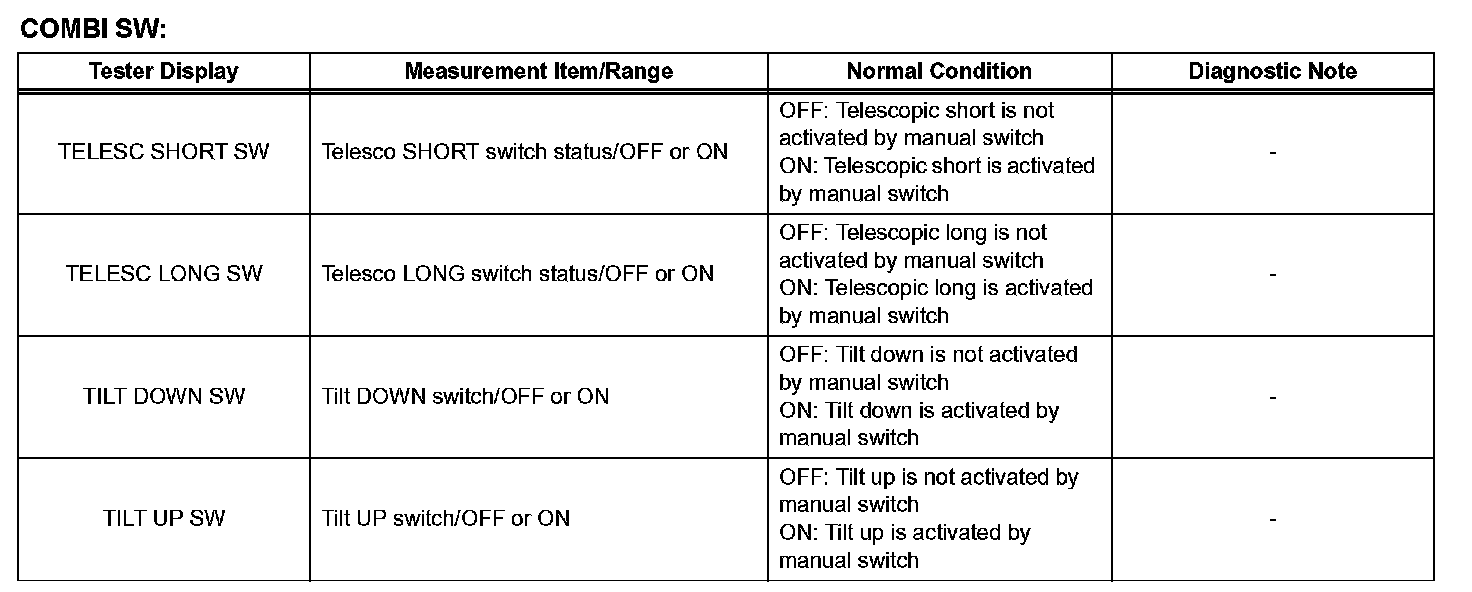

COMBI SW:

(2) Techstream

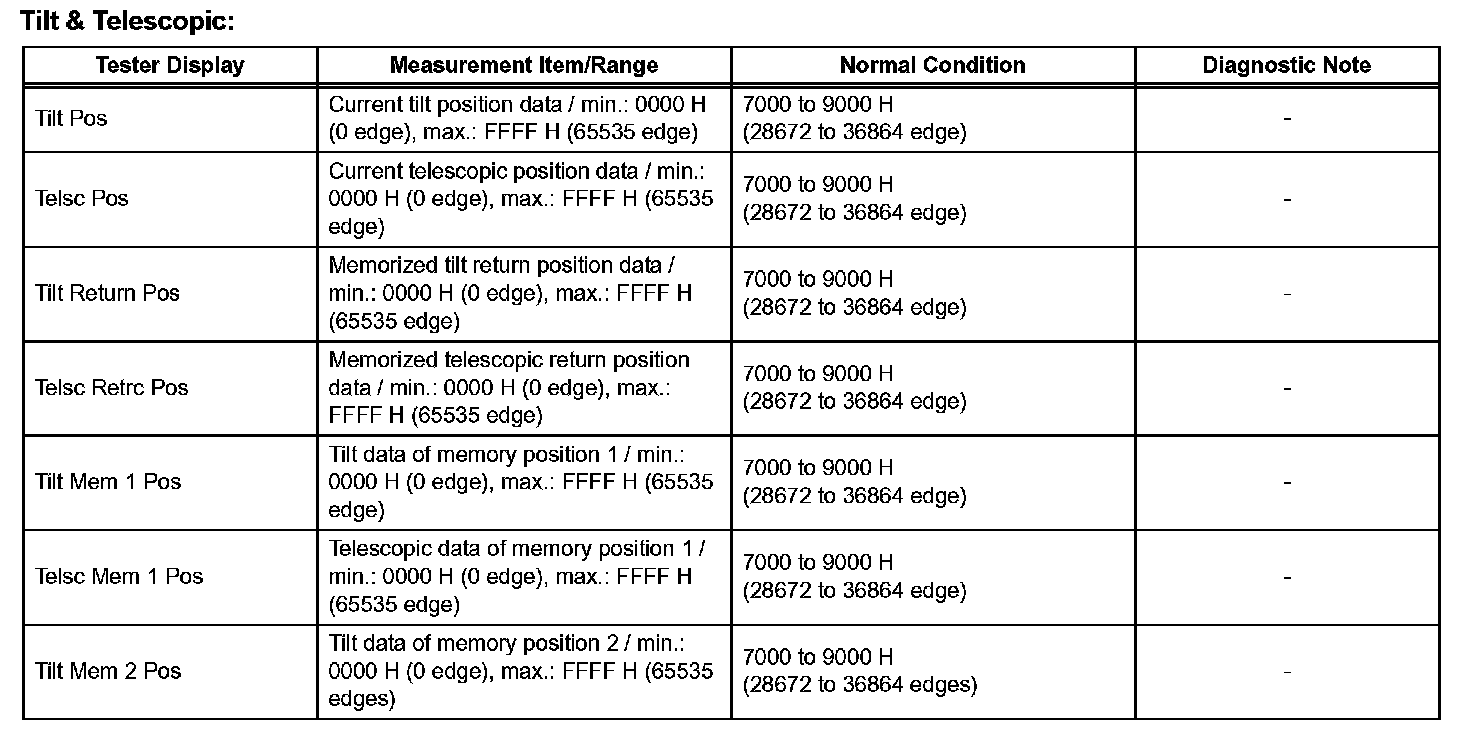

Tilt & Telescopic (Part 1):

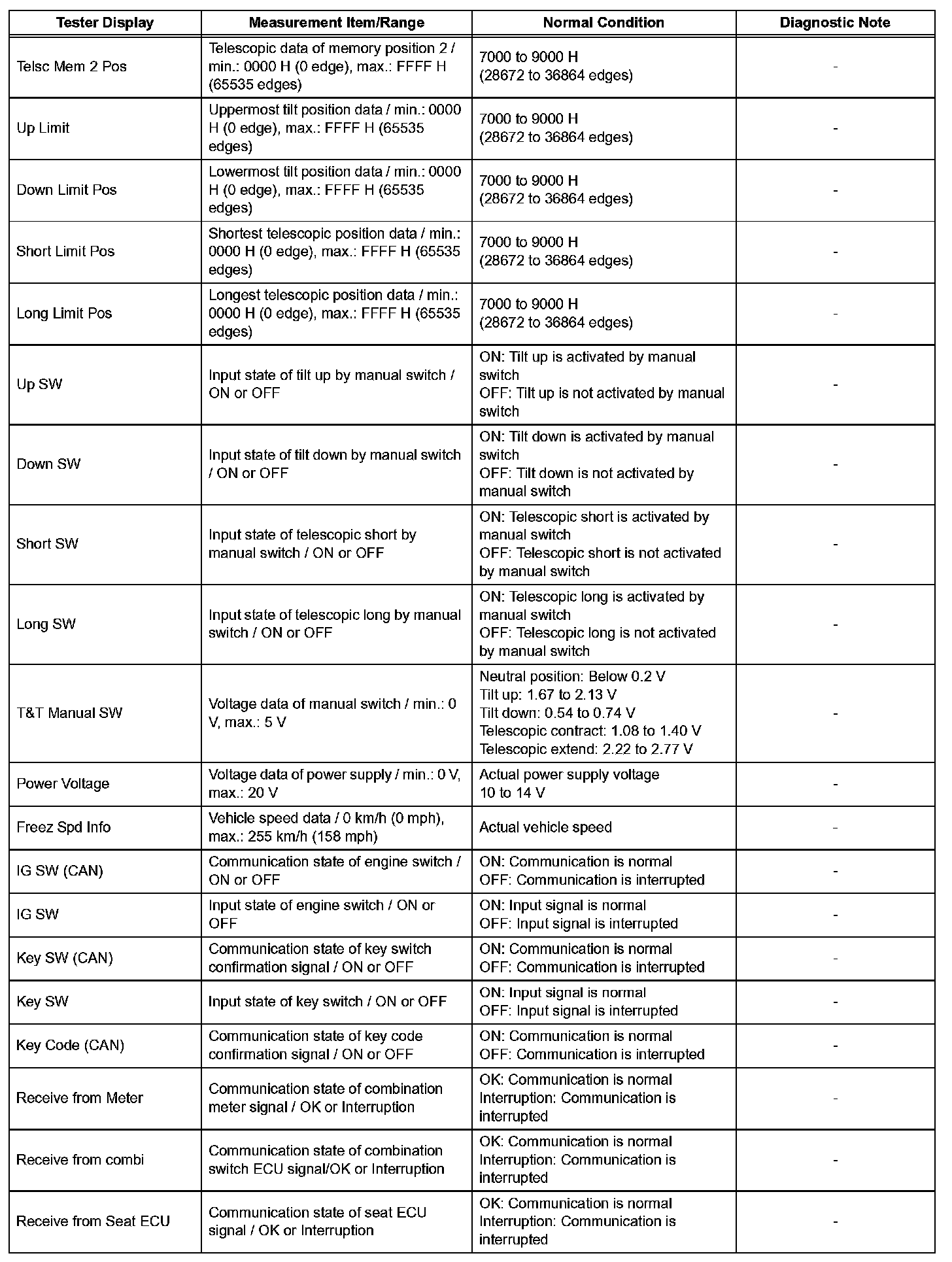

Tilt & Telescopic (Part 2):

Tilt & Telescopic (Part 3):

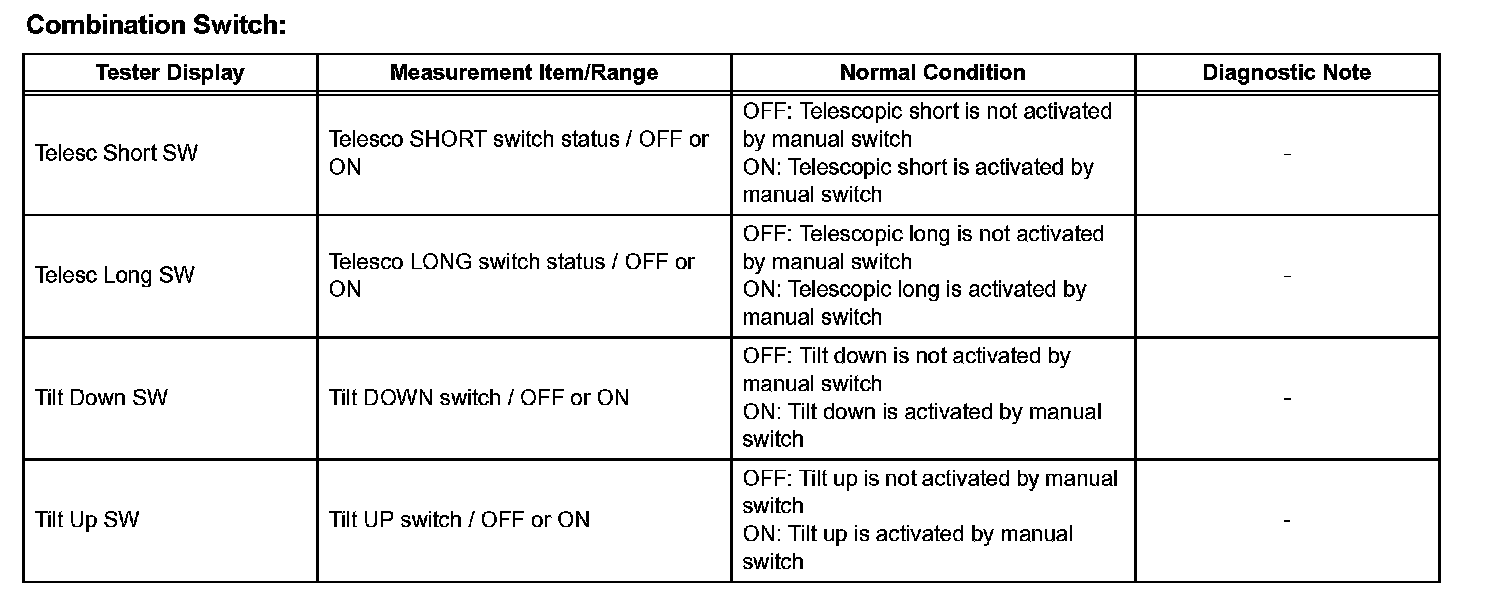

Combination Switch:

2. PERFORM ACTIVE TEST

HINT: Using the intelligent tester or Techstream to perform the Active Tests allows relays, VSVs and actuators and other items to be operated without removing any parts. This non-intrusive functional inspection can be very useful because intermittent operation may be discovered before parts or wiring is disturbed. Performing Active test early in troubleshooting is one way to save diagnostic time. Data List information can be displayed while performing Active Tests.

(a) Connect the intelligent tester or Techstream to the DLC3.
(b) Turn the engine switch on (IG).
(c) Turn the tester on.
(d) Enter the following menus:
(1) Intelligent tester - Select: DIAGNOSIS / OBD/ MOBD / TILT & TELESCO / ACTIVE TEST /

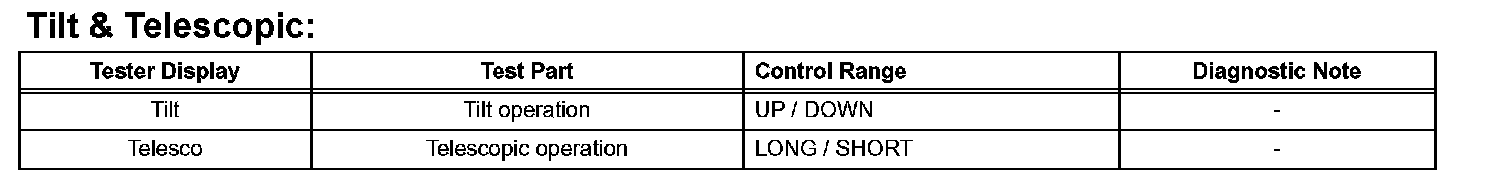

(2) Techstream - Select: Body / Tilt & Telescopic / Active Test /
(e) Check the values by referring to the table.
(1) Intelligent tester

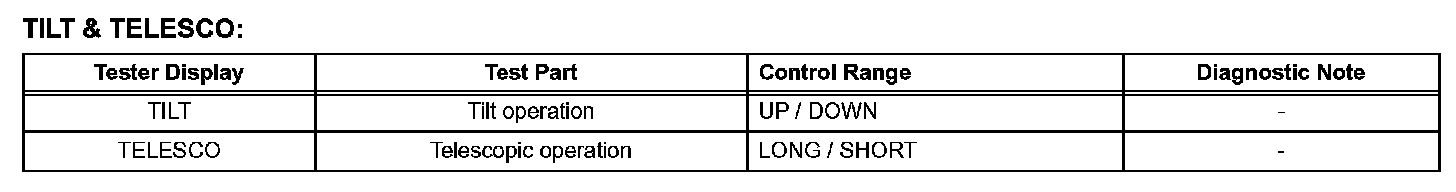

TILT & TELESCO:
