IG Power Source Circuit

IG Power Source Circuit

DESCRIPTION
When the engine switch is turned on (IG), the IG power source circuit supplies positive (+) voltage to the multiplex tilt and telescopic ECU.
The multiplex tilt and telescopic ECU also receives engine switch signals via this circuit.

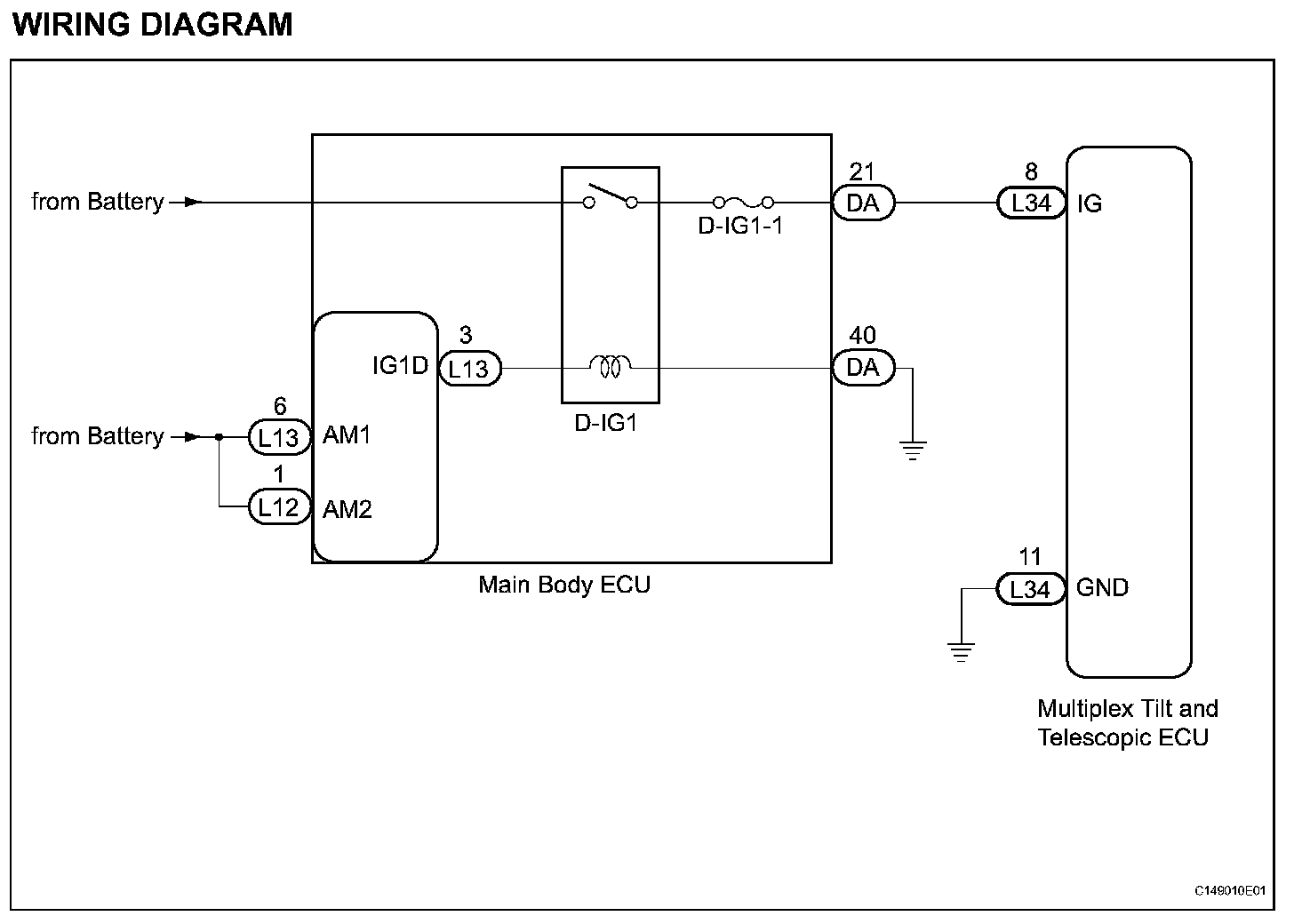

WIRING DIAGRAM:





INSPECTION PROCEDURE

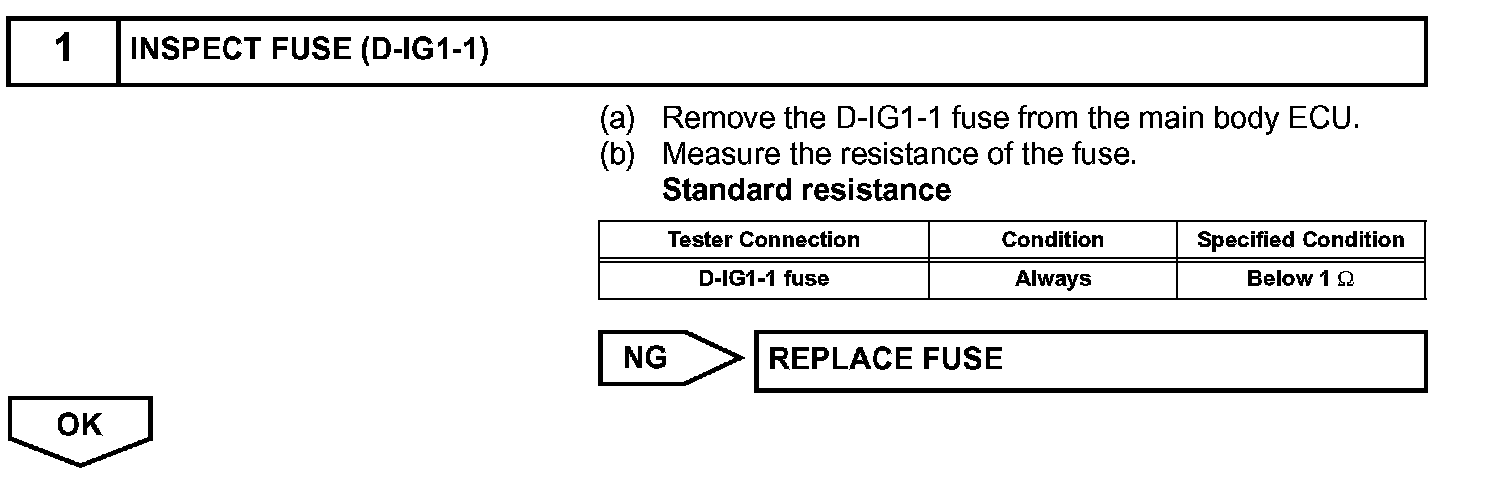

Step 1:

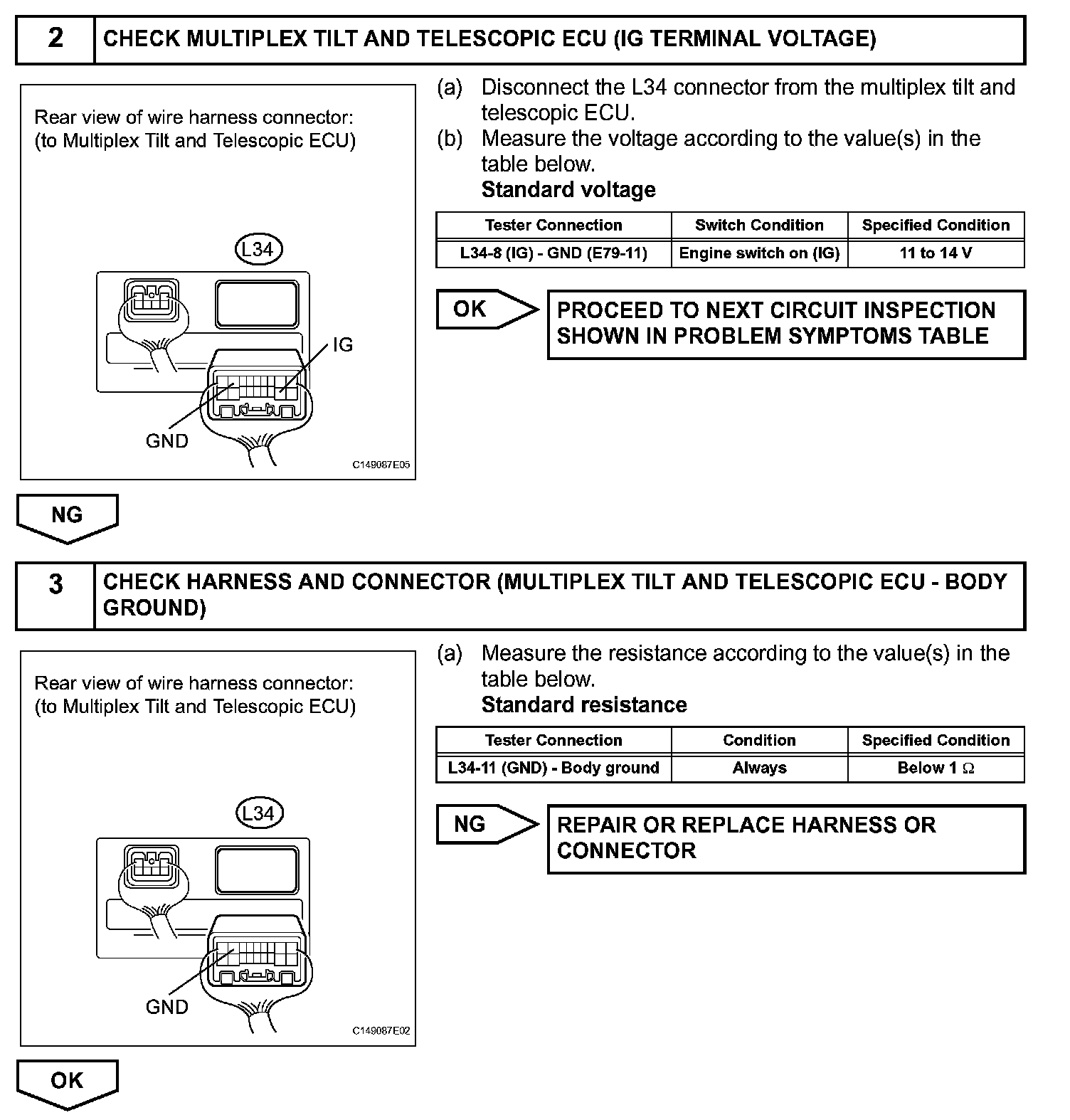

Steps 2-3:

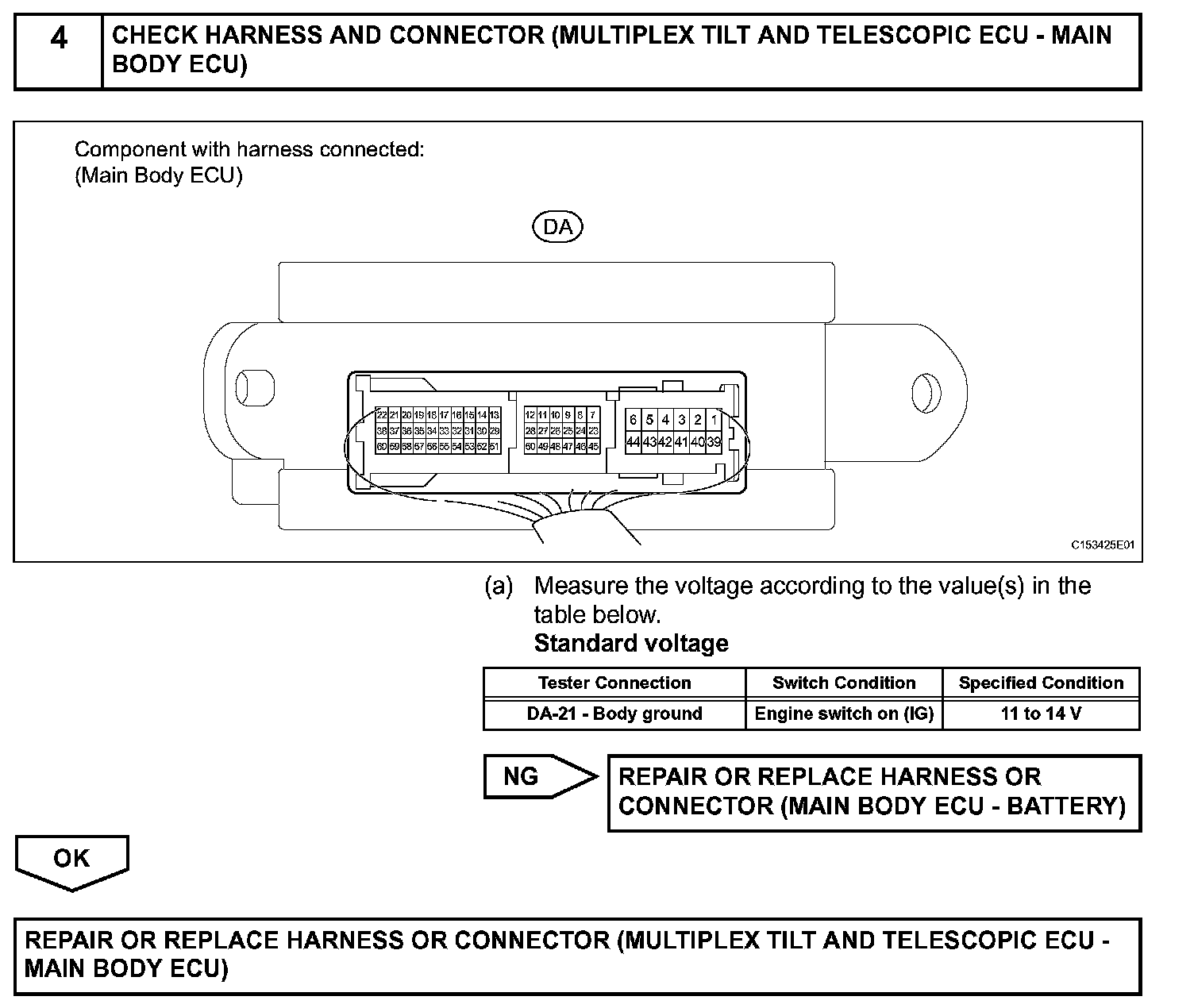

Step 4:
