Pinout Values and Diagnostic Parameters

TERMINALS OF ECU
1. CHECK STEERING LOCK ACTUATOR (STEERING LOCK ECU)

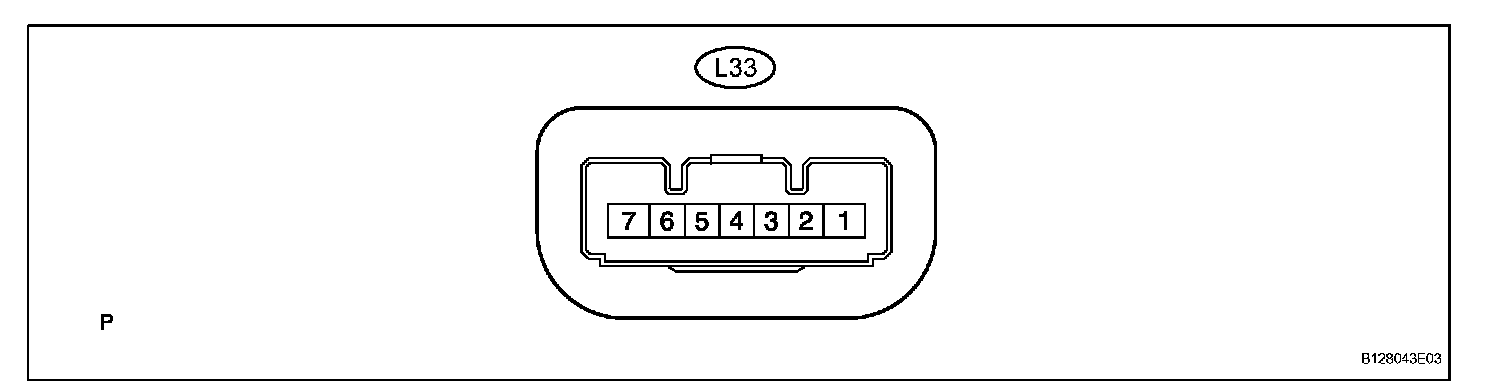

(a) Disconnect the L33 steering lock actuator connector.

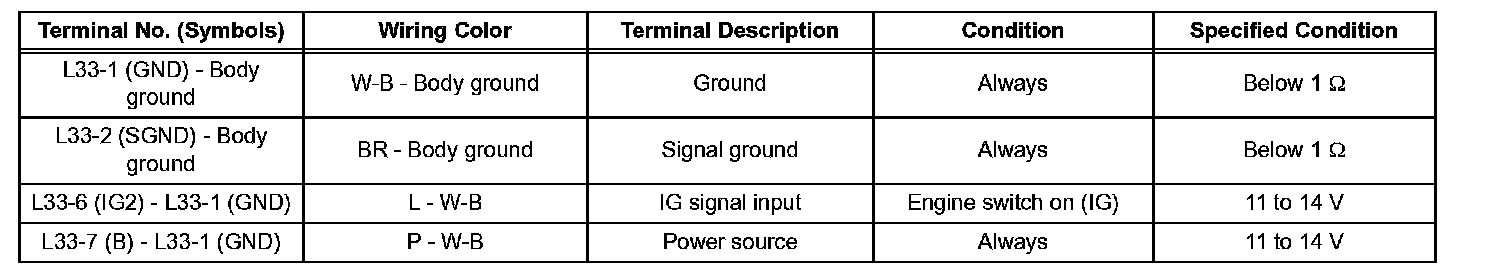

(b) Measure the voltage and resistance according to the value(s) in the table.





If the result is not as specified, there may be a malfunction on the wire harness side.
(c) Reconnect the L33 steering lock actuator connector.

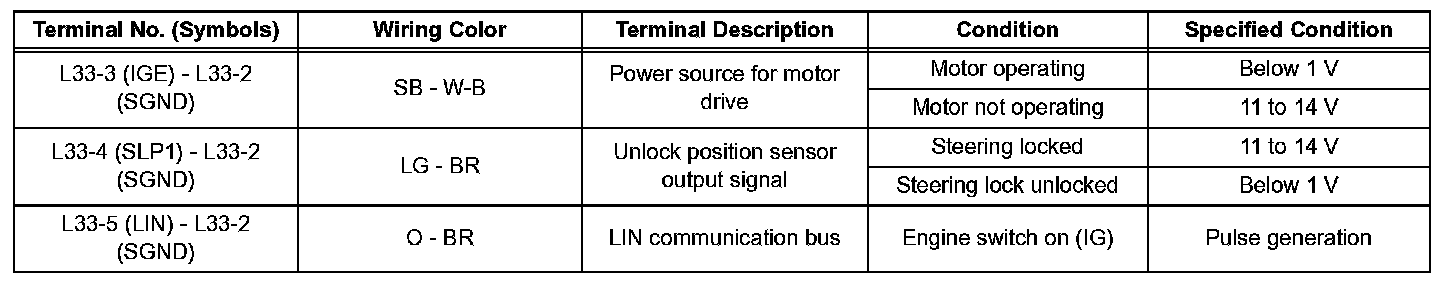

(d) Measure the voltage according to the value(s) in the table.





If the result is not as specified, there may be a malfunction on the wire harness side.
