Variable Gear Ratio Steering System

CALIBRATION

NOTICE:
Use this procedure to center the steering wheel if:
^ The steering actuator (power steering gear assembly) has been replaced.
^ The steering control ECU has been replaced.
^ The steering column or steering intermediate shaft has been disconnected.
^ The steering wheel is still off-center after completing the steering angle sensor initialization.

1. VGRS SYSTEM CALIBRATION PROCEDURE (USING SST CHECK WIRE)

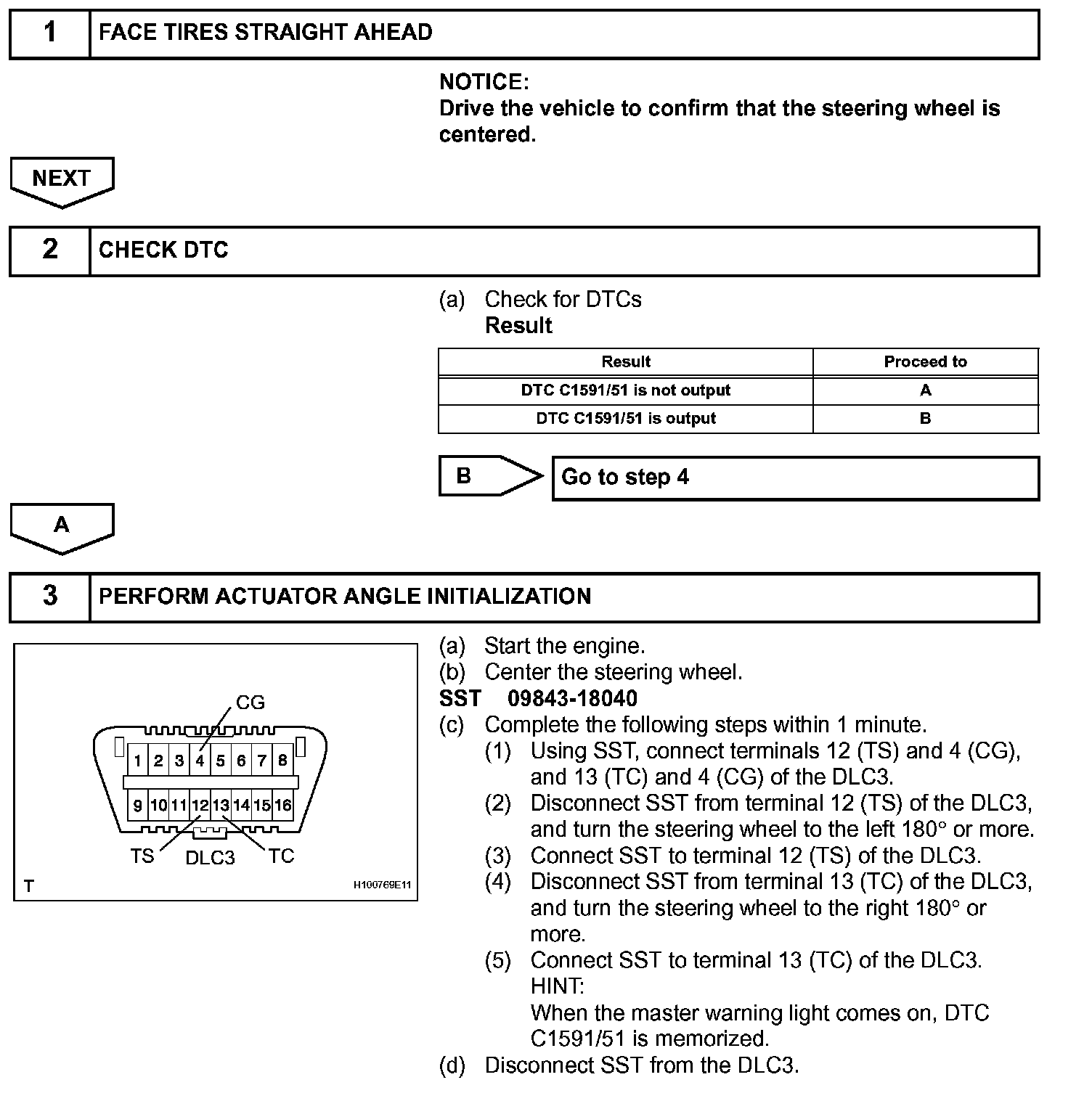

Steps 1-3(Part 1):

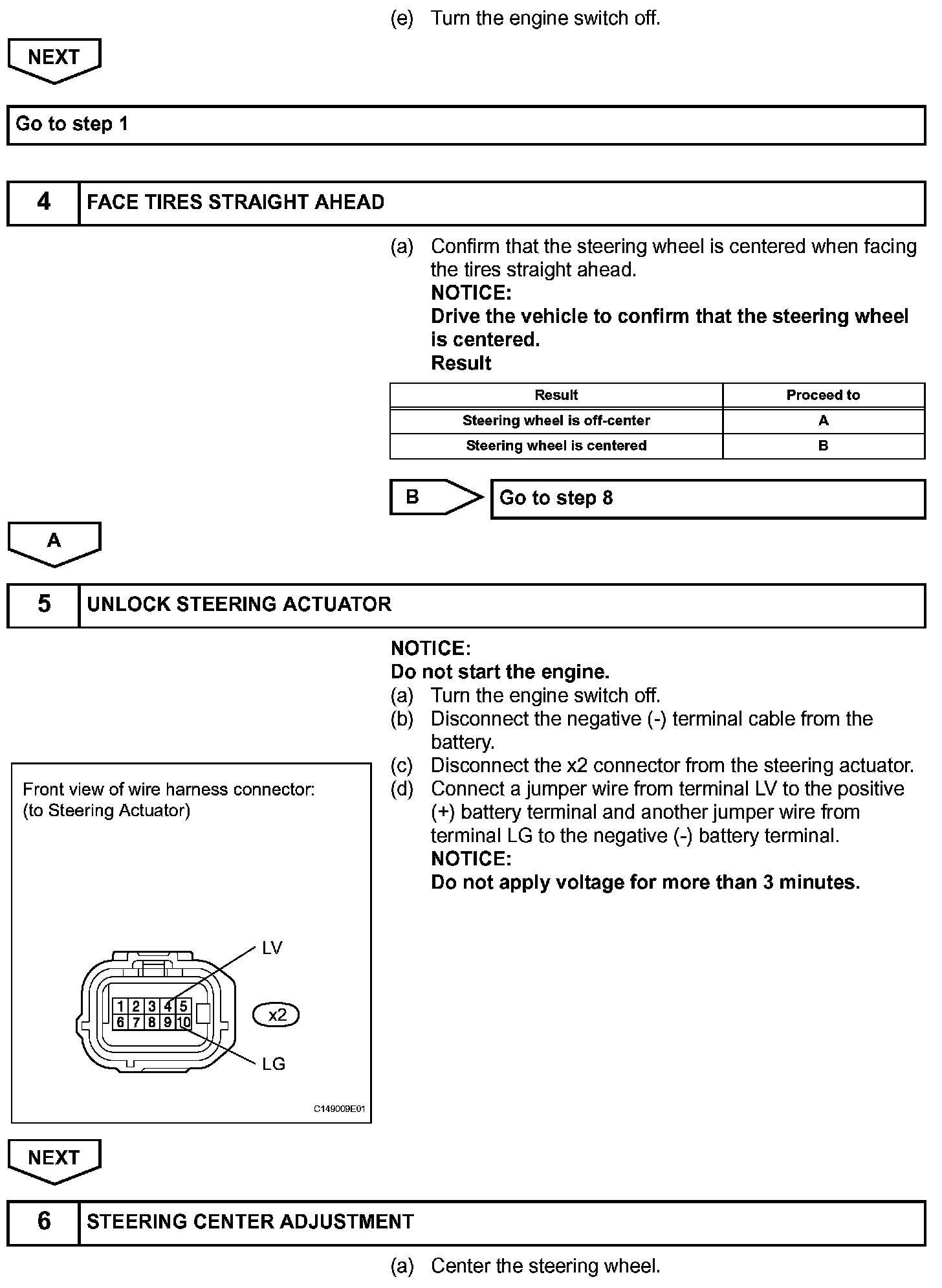

Steps 3(Part 2)-6(Part 1):

Steps 6(Part 2)-8:

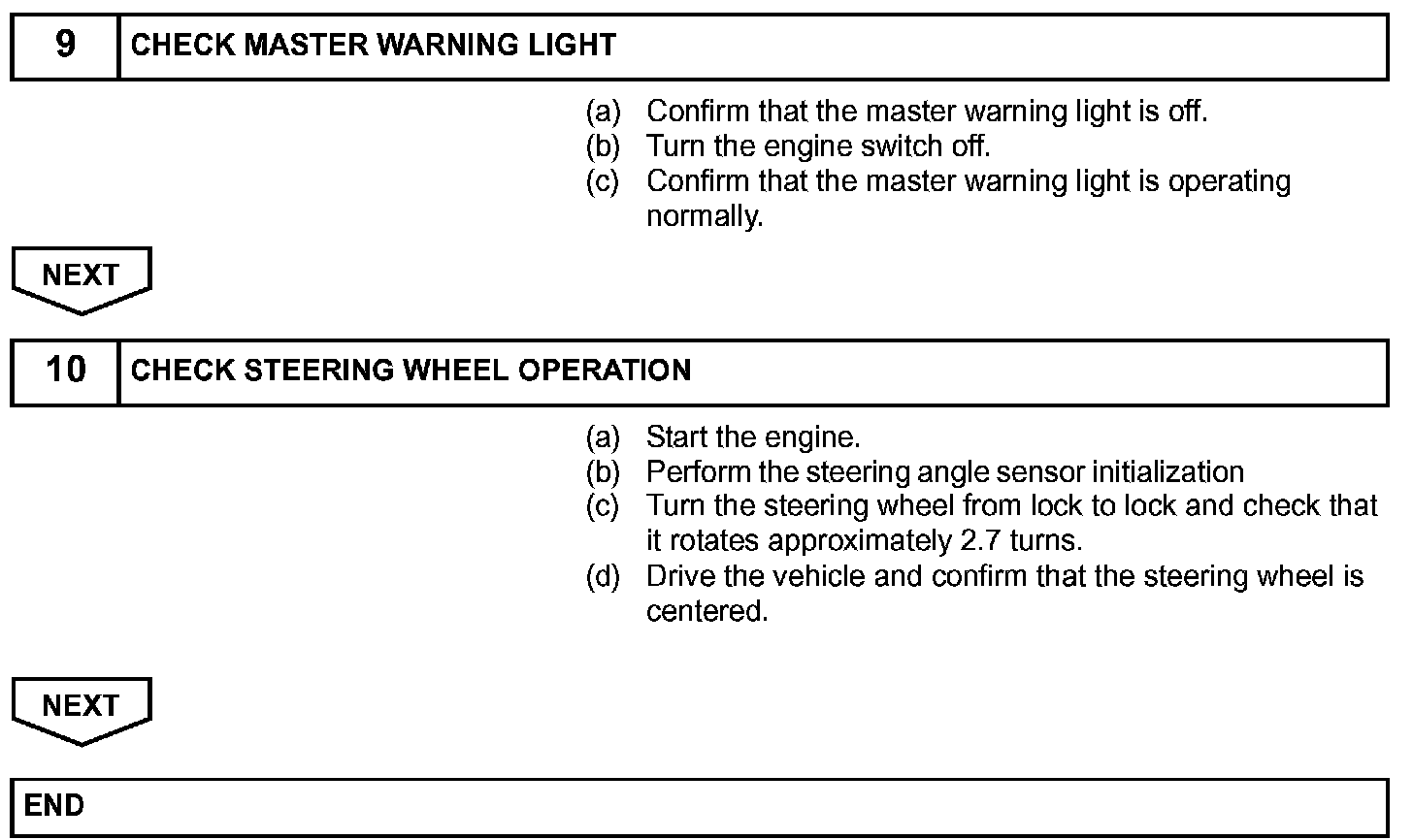

Steps 9-10:

2. VGRS SYSTEM CALIBRATION PROCEDURE (USING INTELLIGENT TESTER)

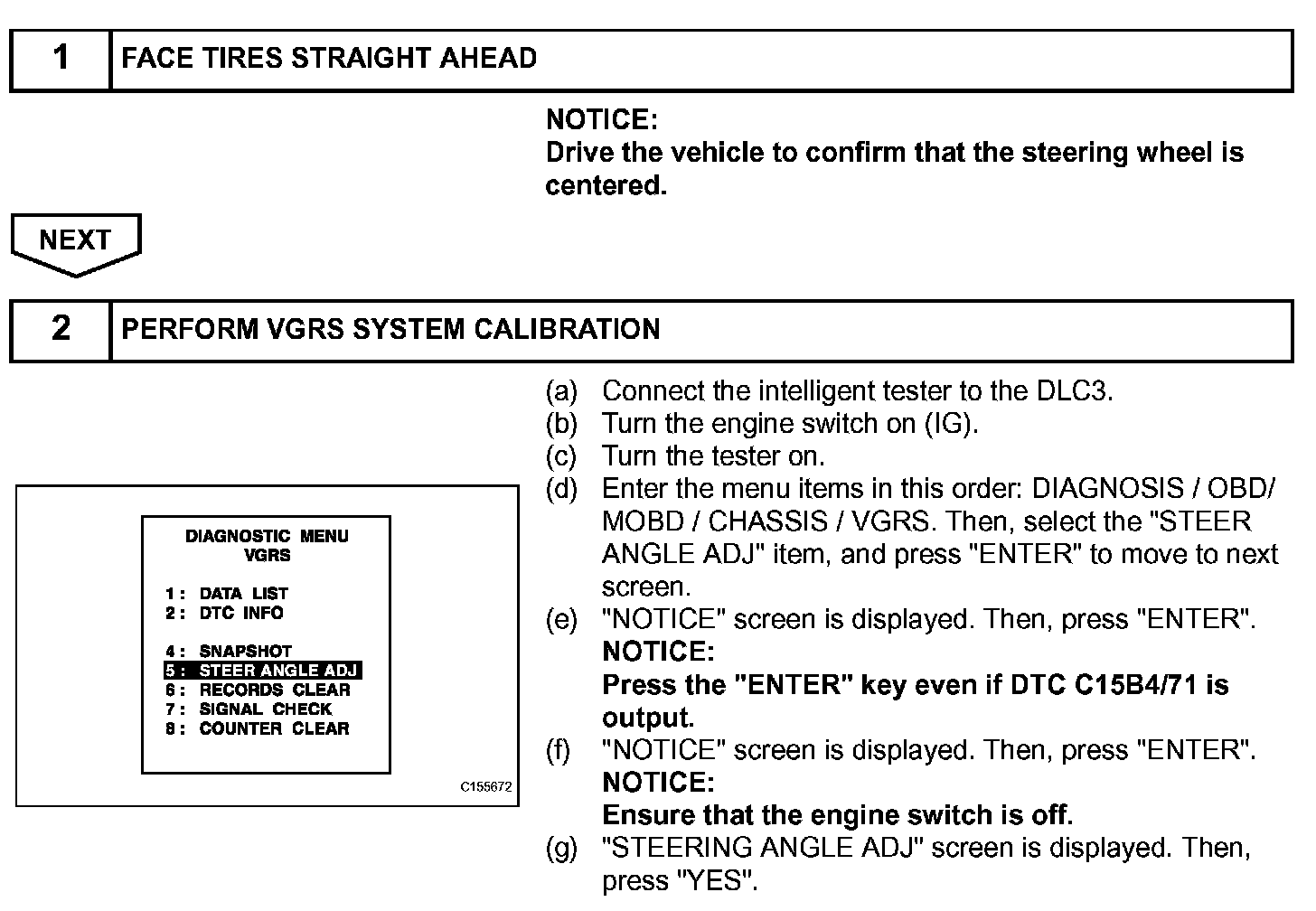

Steps 1-2(Part 1):

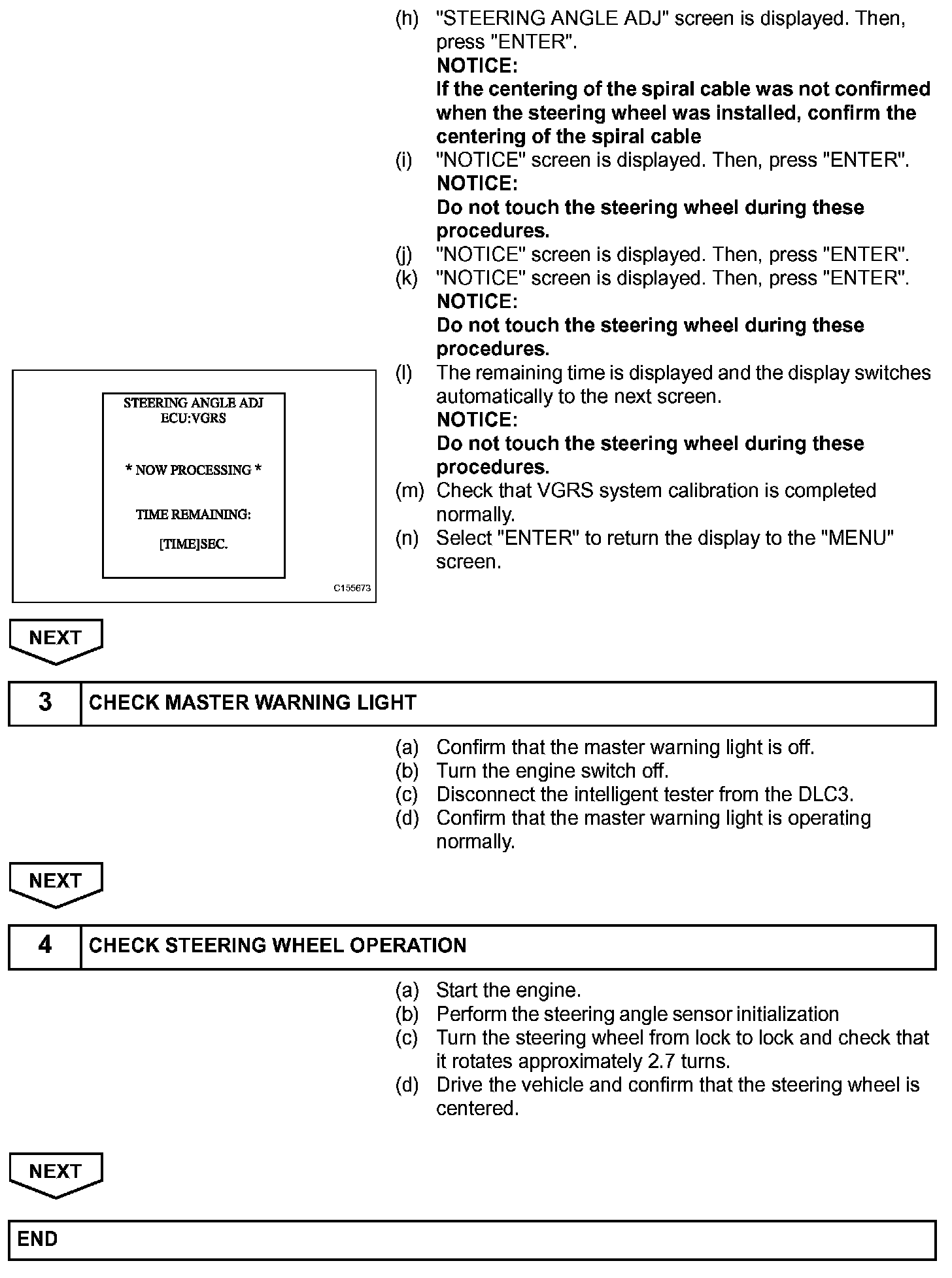

Steps 2(Part 2)-4:

3. VGRS SYSTEM CALIBRATION PROCEDURE (USING TECHSTREAM)

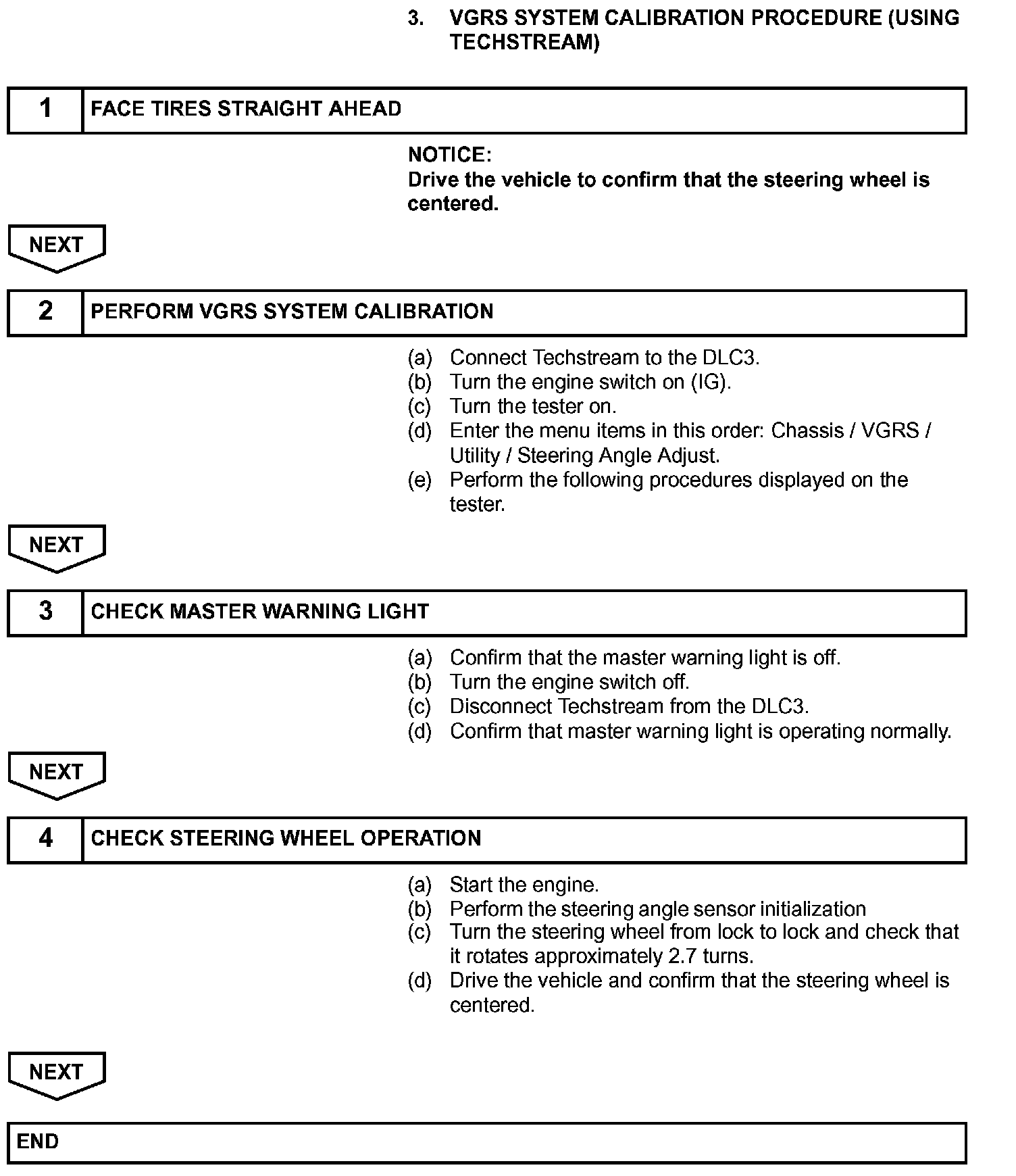

Steps 1-4:
