Pinout Values and Diagnostic Parameters

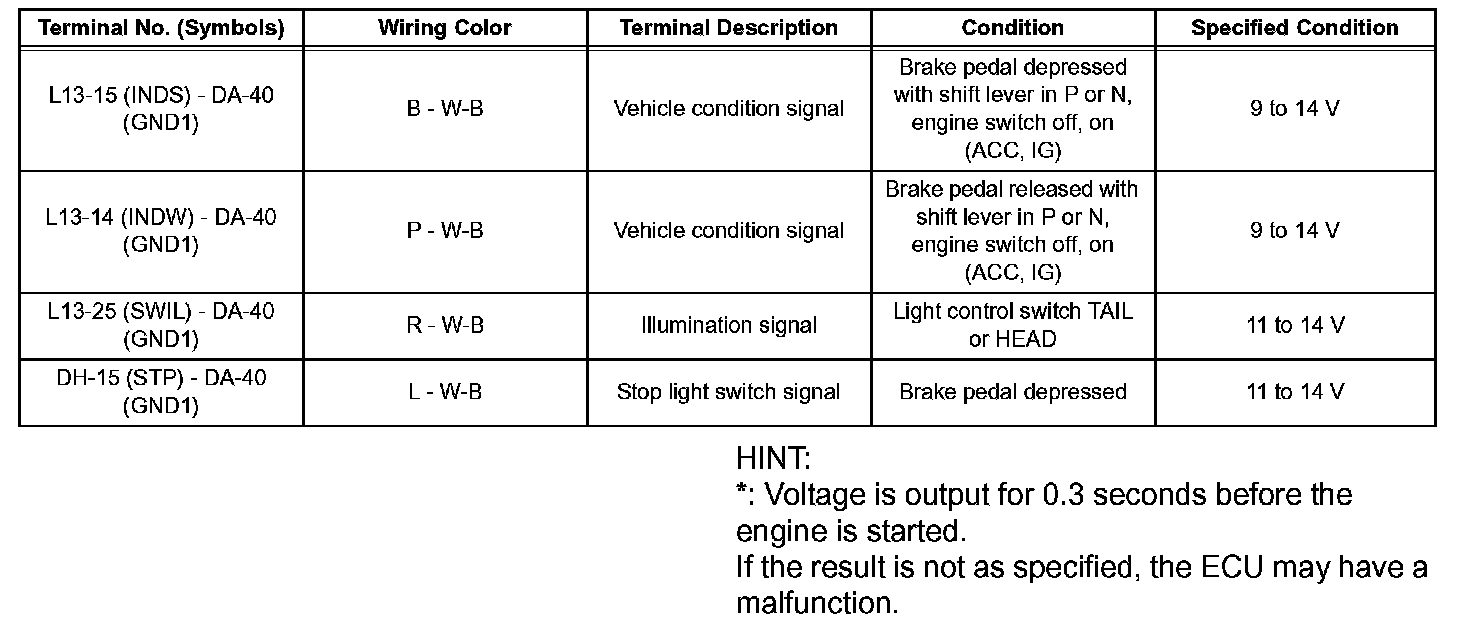

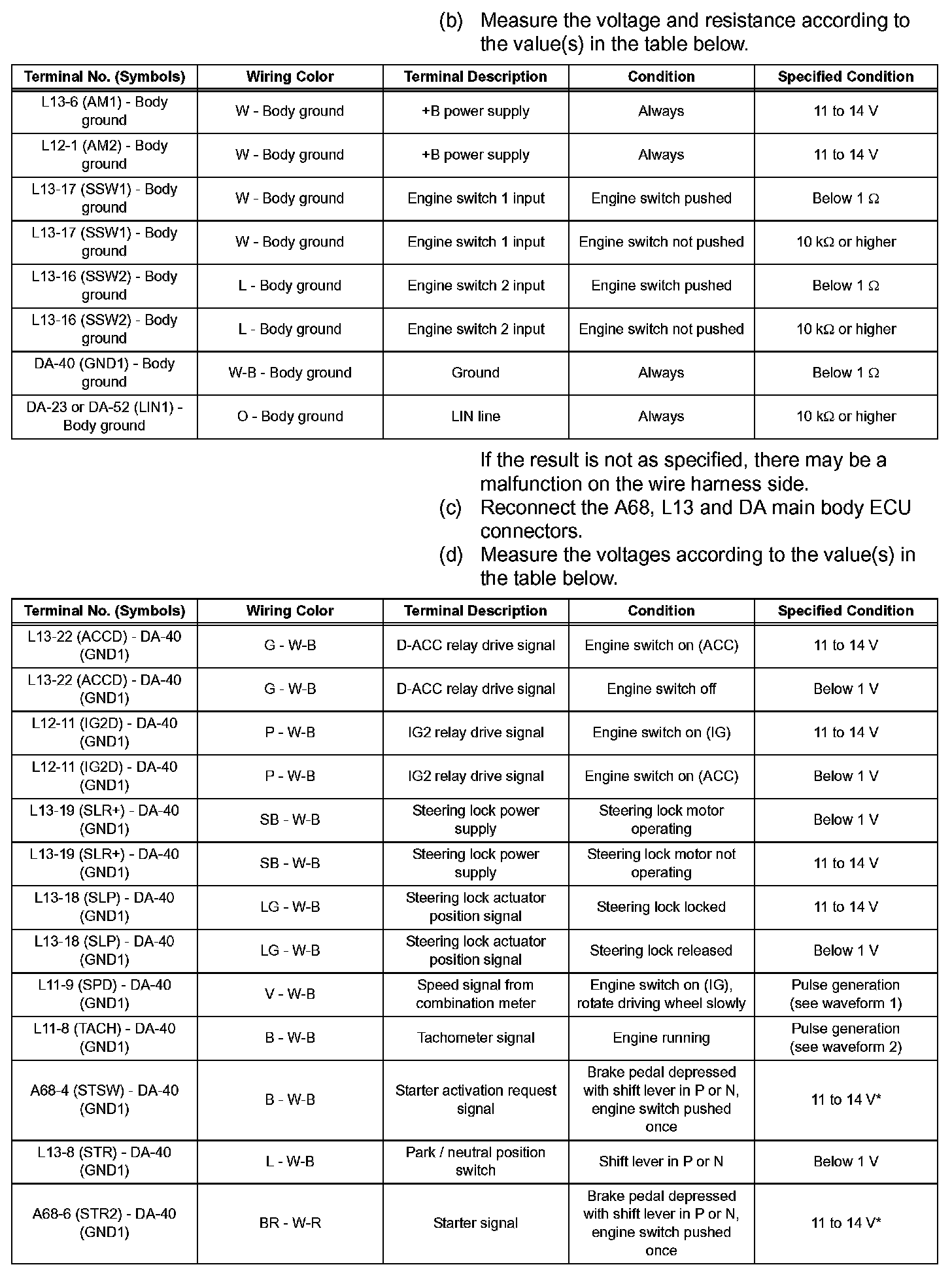

Terminals Of Control Module/Pinouts-Check Main Body ECU (Part 1):

Terminals Of Control Module/Pinouts-Check Main Body ECU (Part 2):

Terminals Of Control Module/Pinouts-Check Main Body ECU (Part 3):

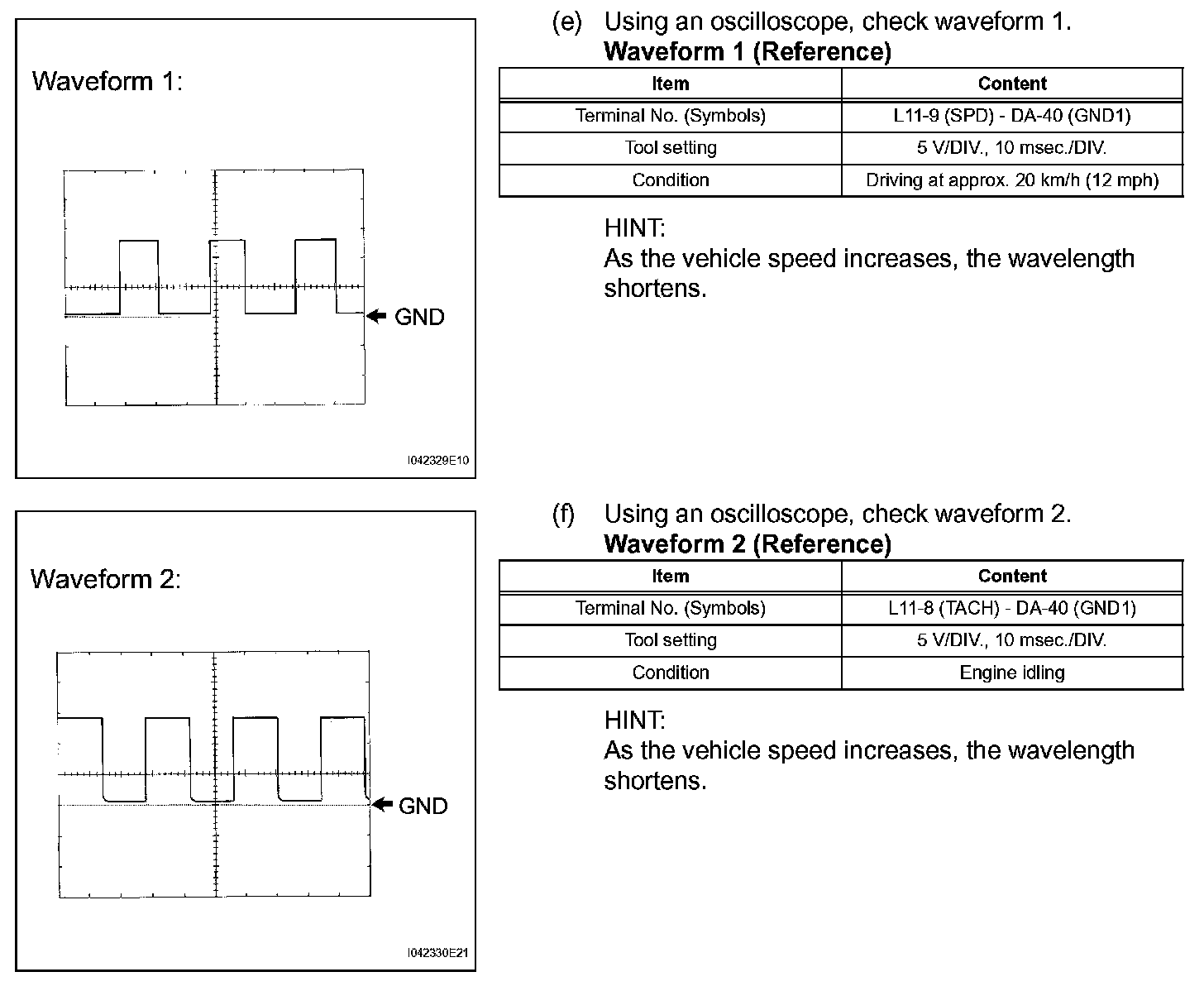

Oscilloscope Waveform:

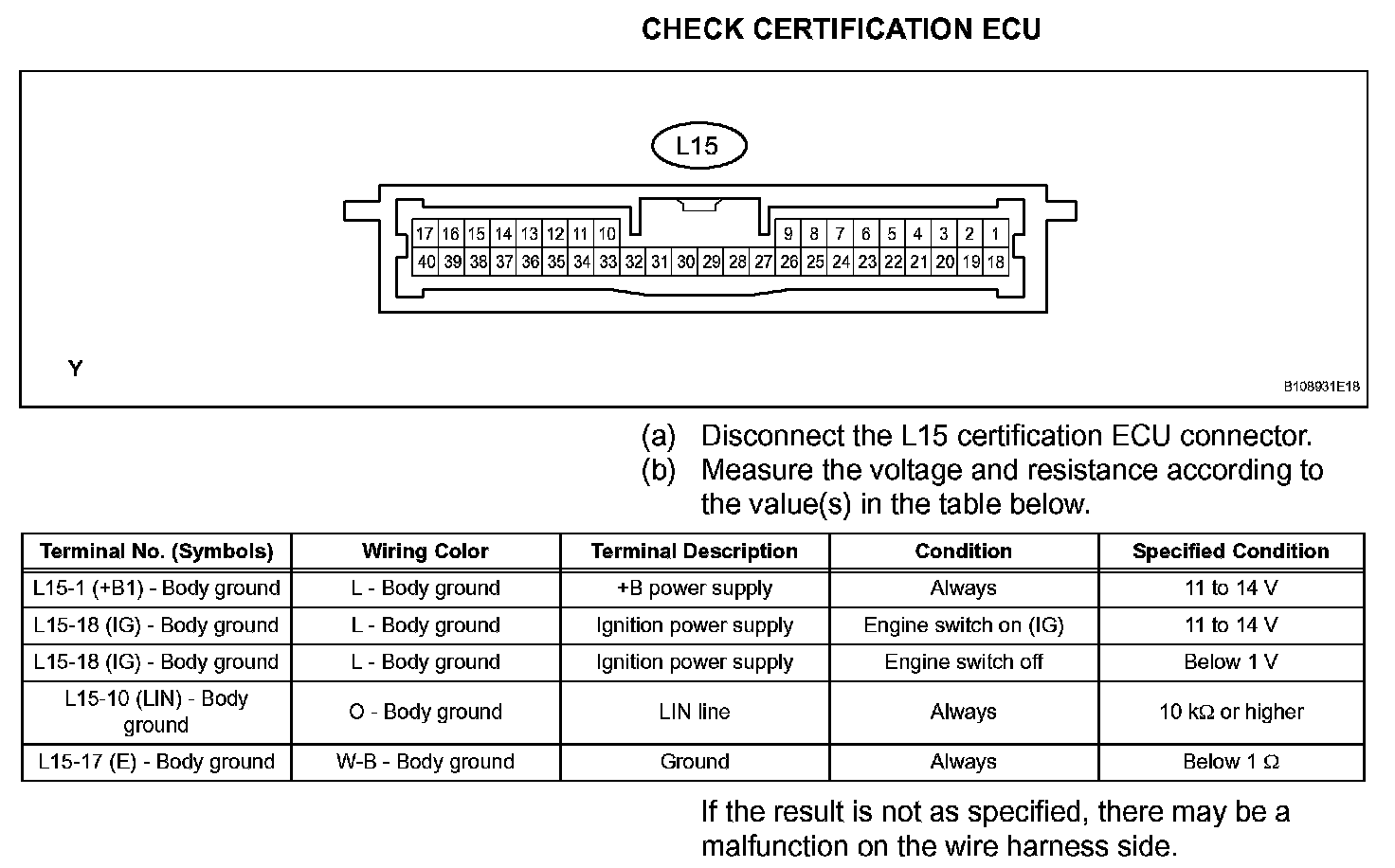

Terminals Of Control Module/Pinouts-Check Certification ECU:

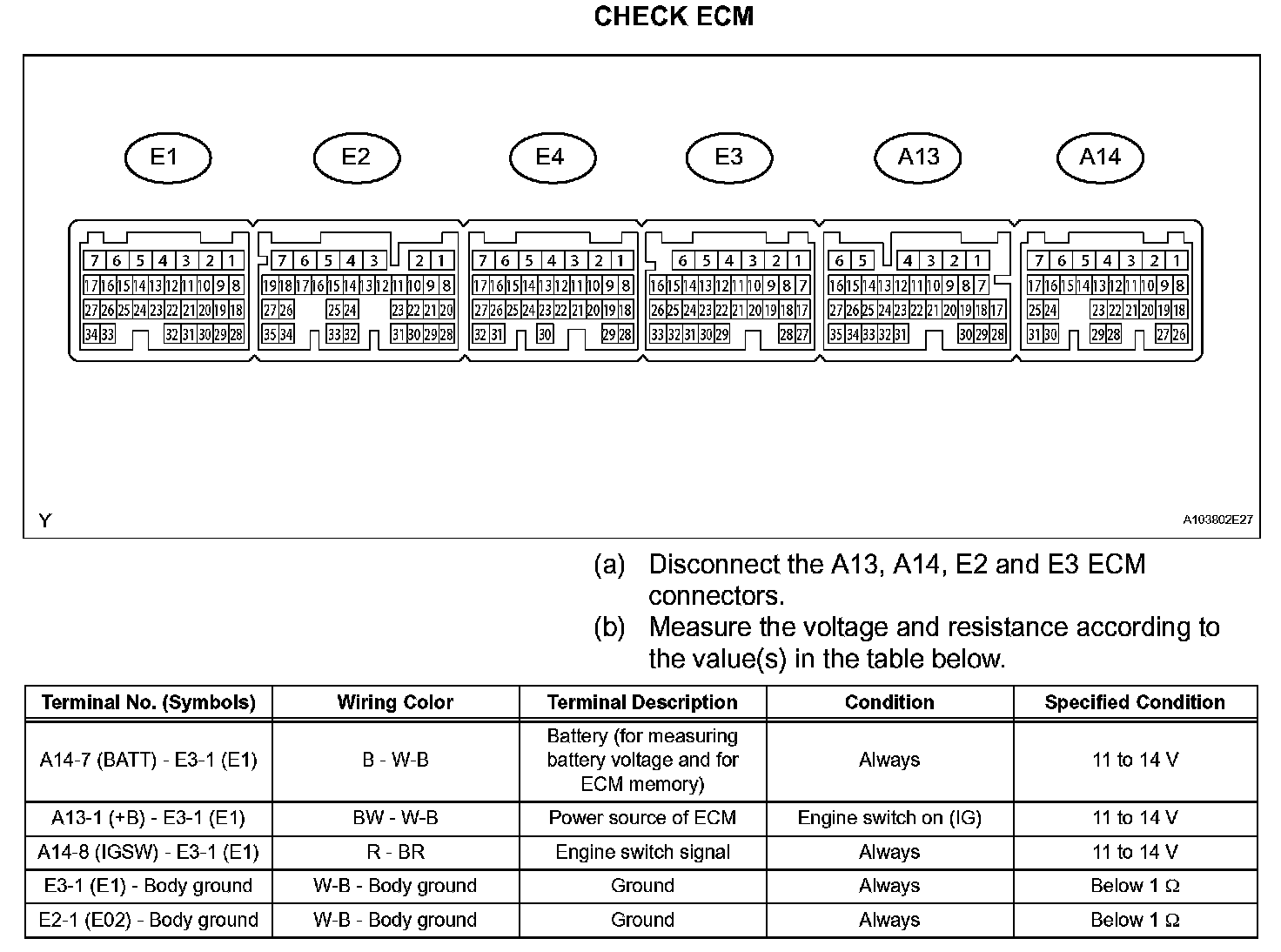

Terminals Of Control Module/Pinouts-Check ECM (Part 1):

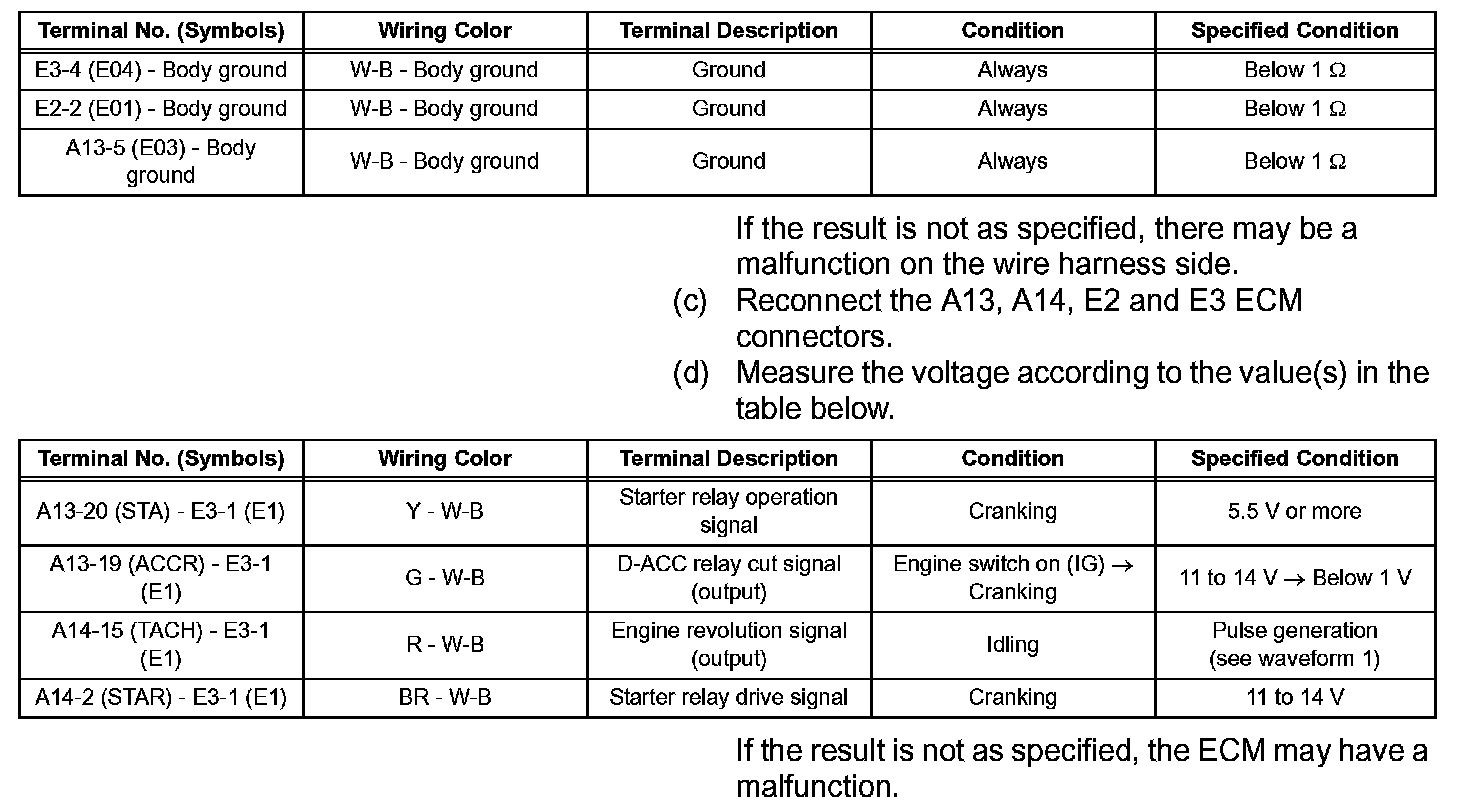

Terminals Of Control Module/Pinouts-Check ECM (Part 2):

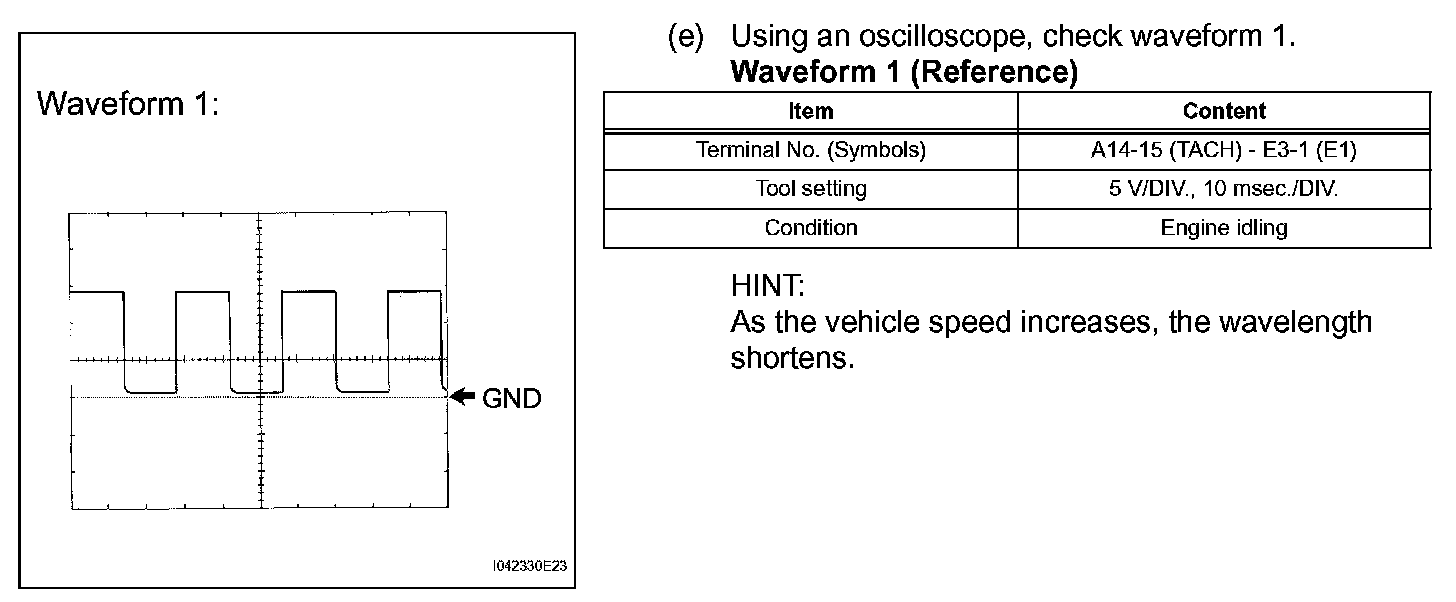

Oscilloscope Waveform:

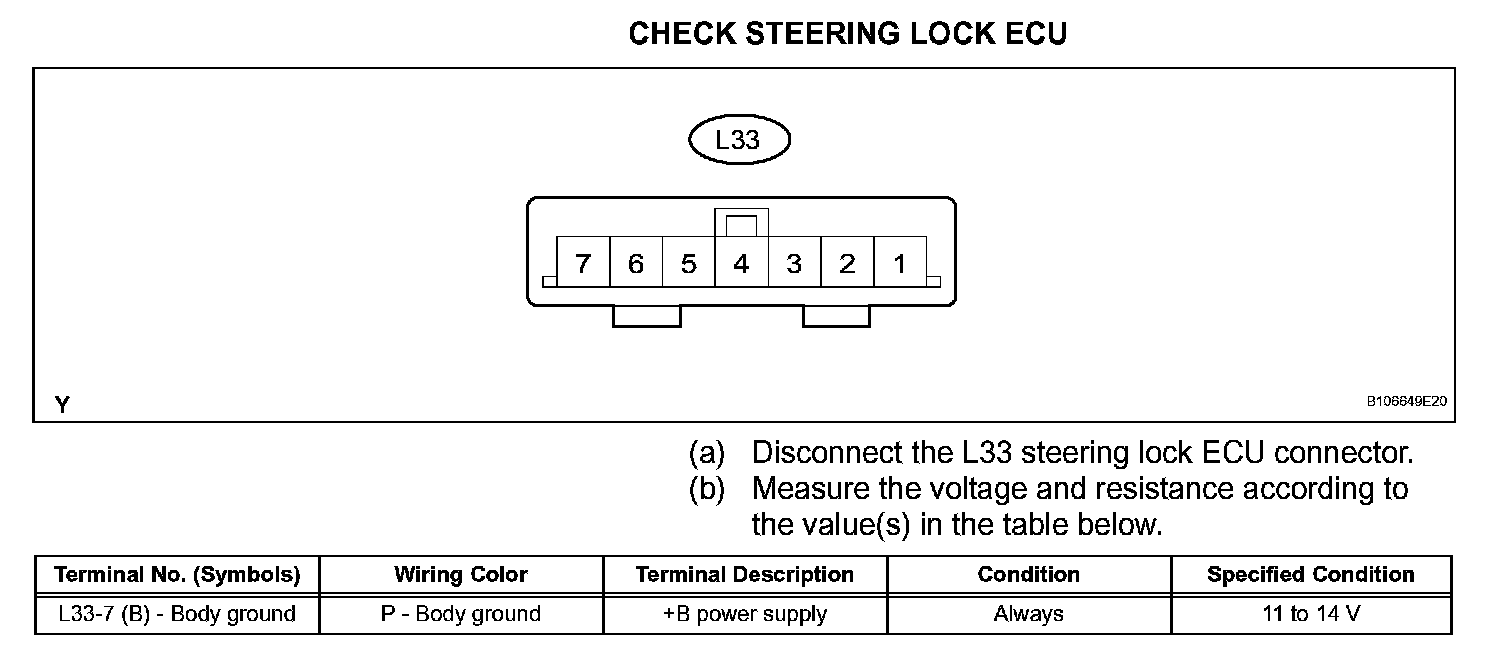

Terminals Of Control Module/Pinouts-Check Steering Lock ECU (Part 1):

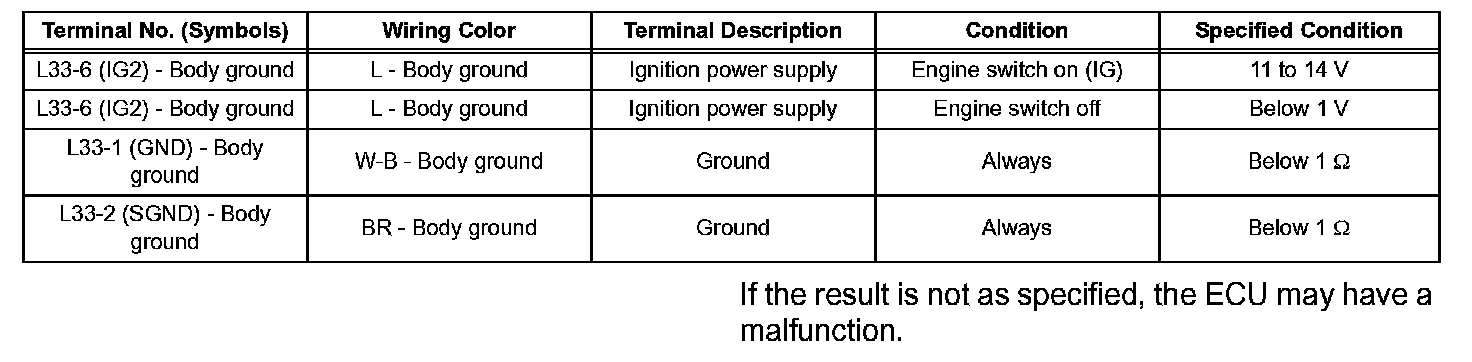

Terminals Of Control Module/Pinouts-Check Steering Lock ECU (Part 2):
