Pinout Values and Diagnostic Parameters

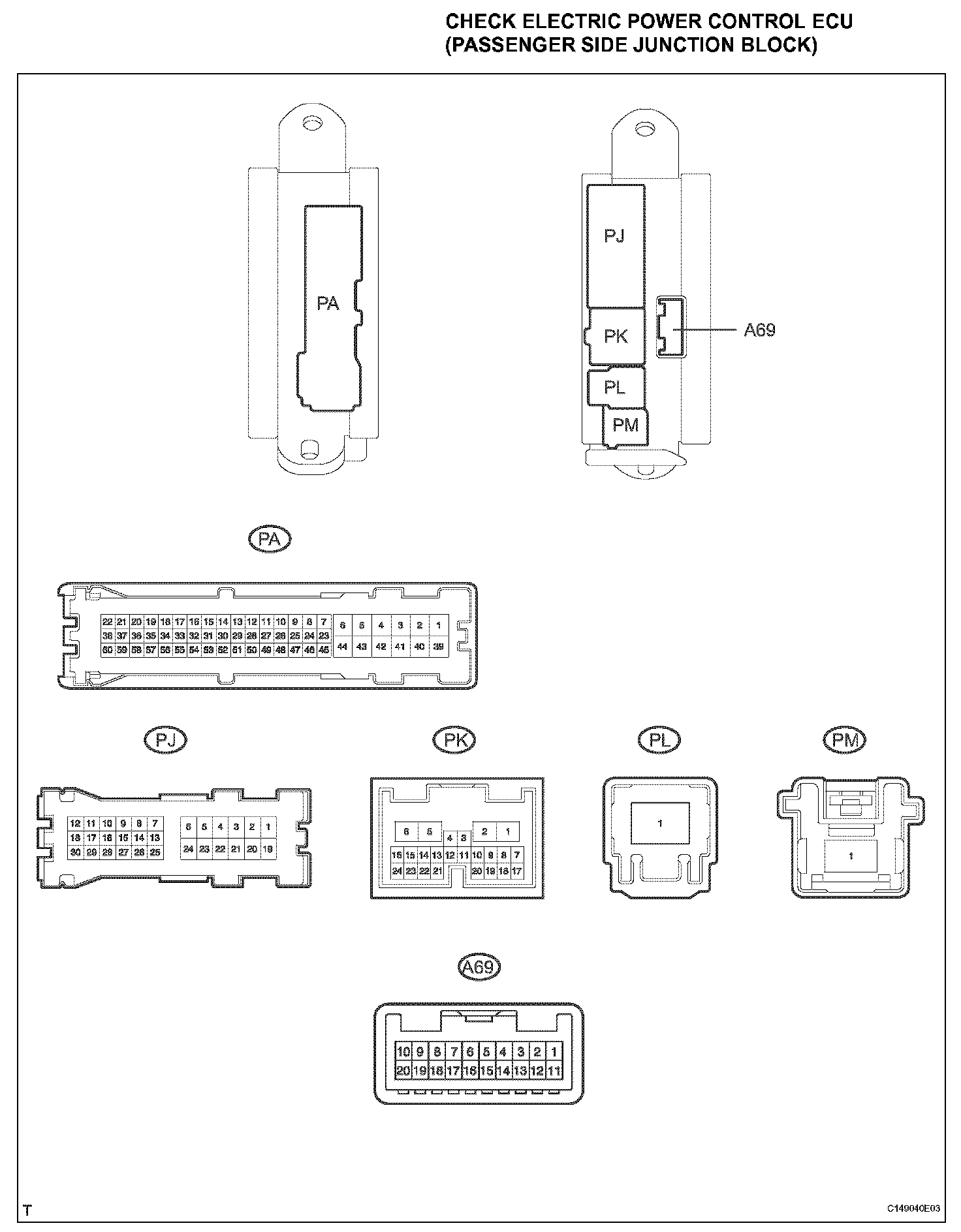

Terminals Of Control Module/Pinouts-Check Electric Power Control ECU (Passenger Side Junction Block) (Part 1):

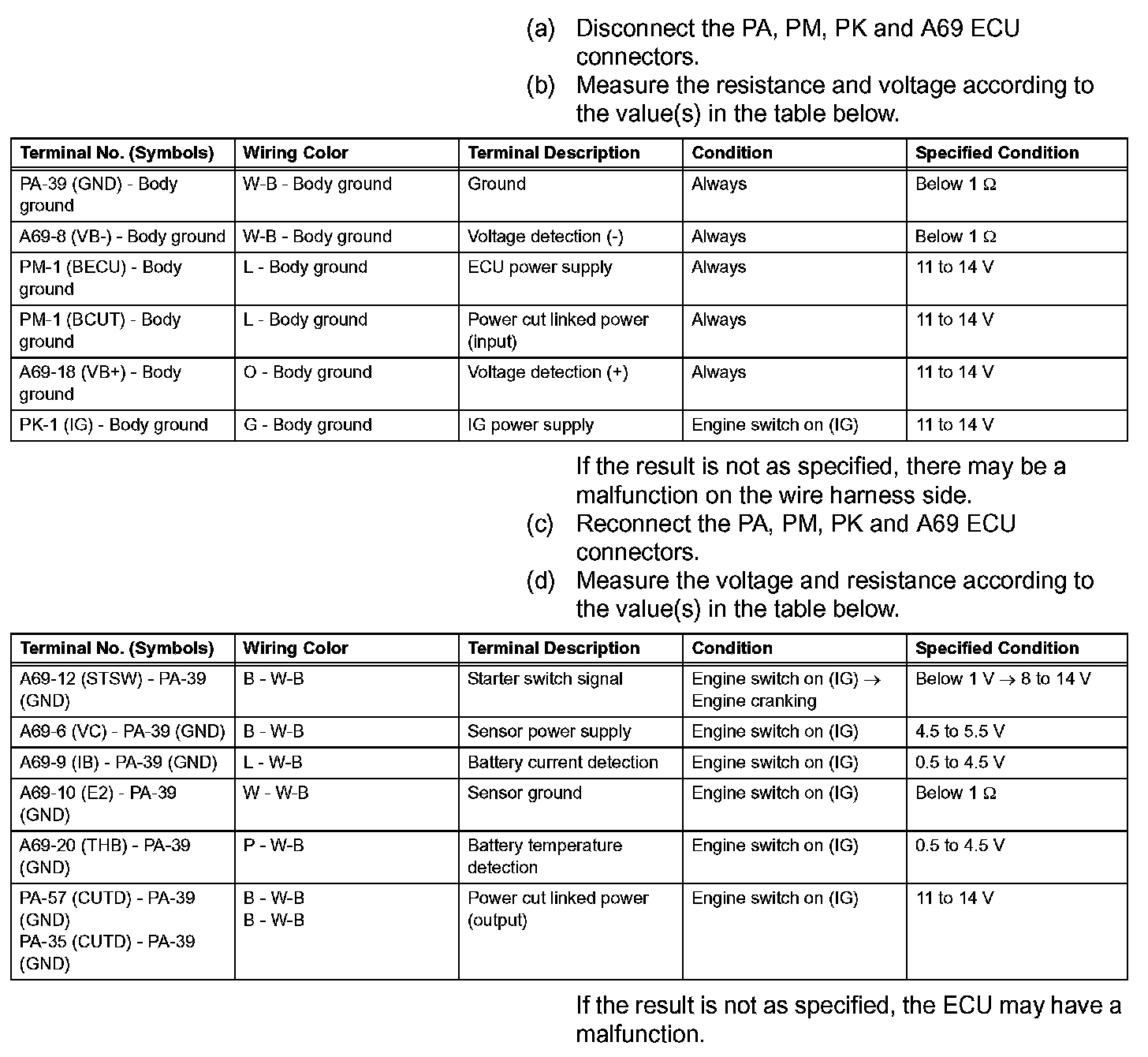

Terminals Of Control Module/Pinouts-Check Electric Power Control ECU (Passenger Side Junction Block) (Part 2):
