Home >> Lexus >> 2007 >> LS 460 V8-4.6L (1UR-FSE) >> Repair and Diagnosis >> Starting and Charging >> Power and Ground Distribution >> Fuse >> Application and ID >> Luggage Room J/B

Luggage Room J/B

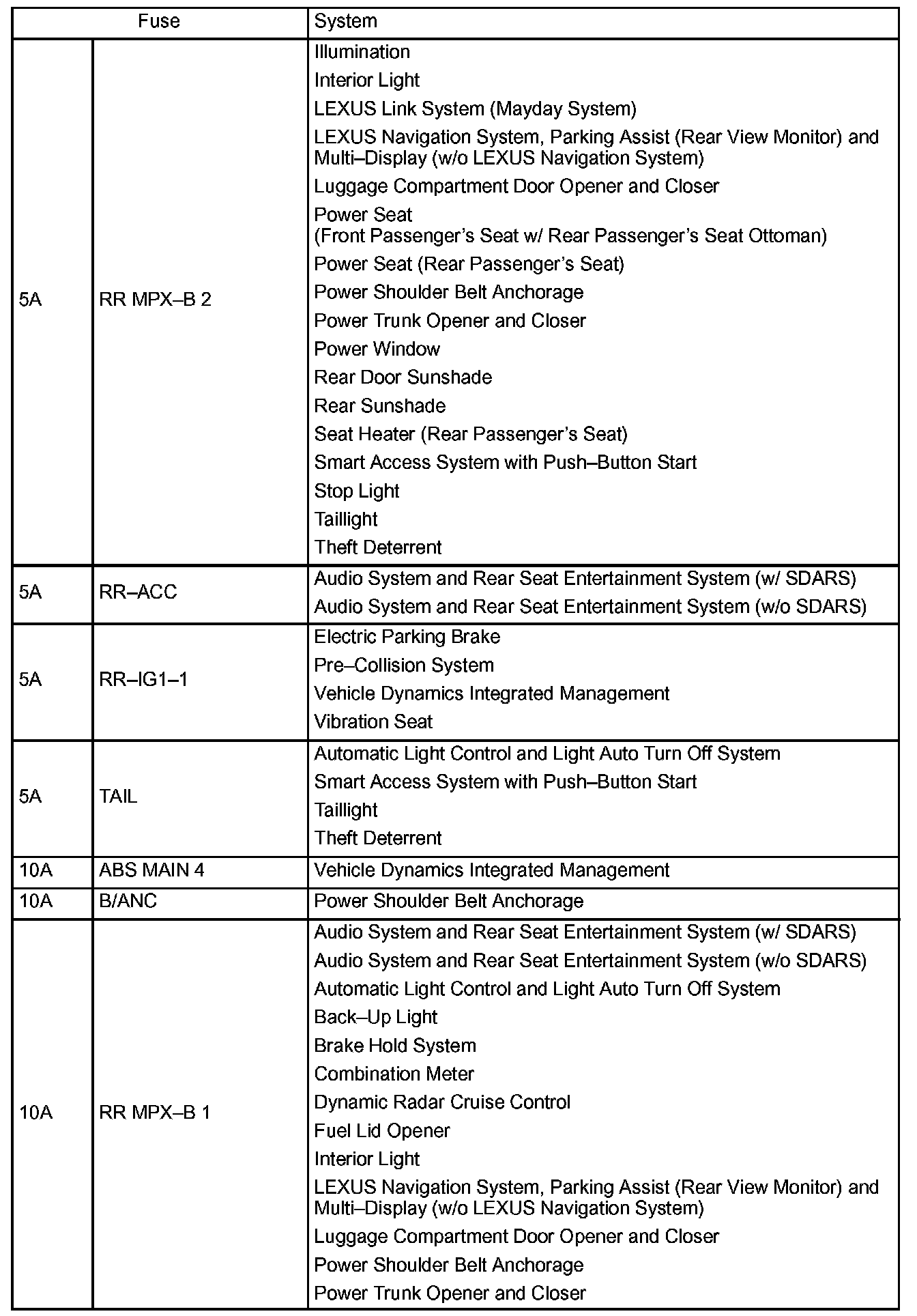

Luggage Room J/B Part 1:



Luggage Room J/B Part 2:



Luggage Room J/B Part 3:



Luggage Room J/B Part 4:
