WIPER SWITCH

REMOVAL

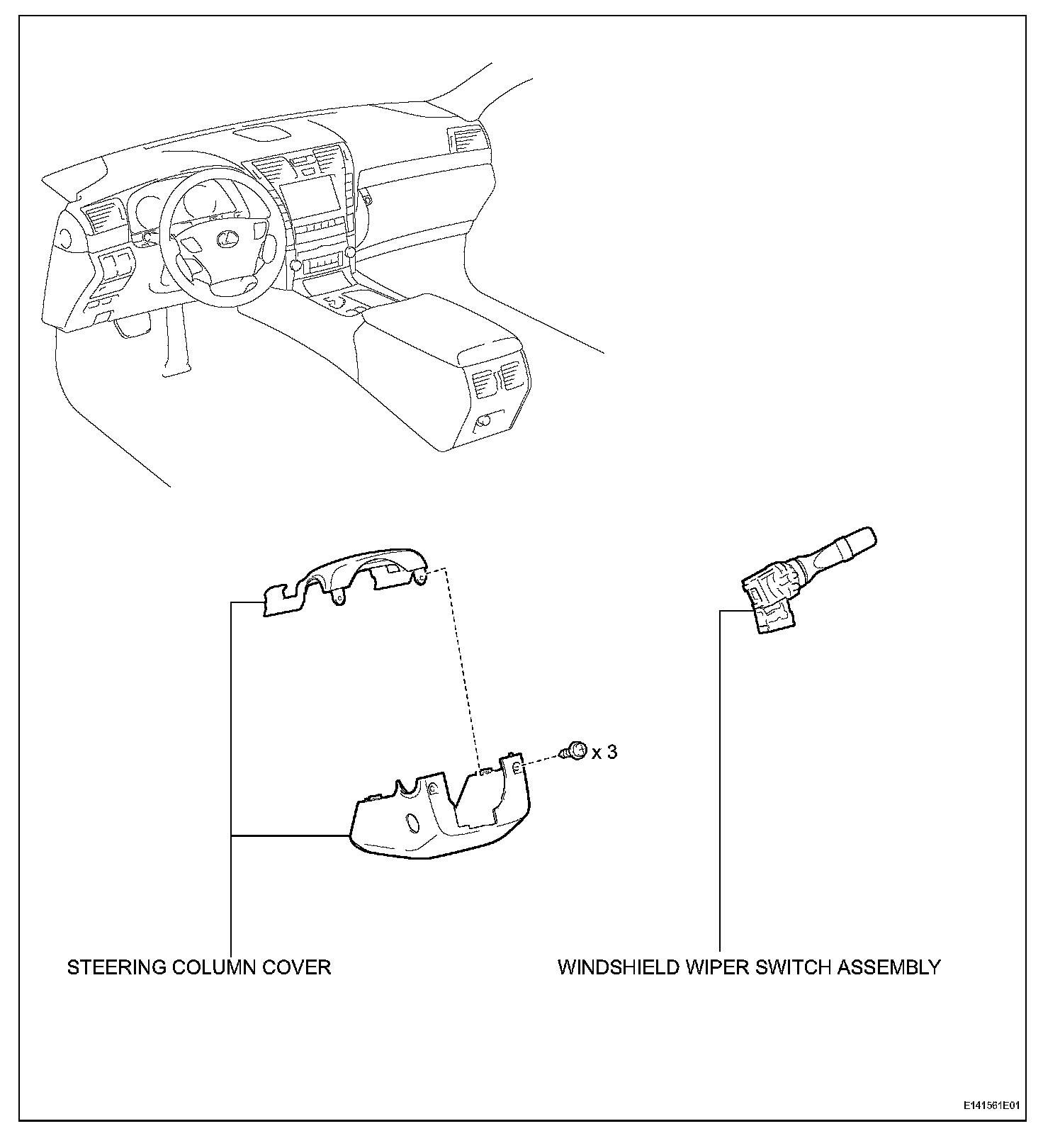

1. REMOVE STEERING COLUMN COVER

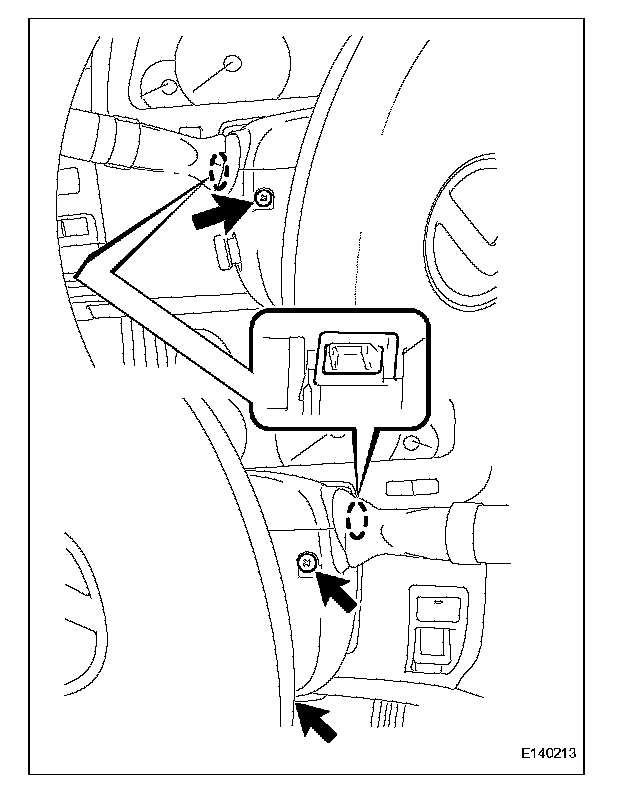

a. Remove the 3 screws.
b. Detach the 2 claws to remove the steering column cover lower.

NOTE: Do not damage the tilt and telescopic switch.

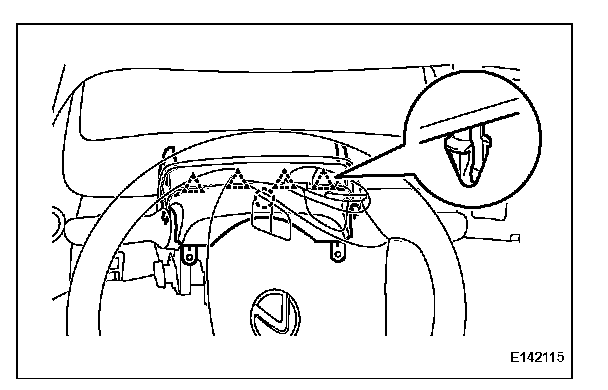

c. Detach the 4 clips.
d. Detach the claw to remove the steering column cover upper.

2. REMOVE WINDSHIELD WIPER SWITCH ASSEMBLY

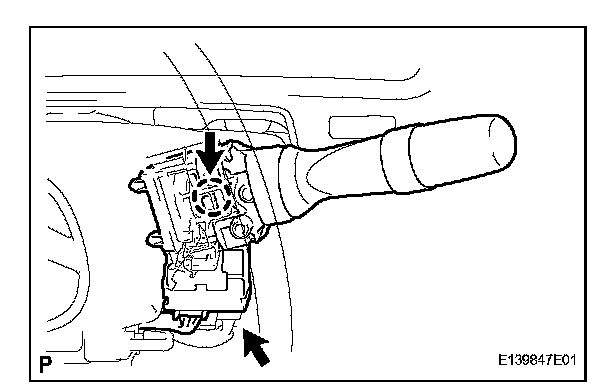

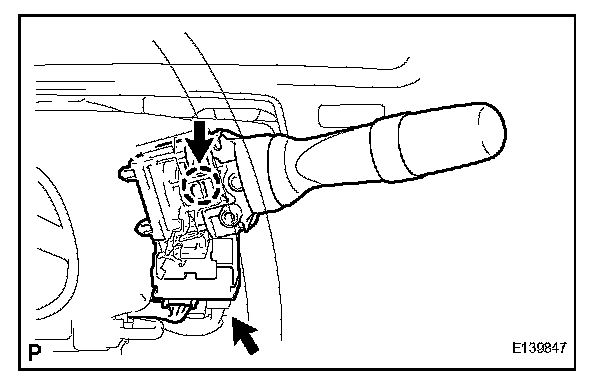

a. Disconnect the connector.
b. Detach the claw and remove the wiper switch.

NOTE: If the claw is pushed with excessive force, it may break.

INSTALLATION

1. INSTALL WINDSHIELD WIPER SWITCH ASSEMBLY




a. Attach the claw and install the wiper switch.
b. Connect the connector.

2. INSTALL STEERING COLUMN COVER

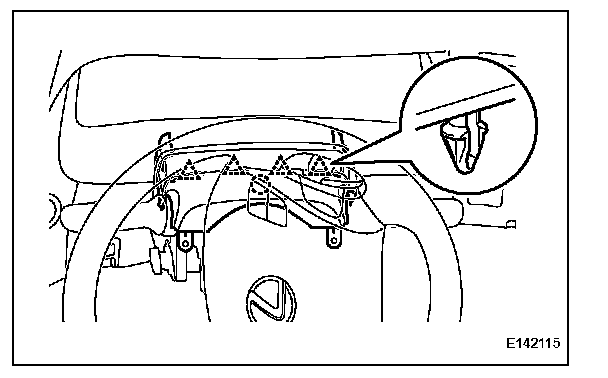

a. Attach the 4 clips to install the steering column cover upper onto the instrument panel cluster finish panel.
b. Attach the claw to install the steering column cover upper.
c. Attach the 2 claws to install the steering column cover lower.

NOTE: Do not damage the tilt and telescopic switch.

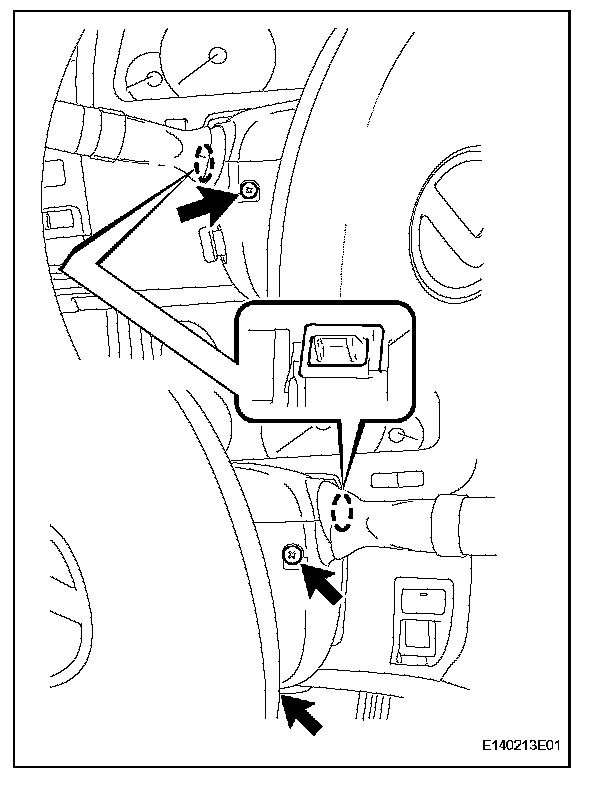

d. Using a screwdriver, install the 3 screws.
