Home >> Lexus >> 2007 >> LS 460 V8-4.6L (1UR-FSE) >> Repair and Diagnosis >> Sensors and Switches >> Sensors and Switches - Wiper and Washer Systems >> Rain Sensor >> Locations

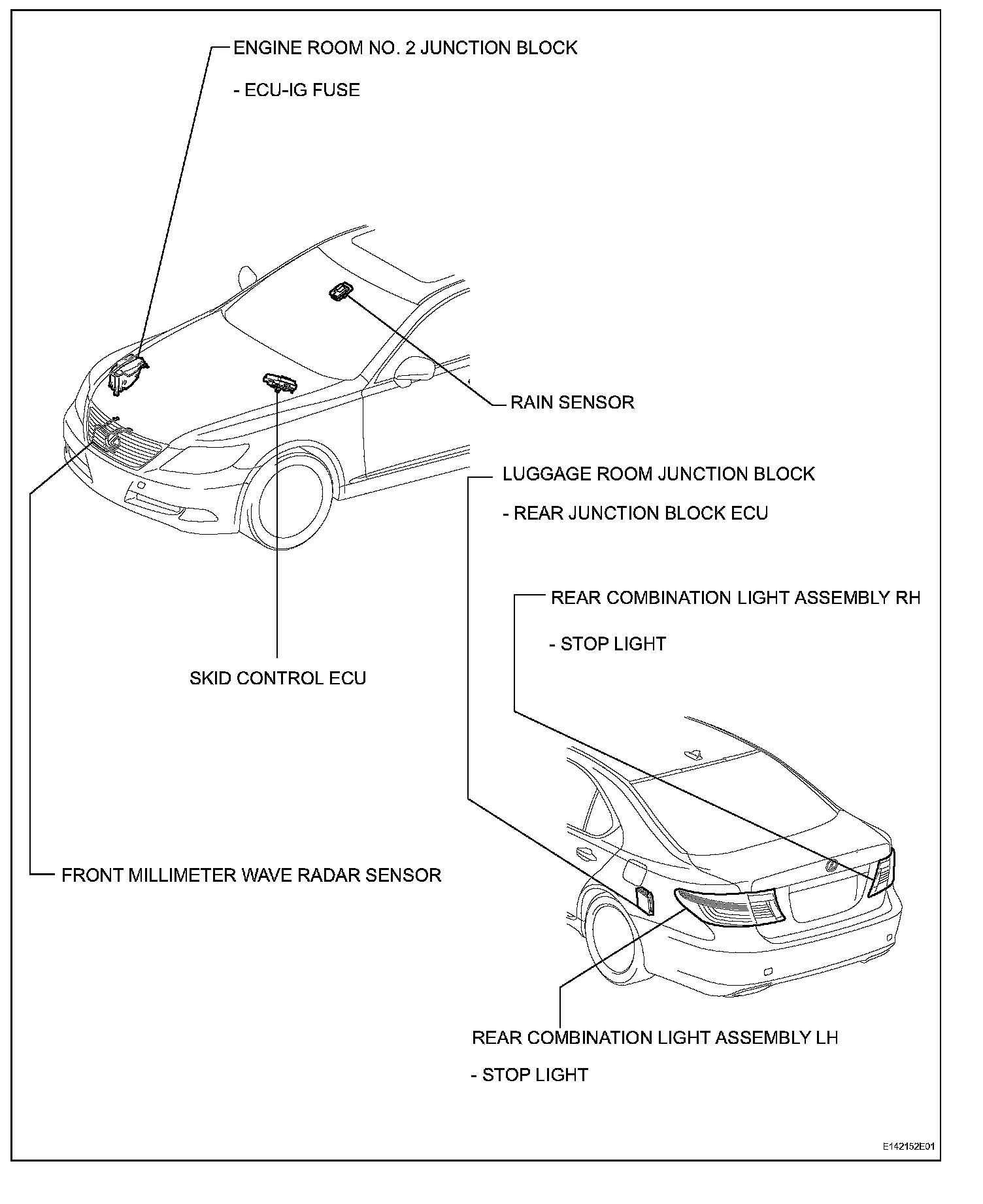

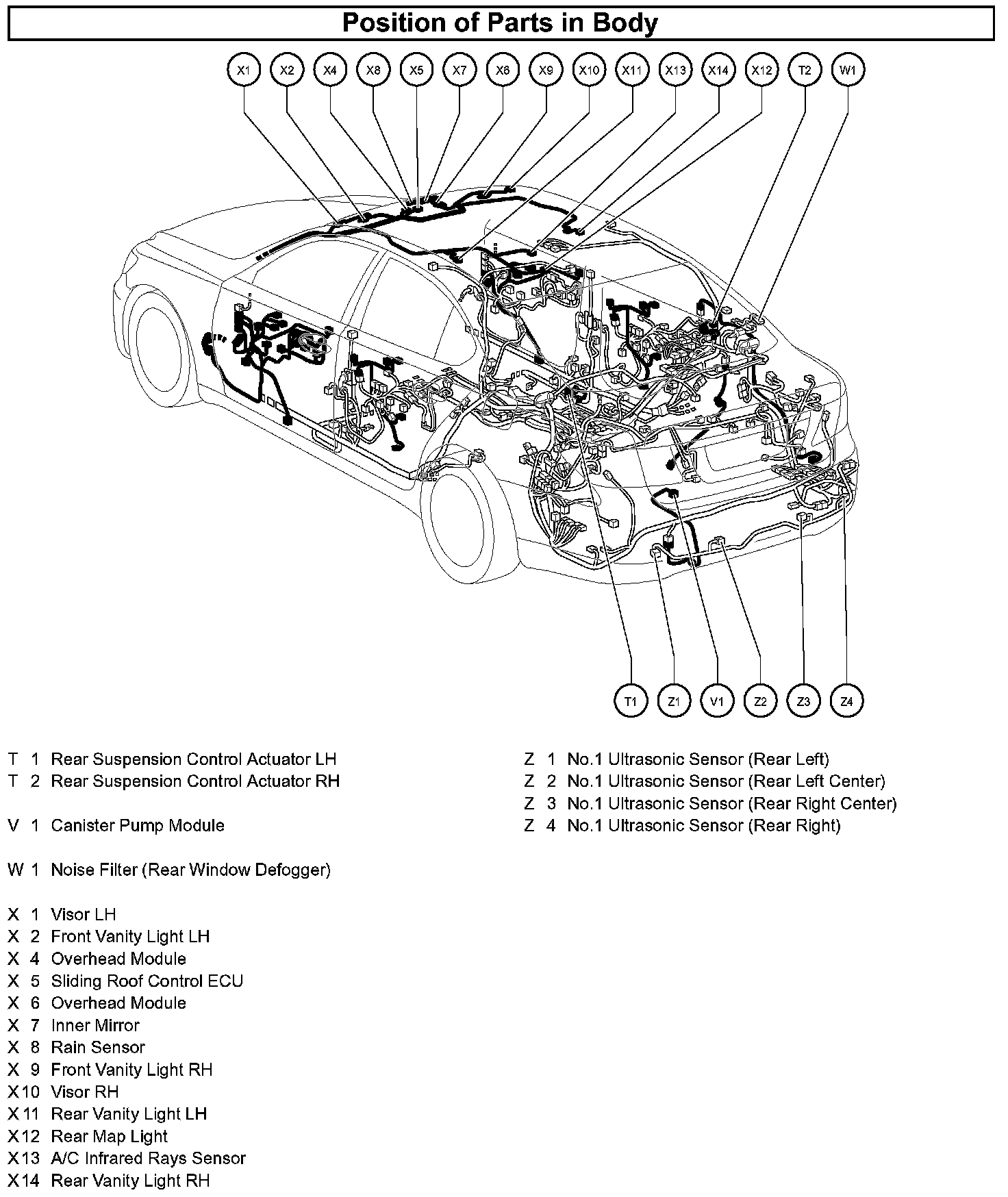

Rain Sensor: Locations

A/c - Vi:



Wiper And Washer System:



Dynamic Radar Cruise Control System:



LIN Communication System:
