Tire Pressure Warning Reset Switch: Service and Repair

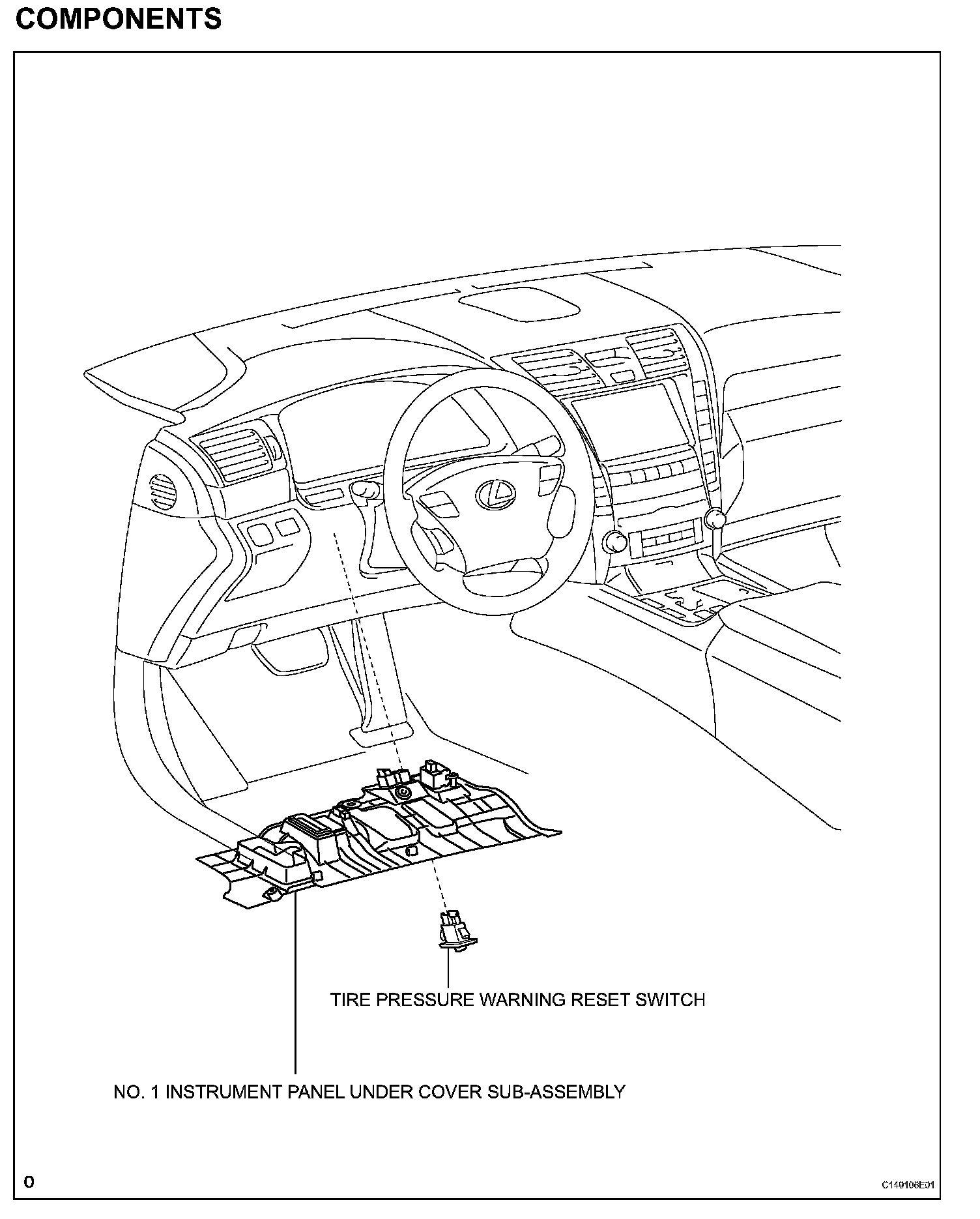

TIRE PRESSURE WARNING RESET SWITCHCOMPONENTS:
REMOVAL
1. REMOVE NO. 1 INSTRUMENT PANEL UNDER COVER SUB-ASSEMBLY

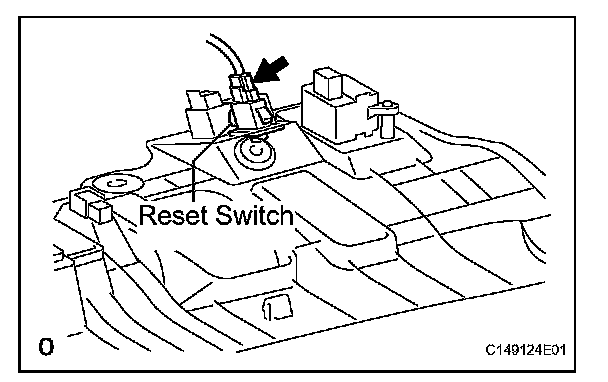

2. REMOVE TIRE PRESSURE WARNING RESET SWITCH
(a) Disconnect the switch connector.
(b) Detach the 2 claws and remove the reset switch from the cover.
INSPECTION

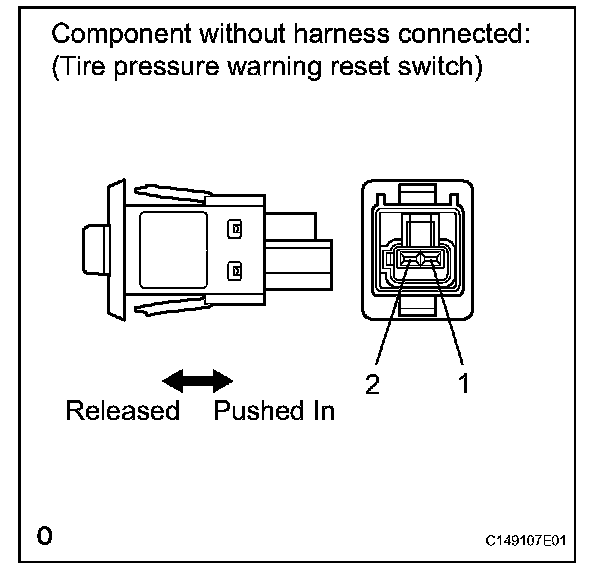

1. CHECK TIRE PRESSURE WARNING RESET SWITCH
(a) Measure the resistance according to the value(s) in the table.

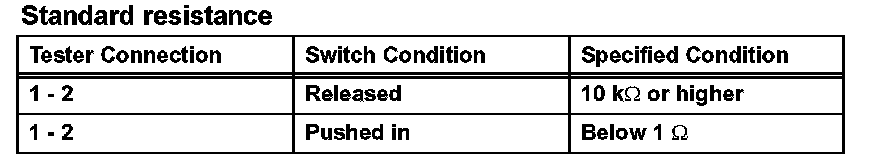

Standard resistance:
If the result is not as specified, replace the switch.
INSTALLATION
1. INSTALL TIRE PRESSURE WARNING RESET SWITCH
(a) Attach the 2 claws to install the reset switch.
(b) Connect the switch connector.
2. INSTALL NO. 1 INSTRUMENT PANEL UNDER COVER SUB-ASSEMBLY
