Battery Current Sensor: Testing and Inspection

INSPECTION

1. INSPECT BATTERY CURRENT SENSOR

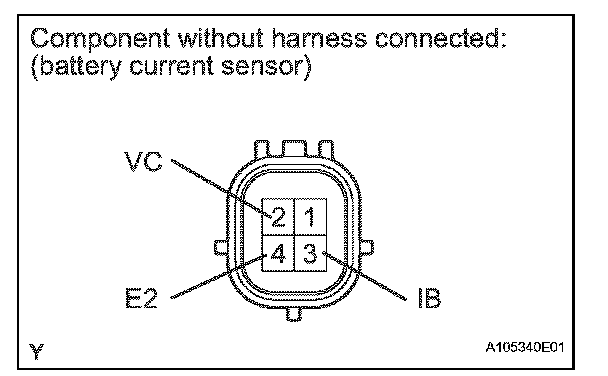

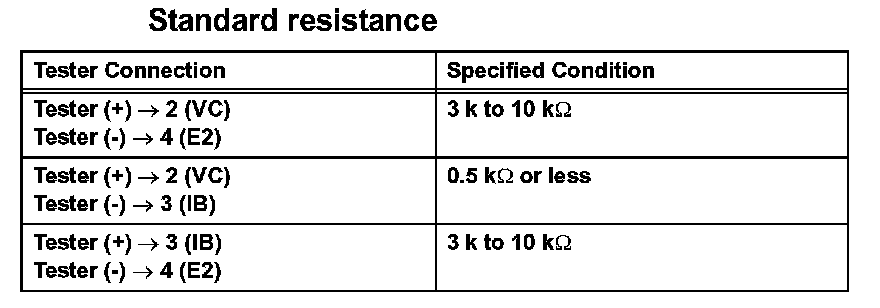

a. Measure the resistance according to the value(s) in the table.

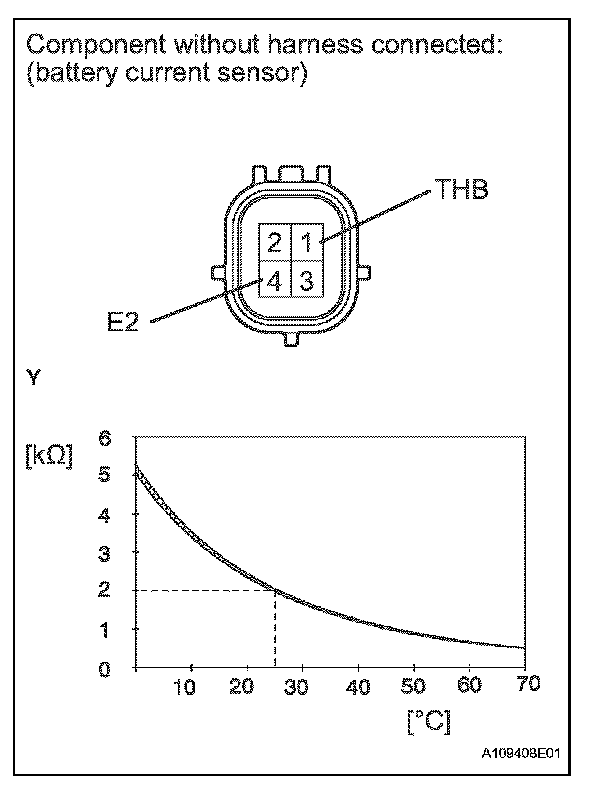

b. Measure the resistance according to the value(s) in the table.

NOTE: The temperature shown in the condition is for the area surrounding the sensor, not the sensor itself.
