Home >> Lexus >> 2007 >> LS 460 V8-4.6L (1UR-FSE) >> Repair and Diagnosis >> Sensors and Switches >> Sensors and Switches - Starting and Charging >> Battery Current Sensor >> Specifications

Battery Current Sensor: Specifications

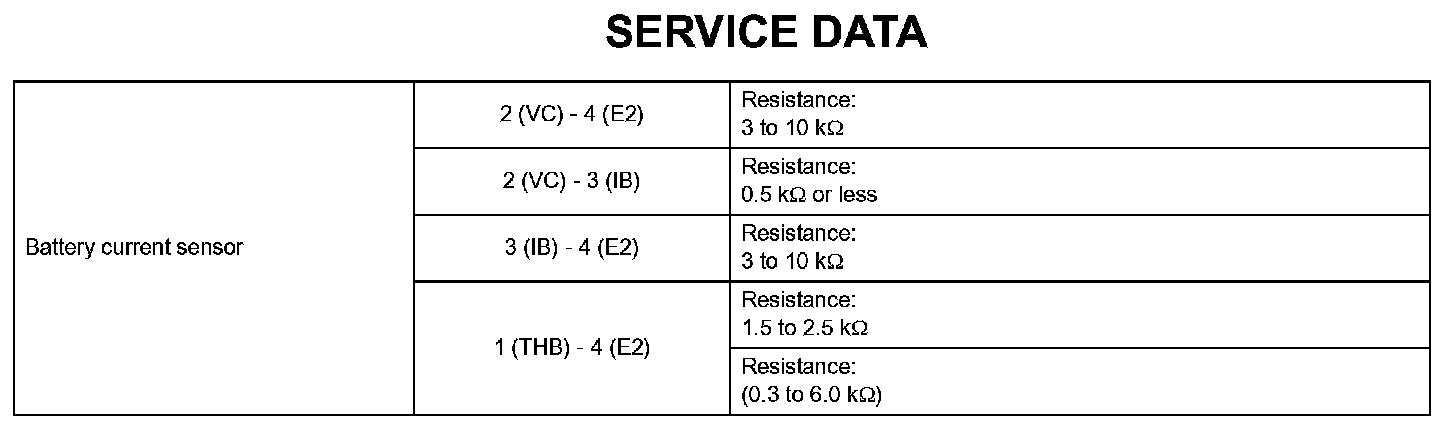

Power Source / Wiring - Service Data:

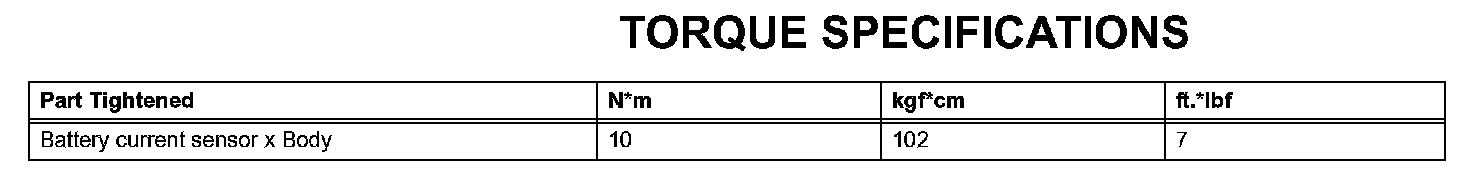

Power Source / Wiring - Torque Specifications:
