Home >> Lexus >> 2007 >> LS 460 V8-4.6L (1UR-FSE) >> Repair and Diagnosis >> Sensors and Switches >> Sensors and Switches - Restraints and Safety Systems >> Seat Occupant Sensor >> Locations

Seat Occupant Sensor: Locations

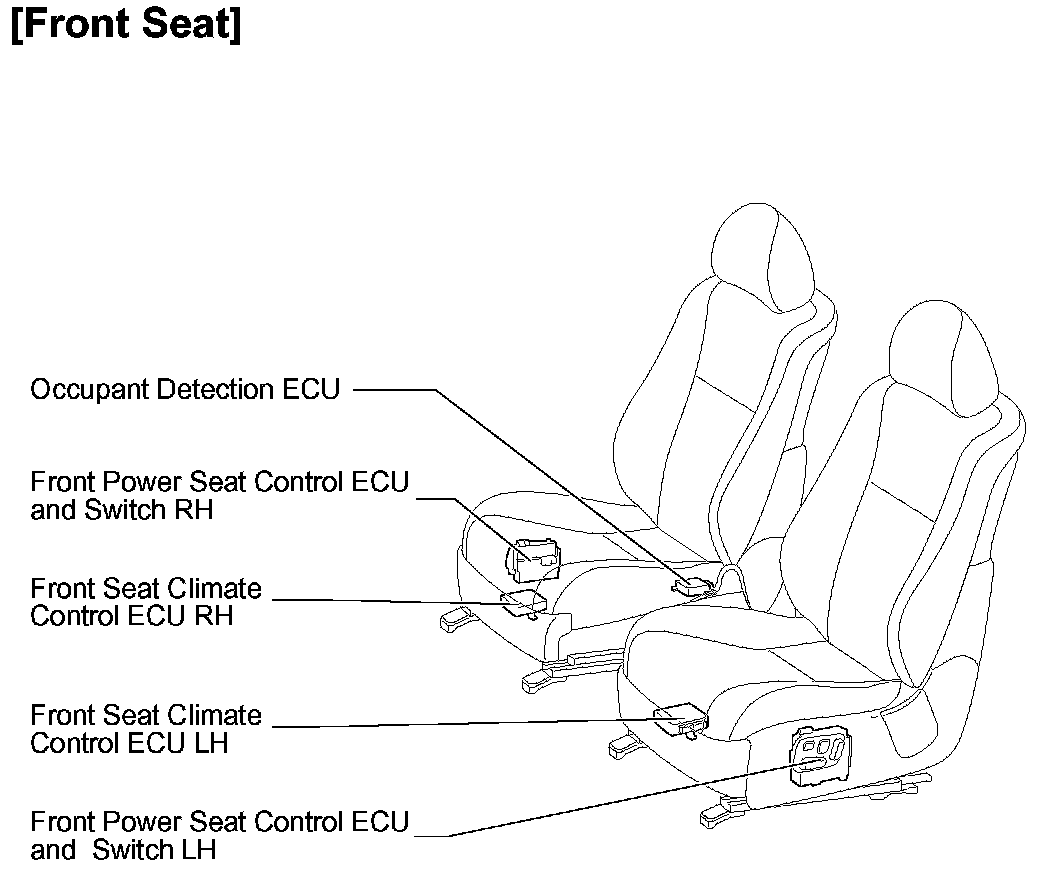

Front Seat:

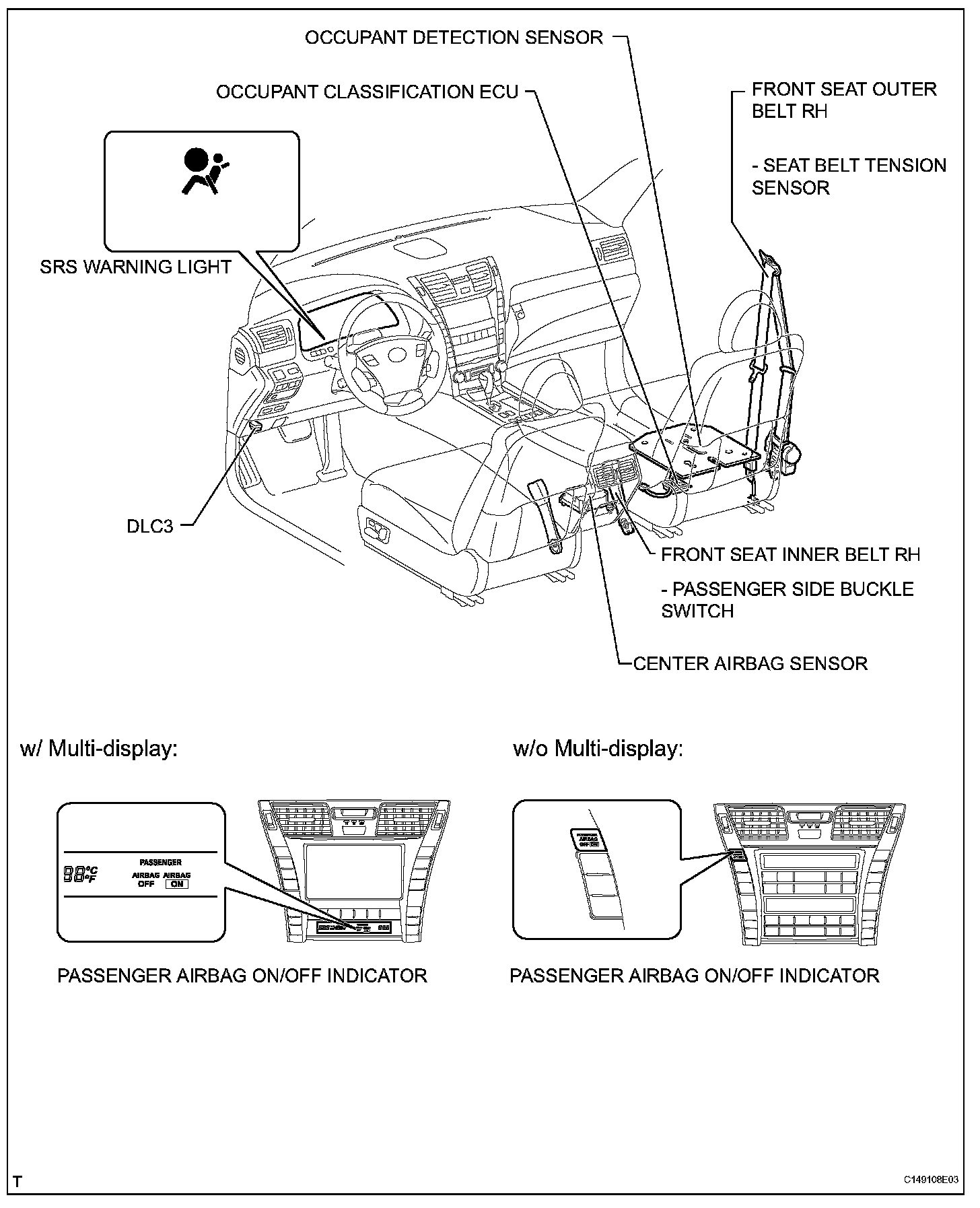

Occupant Classification System:



Pre-Collision System:
