Seat Belt Buckle Switch: Service and Repair

Shoulder Belt Anchorage Switch:

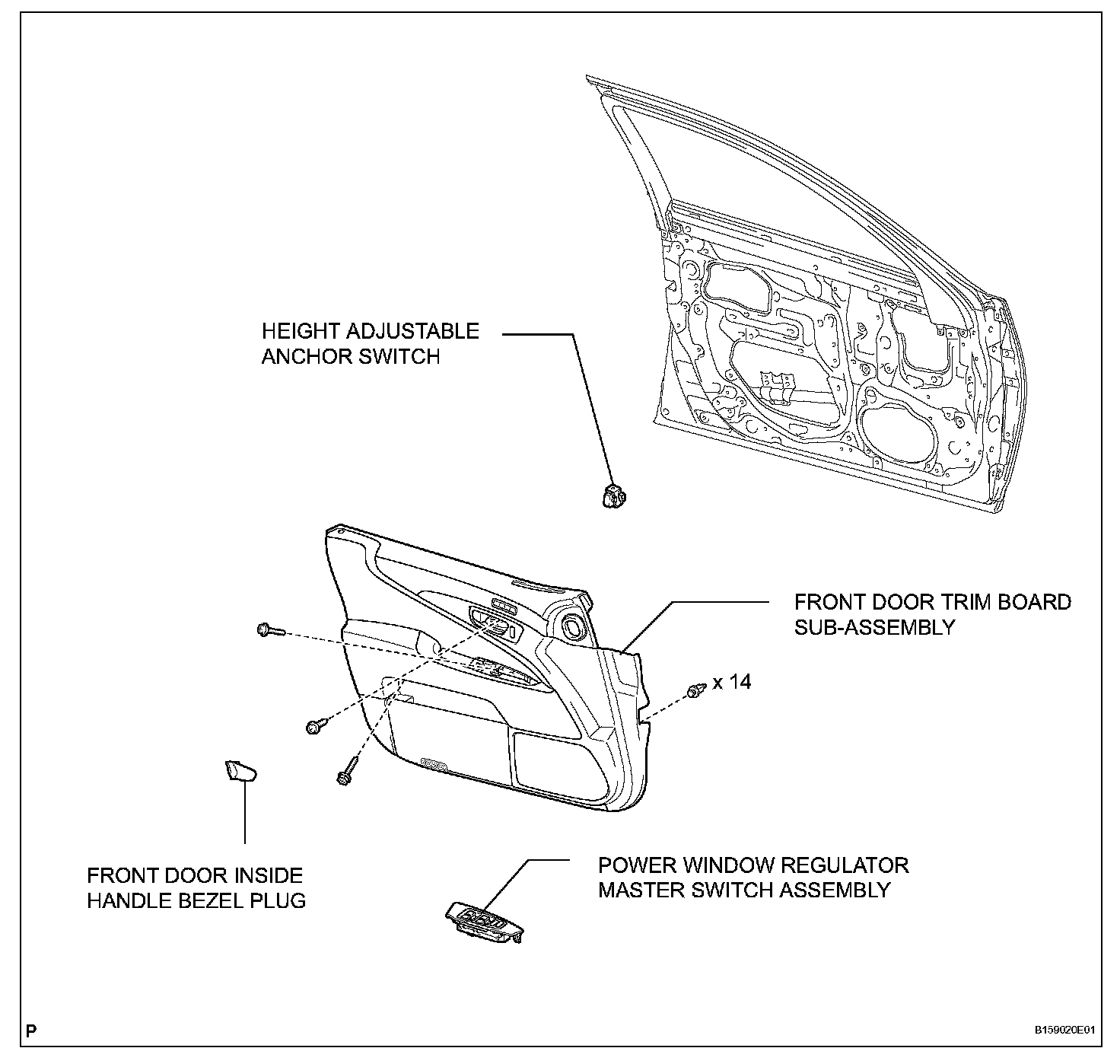

SHOULDER BELT ANCHORAGE SWITCH

REMOVAL

HINT:
- Use the same procedures for the LH side and RH side.
- The procedure listed below are for the LH side.

1. REMOVE COWL TOP VENTILATOR LOUVER RH
2. DISCONNECT CABLE FROM NEGATIVE BATTERY TERMINAL

CAUTION: Wait at least 90 seconds after disconnecting the cable from the negative (-) battery terminal to prevent airbag and seat belt pretensioner activation.

NOTE: After the engine switch is turned off, the HDD navigation system requires approximately 6 minutes to record various types of memory and settings. As a result, after turning the engine switch off, wait 6 minutes or more before disconnecting the cable from the negative (-) battery terminal.

3. REMOVE FRONT DOOR INSIDE HANDLE BEZEL PLUG
4. REMOVE POWER WINDOW REGULATOR MASTER SWITCH ASSEMBLY
5. REMOVE FRONT DOOR TRIM BOARD SUB-ASSEMBLY

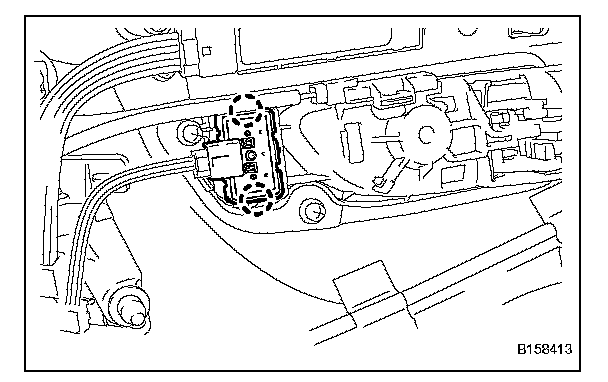

6. REMOVE HEIGHT ADJUSTABLE ANCHOR SWITCH




a. Using a screwdriver, detach the 2 claws and remove the switch.

HINT: Tape the screwdriver tip before use.

INSTALLATION

HINT:
- Use the same procedures for the LH side and RH side.
- The procedures listed below are for the LH side.

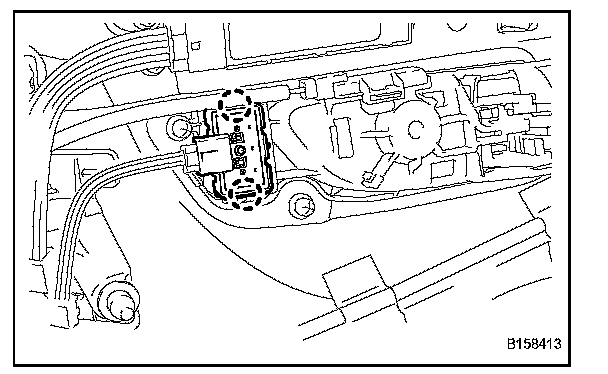

1. INSTALL HEIGHT ADJUSTABLE ANCHOR SWITCH




a. Attach the 2 claws to install the switch.

2. INSTALL FRONT DOOR TRIM BOARD SUBASSEMBLY
3. INSTALL POWER WINDOW REGULATOR MASTER SWITCH ASSEMBLY
4. INSTALL FRONT DOOR INSIDE HANDLE BEZEL PLUG LH
5. CONNECT CABLE TO NEGATIVE BATTERY TERMINAL
6. INSTALL COWL TOP VENTILATOR LOUVER RH
7. PERFORM INITIALIZATION
a. Perform initialization.

NOTE: Certain systems need to be initialized after disconnecting and reconnecting the cable from the negative (-) battery terminal.
