Home >> Lexus >> 2007 >> LS 460 V8-4.6L (1UR-FSE) >> Repair and Diagnosis >> Sensors and Switches >> Sensors and Switches - Powertrain Management >> Sensors and Switches - Ignition System >> Crankshaft Position Sensor >> Locations

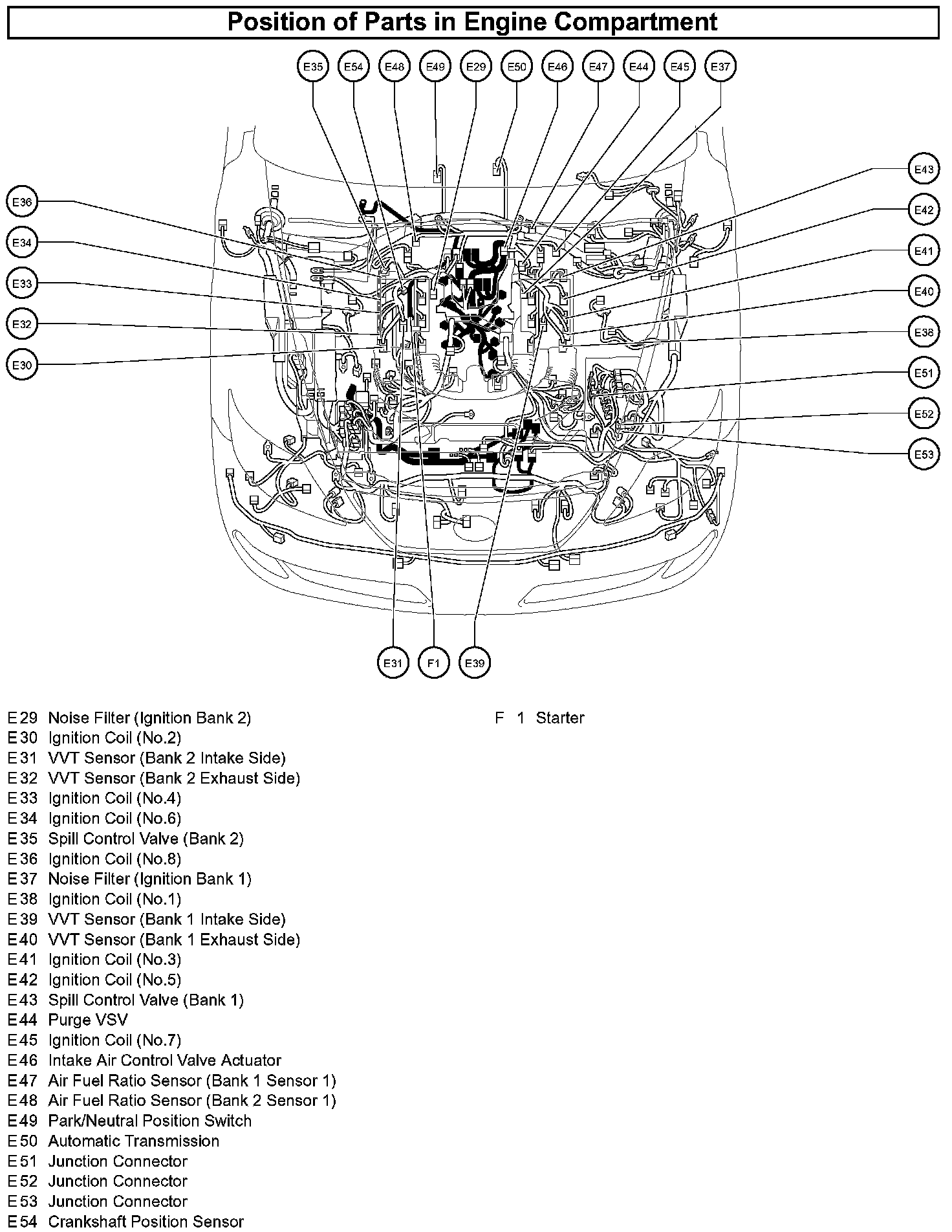

Crankshaft Position Sensor: Locations

Ai - VVT:

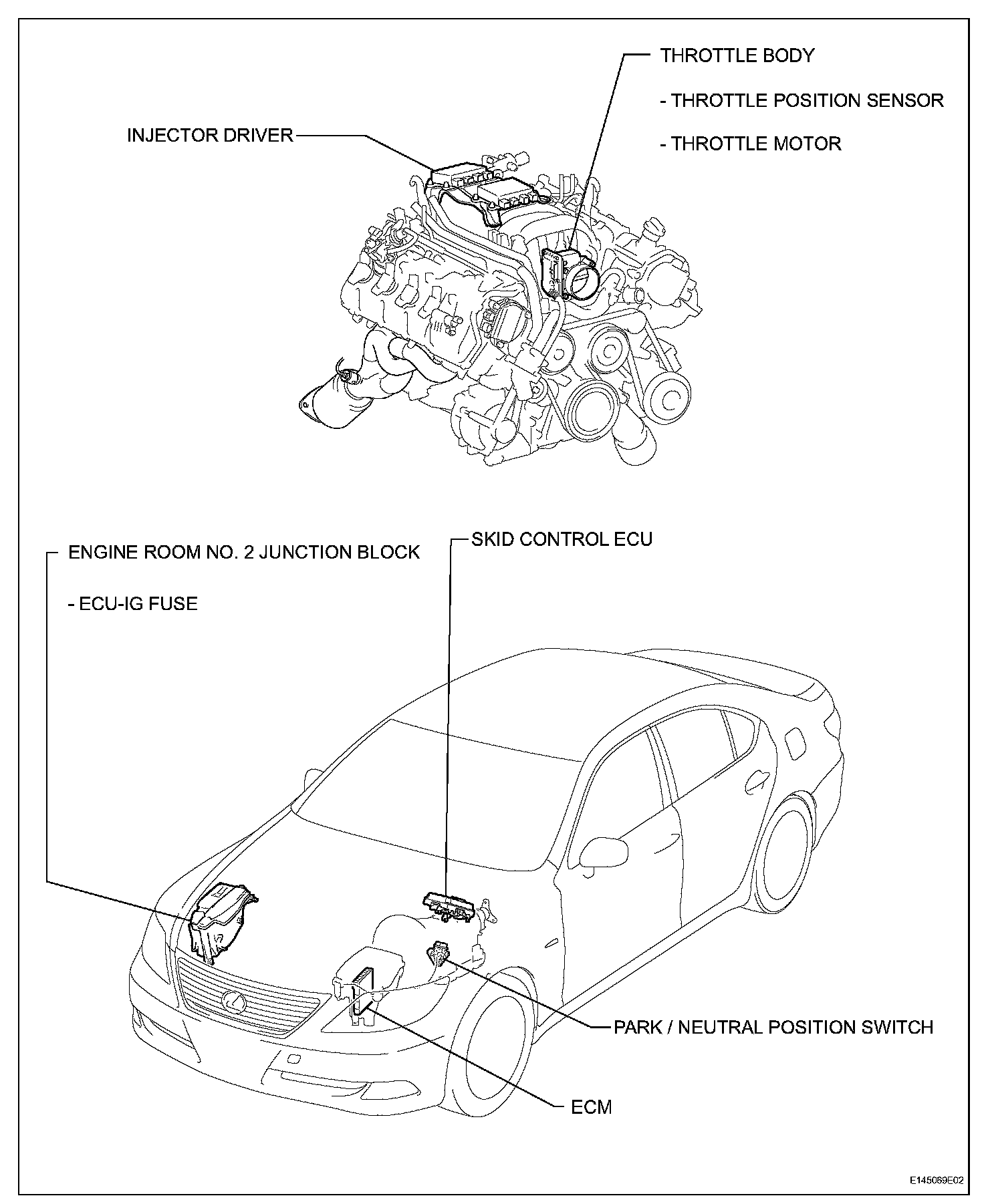

SFI System:



Rear View Monitor System:

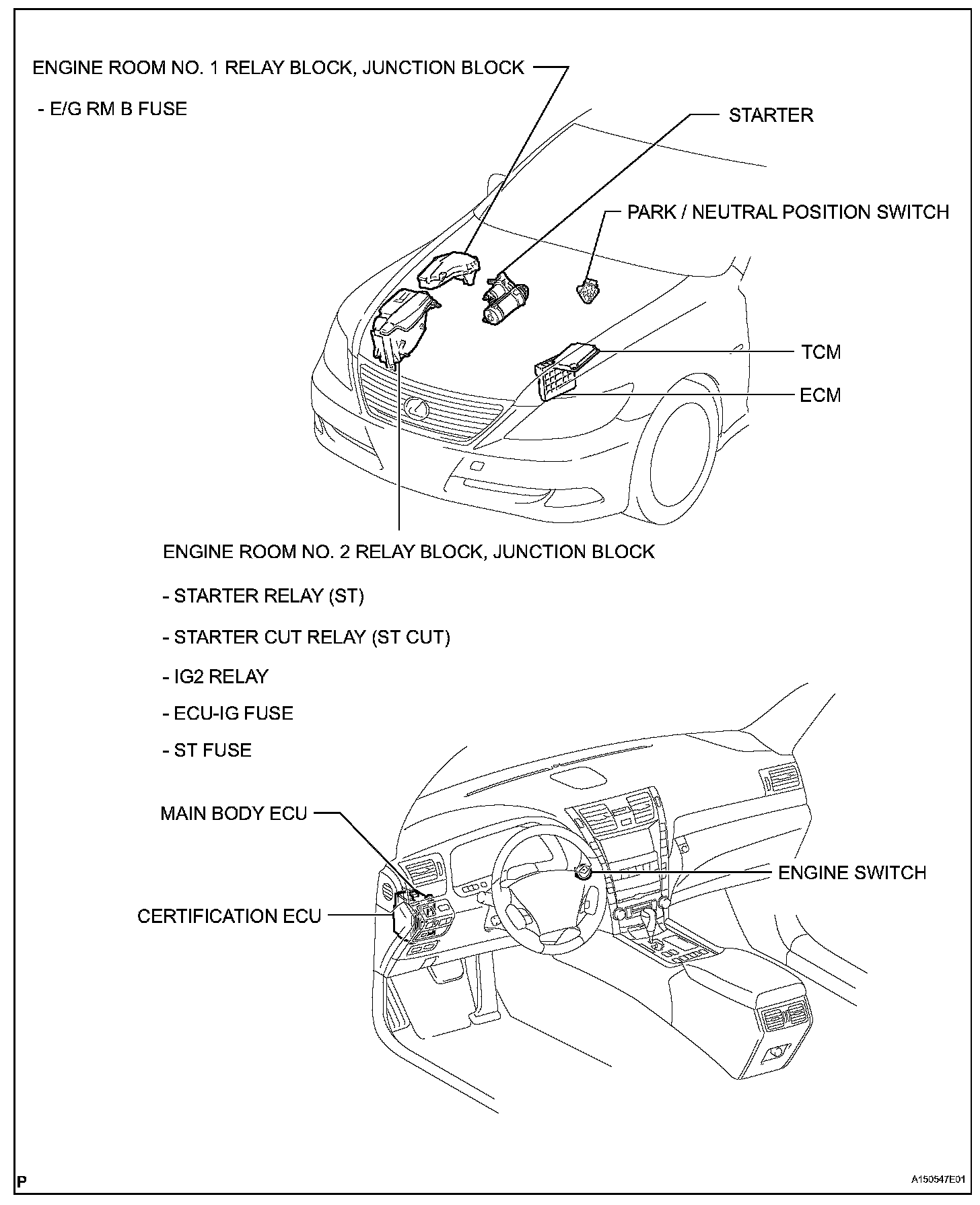

Starting System:

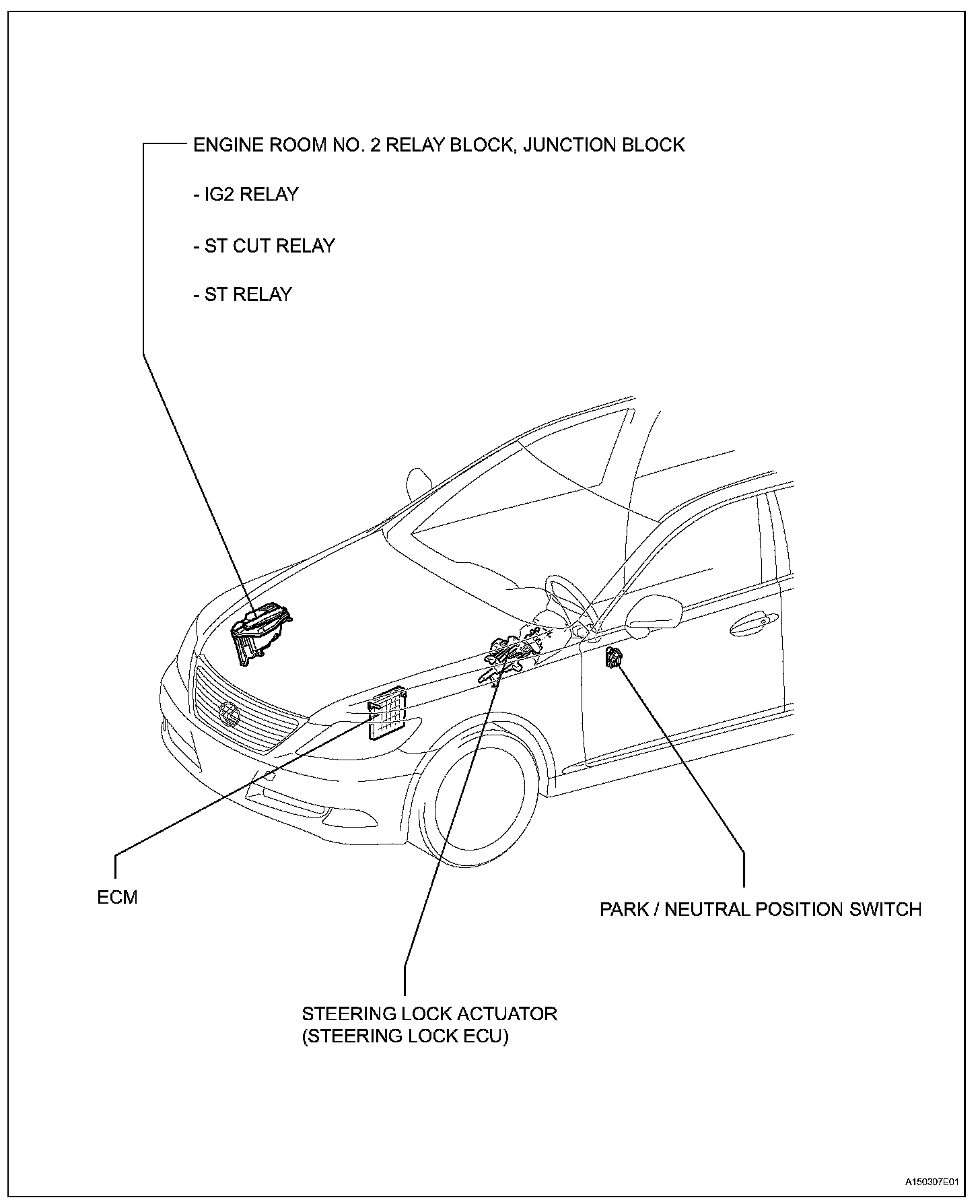

Smart Access System With Push-Button Start:



Cruise Control System:
