Camshaft Position Sensor: Testing and Inspection

ON-VEHICLE INSPECTION

1. CHECK CAMSHAFT POSITION SENSOR OUTPUT VOLTAGE




a. Turn the engine switch on (IG).

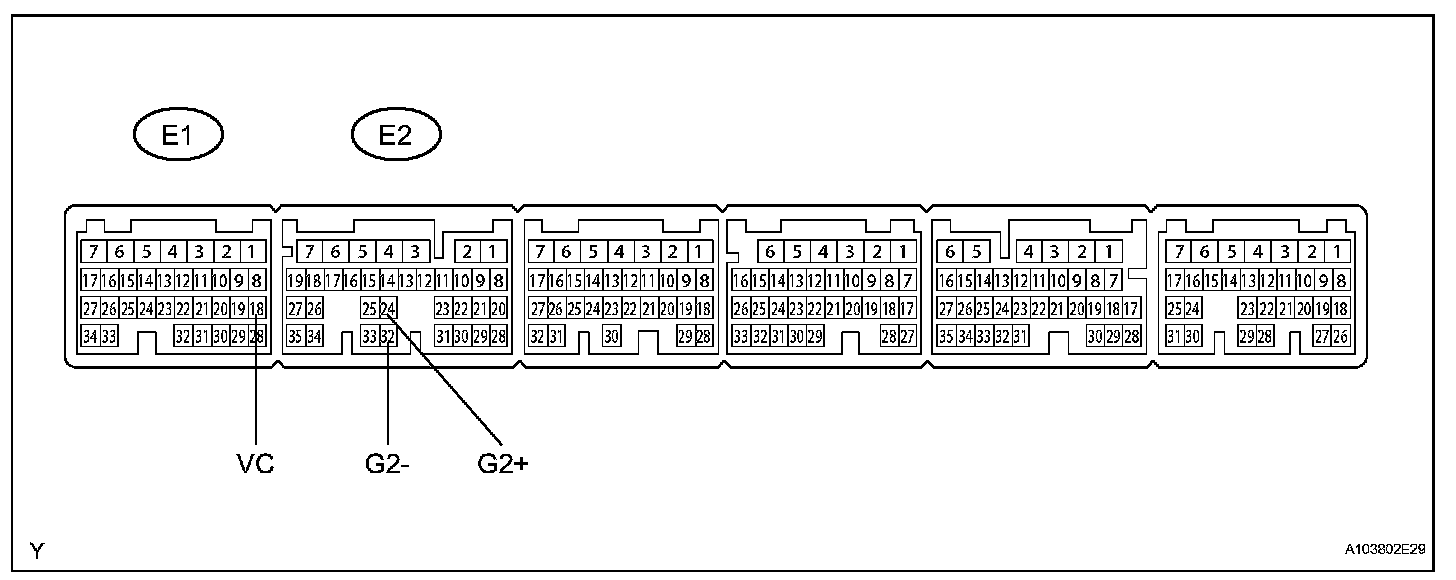

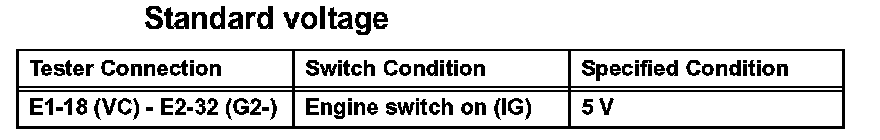

b. Measure the voltage between each terminal.

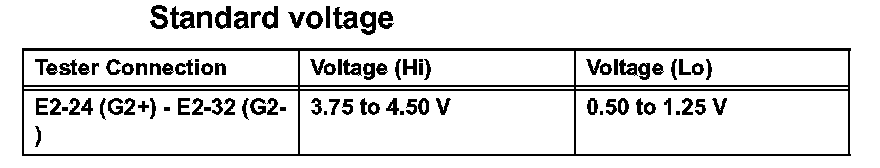

c. While turning the crankshaft pulley by hand, measure the voltage between each terminal. Check that the voltage changes between the Hi range and Lo range given in the table.
