Headlamp Dimmer Switch: Testing and Inspection

INSPECTION




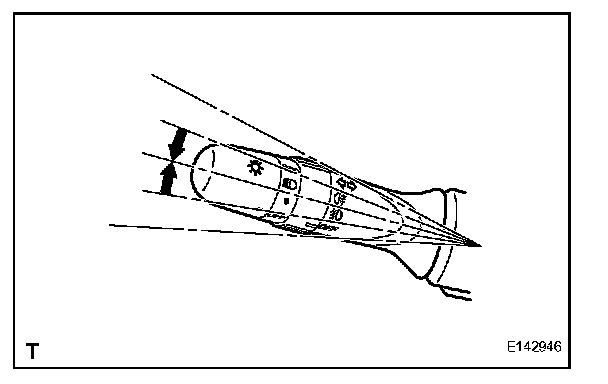

1. INSPECT HEADLIGHT DIMMER SWITCH ASSEMBLY




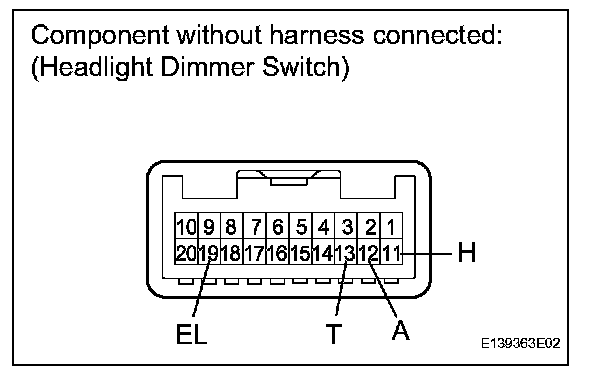

a. Measure the resistance according to the value(s) in the table.

If the result is not as specified, replace the switch.

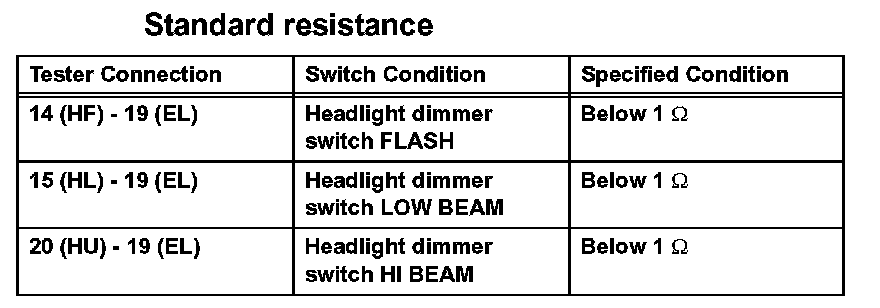

b. Measure the resistance according to the value(s) in the table.

If the result is not as specified, replace the headlight dimmer switch.

HINT: Perform the "LOW BEAM" and "HI BEAM" inspection with the light control switch on "HEAD".

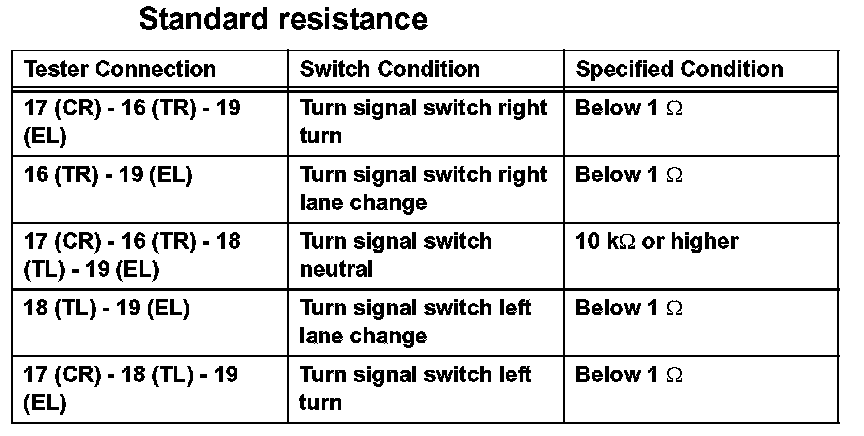

c. Measure the resistance according to the value(s) in the table.

If the result is not as specified, replace the turn signal switch.

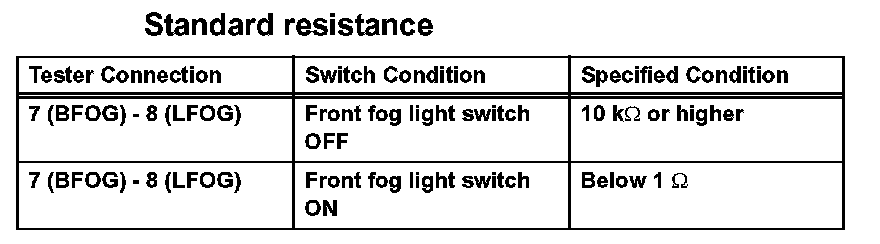

d. Measure the resistance according to the value(s) in the table.

If the result is not as specified, replace the front fog light switch.

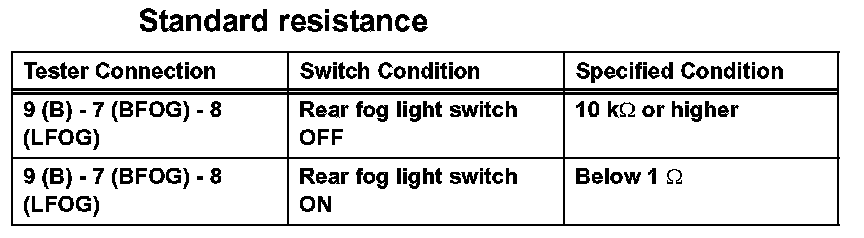

e. Measure the resistance according to the value(s) in the table.

If the result is not as specified, replace the rear fog light switch.
