Component Inspection

INSPECTION




1. INSPECT HAZARD WARNING SIGNAL SWITCH ASSEMBLY
a. LED illumination inspection

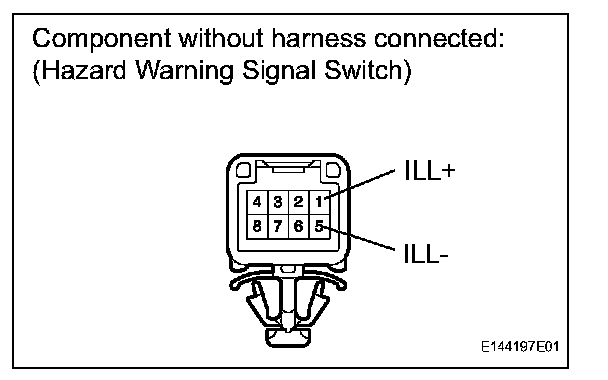

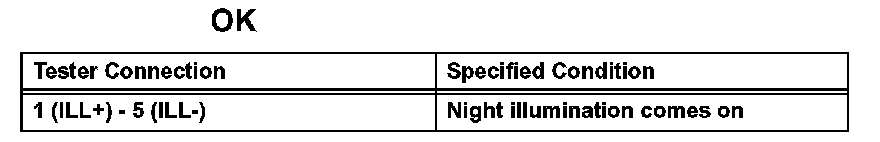

1. Apply battery voltage to the terminals of the connector, and check the LED illumination condition.

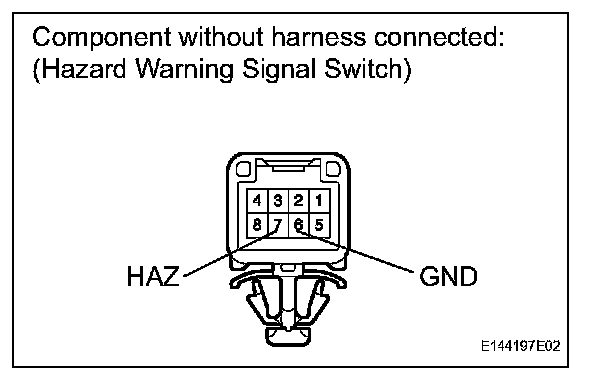

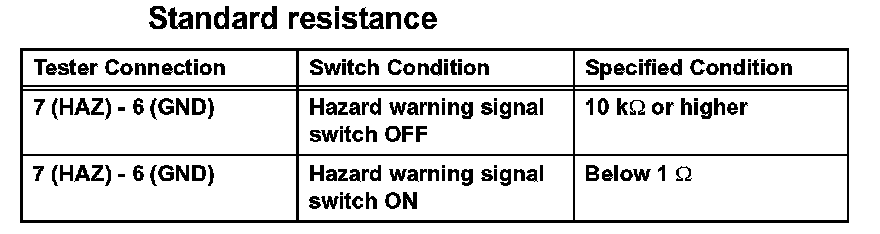

b. Measure the resistance according to the value(s) in the table.

If the result is not as specified, replace the hazard warning signal switch.
